Flow Monitoring

Paddle

Switching range 1,3..35 l/min

Water (oils, gases and aggressive media available on request)

G⅜" up to G2"

Brass or stainless steel wetted parts

Max pressure 25 bar

For liquids up to 100 Bar

Flow range 0.02 to 3 m/2

Connection type from Push-in to threaded G1/s

IO-Link interface

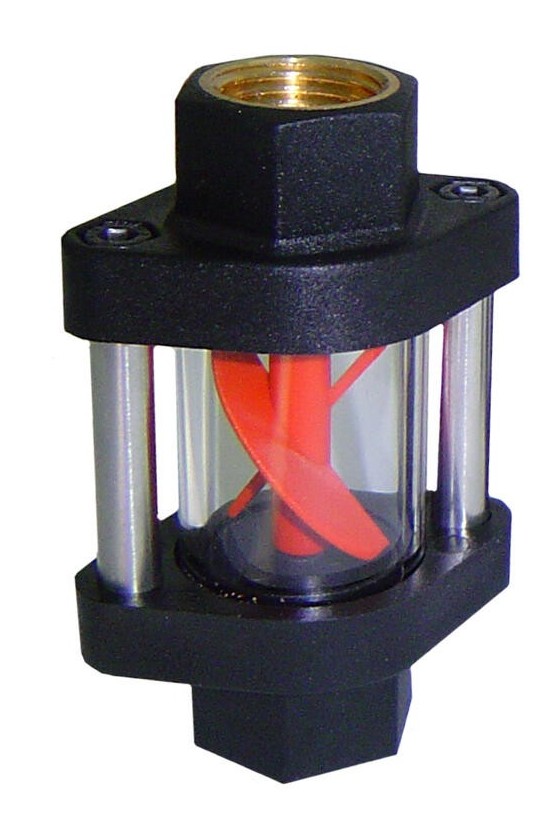

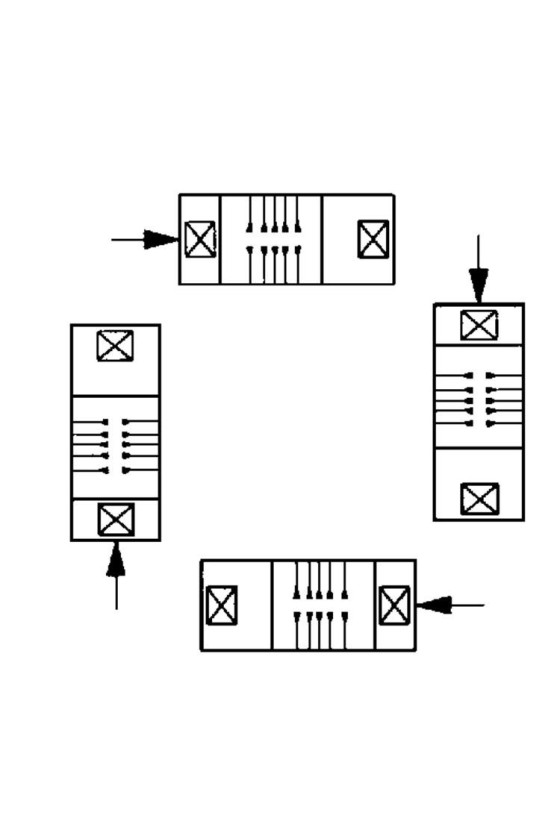

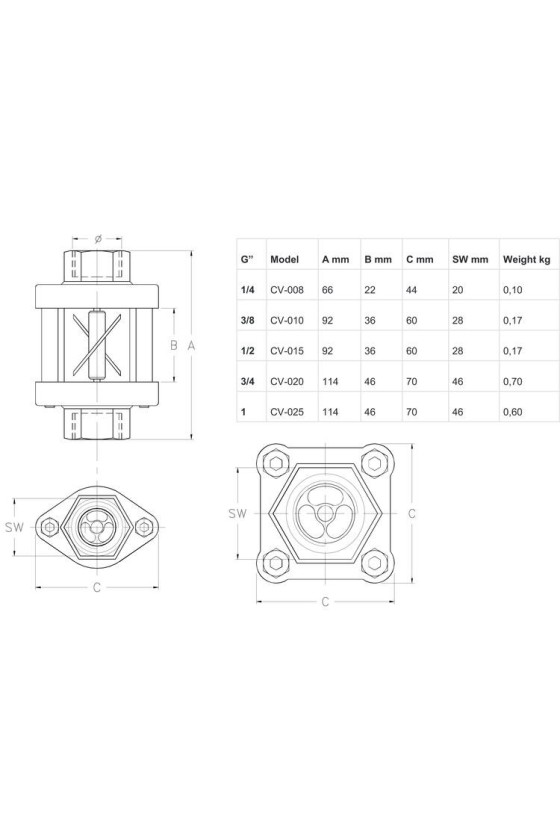

The CV series flow indicator from Val.Co allows a visual inspection of the passage of liquids in hydraulic and water systems. The propeller is coloured for better visualization with opaque liquids and there is also an option for a blue propeller and an output.

• Ranges covering 0.6..80 l/min H2O


• Bidirectional


• Up to 25 bar max (depending on model)


• Brass connections

Paddle

Switching Range 3,5..69 l/min H₂O

Water (oils, gases and aggressive media available on request)

G⅜" up to G2"

Brass or Stainless Steel Wetted Parts

Max Pressure 25 bar

Rotor

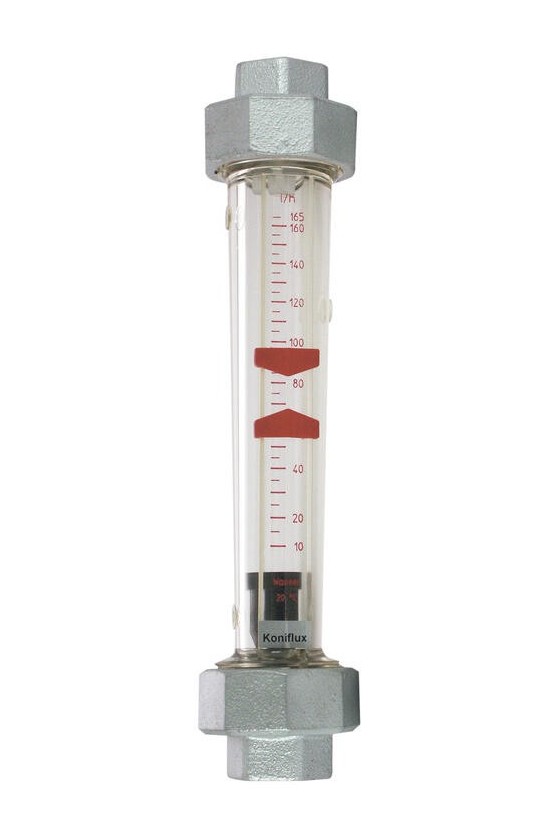

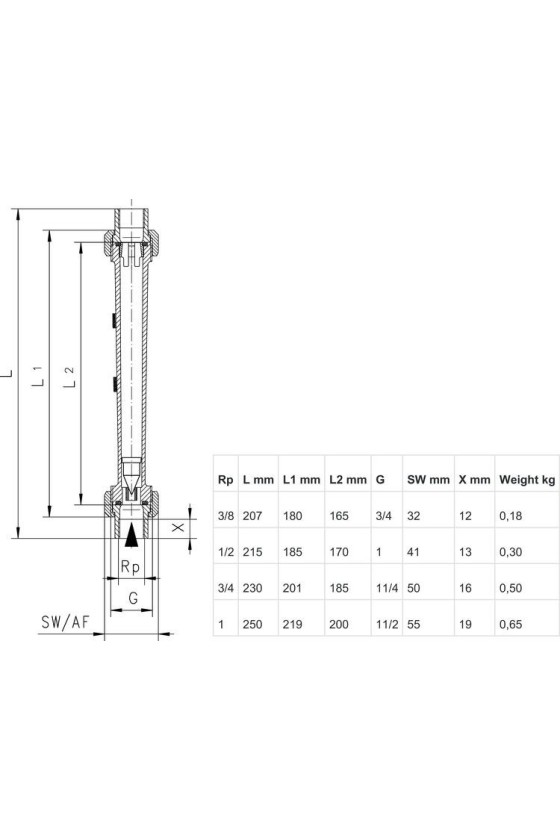

Model GK is a variable area flow meter with a scale that is easy to read. It has been developed to measure liquids and gases/air in various forms.

• Flow from 0.2 to 10 Nm2/h3/h air and 10-640 l/h water


• For pressure up to 15 bar


• With min. and max. indication

Paddle

Switching Range 4..93 l/min H₂O

Water (oils, gases and aggressive media available on request)

G⅜" up to G1"

Brass or Stainless Steel Wetted Parts

Max Pressure 25 bar

Magnetic-Inductive

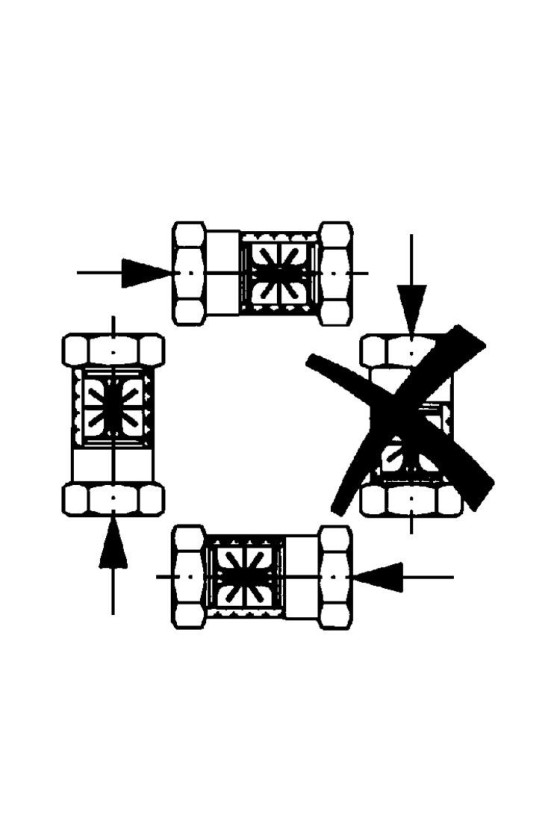

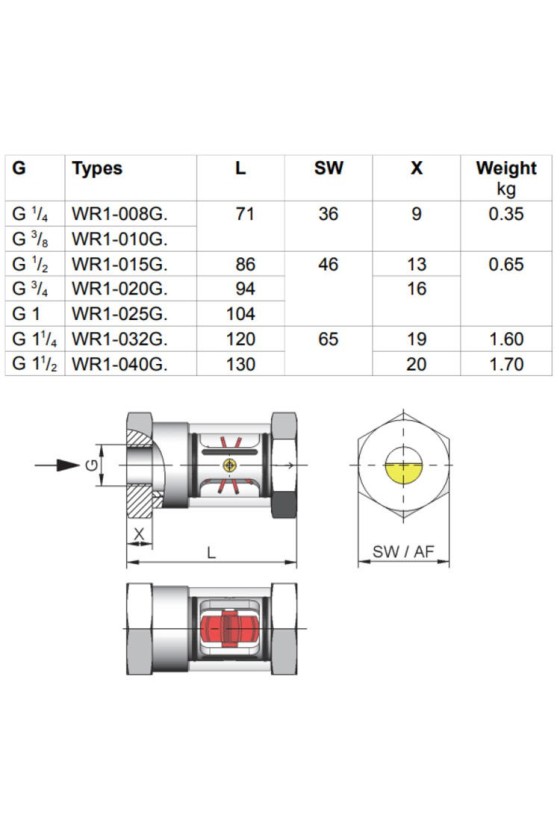

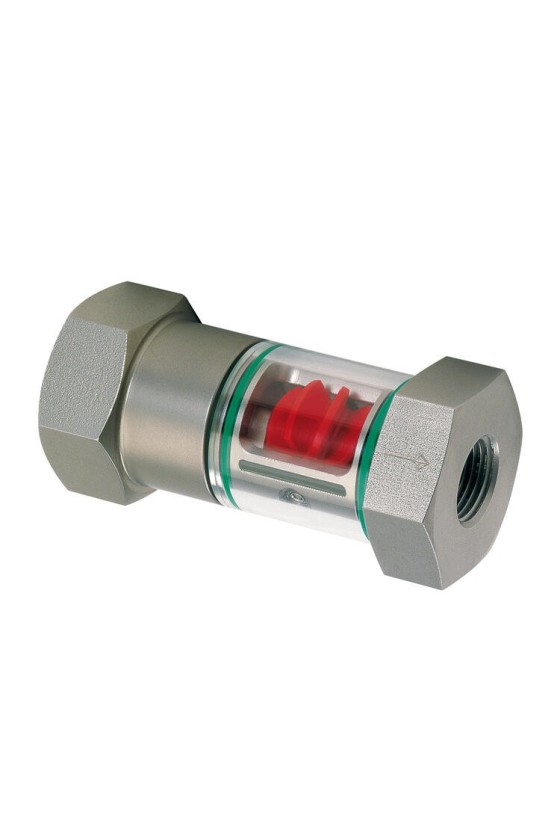

The WR1 mechanical flow indicator is designed for use with water, oils and air/gases to show a quantitative flow display though a spinning rotor.

• Ranges covering 0.7..100 l/min H2O


• Ranges covering18 to 700 l/min air (1 bar)


• 16 bar max


• Brass connections

Paddle

Switching Range 0,2...165,7 m3/h

Water (oils and aggressive media available on request)

Male Thread R1"

Brass or Stainless Steel Wetted Parts

Max Pressure 11 bar

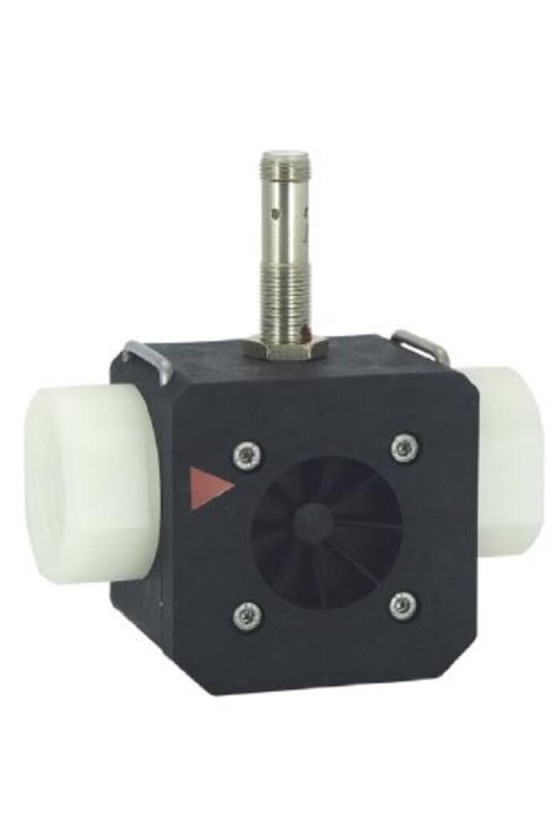

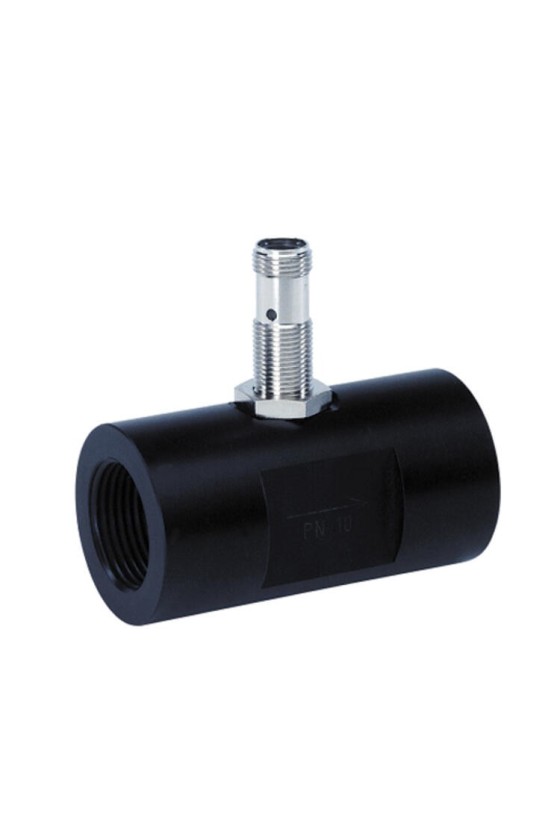

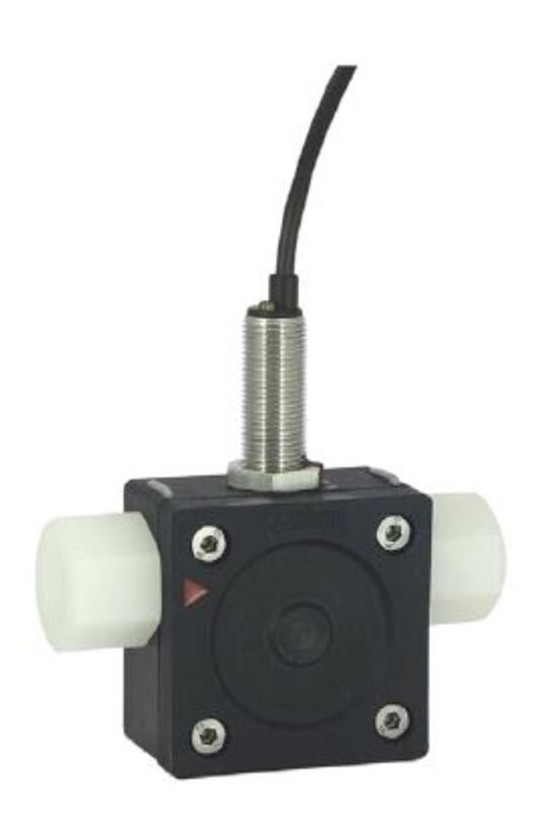

Model RRT is a simple turbine sensor that is highly suitable in all types of industrial applications where the pressure does not exceed 100 bar. The sensor has a low tolerance in terms of pulses and therefore is suitable when used in large numbers.

• For liquids up to 100 bar

  Flow ranges 1-50 l/min, and 2-80 l/min. water

  Connection 3/4"

Flow display with float

For liquids and air up to 6 bar

Flow from 0.04 to 100 Nl/min. air (0.2 to 220 l/h water)

With or without needle valve

Piston

Swittching Range 0,04..3 l/m H₂O

Water (gas and aggressive media available on request)

G¼"

Brass or Stainless Steel Wetted Parts

Max Pressure 300 bar

Dynamic diaphragm (flap)

Sight Glass

16 Bar max

G ¼ - 151l/min - G1½ - 220l/min

Water , Oil

DN-8-G ¼ - DN40-G1½

Brass / Stainless Steel

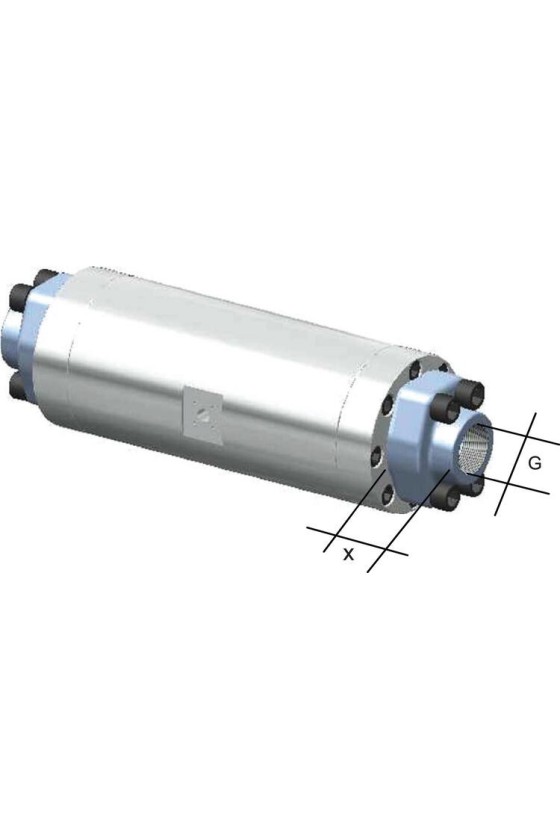

Spindle (screw)

For oil and lubricating liquids up to 40,000 cSt

For high flows up to 2500 l/min

Up to 350 bar pressure

Light and compact design

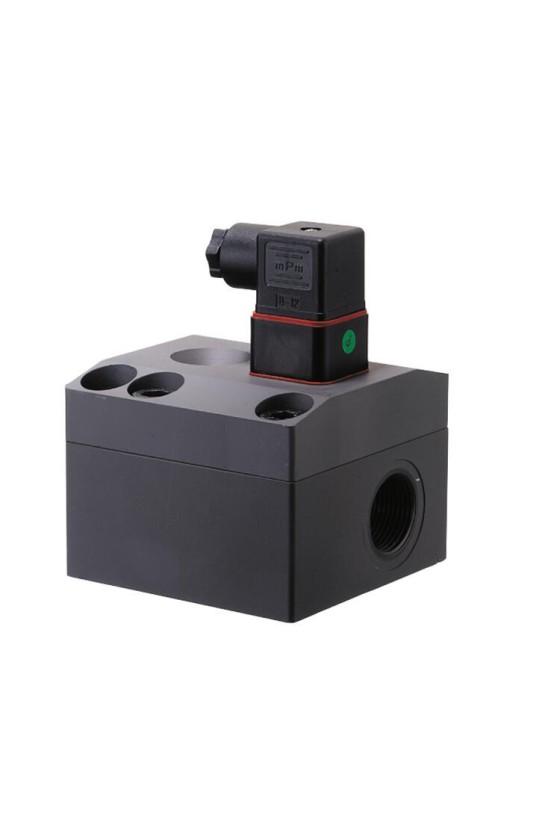

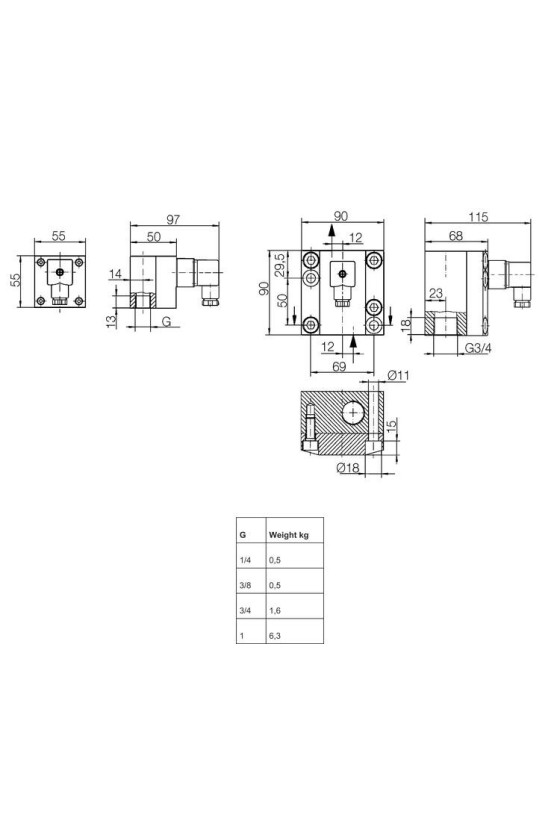

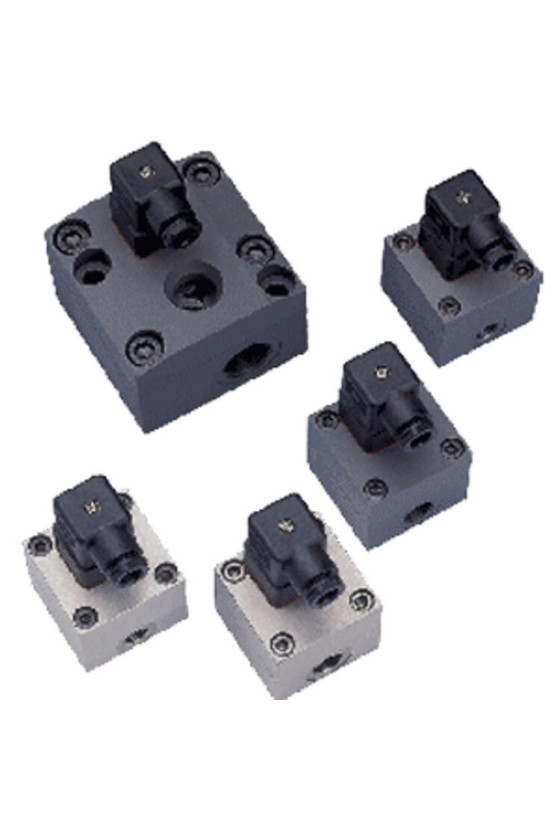

Gear Wheel

• For liquids up to 200 bar

  Flows ranges 0.02 to 150 l/min. 1-2500 cSt

  Connection 1/4" to 1"



Calorimetric

No moving parts

Wetted parts in stainless steel

Simple installation of set point
