Honsberg - VHS Series Flow Meter

Spindle (screw)

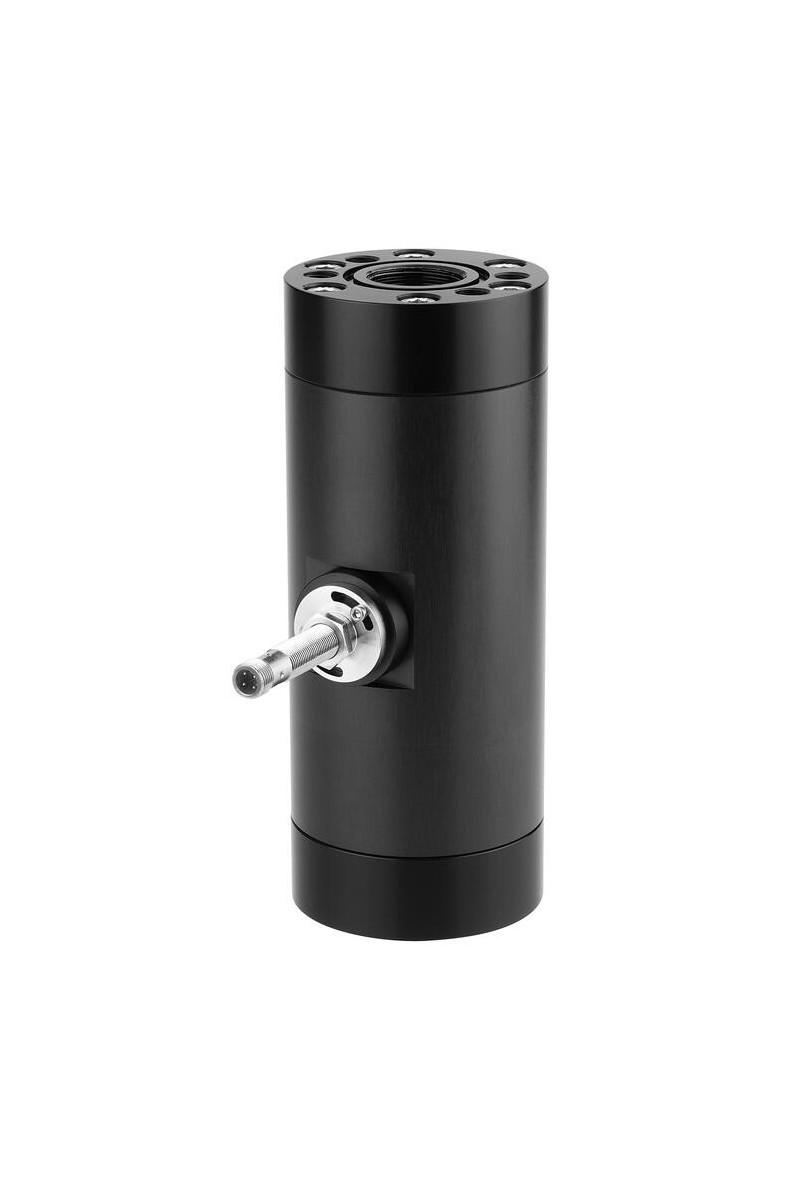

Model VHS is a screw flow sensor designed especially for applications with viscose media and high flows. Has high accuracy regardless of viscosity up to 40,000 cSt and maintains a low sound level under 50dB during operation. All mounting positions are possible and the direction of flow is independent of mounting position.

For oil and lubricating liquids up to 40,000 cSt

For high flows up to 2500 l/min

Up to 350 bar pressure

Light and compact design

£0.00
Tax included
Quantity :
Ask a Question

Model VHS is a screw flow sensor designed especially for applications with viscose media and high flows. Has high accuracy regardless of viscosity up to 40,000 cSt and maintains a low sound level under 50dB during operation. All mounting positions are possible and the direction of flow is independent of mounting position.

Accuracy ± 1% of the measurement value (at 20 cSt)

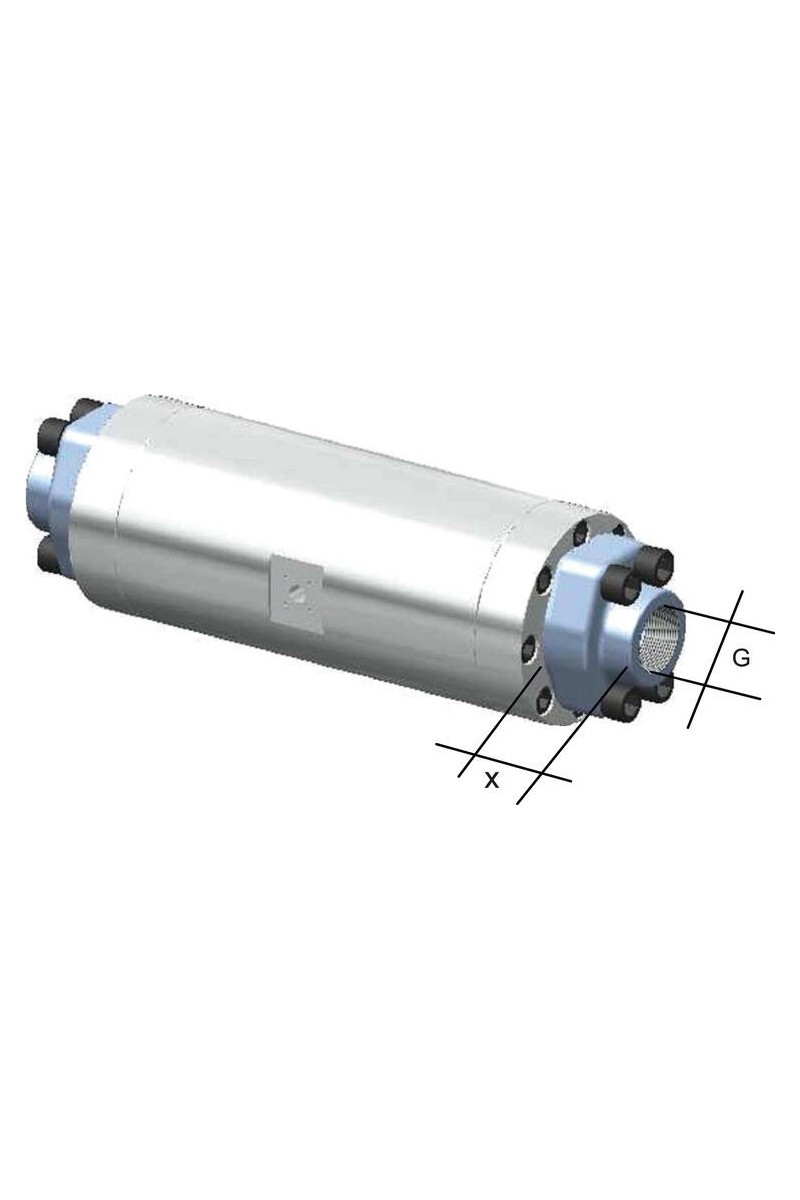

Connection type Internal thread, G 1 "
Electrical connection Plug connector DIN 43650-A
Flow max 200 l/min
Flow range max 140 l/min
Flow range min 1.4 l/min
Function Screw
IP class IP67
Material of connection Aluminium
Power consumption 19 mA
Pressure drop About 3 bars at 100 cSt
Pressure range max 160 bar
Repeatability 0.25 %

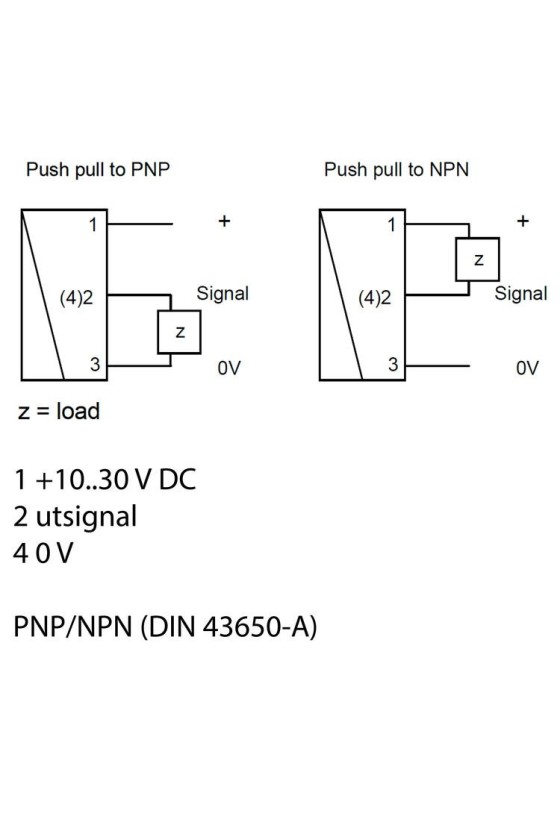

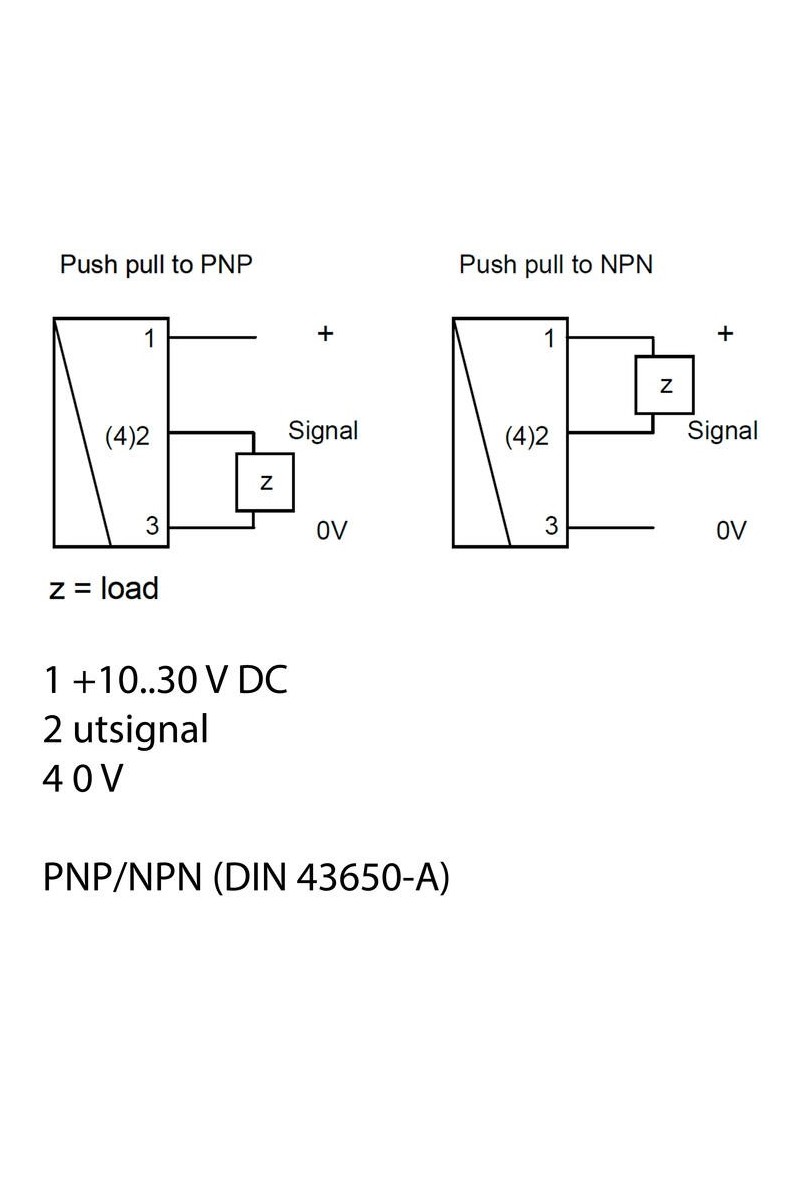

Signal outputs PNP / NPN frequency
Temperature of media from -25 °C
Temperature of media to 80 °C
Weight 3.44 kg
Viscosity max 40000 cSt
Voltage dc max 30 V
Voltage dc min 10 V
