Pressure Sensors

Our pressure sensors deliver precise measurements of both relative and absolute pressures, ensuring optimal system performance and protection. With a broad range of measuring spans, output signals, and process connections, we offer solutions tailored to meet your specific needs. Whether for hydraulic systems, pneumatics, HVAC, or process industries, our sensors consistently perform, even in the most challenging environments.

We offer a comprehensive portfolio of pressure sensors from trusted manufacturers, ensuring high quality and long-term reliability. Many of our models feature robust stainless steel housings, high ingress protection ratings, and exceptional resistance to vibration and temperature fluctuations. Beyond our standard products, we also provide expert technical support and customized solutions to meet your unique application requirements. Our knowledgeable team is ready to assist with product selection, integration, and after-sales support to ensure optimal performance and complete customer satisfaction.

There are 27 products.

Sort by:

Showing 1-18 of 27 item(s)

REQUEST A QUOTE

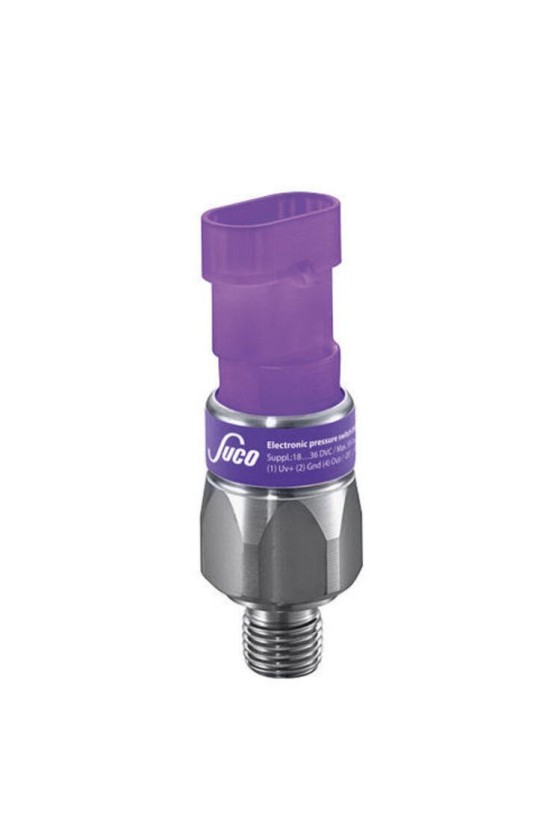

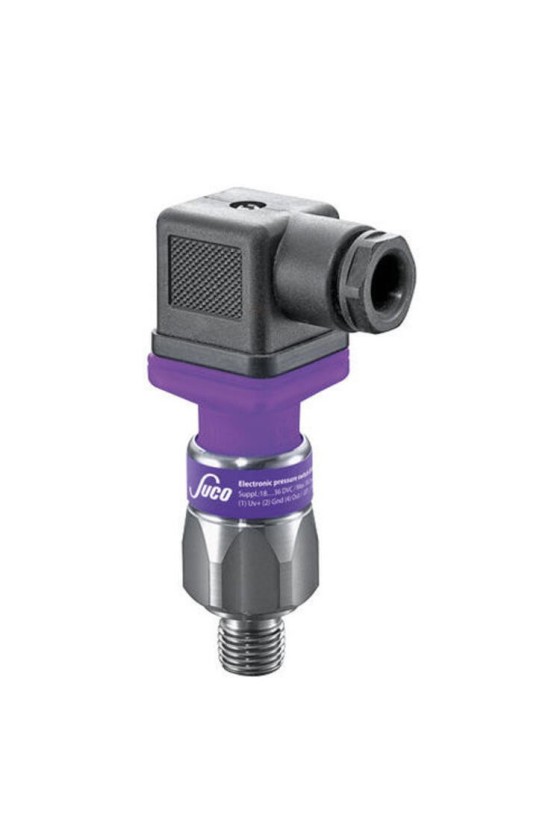

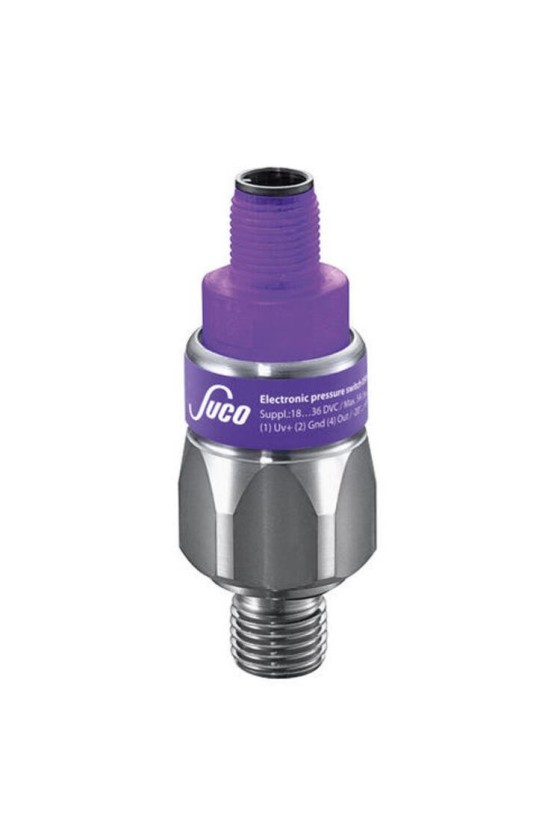

Suco - 0601/0602 Pressure Sensor

Performance series

The SUCO 0601/0602 performance series pressure sensor is a small, compact and cost effective pressure monitoring solution. Offering six standard pressure ranges with options of four different electrical connectors a thread of G1/4 and 0-10V or 4-20mA outputs. The 06 series uses a ceramic sensor in thick film technology which is housed in a stainless steel body.

Common applications include mobile hydraulics and power packs.

Measuring range up to 100 bar

Ceramic sensor

Small and compact

Stainless steel housing

£0.00

REQUEST A QUOTE

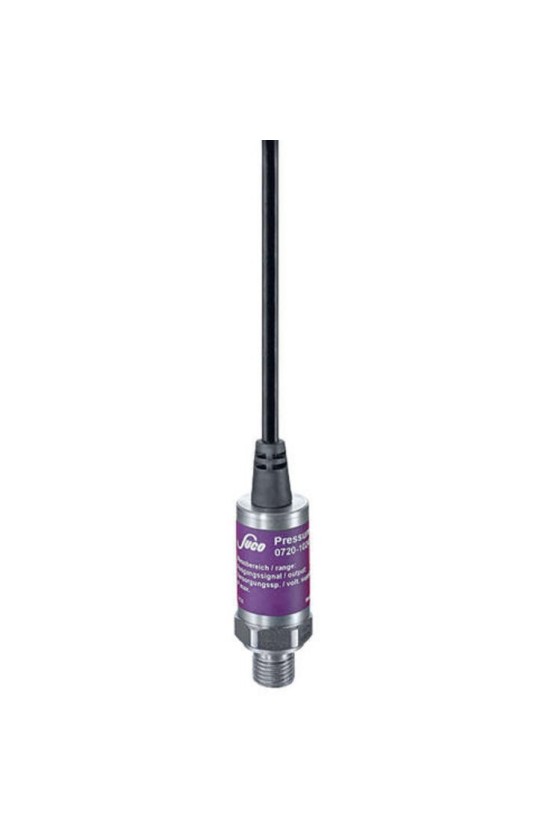

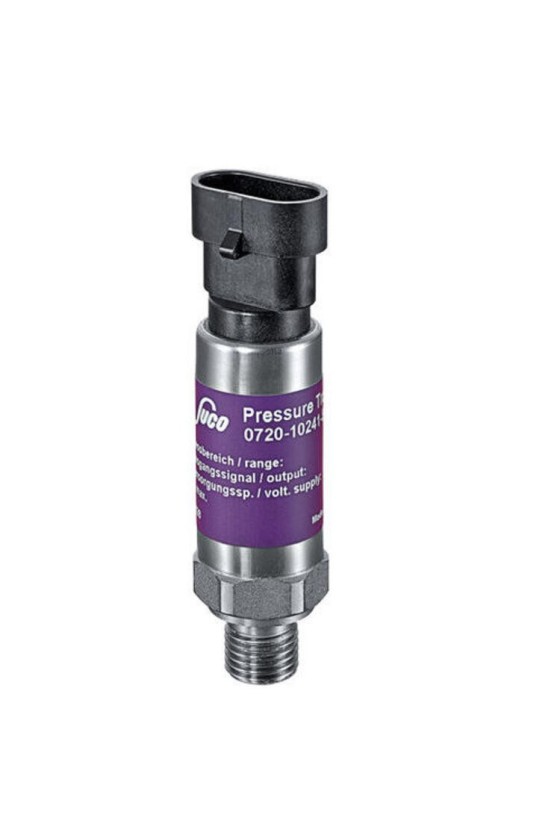

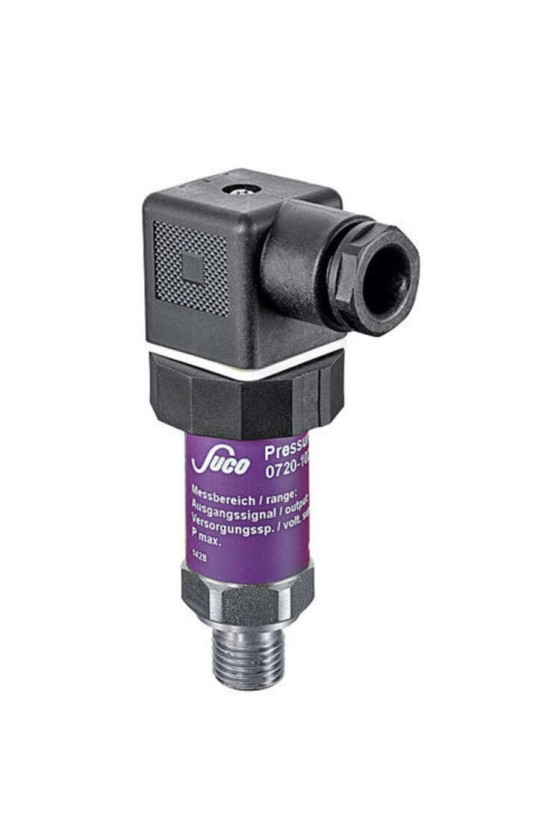

Suco - 0705/0710/0720 Pressure Sensor

High performance series

The SUCO 0705/0710/0720 high performance series pressure sensor is an advanced pressure monitoring solution with unrivalled attributes. Offering ten standard pressure ranges with options of six different electrical connectors a thread of G1/4 (eight available in total) and 0.5-4.5 V ratiomateric, 0-10V or 4-20mA outputs. The 07 series uses silicon-on-sapphire technology in a titanium all welded design offering outstanding overpressure protection, media compatibility and the the highest repeatability.

Common applications include mobile hydraulics, off-shore/marine, high pressure systems and more.

Measuring range up to 600 bar

Silicon-on-sapphire sensor

Outstanding overpressure protection

Outstanding repeatability

£0.00

REQUEST A QUOTE

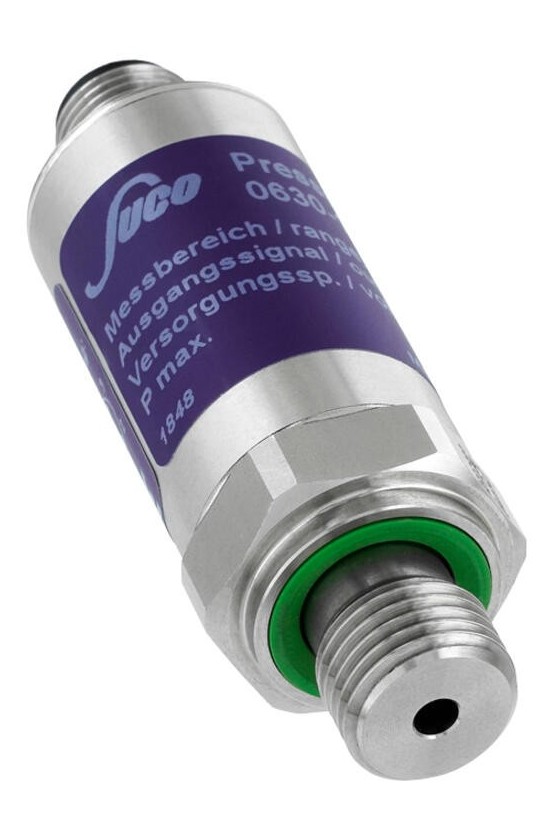

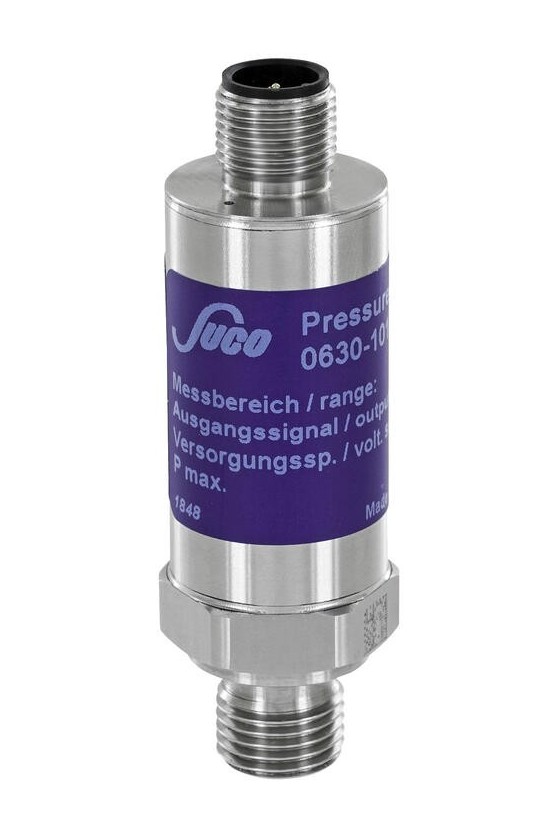

Suco - 0630/0631 Pressure Sensor

CANopen/CAN J1939 Series

Initially developed for automotive purposes CAN is a serial bus protocol which allows components such as sensors to communicate over a single or dual wired network to a vehicles system. This vastly reduces the amount of cable used, wiring time and connections used in standard wiring looms whilst still communicating data at high speeds.

Type 0630: CANopen protocol according to CiA DS-301, Device profile according to CiA DS-404

Type 0631: CAN J1939 protocol according to SAE J1939

14 Standard pressure ranges from 0..1 bar up to 0..600 bar

M12 electrical connector

£0.00

REQUEST A QUOTE

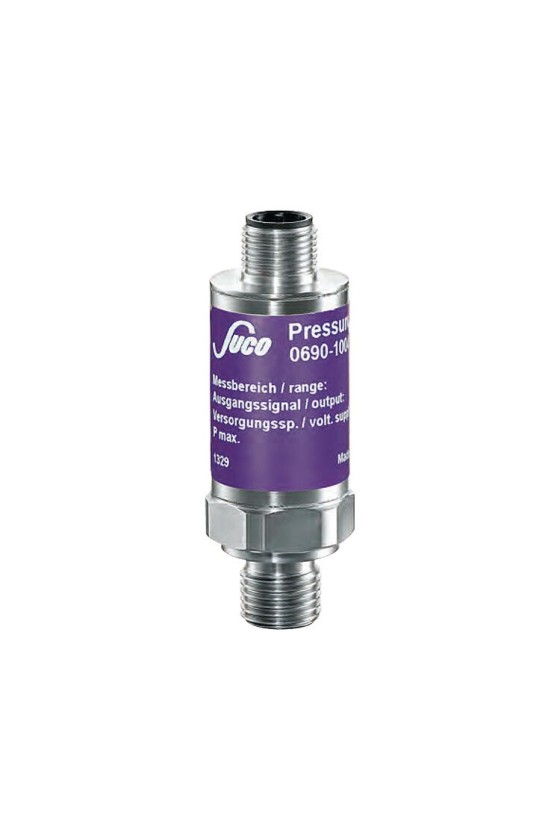

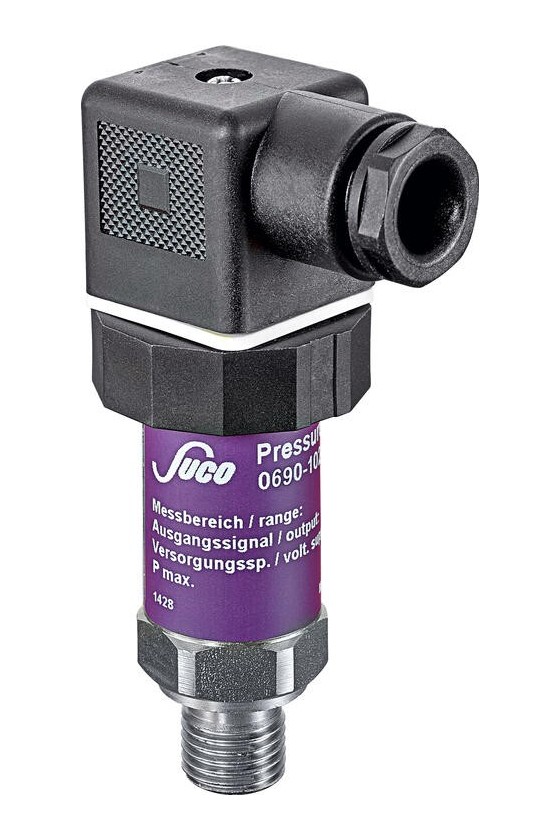

Suco 0675/0680/0690 Pressure Sensor

Robust Series

The Suco robust series of pressure sensors offers an option for vacuum applications with good overpressure protection (up to 3x), long service life even under high pressure change rates whilst giving very low temperature error and excellent long-term stability. Using a highly sensitive piezo-resisitve sensor in a flurine oil filled measuring cell for a high accuracy and repeatability, there are eight standard pressure ranges starting at -1-0 bar (vacuum) all the way up to 0-100 bar, with three output signal options of 0.5-4.5V, 0-10V and 4-20mAmp. The wetted parts are made of stainless steel (AISI 316L & AISI 316L) and NBR or FKM giving excellent media compatibility with four standard electrical connection options including Pre-cabled, DIN and M12 combined with one standard thread type.

For low pressures & vacuum

Long life time even under high pressure change rates

Excellent media compatibility

Oil filled measuring cel

£0.00

REQUEST A QUOTE

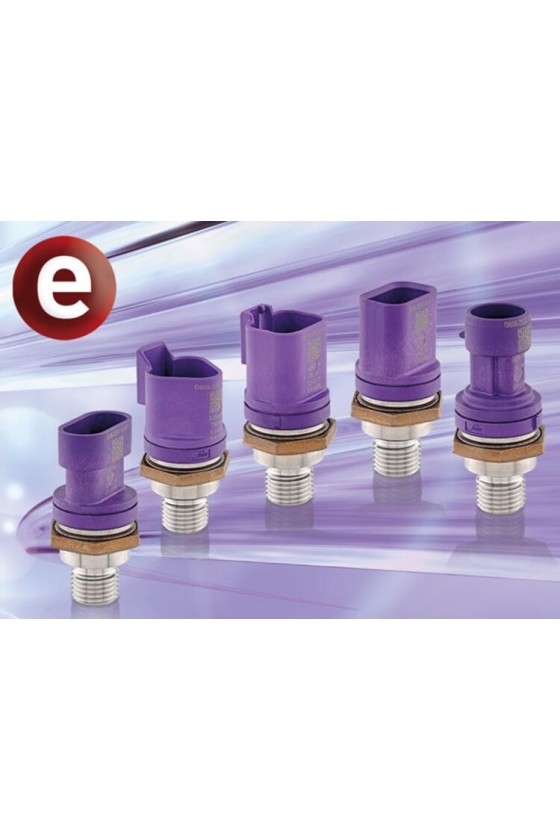

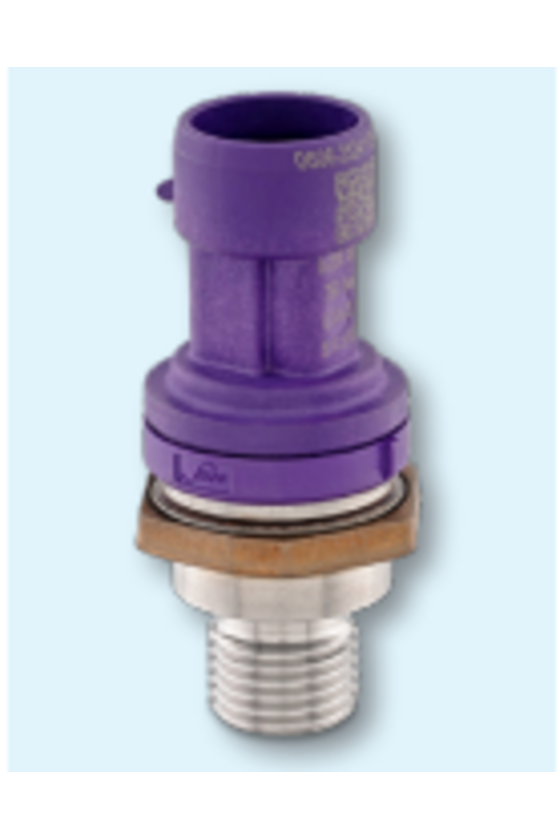

SUCO 0606 Series Pressure Sensor

Compact Series

The economy 0606 pressure transmitters can offer a high wear resistance and withstand pressure cycling rates of 5,000 bar/s. Through accredited static and dynamic pressure cycling tests we also guarantee a service life of at least 10 million pulsations.

All materials in contact with the media consist of stainless steel in fully welded design and without any elastomeric sealing material. This ensures compatibility with almost all media applications.

High IP protection up to IP6K9K

Pressure ranges from vacuum to 5,000 bar

Wide range of connectors and threads

Protection against overload, overvoltage or short circuit

Various interfaces (CAN, SAE J1938, SENT, RS-485

£0.00

REQUEST A QUOTE

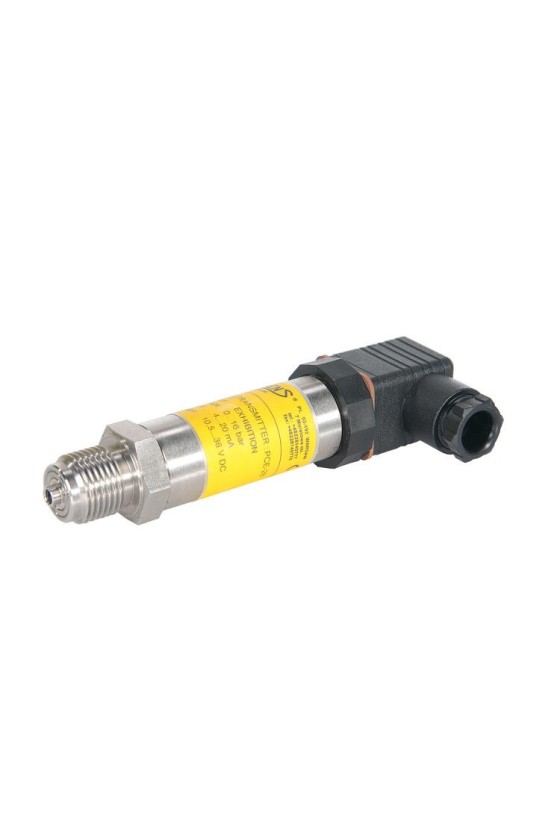

Aplisens - PCE-28 SMART Pressure Transmitter

PCE-28.smart from manufacturer Aplisens, is a robust and versatile pressure transmitter of the highest quality with very high accuracy. Can be used for relative pressure, negative pressure and absolute pressure of air, water, oil and gas.

From -1 to +1380 bar

Max. deviation 0.1%

Air, water, oil and gas

Minimum span 5 mbar

Also in ATEX / IECEx / EXD

£0.00

REQUEST A QUOTE

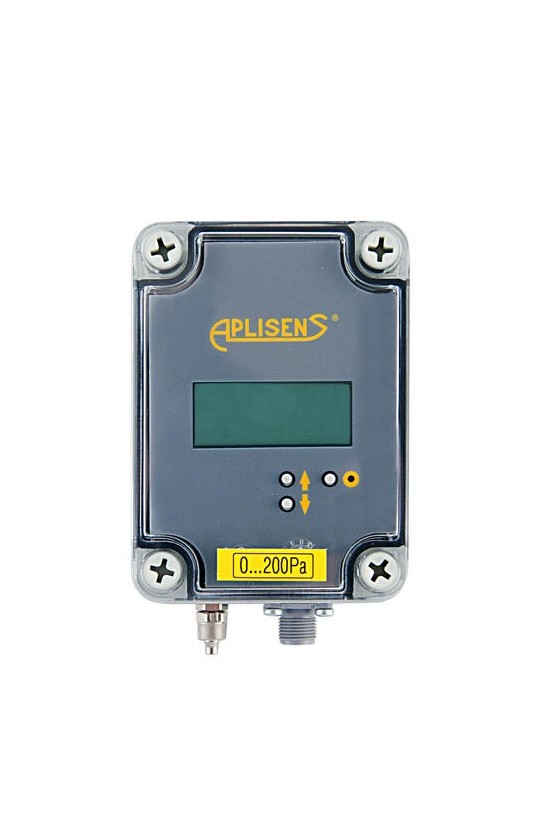

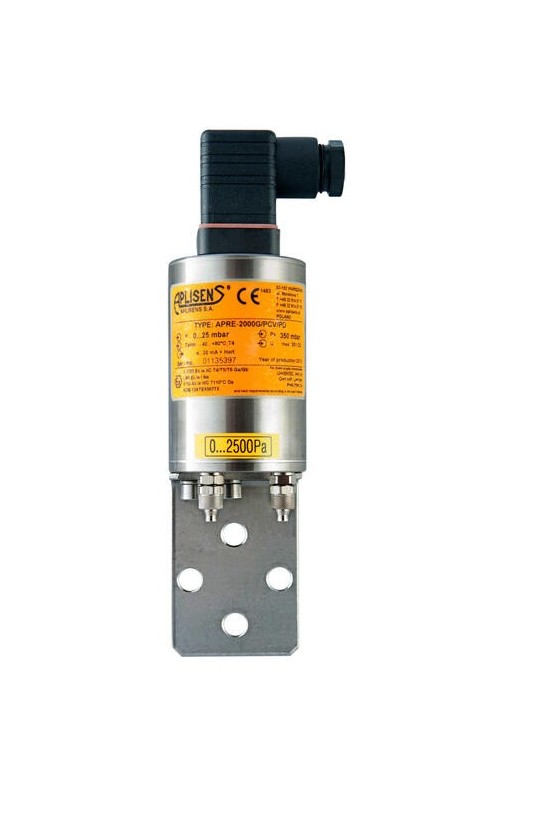

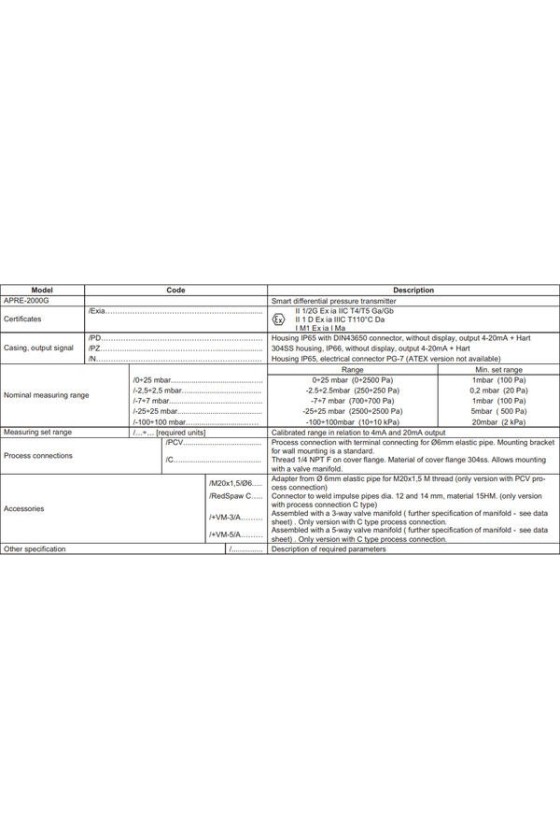

Aplisens - APRE-2000G Smart differential pressure sensors

The Aplisens APRE-2000G Smart differential pressure transmitter is applicable to gases, to the measurements of their pressure, underpressure and differential pressure.

The ability to select the radical conversion characteristics also enables this differential pressure transmitter to be used in gas flow measurement systems using reduced pipes or other impeding elecments

Pressure range -100 mbar to 100 mbar

Min range 0.2mbar

Three body styles available

ATEX version

£0.00

REQUEST A QUOTE

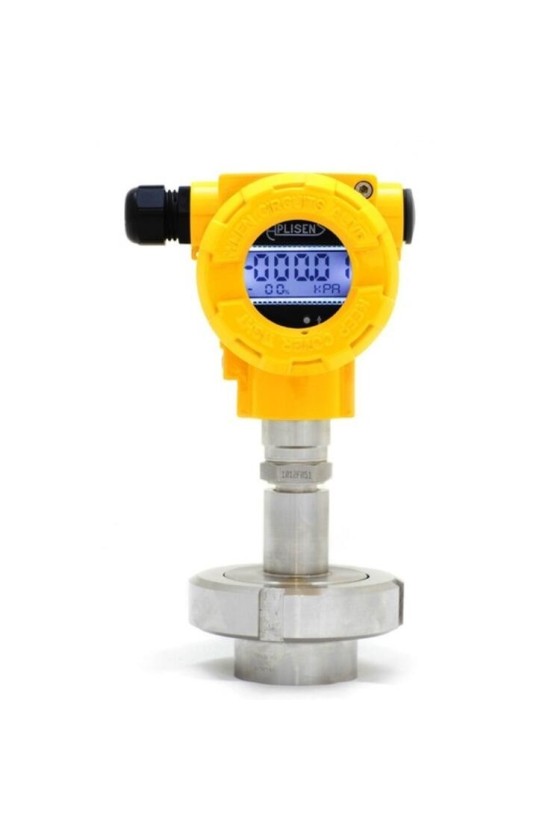

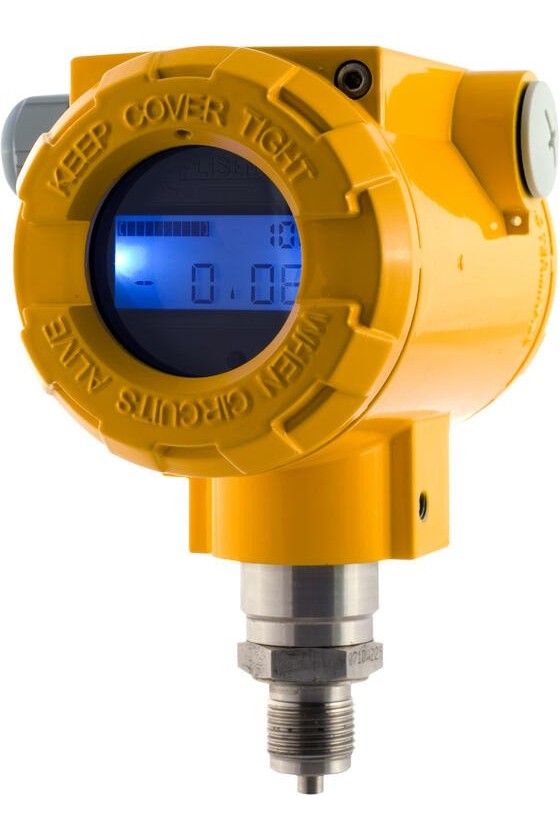

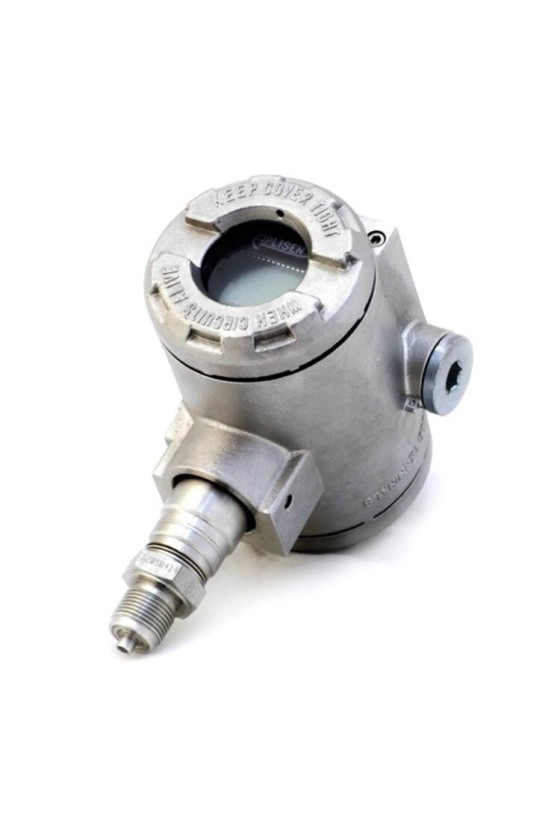

Aplisens - APC-2000ALW Smart Pressure Transmitter

The Aplisens APC-2000ALW Smart pressure transmitter is applicable to the measurment of the pressure, underpressure and absolute pressure of gases, vapours and liquids.This pressure sensor comes with many extra options such as PED, MID, SIL 2, ATEX, DNV marine certificate, housing options, thread connections and materials making this sensor very versatile.

HART protocol

Rotatable display

Option: SIL 2, DNV, PED, ATEX

Range -7-+7mbar up to 0-1000bar

£0.00

REQUEST A QUOTE

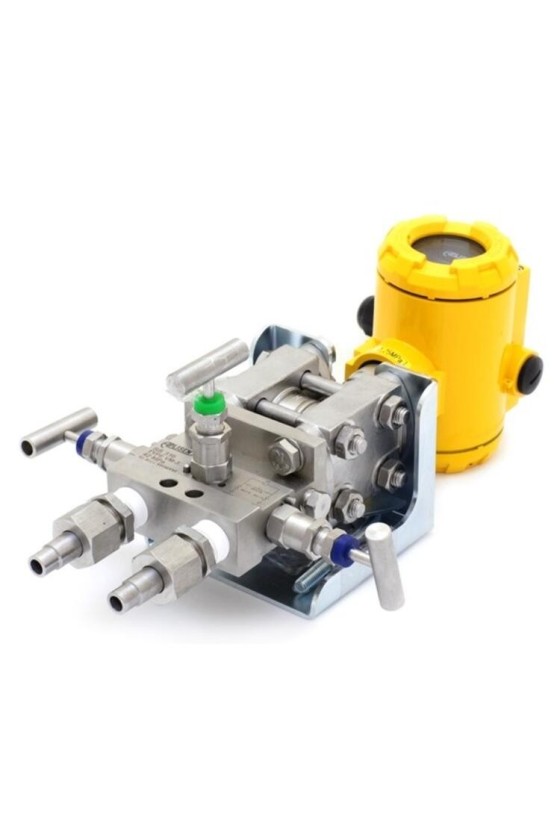

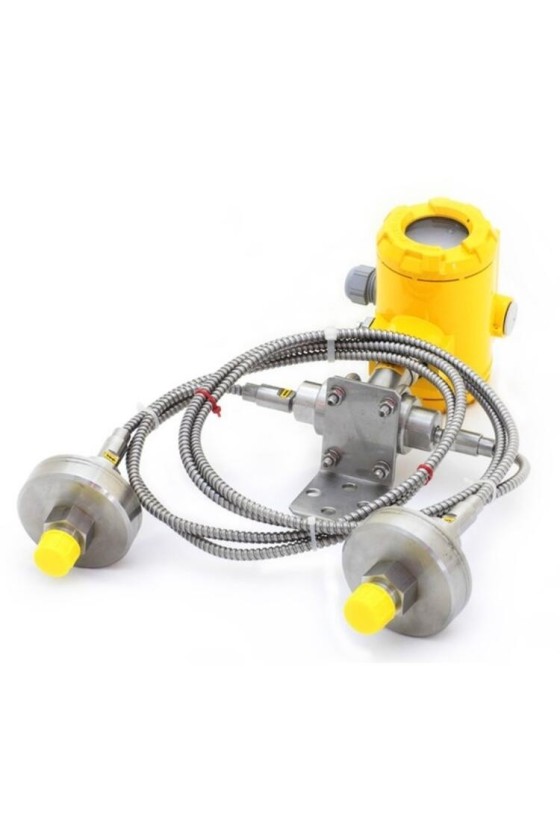

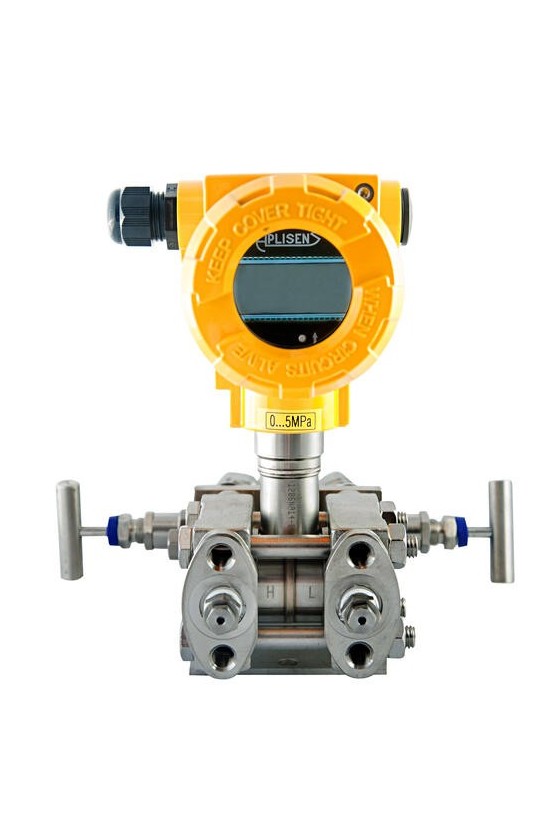

Aplisens - APR-2000ALW Smart Differential Pressure Transmitter

The Aplisens APR-2000ALW Smart differentail pressure sensor is applicable to the measurment of the pressure, underpressure and absolute pressure of gases, vapours and liquids.

This pressure sensor comes with many extra options such as PED, SIL 2, ATEX, DNV marine certificate, housing options, thread connections and materials making this sensor very versatile.

HART or profibus

Rotatable display

Various process connections

Ten standard pressure ranges

£0.00

REQUEST A QUOTE

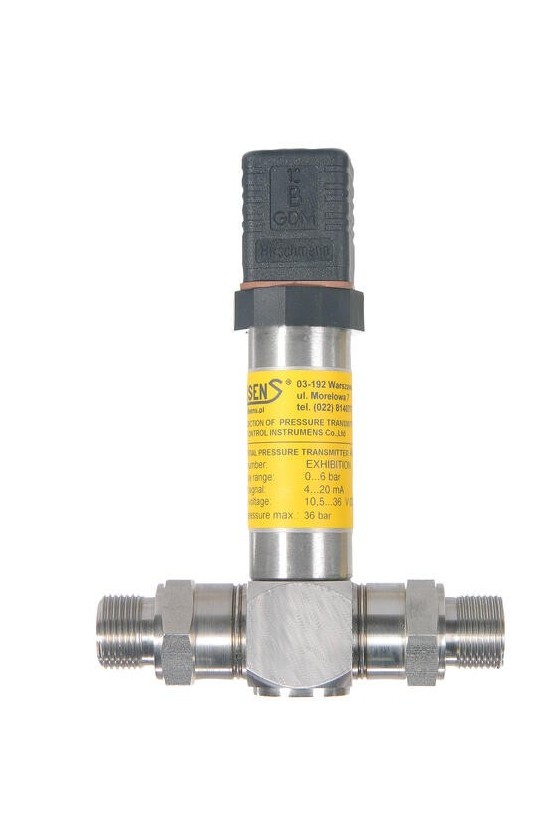

Aplisens - PRE-28 Smart Differential Pressure Transmitter

The Aplisens PRE-28 Smart differentail pressure sensor is applicable to the measurment of the pressure, underpressure and absolute pressure of gases, vapours and liquids.

This pressure sensor comes with many extra options such as ATEX, DNV marine certificate, housing options, process connections and materials making this sensor very versatile.

Nine standard pressure ranges

HART protocol

ATEX & DNV versions

0.1% accuracy

£0.00

REQUEST A QUOTE

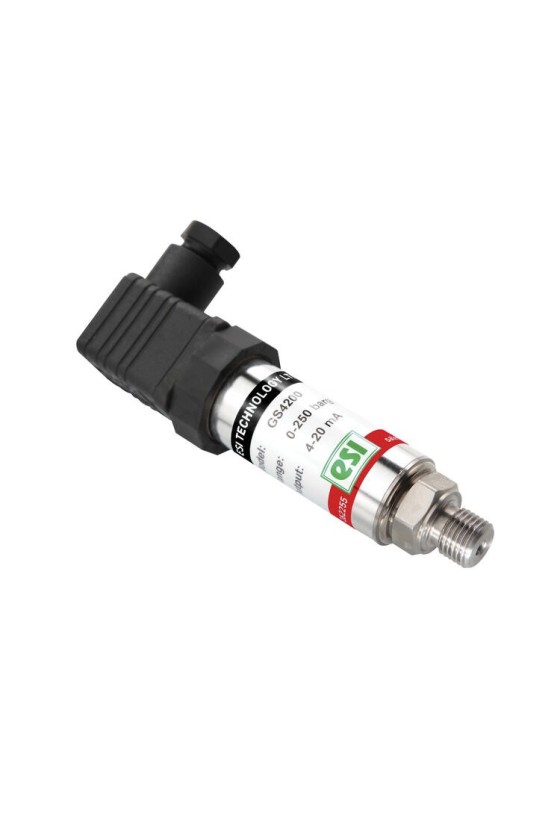

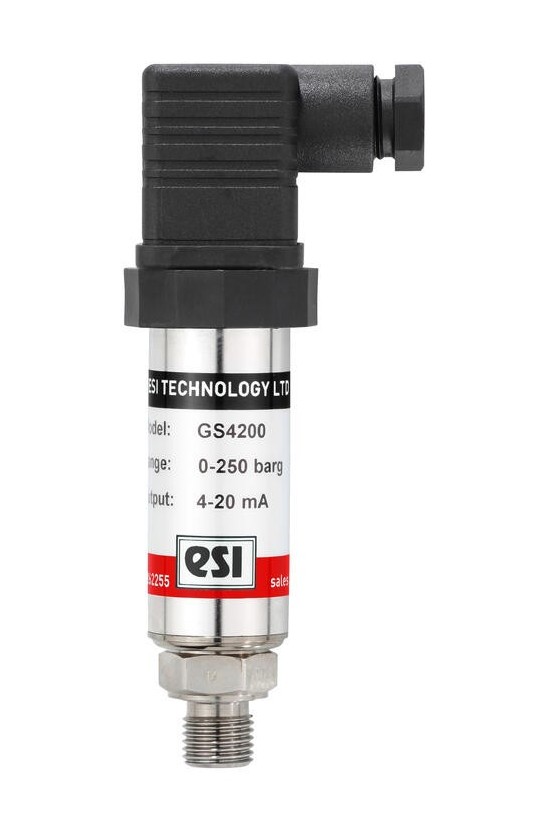

ESI GS4200H Hydrogen Pressure Sensors up to 25bar

Several different applications require hydrogen-compatible transmitters and transducers, including hydrogen refuelling, hydrogen engines, marine vehicles, hydrogen fuel cells, and laboratory environments.

Using hydrogen as a source of energy can dramatically reduce the amount of CO2 emissions and make it more affordable, secure, and cleaner. In order to fulfil this commitment ESI offers a product range which combines versatility and environmental friendliness with the same exceptional performance and stability for which they are known for.

Compatible for use within Hydrogen based environments

Tested to ISO 1114-2:2017 according to EC79/2009 and EU406/2010

Pressure ranges up to 25 bar

High resistance to overpressure and pressure transients

£0.00

REQUEST A QUOTE

ESI GS4200H Hydrogen Pressure Sensors 100-1,500bar

£0.00

REQUEST A QUOTE

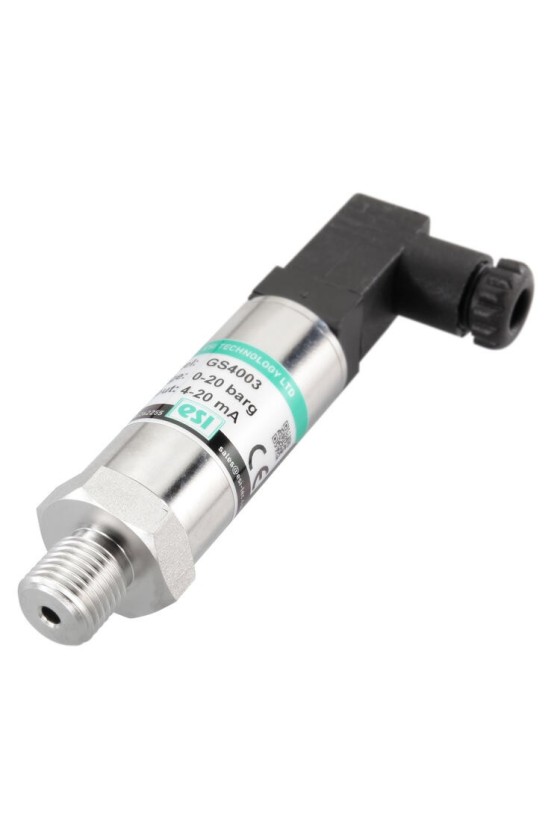

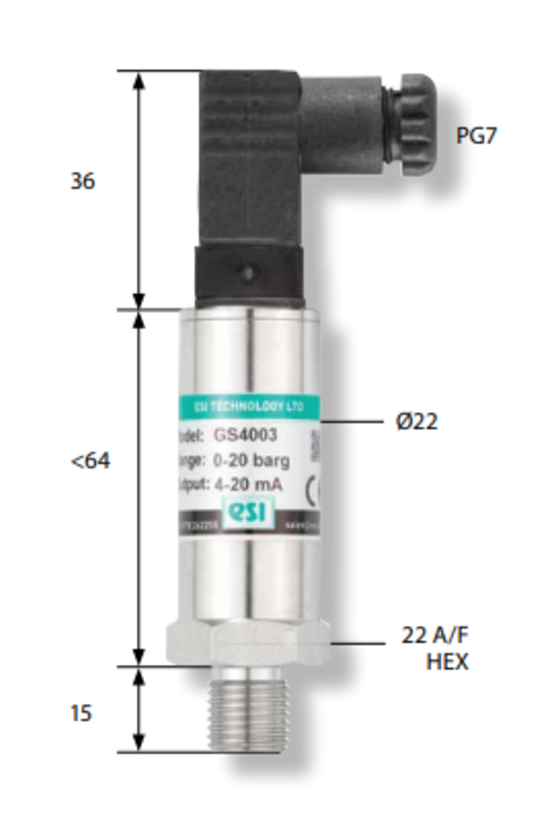

ESI - GS4000 - Industrial Pressure Sensor

The ESI Technology GS4000 is a standard industrial pressure sensor designed to deal with the majority of general industrial applications.

The GS4000 offers a robust yet compact sensor that still offers good performance and is very reliable. The GS4000 starts from -1 - 0 bar up to 0 to 700 bar with a total of eight standard pressure ranges, four options of outputs including 4-20mA and 0-10V and also four different electrical connections including a DIN connector and M12.

Suitable for the majority of industrial applications

Reliable pressure measurement

Long service life

All stainless steel construction

£0.00

REQUEST A QUOTE

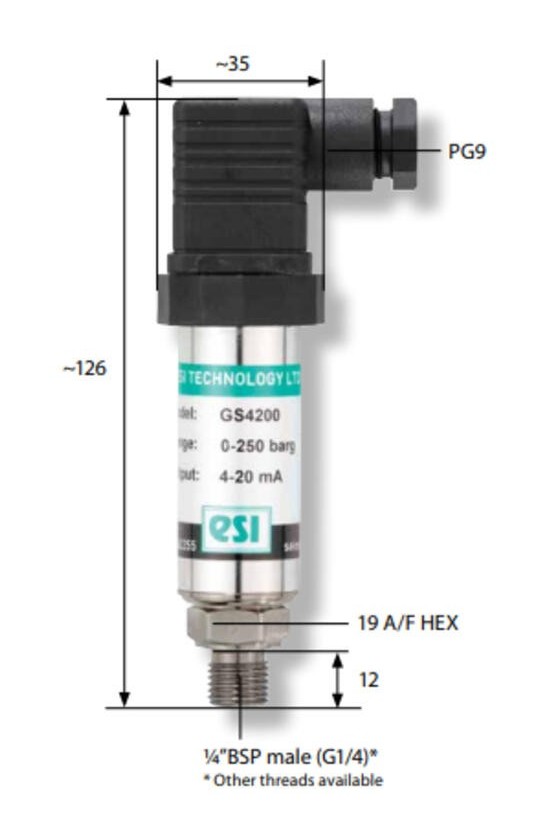

ESI - GS4200 up to 25 Bar Pressure

General Pressure Sensor

The ESI Technology GS4200 pressure sensor is designed to meet the operational requirements of demanding pressure measurement applications where good quality, fast delivery and low cost are of the highest priority.

Silicon-on-sapphire sensor technology

Pressure ranges up to 25 bar

Umblemished track record of reliability

Titanium wetted parts

£0.00

REQUEST A QUOTE

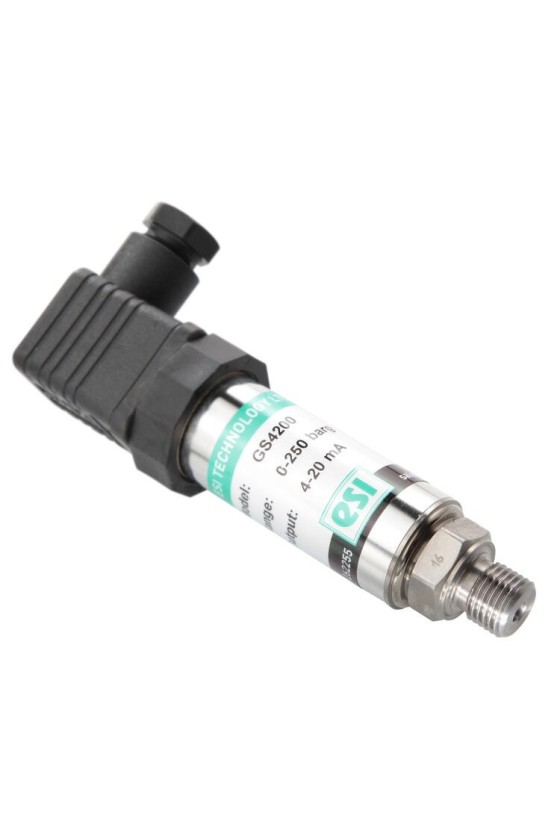

ESI - GS4200 100 Bar up to 1500 Bar Pressure

General Pressure Sensor

Silicon-on-sapphire sensor technology

Pressure ranges up to 1,500 bar

Umblemished track record of reliability

Titanium wetted parts

£0.00

REQUEST A QUOTE

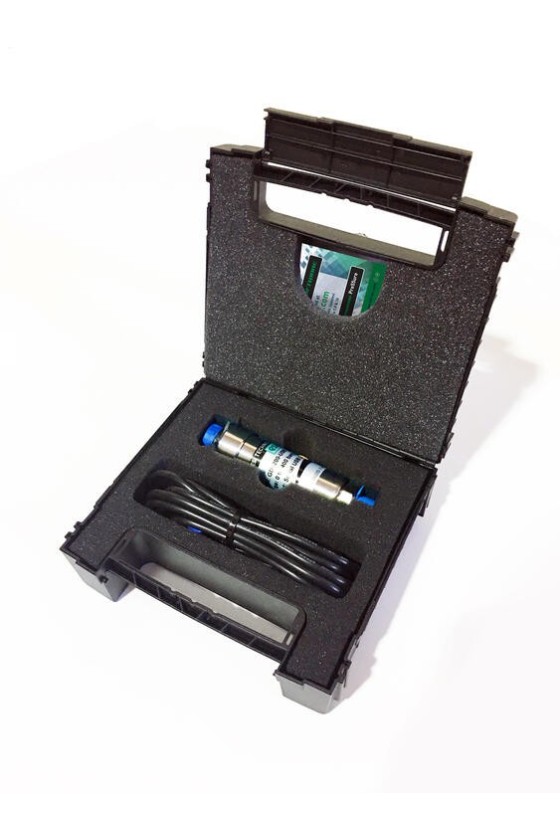

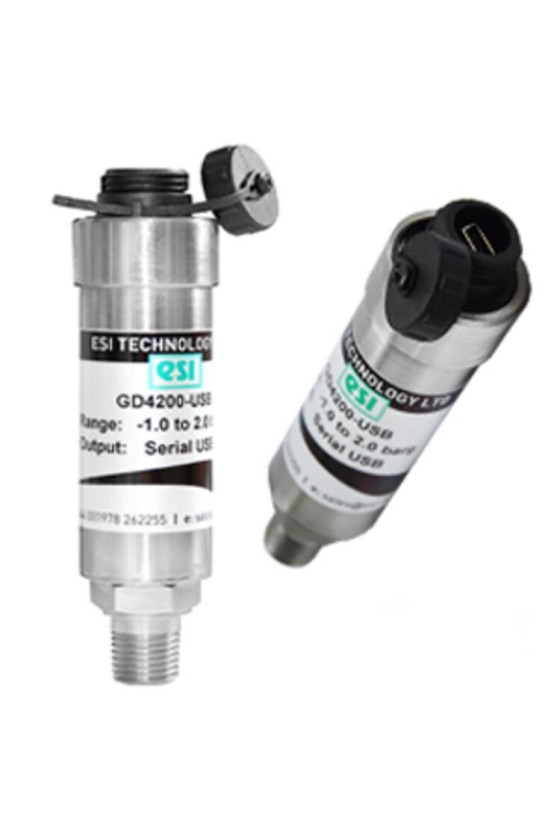

ESI - GS4200-USB & GD4200-USB-Digital Pressure Sensor

Data Logger

The ESI Technology GS4200-USB digital pressure transducer has been designed to measure, analyse and record pressure directly on to a computer without the need for costly I/O interface boards. It allows up to 16 sensors to be monitored simultaneously and to create customised test certificates or export the data to excel.

Silicon-on-sapphire pressure sensor technology
Choice of pressure ranges from vacuum to 5,000 bar
Accurate leak testing
Create customised certificates
Measure & record up to 16 pressure inputs together

£0.00

REQUEST A QUOTE

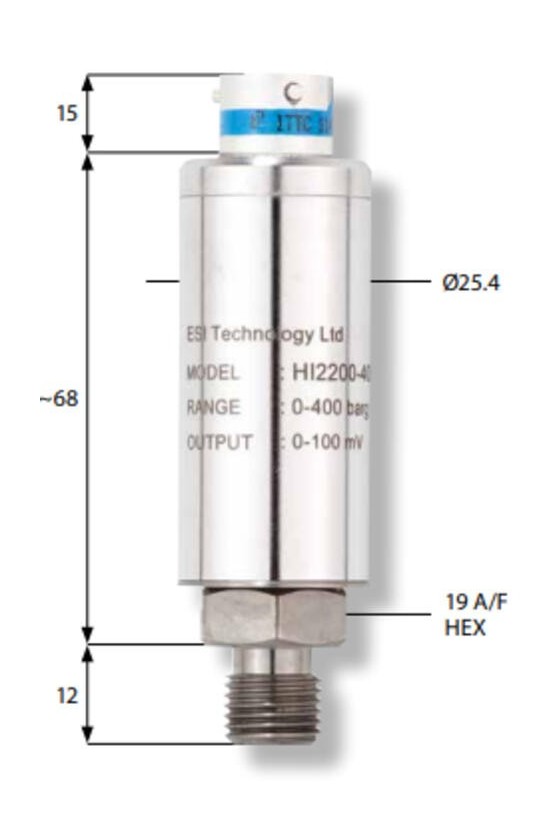

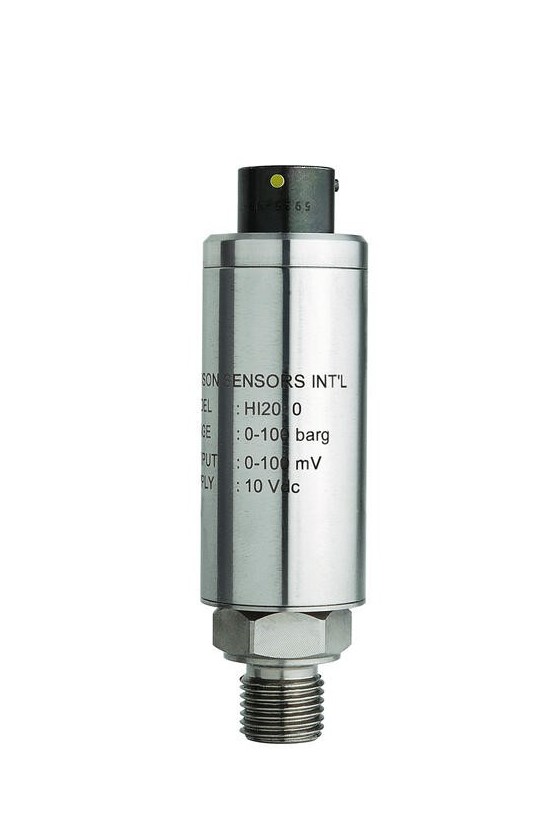

ESI - HI2200 & HI2300 - High Temperature Pressure Sensor

The ESI Technology HI2200 & HI2300 high temperature pressure sensor series is designed to operate in applications with high demands on media and ambient temperature effects.

Silicon-on-sapphire sensor technology

Media temperature up to 200°C

Ambient temperature up to 200°C

Good chemical compatibility for a range of applications

£0.00

REQUEST A QUOTE

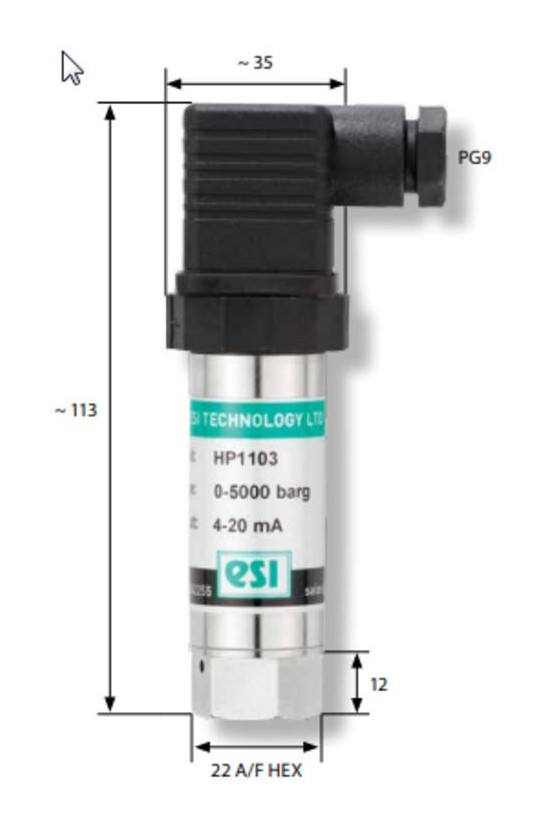

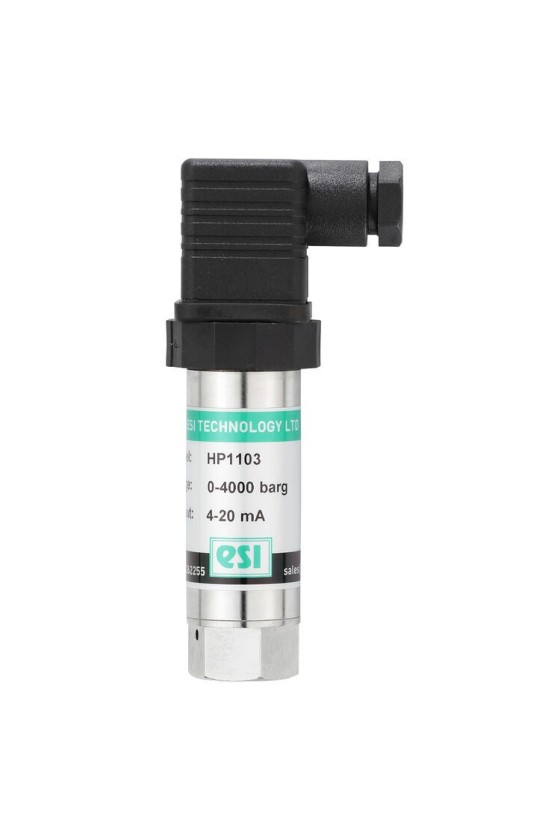

ESI - HP1000 - High Pressure Sensor

The ESI Technology HP1000 high pressure sensors extends the ESI pressure range up to 4000 bar whilst still maintaining an high performance level.

Silicon-on-sapphire sensor technology

High pressure integrity for safe use due to unique sensor design

Pressure ranges up to 5,000 bar

Pressure diaphragm and process connection is machined from one piece of Titanium with no seals or welds.

£0.00
