Flow Switches

REQUEST A QUOTE

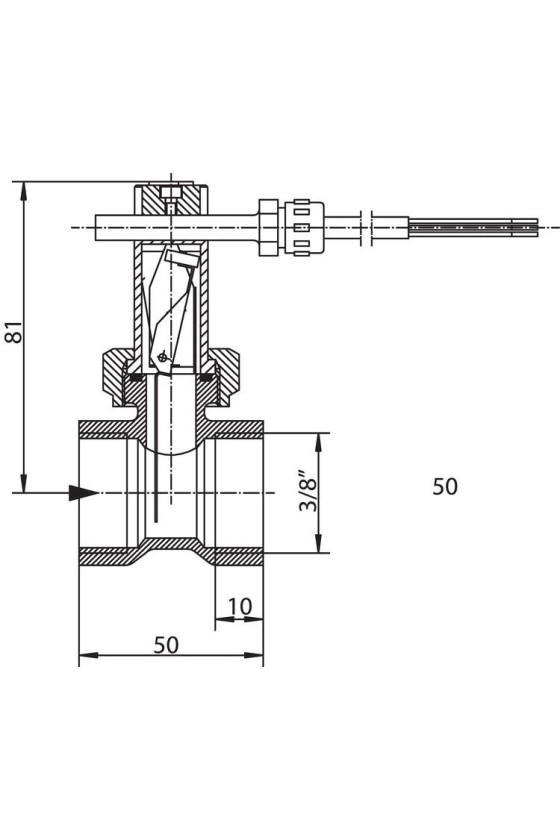

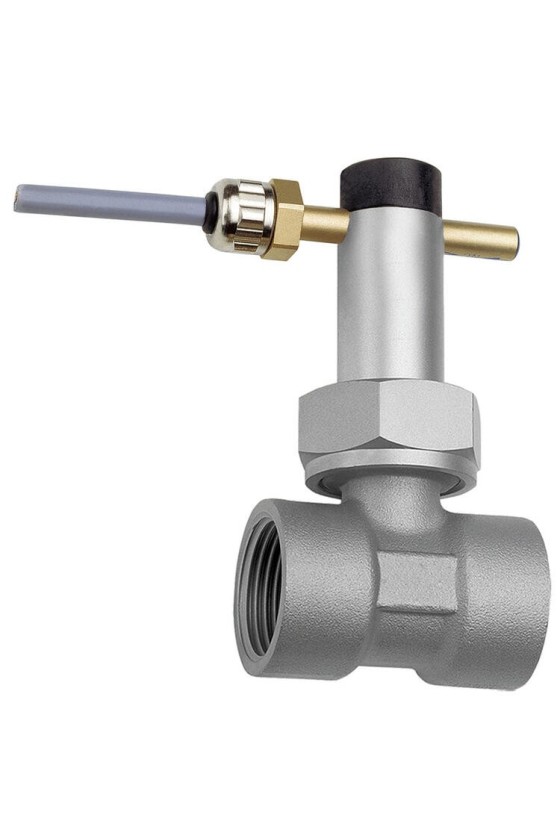

Honsberg - UR1 Series Flow Switch

Paddle

The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.

Special versions

Switching range 1,3..35 l/min

Water (oils, gases and aggressive media available on request)

G⅜" up to G2"

Brass or stainless steel wetted parts

Max pressure 25 bar

£0.00

REQUEST A QUOTE

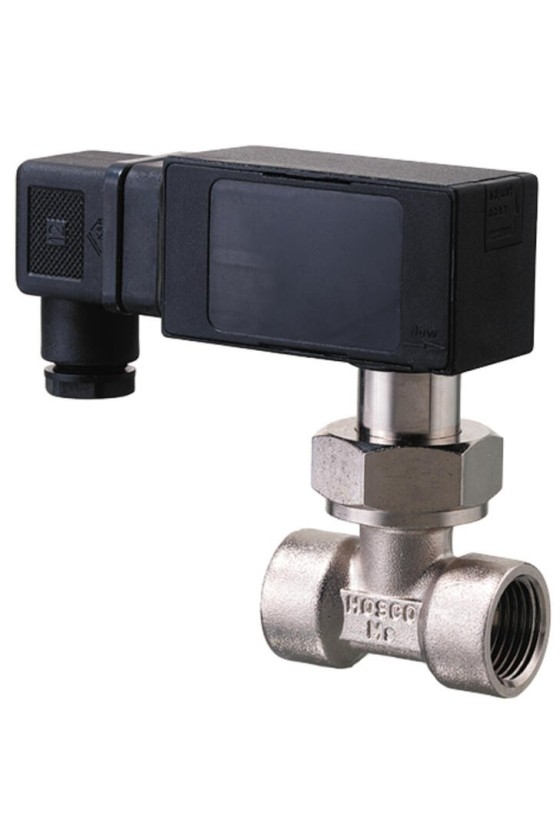

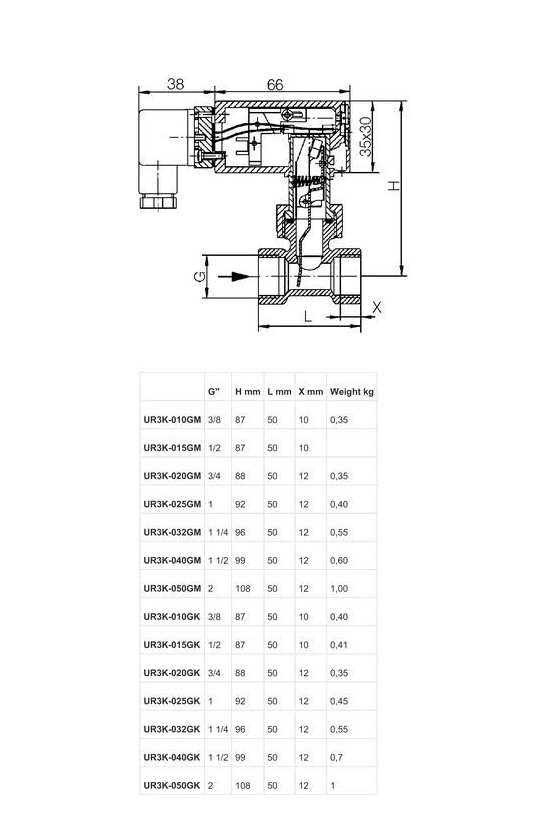

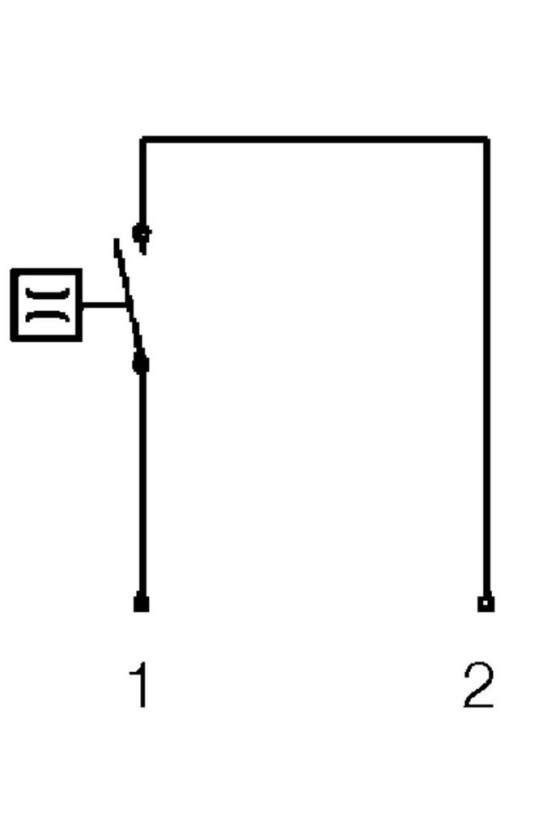

Honsberg - UR3K Series Flow Switch

Paddle

Model UR is a mechanical flow switch with very low pressure drop. This type of switch is used in applications such as industrial cooling systems. Available in nickel-plated brass and stainless steel.

Special versions

• Stainless

Switching Range 3,5..69 l/min H₂O

Water (oils, gases and aggressive media available on request)

G⅜" up to G2"

Brass or Stainless Steel Wetted Parts

Max Pressure 25 bar

£0.00

REQUEST A QUOTE

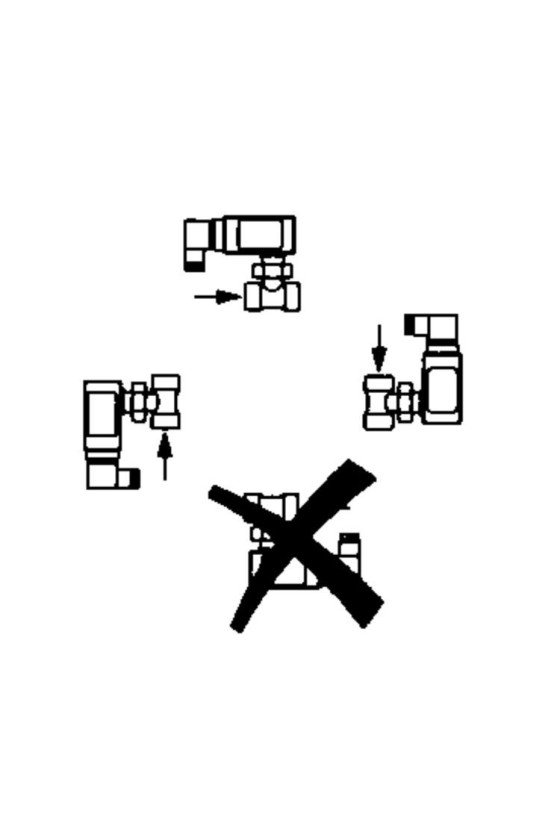

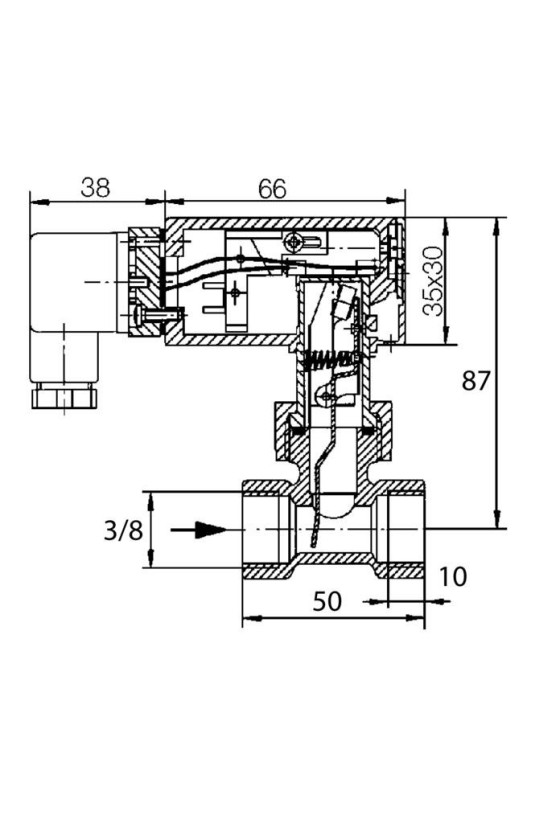

Honsberg - UM3K Series Flow Switch

Paddle

Model UM3K is a mechanical flow switch with very low pressure drop. This type of switch is used in applications including industrial cooling systems. Available in nickel-plated brass and stainless steel.

Switching Range 4..93 l/min H₂O

Water (oils, gases and aggressive media available on request)

G⅜" up to G1"

Brass or Stainless Steel Wetted Parts

Max Pressure 25 bar

£0.00

REQUEST A QUOTE

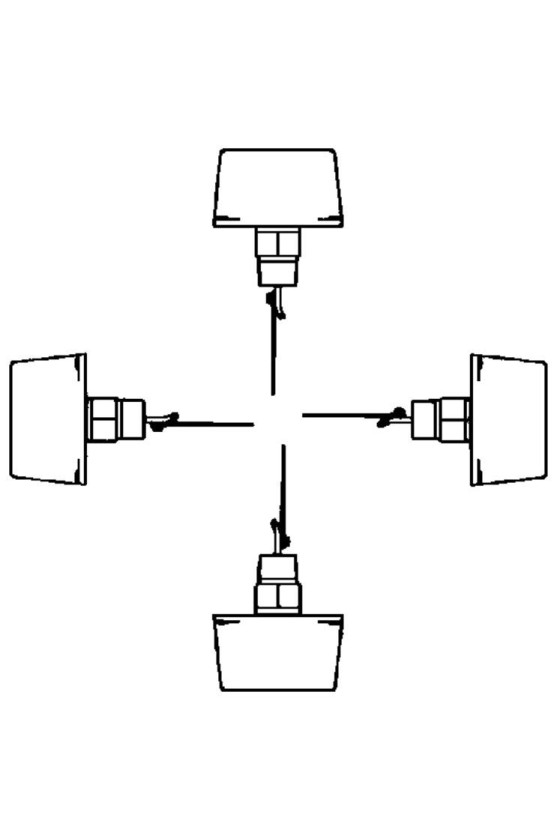

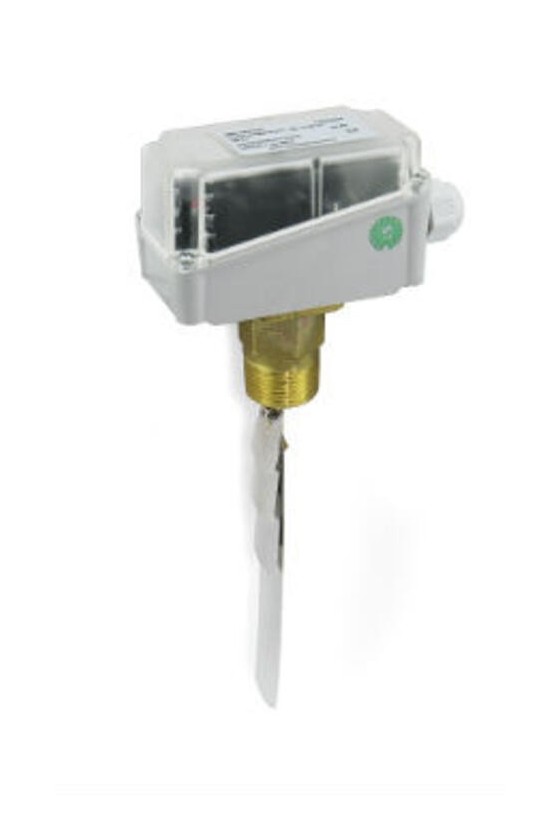

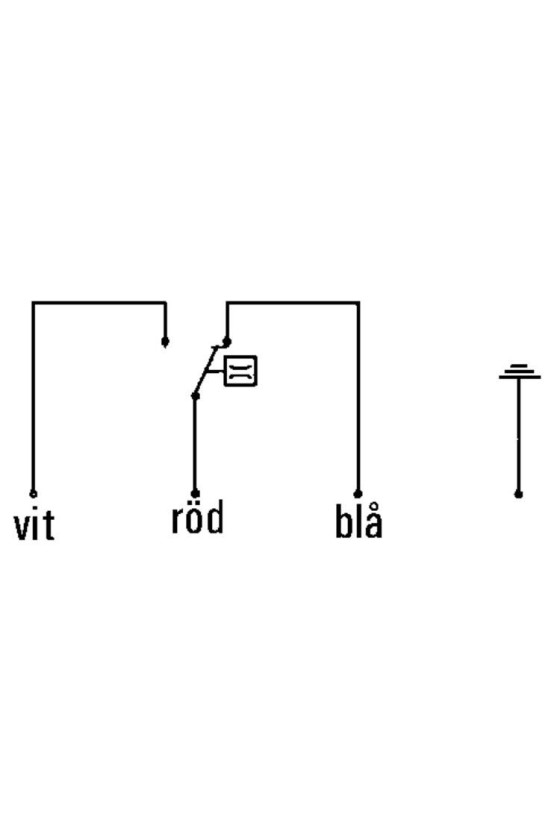

Honsberg - CRG Series Flow Switch

Paddle

Model CRG is a universal flow switch in brass or stainless steel. The same switch can be used for a large number of different pipe dimensions by using one or more paddle lengths. Four different paddle lengths are included.

Switching Range 0,2...165,7 m3/h

Water (oils and aggressive media available on request)

Male Thread R1"

Brass or Stainless Steel Wetted Parts

Max Pressure 11 bar

£0.00

REQUEST A QUOTE

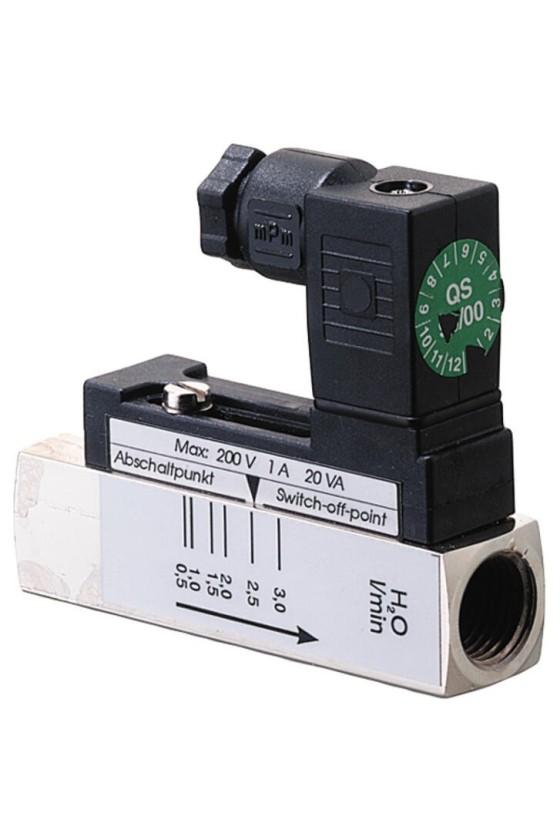

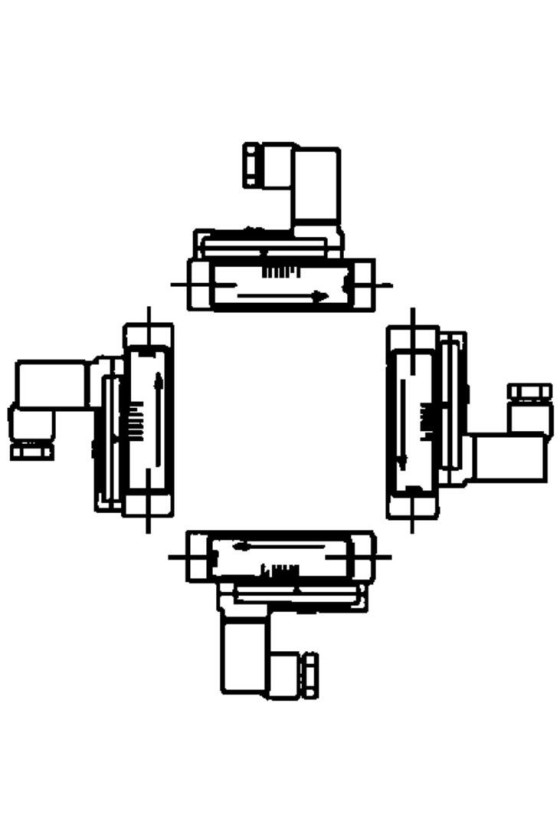

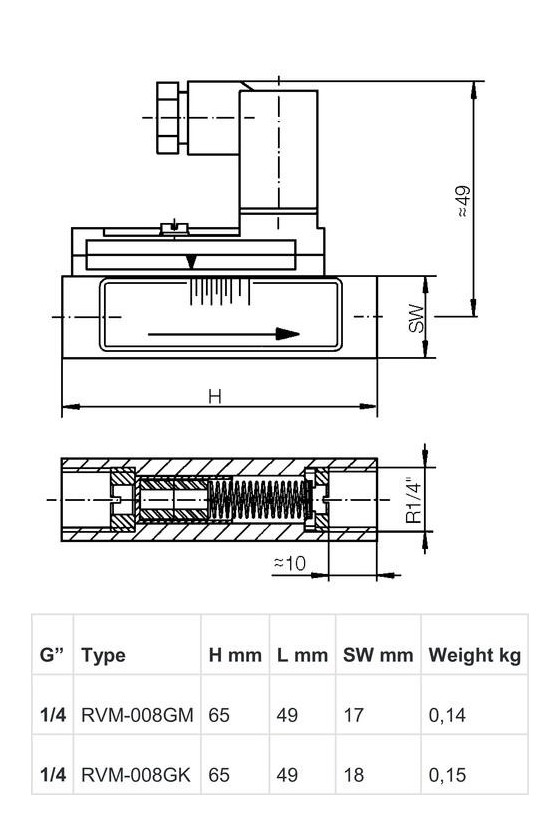

Honsberg - RVM Series Flow Switch

Piston

Mechanical flow switch, for fluid media, with magnetic triggering of a reed switch. Robust construction in brass or stainless steel.

Swittching Range 0,04..3 l/m H₂O

Water (gas and aggressive media available on request)

G¼"

Brass or Stainless Steel Wetted Parts

Max Pressure 300 bar

£0.00
