Valco - CV series Flow Indicator

The CV series flow indicator from Val.Co allows a visual inspection of the passage of liquids in hydraulic and water systems. The propeller is coloured for better visualization with opaque liquids and there is also an option for a blue propeller and an output.

  • Ranges covering 0.6..80 l/min H2O

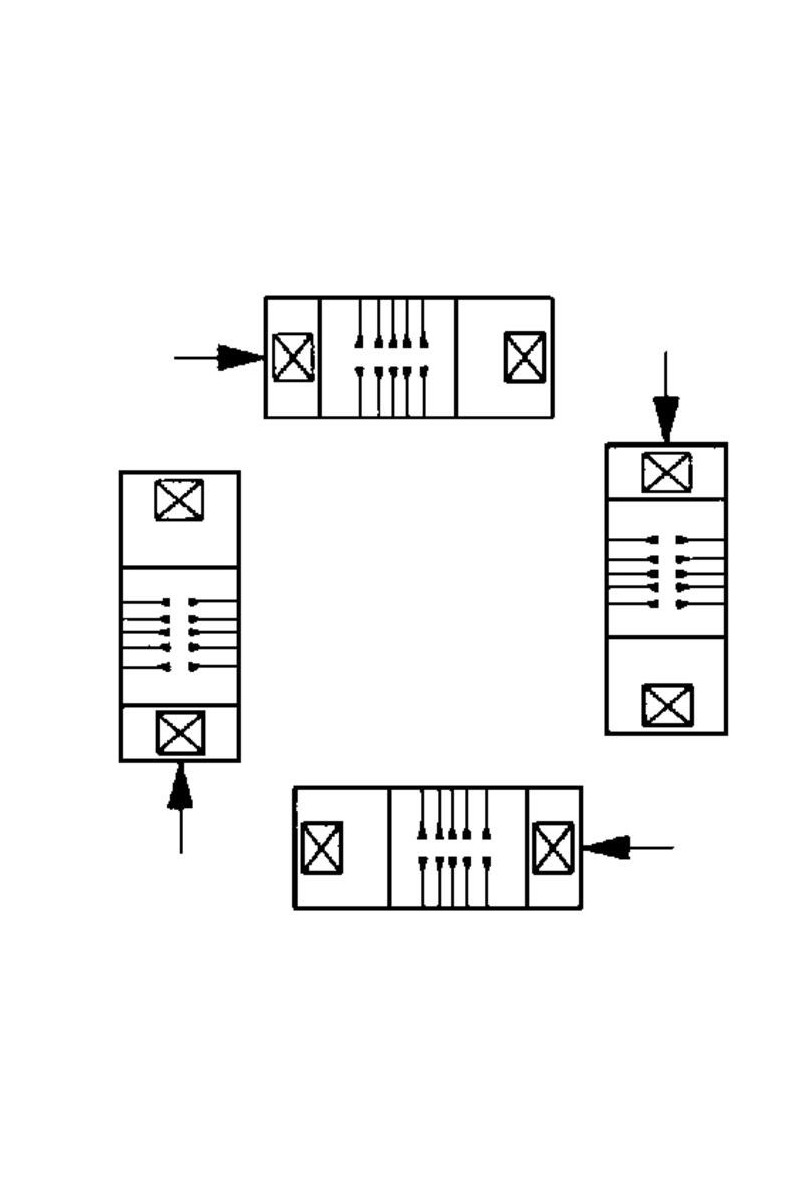

  • Bidirectional

  • Up to 25 bar max (depending on model)

  • Brass connections

£0.00
Tax included
Quantity :
Ask a Question

The CV series flow indicator from Val.Co allows a visual inspection of the passage of liquids in hydraulic and water systems. The propeller is coloured for better visualization with opaque liquids and there is also an option for a blue propeller and an output.

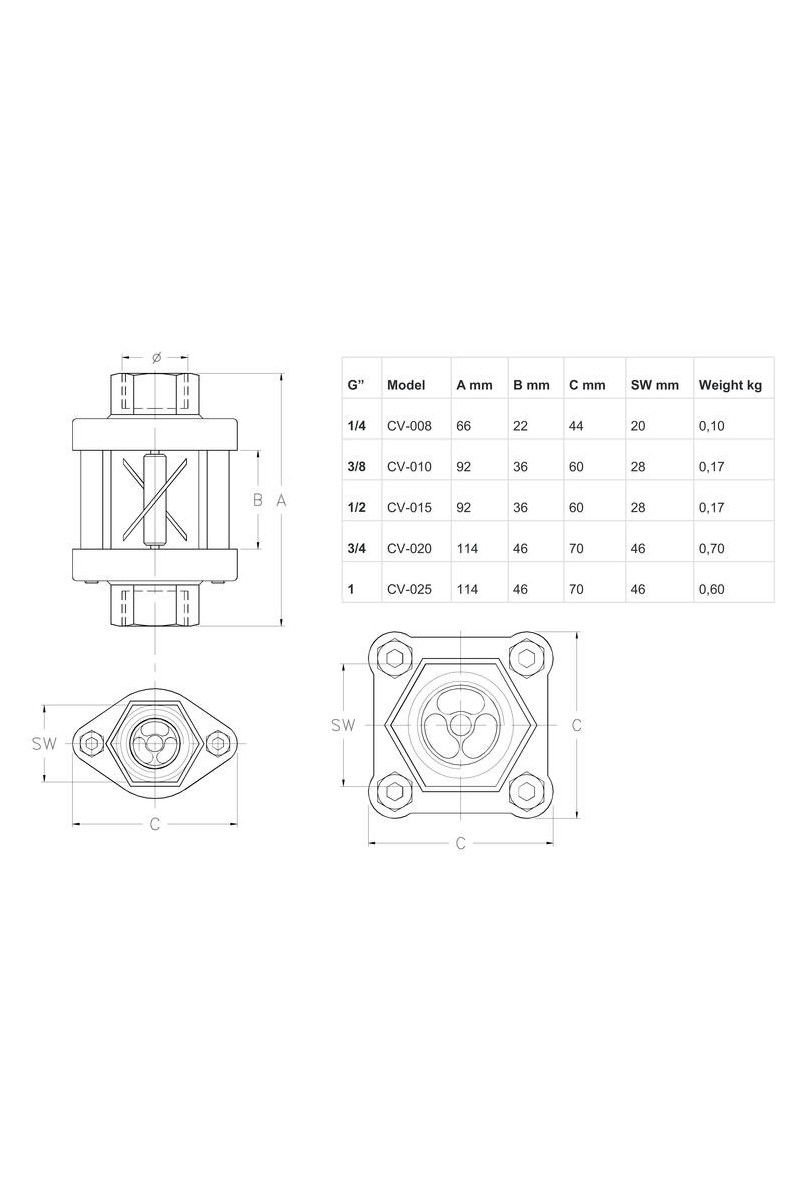

Technical data

Colour of rotor Red
Flow range max 10 l/min
Manufacturer part no. CV.008G.PSO.R
Material of body Latene
Material of connection Brass
Material of glass tube Pyrex glass
Material of rotor Polypropylene
Material of seals NBR
Min flow rate for rotor (oil 40 Cst) l/min 2.5
Min flow rate for rotor (oil 41-150 Cst) l/min 3.5
Min flow rate for rotor (water) l/min 0.6
Pressure drop (bar) 0.15
Pressure max 25 bar
Process connection 1/4 BSP
Temperature operational max 100 °C
