Honsberg OMNIPLUS-F Flow Sensor

OMNIPLUS is a thermal flow sensor using the calorimetric measuring principle for the measurement of the flow velocity, the temperature and the volume of liquid media.

The OMNIPLUS features IO-Link interface offering digital sensor communication within an automation system.

For liquids up to 100 Bar

Flow range 0.02 to 3 m/2

Connection type from Push-in to threaded G1/s

IO-Link interface

£0.00

REQUEST A QUOTE

Honsberg - RRI Series Flow Meter

Rotor

Model RRI is a rotor sensor in plastic with inductive reading. The design offers a lot of options in terms of installation as it can be mounted in most locations and does not require any calming section either before or after. It has high resolution and is suitable for accurate measurement of flows of liquids in applications within liquid dosing or accurate volume calculation.

For liquids up to 16 bar pressure

Flow range from 0.1 to 100 l/min. water

Connection 3/8" or 1"

£0.00

REQUEST A QUOTE

Honsberg - FIS Series Flow Meter

Magnetic-Inductive

Model FIS is a flow sensor in stainless steel with absolutely no moving parts. It has been developed to measure, among other things, water flows in large pipe dimensions.

Special versions

•Clamp connection for plastic tube

For liquids up to 25 bar

For DN 50-400

Wetted parts in stainless steel

£0.00

REQUEST A QUOTE

Honsberg - Turbine Flow Sensor for General Applications

Model RRT is a simple turbine sensor that is highly suitable in all types of industrial applications where the pressure does not exceed 100 bar. The sensor has a low tolerance in terms of pulses and therefore is suitable when used in large numbers.

For liquids up to 100 bar

Flow ranges 1-50 l/min, and 2-80 l/min. water

Connection 3/4"

£0.00

REQUEST A QUOTE

Honsberg - LABO XF Series Flow Meter

Dynamic diaphragm (flap)

Model XF is a compact flow sensor in PPS plastic or stainless for water applications. Measurement takes place via a spring mounted metal plate which gives a rapid response time, low pressure drop, and high accuracy. The design with no moving parts makes it suitable for applications where this is a requirement. XF can be simply combined with Honsberg's Omni- or Flex technology.

For liquids up to 16 bar

Flow from 1 l/min. to 80 l/min.

Connection from 1/4" to 3/4"

Housing in PPS or stainless

£0.00

REQUEST A QUOTE

Honsberg - VHS Series Flow Meter

Spindle (screw)

Model VHS is a screw flow sensor designed especially for applications with viscose media and high flows. Has high accuracy regardless of viscosity up to 40,000 cSt and maintains a low sound level under 50dB during operation. All mounting positions are possible and the direction of flow is independent of mounting position.

For oil and lubricating liquids up to 40,000 cSt

For high flows up to 2500 l/min

Up to 350 bar pressure

Light and compact design

£0.00

REQUEST A QUOTE

Honsberg - VHZ Series Flow Meter

Gear Wheel

Model VHZ is a flow sensor in Anodised Aluminium for viscous media. It is highly suitable in all hydraulic applications where the oil is extremely thick or the temperature changes.

For liquids up to 200 bar

Flows ranges 0.02 to 150 l/min. 1-2500 cSt

Connection 1/4" to 1"

Wetted parts in Anodised Aluminium & Stainless Steel

£0.00

REQUEST A QUOTE

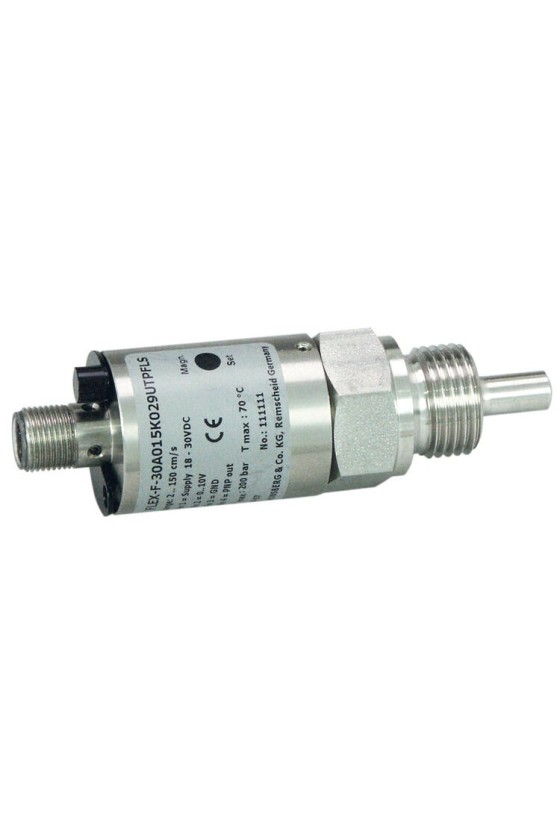

Honsberg - Flex-F Series Flow Meter

Calorimetric

Model Flex is a calorimetric flow sensor with analogue output signal and one switching point. It is equipped with LED indication and is simple to set via the magnetic tab.

No moving parts

Wetted parts in stainless steel

Simple installation of set point

£0.00

REQUEST A QUOTE

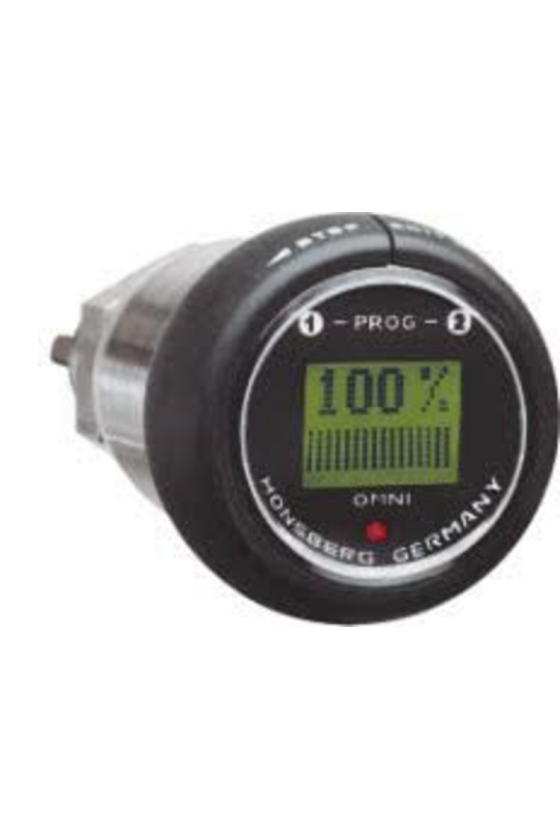

Honsberg - OMNI-F Series Flow Meter

Calorimetric

Model Omni-F is a calorimetric flow sensor with analogue output signal (4-20mA) and two switching points (PNP-0.3A). It is equipped with an LCD display for indication of both relevant flow (0-100 %), switching points and hysteresis. It is easy to read the sensor by either removing or turning the rim 180°, this eliminates the risk of changes.

For liquids up to 200 bar

No moving parts

Wetted parts in stainless steel

£0.00

REQUEST A QUOTE

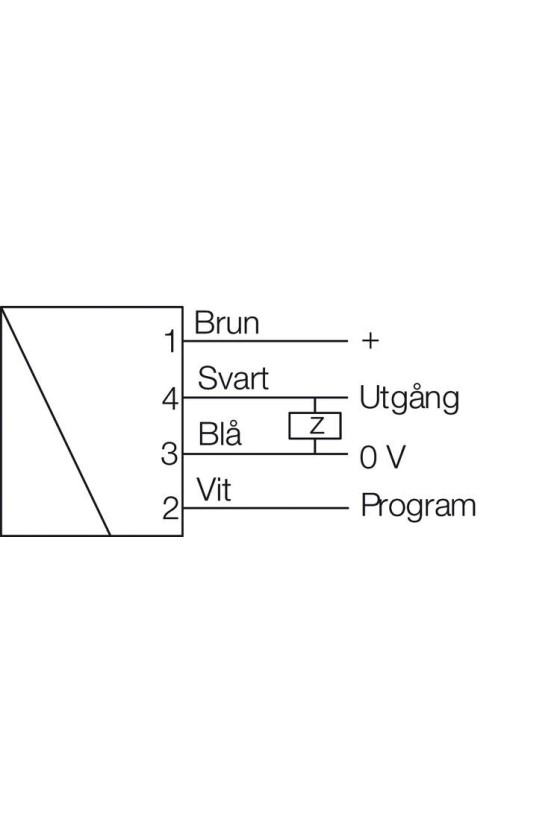

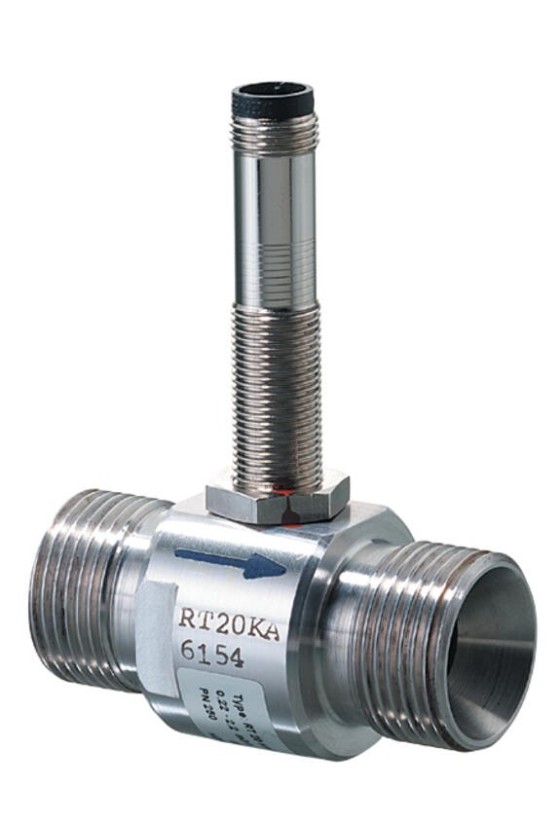

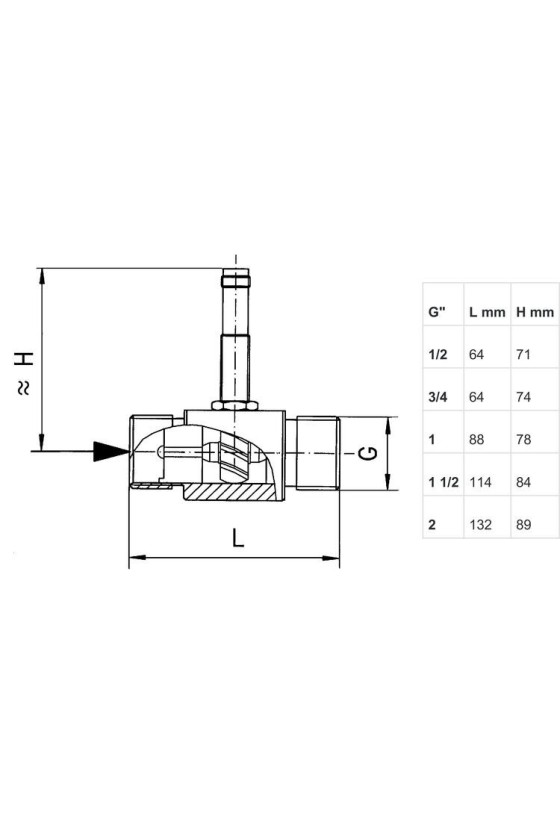

Honsberg - RT Series Flow Meter

Turbine

Model RT is a turbine transmitter entirely in stainless steel with high flow capacity. It is suitable for applications where there are requirements include a high level of accuracy. The design also makes it suitable for applications with aggressive media or extreme pressure.

For liquids up to 250 bar

Flow from 0.1 to 68 m3/h (1-5 cSt)

Connection from 1/2" to 2"

Entirely in stainless steel

£0.00

REQUEST A QUOTE

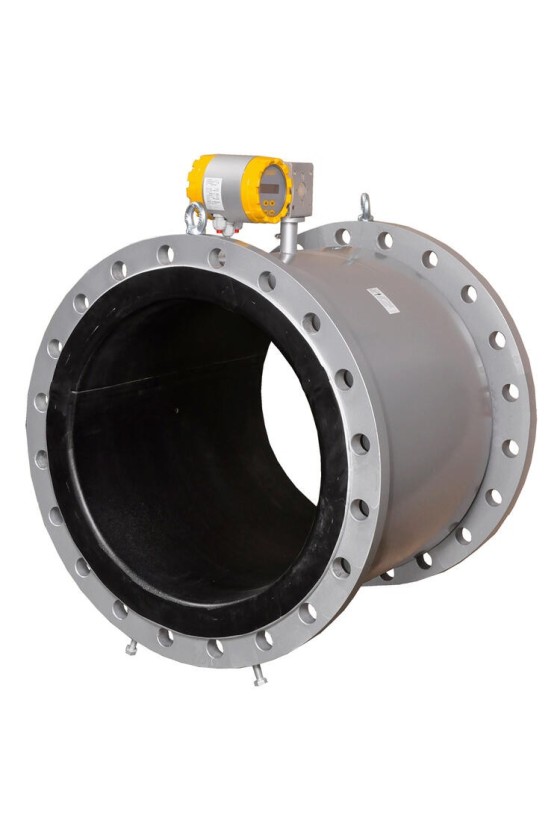

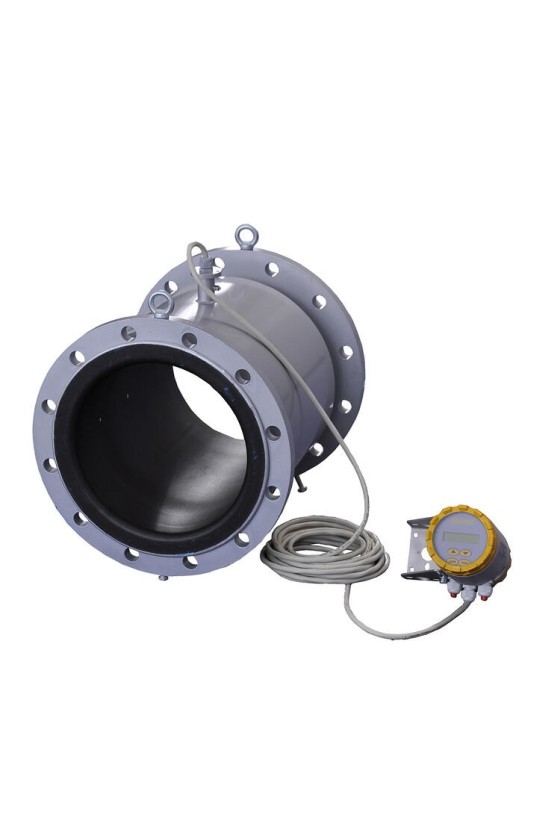

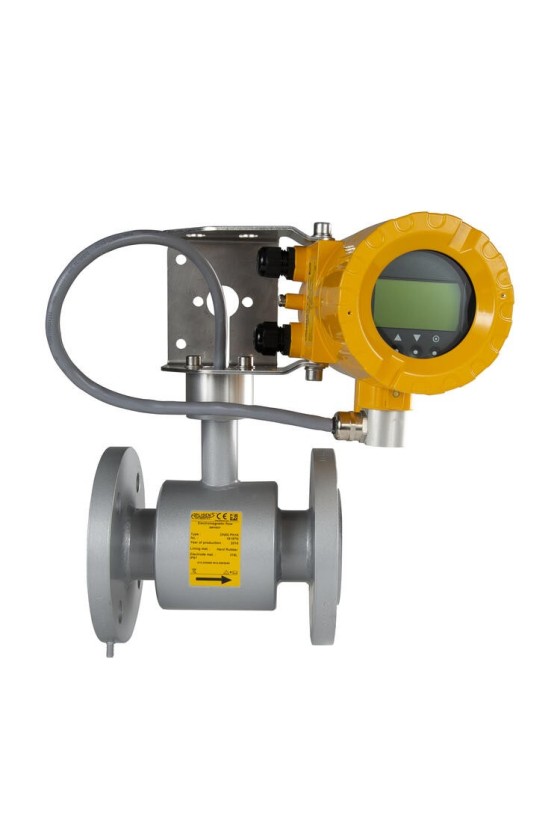

Aplisens - PEM-1000 Series Flow Meter

Electromagnetic (Magflow)

The Aplisens PEM-1000 'Mag flow meter' is a very robust flowmeter for a wide range of applications at a competitive price.

The magnetic flowmeter is for bidirectional measurement of liquids with a minimum conductivity 5μS/cm such as acid/alkalis, paints, pastes and water/wastewater.

0,085..28,274,3 m3/h

3/8" up to 40" pipe size

1,6 MPa

Acids, alkalis, paints, pastes, water etc

4-20mA or Pulse/frequency

£0.00

REQUEST A QUOTE

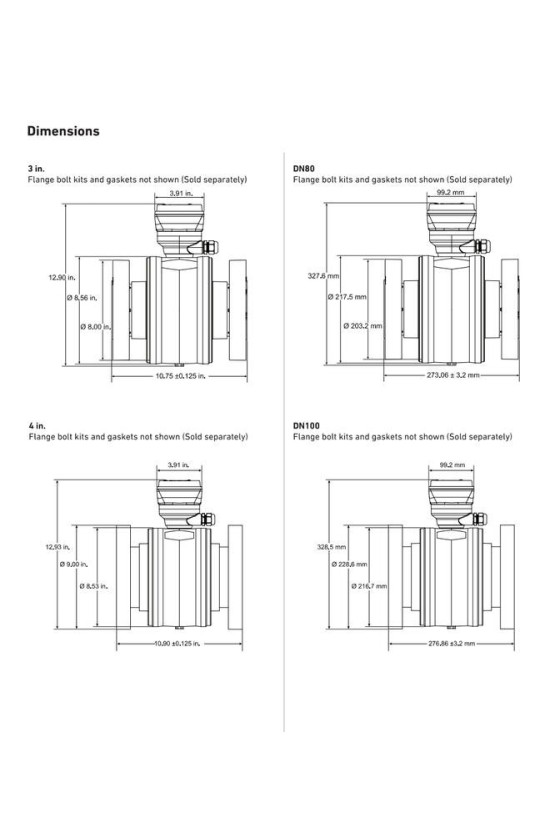

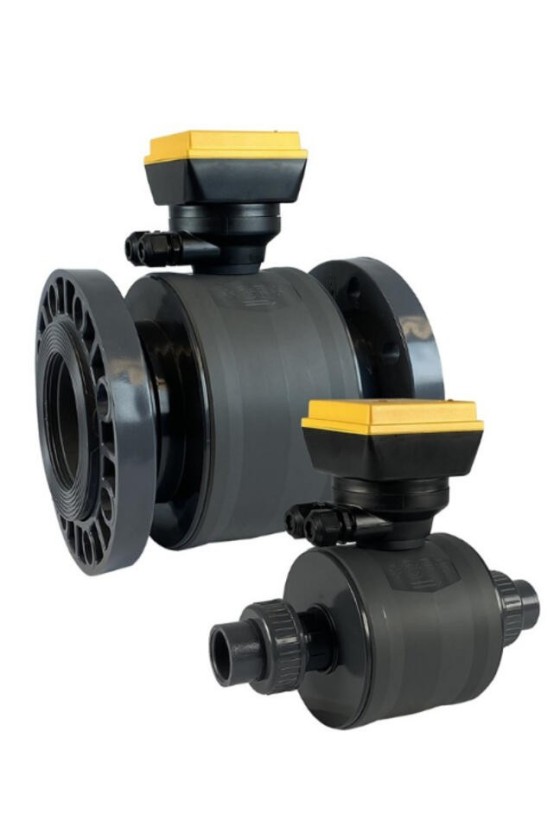

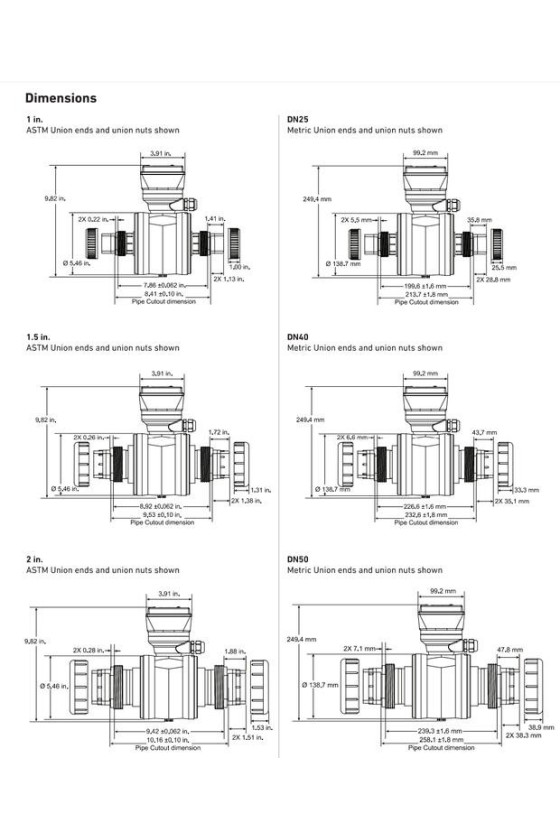

FlowtraMag® Meter (Full-bore)

The GF 2581 FlowtraMag is a full-bore plastic PVC in line style magnetic flowmeter. The PVC body with Titanium or Hastelloy® C electrodes has no moving parts, and is two to three times lighter in weight compared to traditional metal magmeters on the market. It is designed for high accuracy flow measurement in short pipe runs, making it an ideal solution for industrial applications where performance and ease of use are important.

No moving parts

Reduced straight run requirements, ideal for final effluent lines, wellheads and skids

Lighter in weight compared to traditional metal magmeters

One device with three different outputs: field select-able frequency or Digital (S³L), and analog 4 to 20 mA in both passive and active configuration

On-the-fly configuration with GF Config Tool Bluetooth® App

£0.00

REQUEST A QUOTE

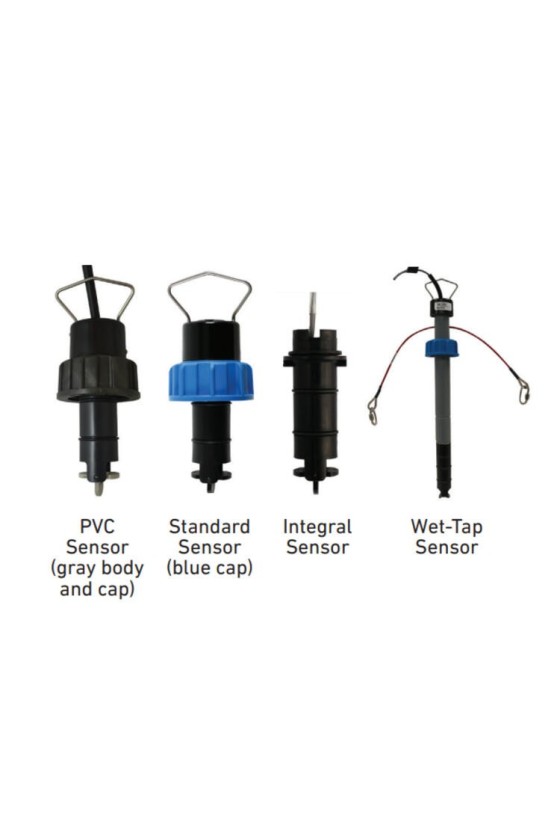

Paddlewheel Flow Sensor

Simple to install with time-honored reliable performance, Signet 515 and 2536 Rotor-X Paddlewheel Flow Sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. Signet 515 and 2536 sensors measure liquid fl ow rates in full pipes and can be used in low pressure systems.

Installs into pipe sizes DN15 to DN900 (½ to 36 in.

PVC 2536 version DN15 to DN100 (½ to 4 in.) for concentrated Sodium Hypochlorite 12.5% applications

High resolution and noise immunity

Chemically resistant materials

£0.00

REQUEST A QUOTE

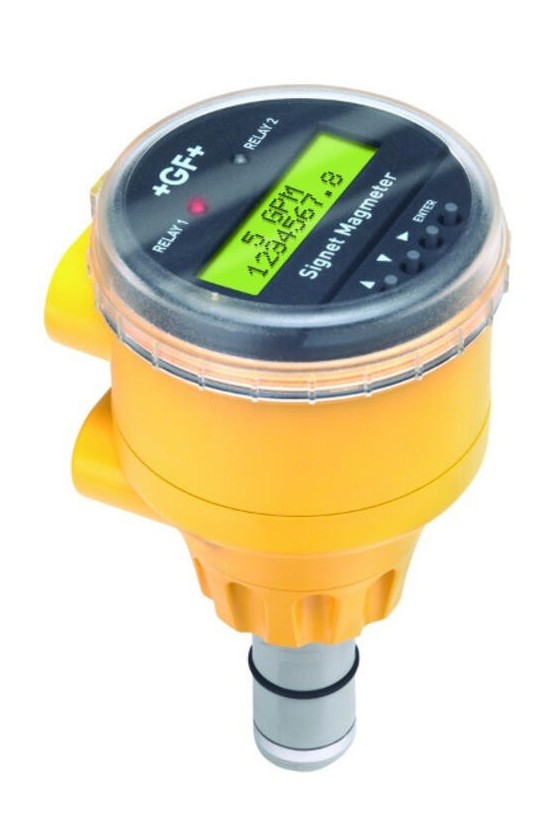

Magmeter with or without display

The 2551 Magmeter measures the flow rate in a full pipe by monitoring the voltage produced when the (conductive) fluid moves through a magnetic field. Output options include a traditional frequency signal, a serial data (Digital (S3 L)) output, and a 4 to 20 mA output. The 2551 Magmeter is available in three sizes that will accommodate pipes from ½ inch through 36 inch diameters. Select from three different material combinations to match the Magmeter to the application requirements.

DN15 - DN900 (½ to 36 in.)

10.3 bar @ 25 °C (150 psi @ 77 °F)

0.05 - 10 m/s (0.15 to 33 ft/s)

Optional relay outputs

4 - 20 mA, or frequency/digital (S³L) outputs

£0.00
