Level Monitoring

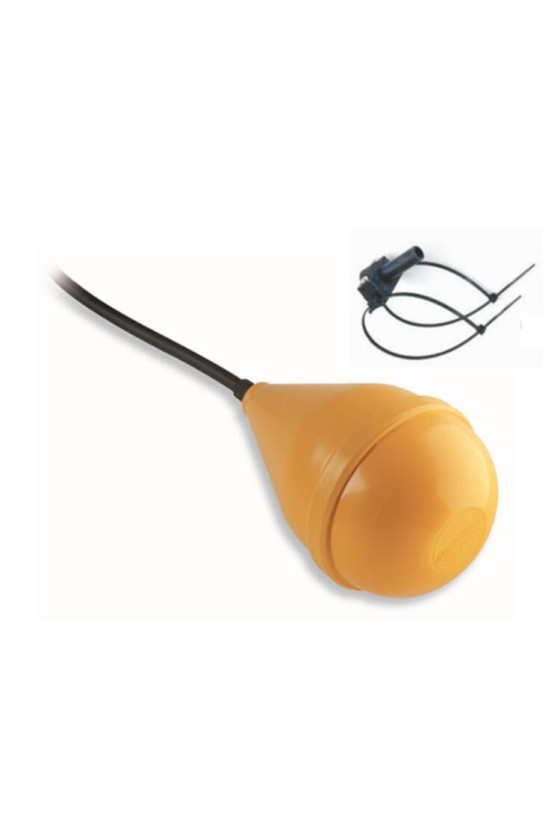

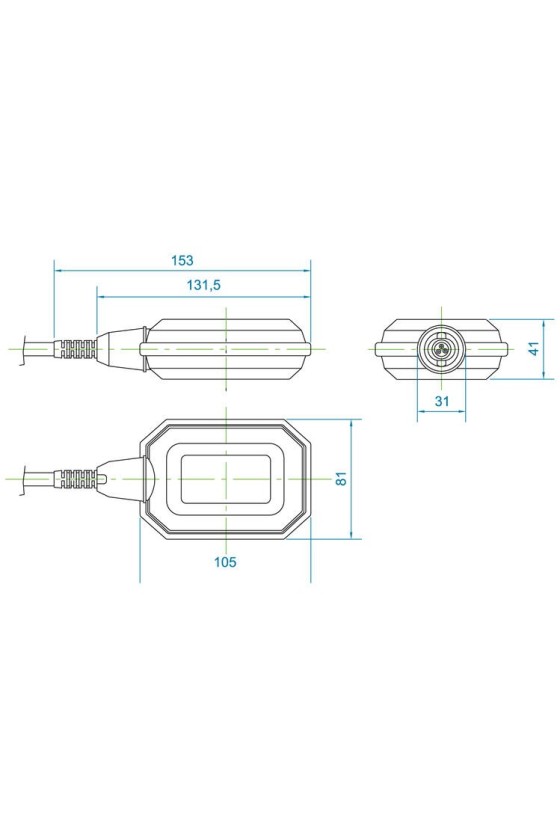

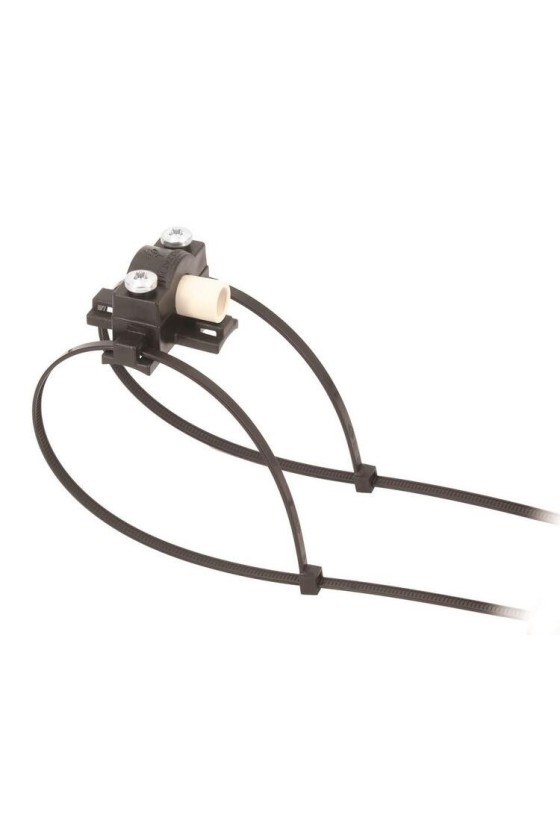

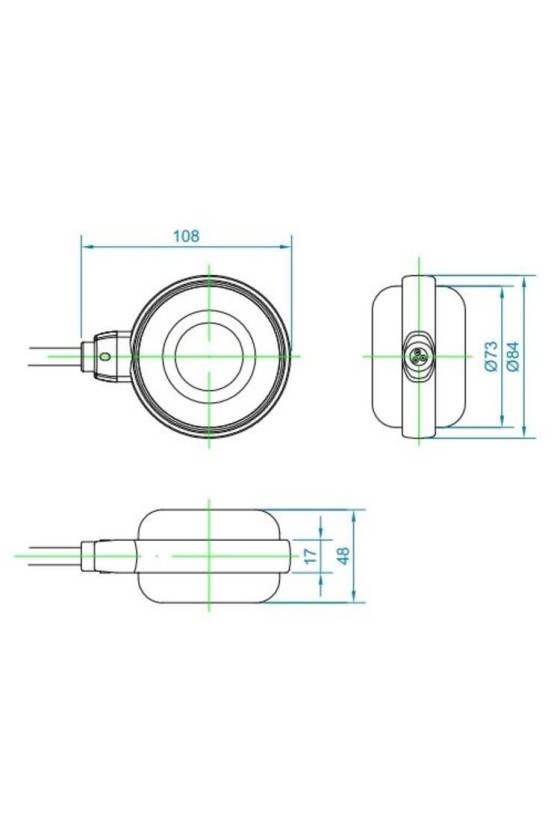

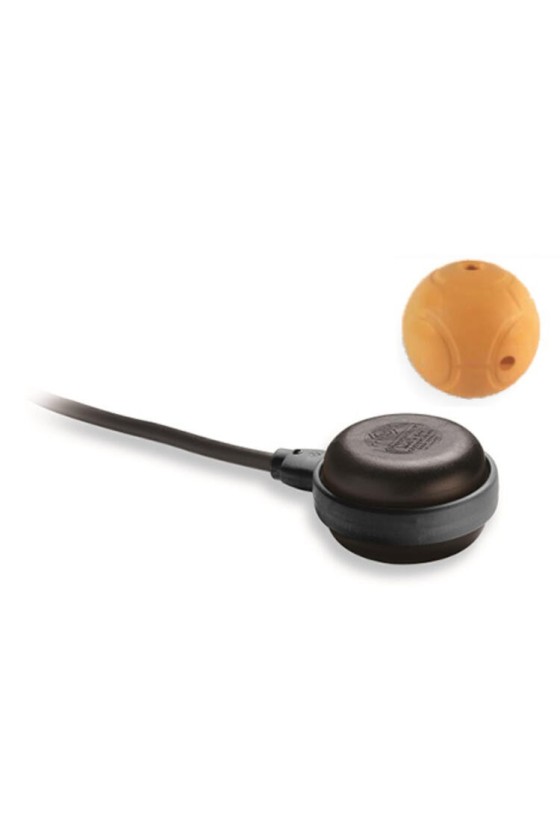

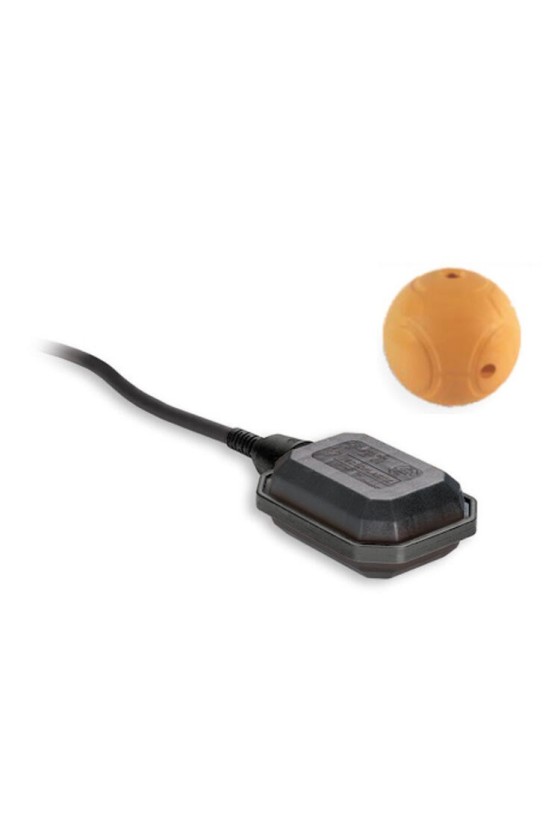

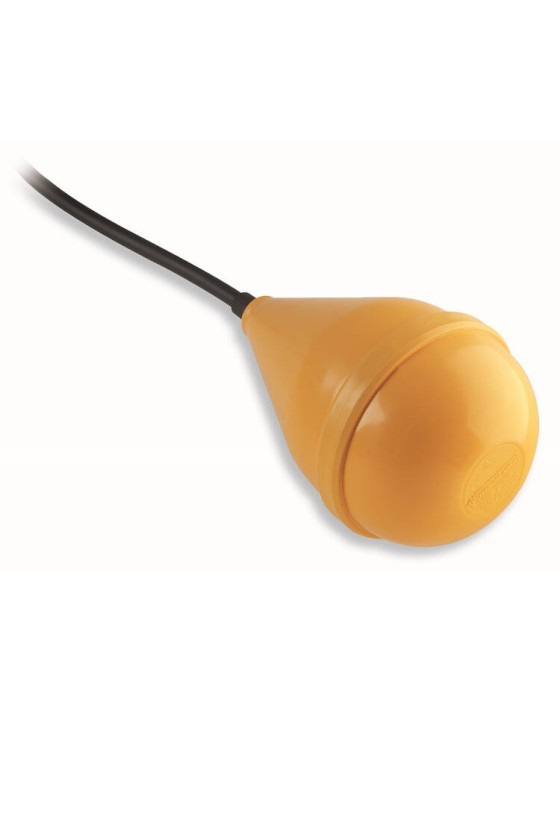

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alarm outputs can be maintained and adjusted easily.

Internal counterweight

20 metres maximum depth

Up to 60°C

Three chamber design

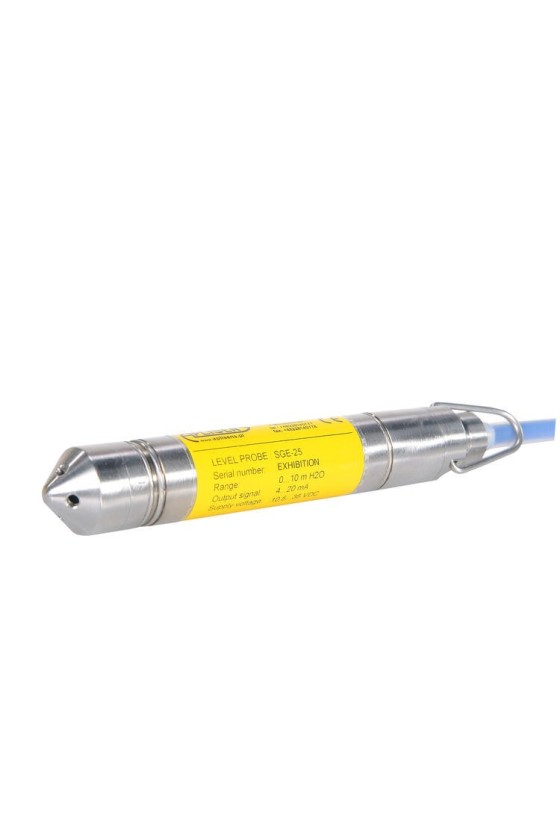

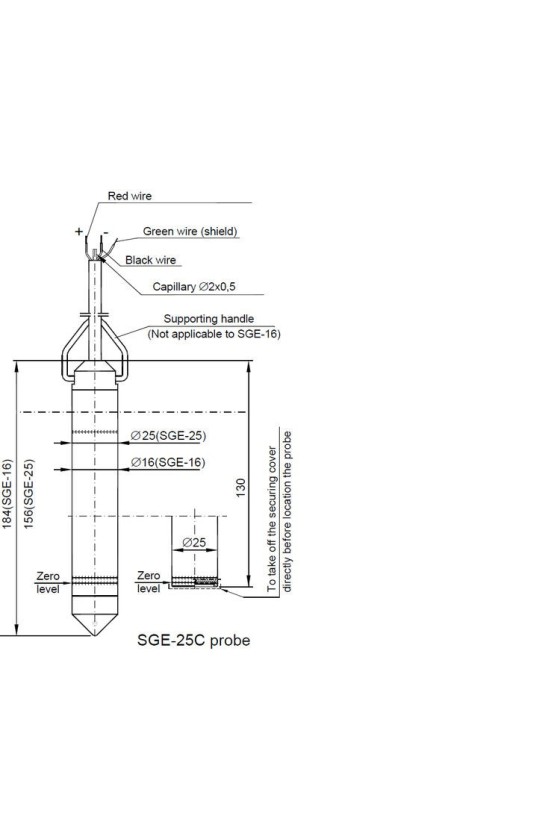

Hydrostatic

1..100mH2O

4-20mA & HART protocol

ATEX option

Marine certification (DNV) option

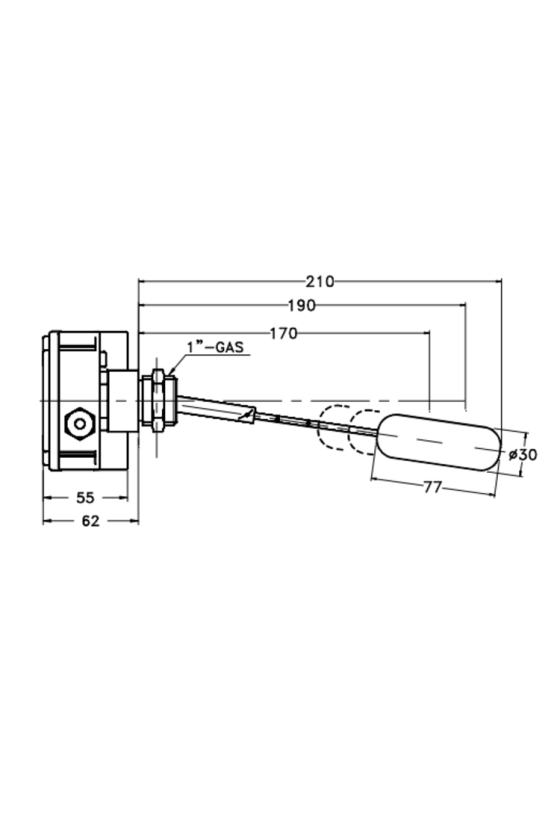

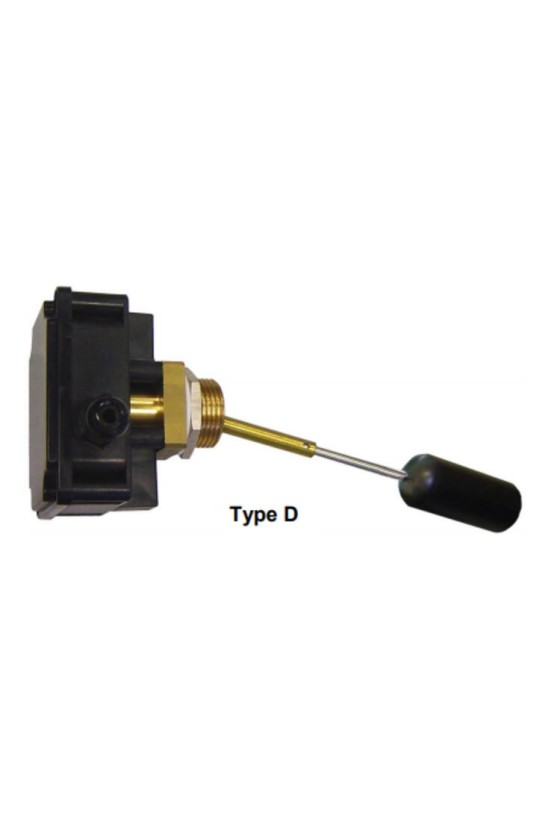

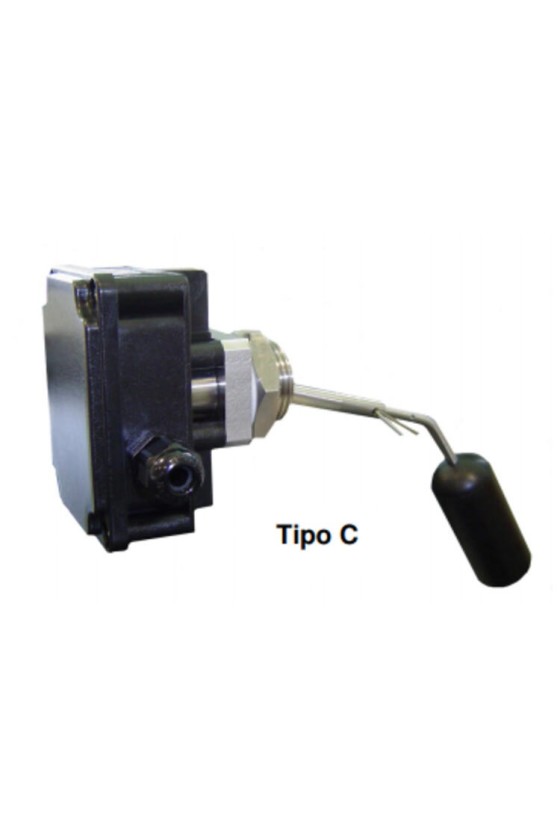

These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperatures up to 120 ° C

PP housing with PG9 electrical connection

Micro-switch SPDT

Max working pressure 20 bar

Max working temperature 120°C

Process connection Brass or St. Steel materials

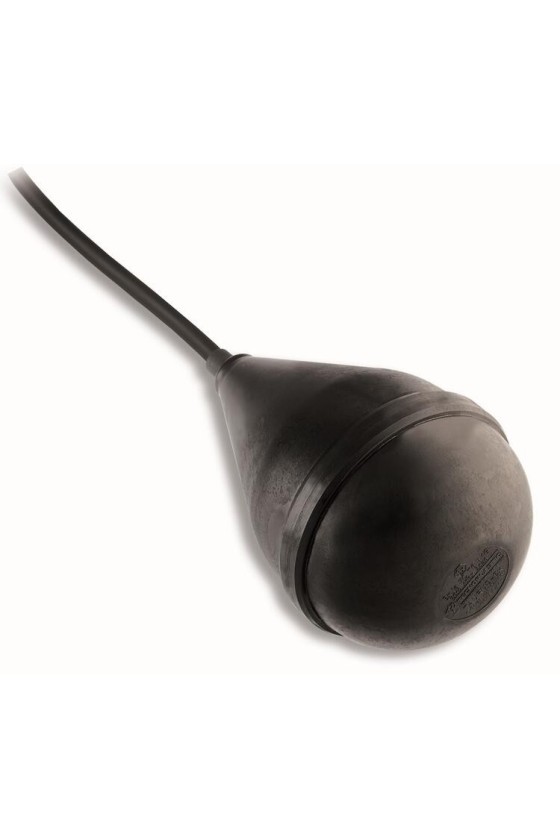

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alarm outputs can be maintained and adjusted easily.

Internal counterweight

20 metres maximum depth

Up to 80°C

Three chamber design

Suitable for use in explosive environments

Hydrostatic

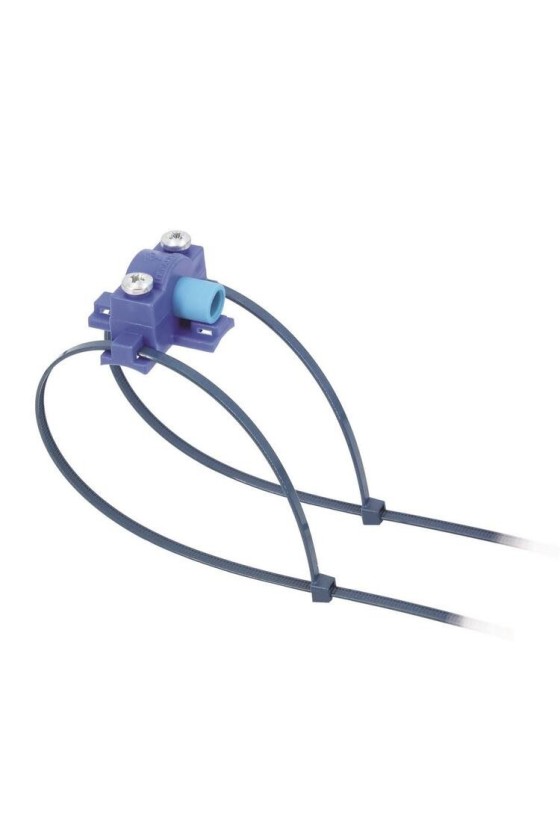

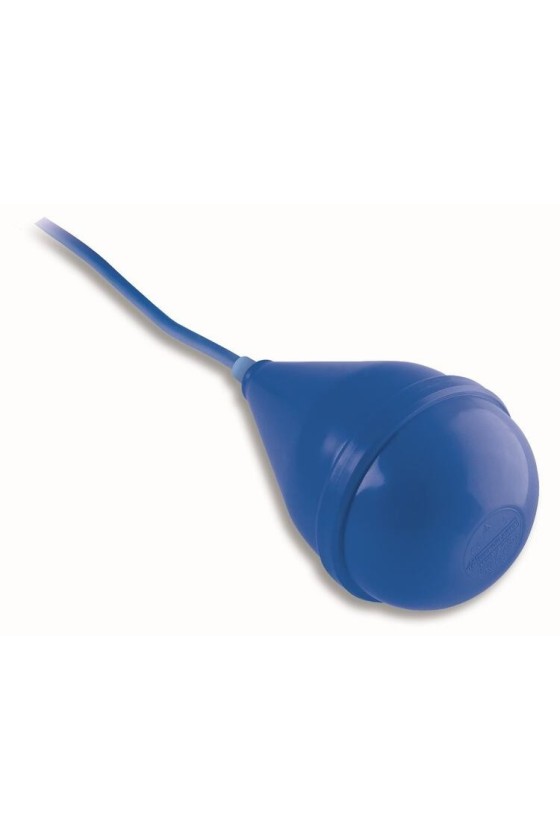

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alarm outputs can be maintained and adjusted easily.

Internal counterweight

20 metres maximum depth

Up to 40°C

Three chamber design

Suitable for use in drinking water

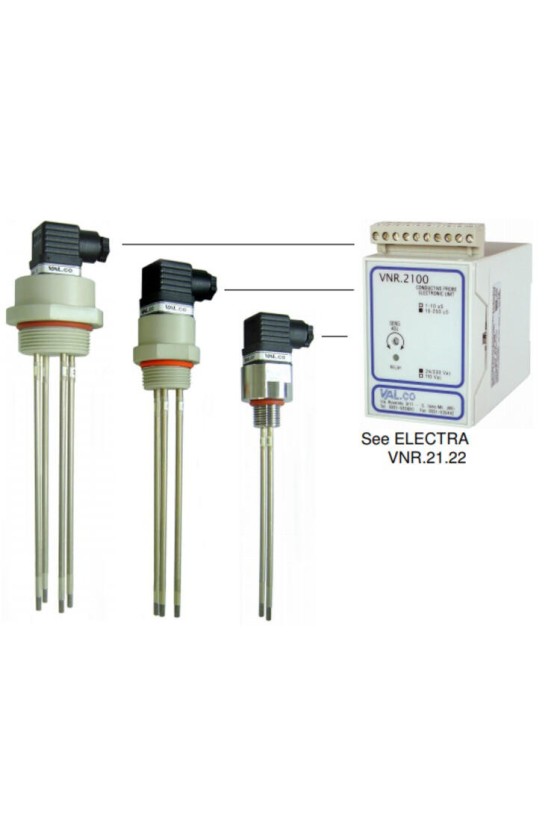

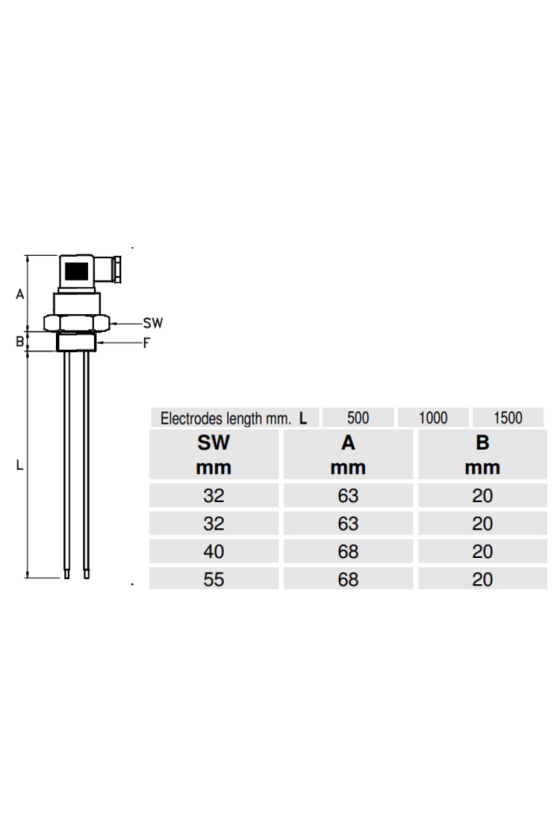

The SL conductive probe series provides a solution for controlling the level of liquid with a minimum value of conductivity of 1µs.

The probes are available in a wide variety of materials and process connections and are of construction appropriate to operation in extreme conditions such as those found on industrial plants.

1 to 4 St. Steel electrodes

Electrodes length from 100 mm. to 1500 mm.

Brass, St. Steel, PPL body materials

Working pressure up to 6 bar

Working temperature up to 100°C

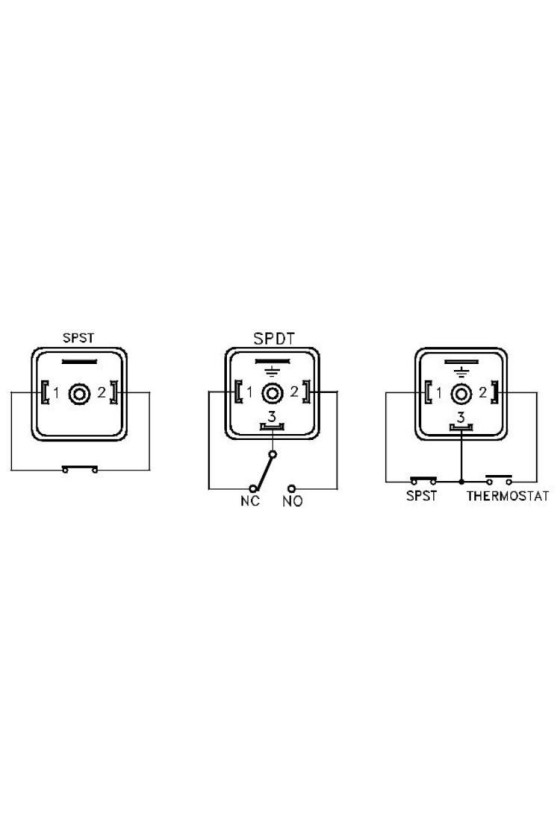

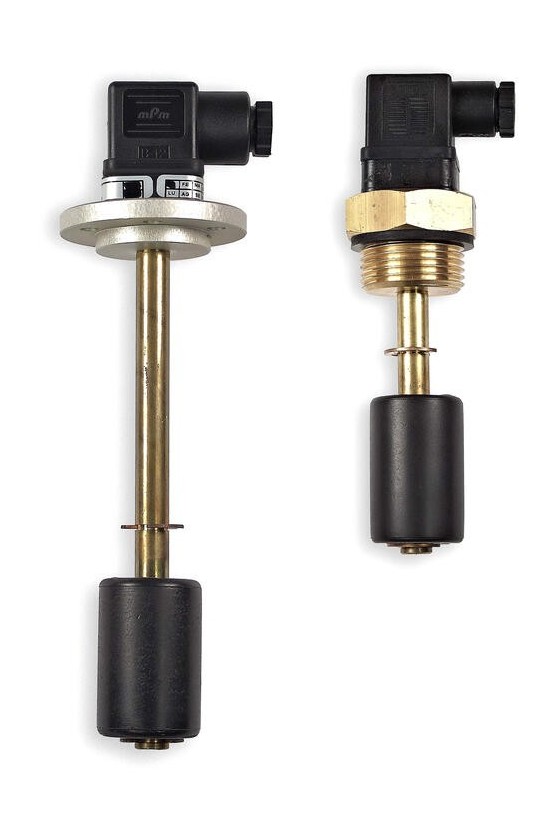

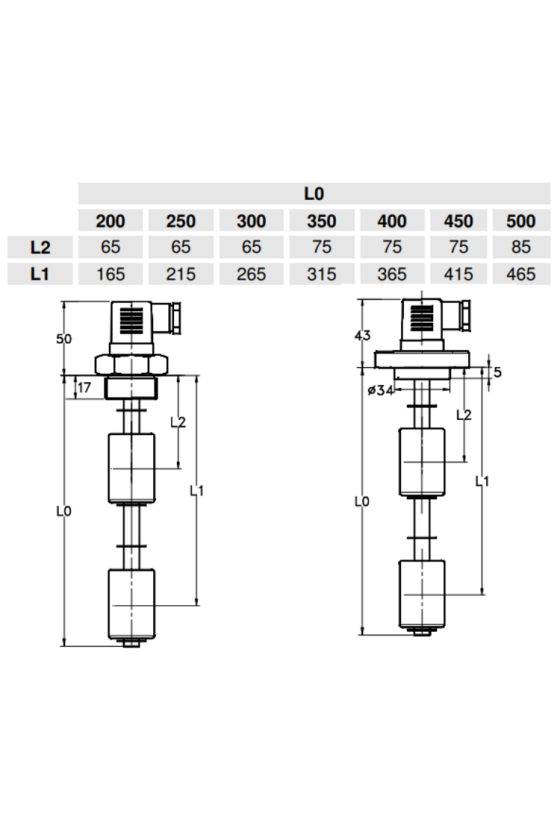

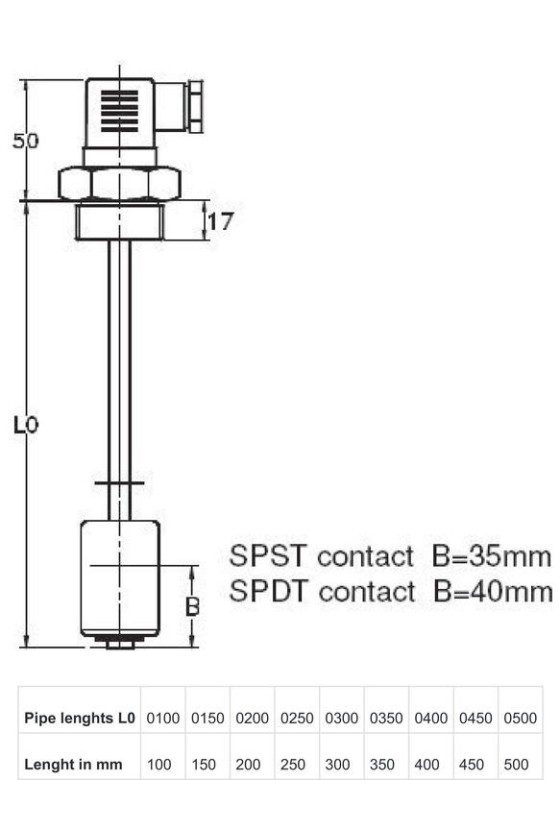

Level controls with 1 electrical contact, reliable, compact and easy to install. Designed to offer a range of level switches to meet the request for a cheap monitoring of the level in small tanks. Rugged construction and low maintenance.

100 to 500 mm. length (step 50 mm.)

Brass stem and connection, Spansil float

Max working pressure up to 20 bar

Max temperature 105°C

Integrated temperature switch (on request)

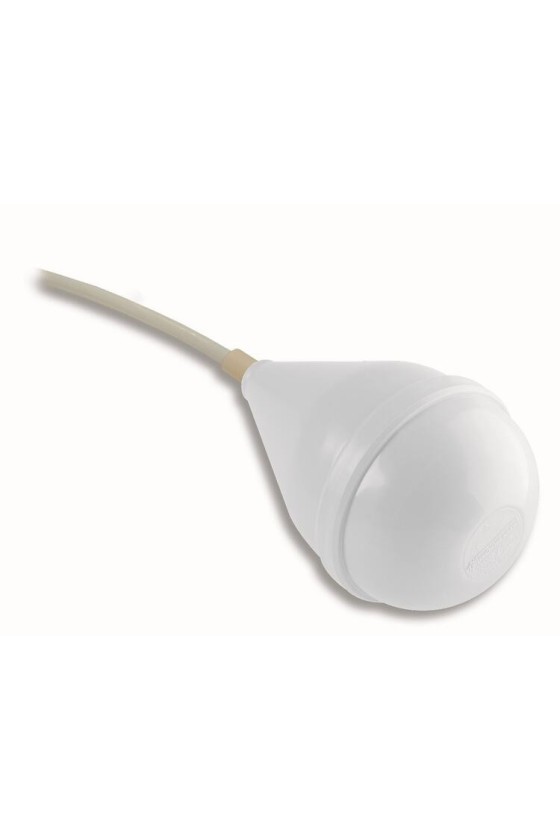

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alar.

Internal counterweight

20 metres maximum depth

Up to 80°C

Three chamber design

Suitable for use in chemical environments

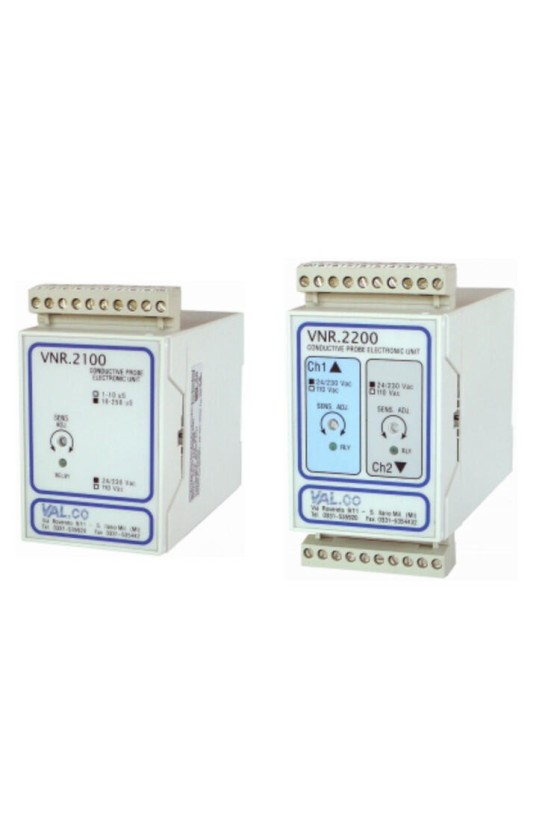

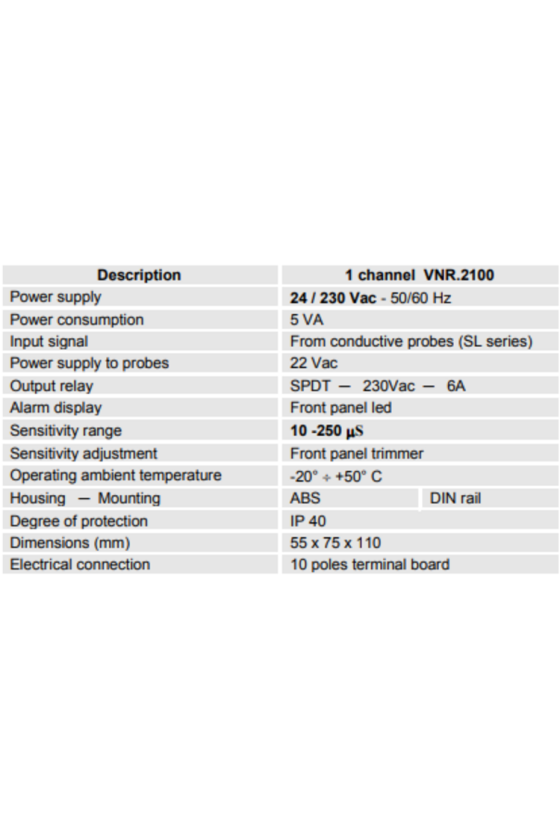

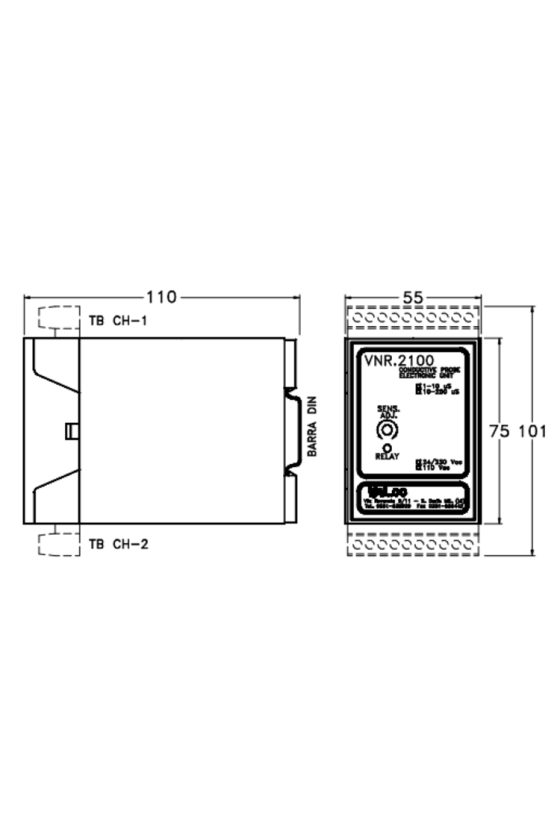

Control units for SL model

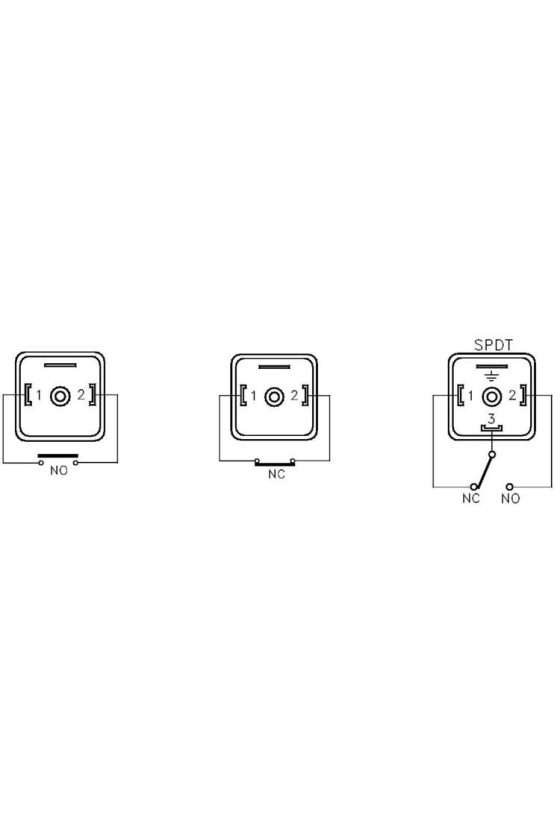

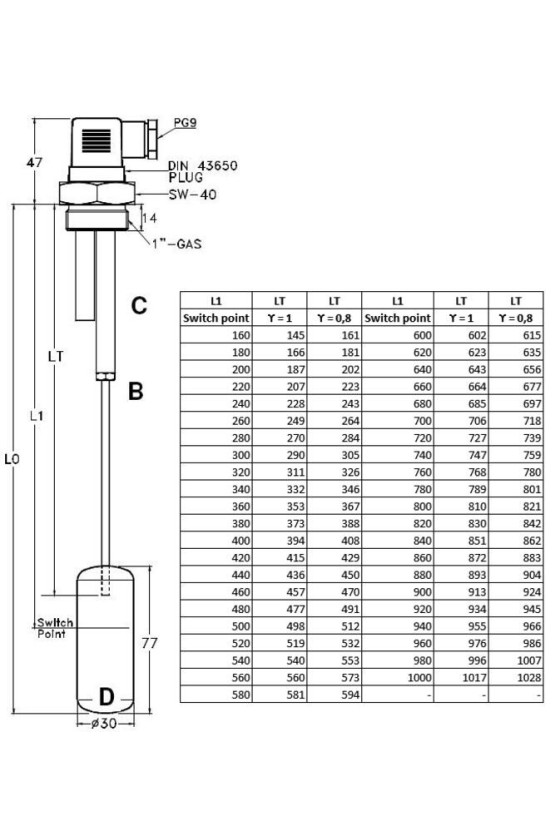

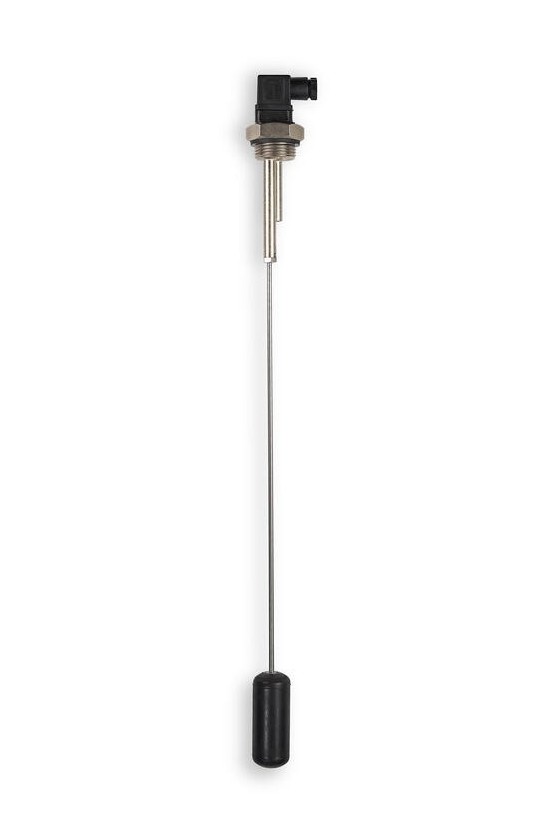

ADJUSTABLE level control for the monitoring of liquids both in  industrial and civil environment. Proposed in 2 standard versions of  rod length, all intermediate lengths are obtained by the user simply shortening the rod of the float.

The principle of operation of these instruments is based on the drive of a reed switch, located in the head of the instrument, as a result of the hydrostatic thrust exerted by the liquid on the float. The absence of moving parts guarantees extreme ruggedness and a limited need for maintenance.

500 and 1000 mm. tube length. Self adjustable

St. Steel stem, Brass connection, Spansil float

Working pressure up to 20 bar

Working temperature up to 120°C

Reed switch SPST or SPDT operation

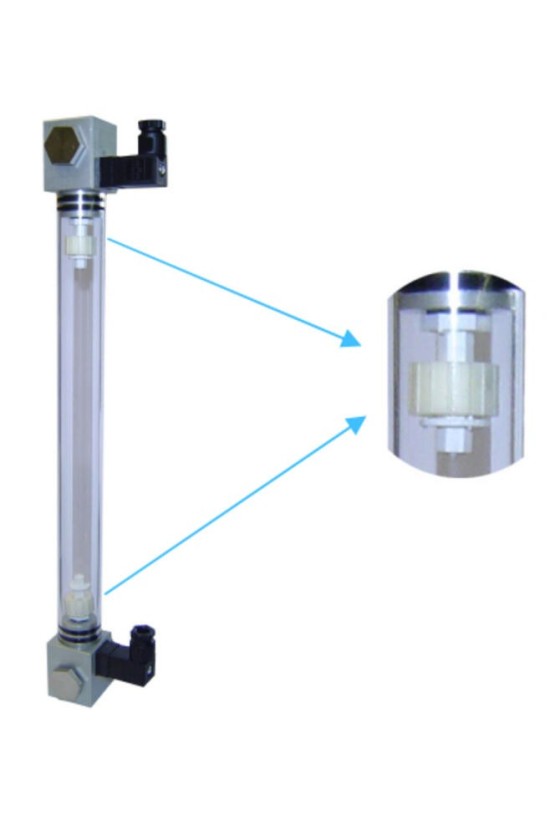

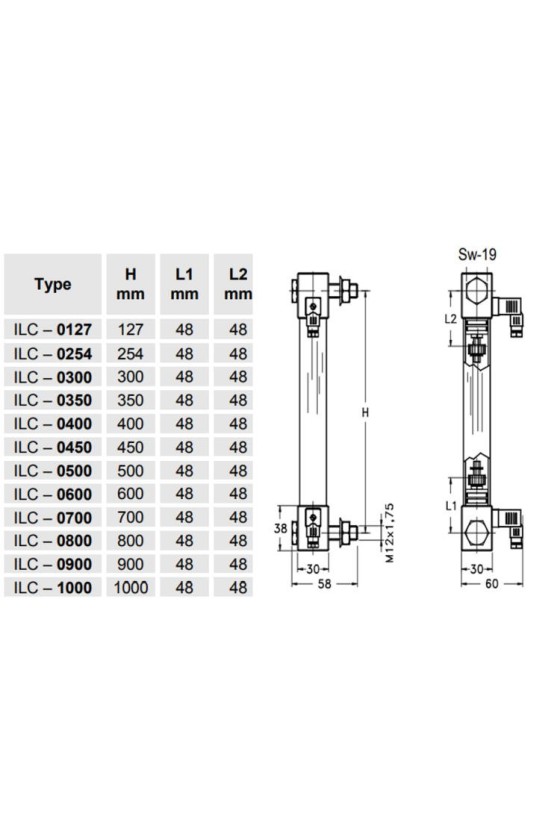

The visual level indicators ILC series are used to visually monitor the status of the level of liquids in tanks, and are equipped with a minimum or maximum level switch. The indicators are mounted outside the tank by means of threaded connections. The system thus designed allows the vision of the level inside the tank at 360°.

Version with switch MIN/MAX

127 mm. to 1000 mm. length

Working pressure up to 2 bar

Working temperature up to 80°C

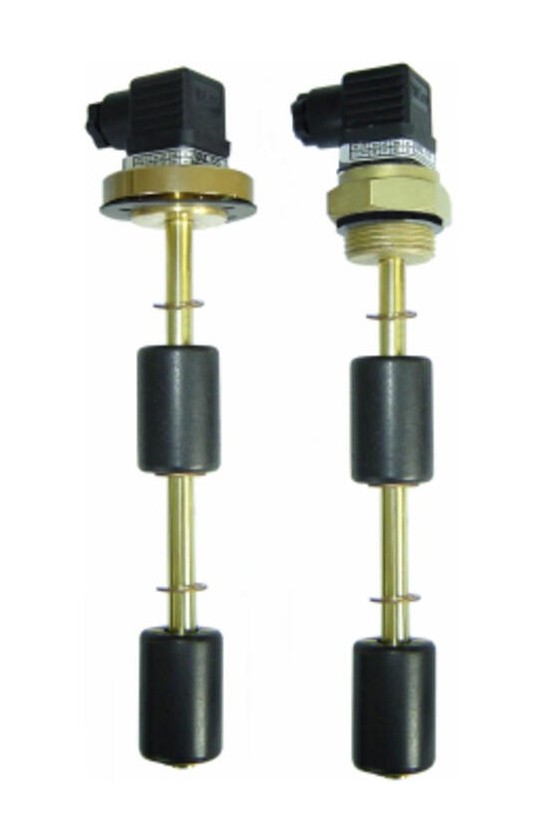

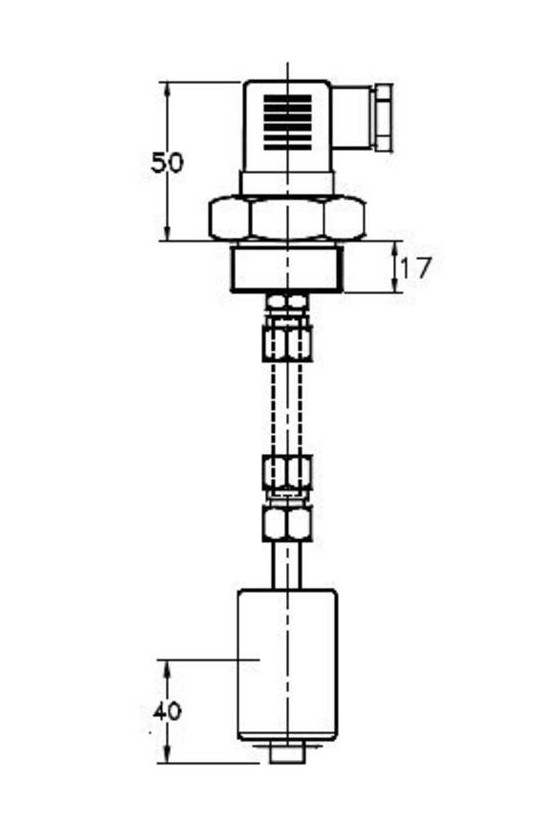

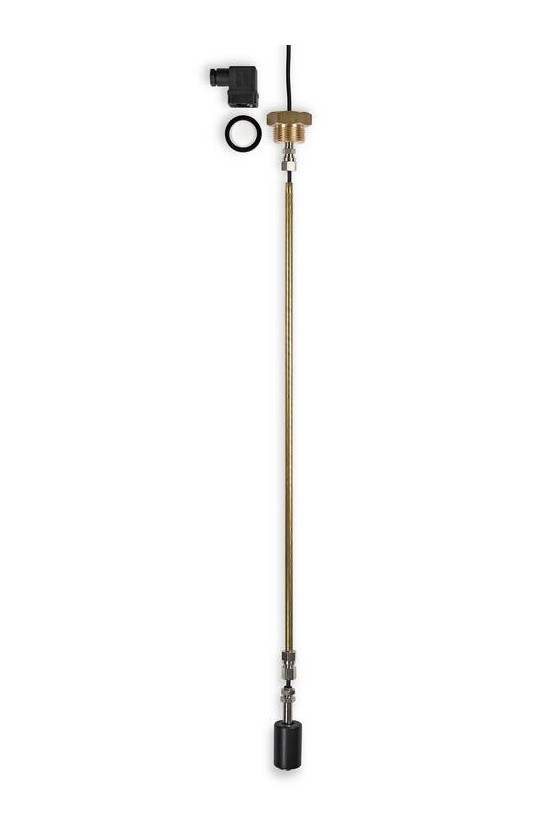

Modular level switch with 1 electrical contact. The user is able to obtain a level switch of the desired length interposing an extension pipe between the control unit and the process fitting. The electrical contact inside the control unit is sealed and immersion proof. The assembly kit can be selected from a wide series of options that allows the user to adapt it to the most common types of installation.

500 mm. to 1500 mm. tube length

Brass stem and connection, Spansil float

Max working pressure up to 20 bar

Max temperature 105°C

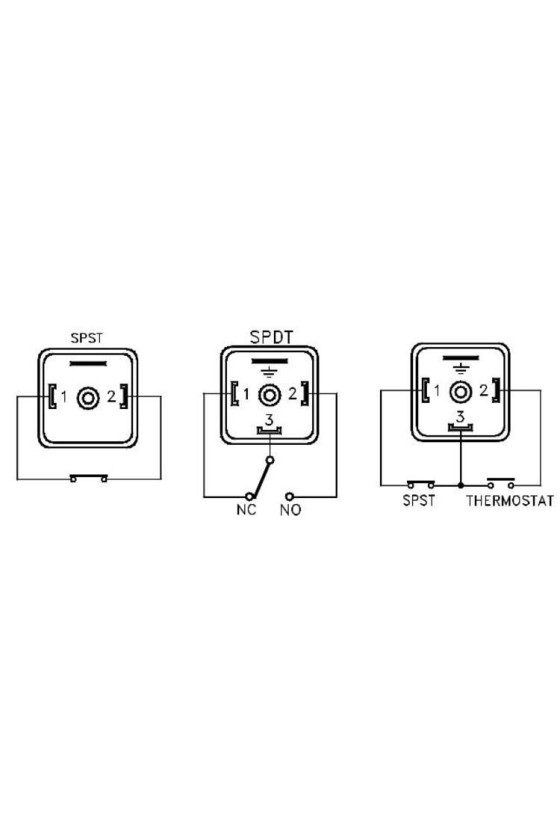

Reed switch SPST or SPDT

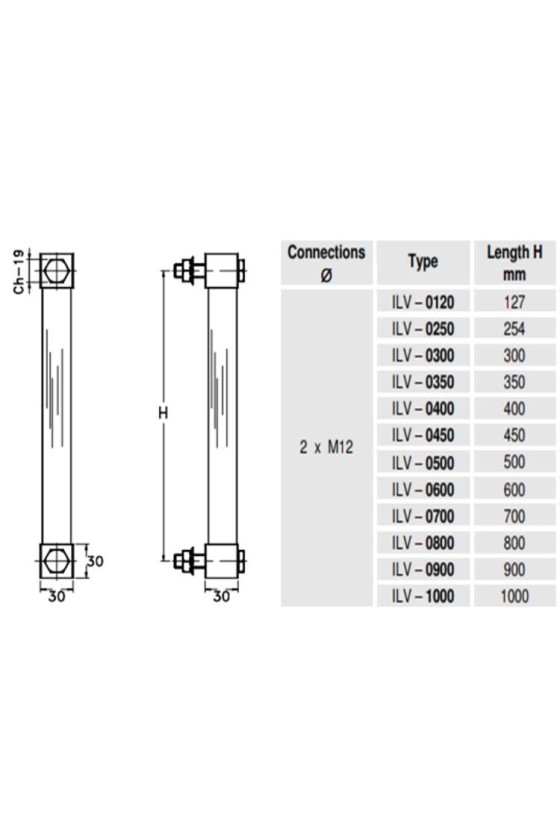

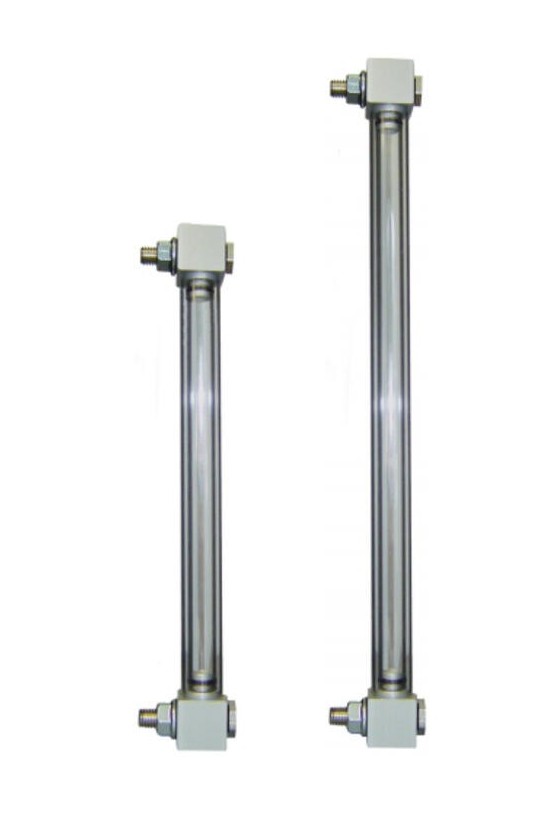

The visual level indicators ILC series are used to visually monitor the status of the level of liquids in tanks. The indicators are mounted outside the tank by means of threaded connections. The system thus designed (double vision pipe) allows the vision of the level inside the tank at 360°

127 mm. to 1000 mm. length

Aluminium anodized body, other on request

Working pressure up to 2 bar

Working temperature up to 80°C

Acrylic sight and protection tube

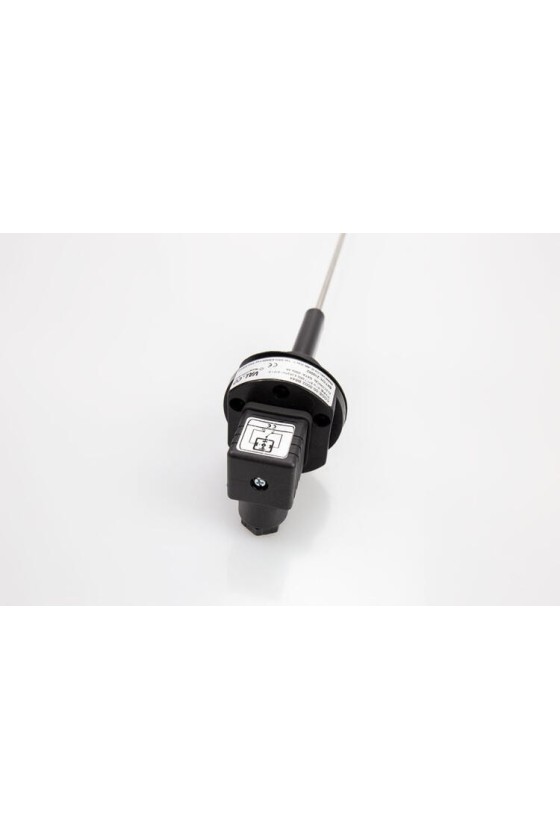

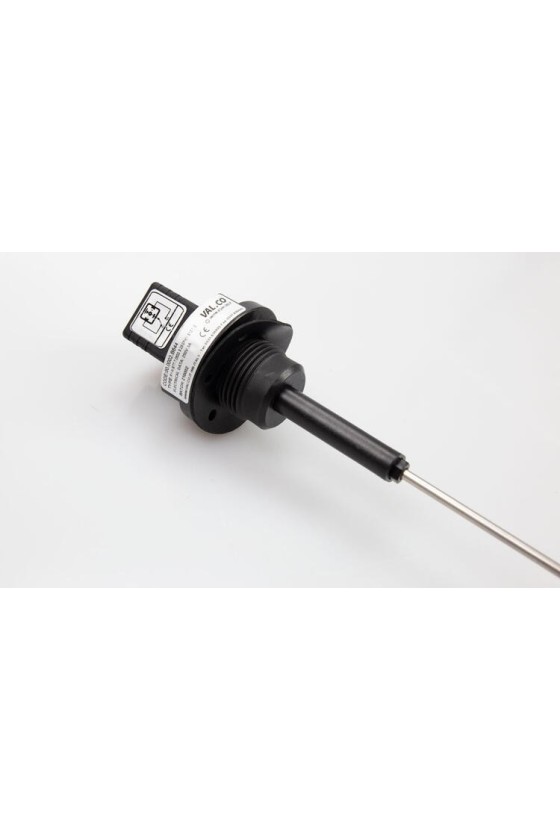

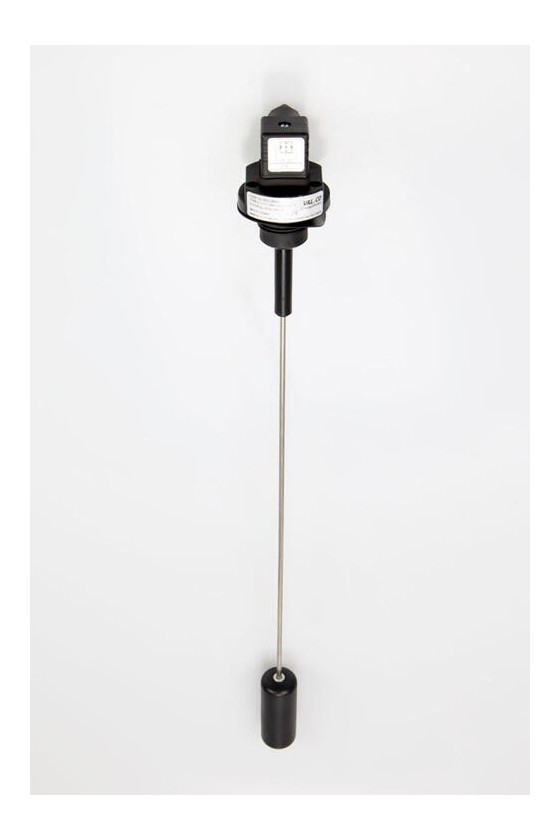

Adjustable level control for the monitoring of liquids both in  industrial and civil environment. Proposed in 2 standard versions of  rod length and a combined threaded or flange process connection gives you the option to suit your needs.

The principle of operation of these instruments is based on the drive of a reed switch, located in the head of the instrument, as a result of the hydrostatic thrust exerted by the liquid on the float. The absence of moving parts guarantees extreme ruggedness and a limited need for maintenance.

500 and 1000 mm. tube length. Self adjustable

Combined threaded or flange process connection

Working temperature up to 90°C

Working pressure up to 10 bar
