Honsberg - RRI Series Flow Meter

Rotor

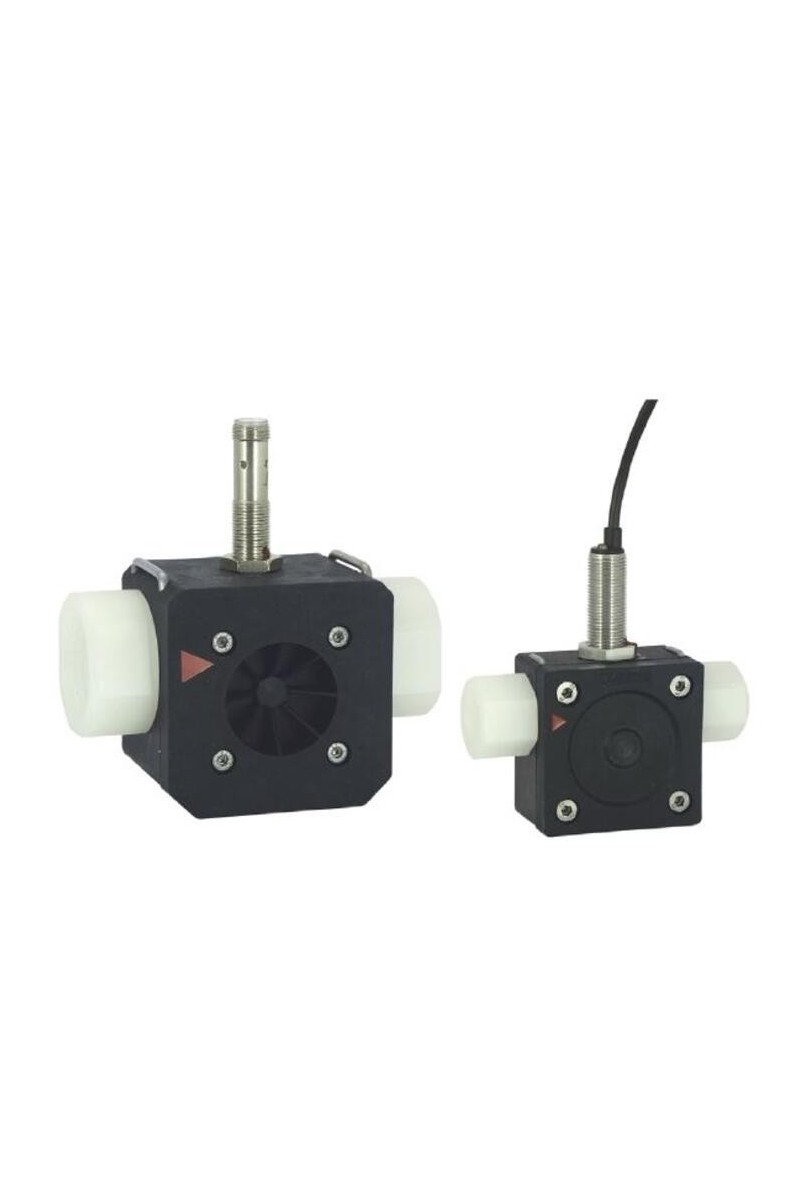

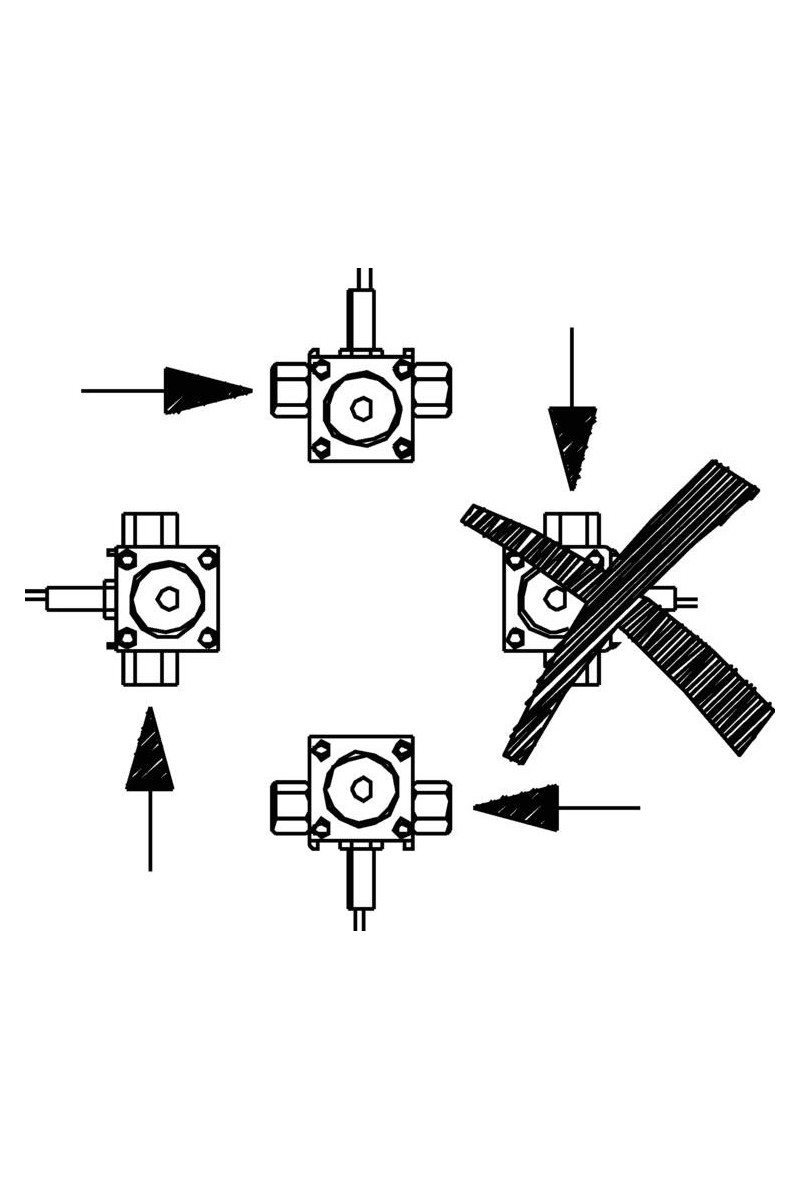

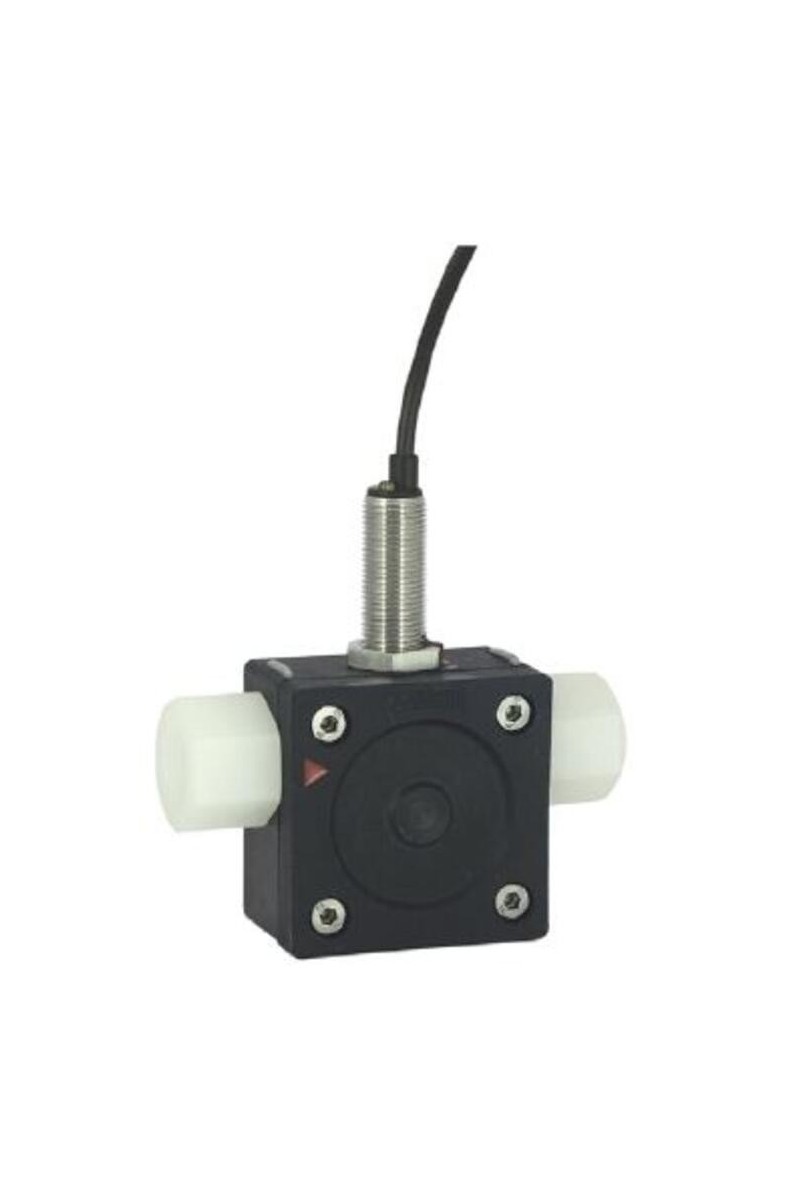

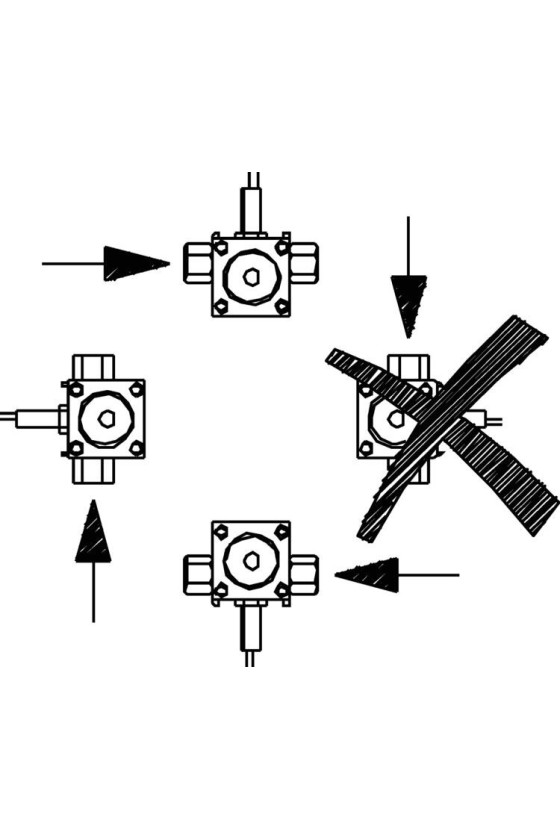

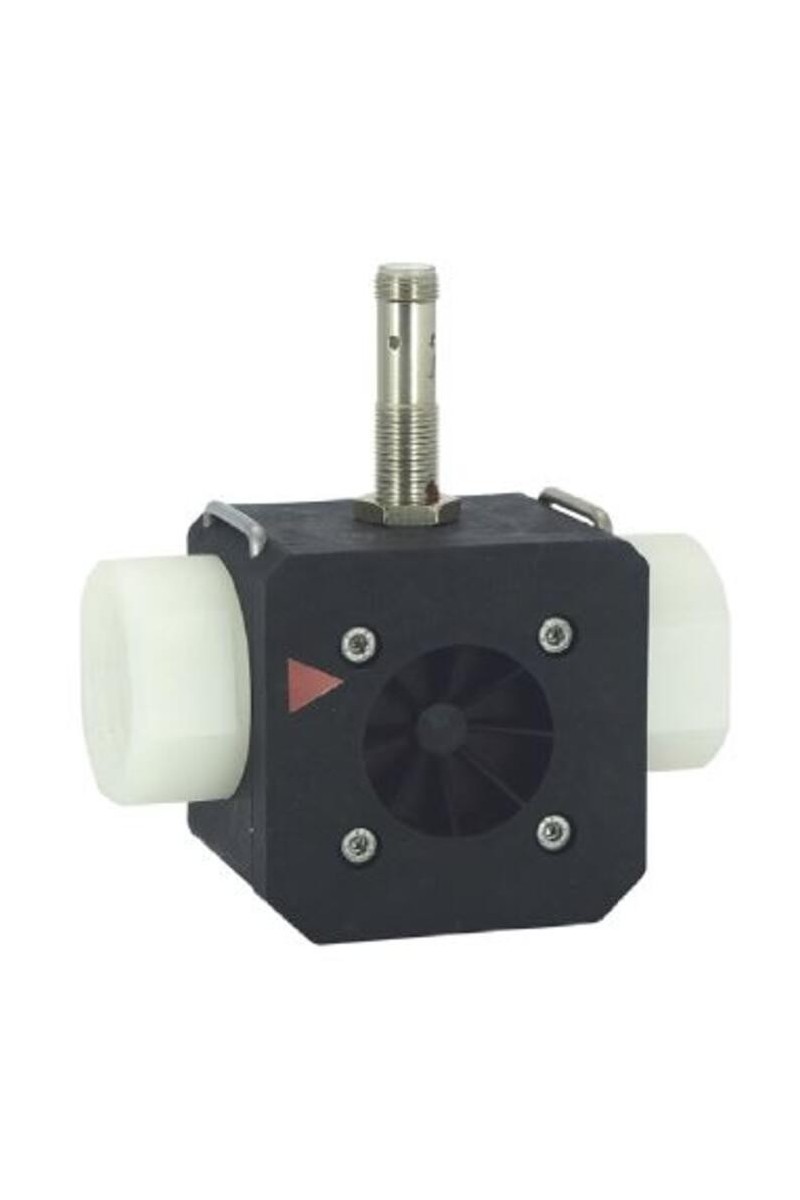

Model RRI is a rotor sensor in plastic with inductive reading. The design offers a lot of options in terms of installation as it can be mounted in most locations and does not require any calming section either before or after. It has high resolution and is suitable for accurate measurement of flows of liquids in applications within liquid dosing or accurate volume calculation.

  • For liquids up to 16 bar pressure

    Flow range from 0.1 to 100 l/min. water

    Connection 3/8" or 1"
£0.00
Tax included
Quantity :
Ask a Question

Accuracy ± 3% of measurement value
Connection type Internal thread, G 3/8 "
Electrical connection 2m cable or M12x1, 4-pole
Flow max 1.8 l/min
Flow range max 1.5 l/min
Flow range min 0.1 l/min
Frequency max 10 Hz
Frequency min 1000 Hz
Function Rotor, inductive sensor
IP class IP67
Load max 200 mA
Material drum Ceramic
Material of body PPS, Questra
Material of connection PVDF
Material of rotor PVDF
Material of seals Viton
Material storage Igilidur X
Materials clips Stainless steel 301
Number of pulses/L Ca 10200
Power consumption 10 mA
Pressure drop Approximately 0.5 bar at maximum flow
Pressure range max 16 bar
Repeatability 1 %
Signal outputs PNP, square wave
Temperature of media to 60 °C
Type of flow component Flow Measuring
Weight 0.2 kg
Viscosity max 10 cSt
Viscosity min 1 cSt
Voltage dc max 30 V
Voltage dc min 10 V
