There are 15 products.
Active filters

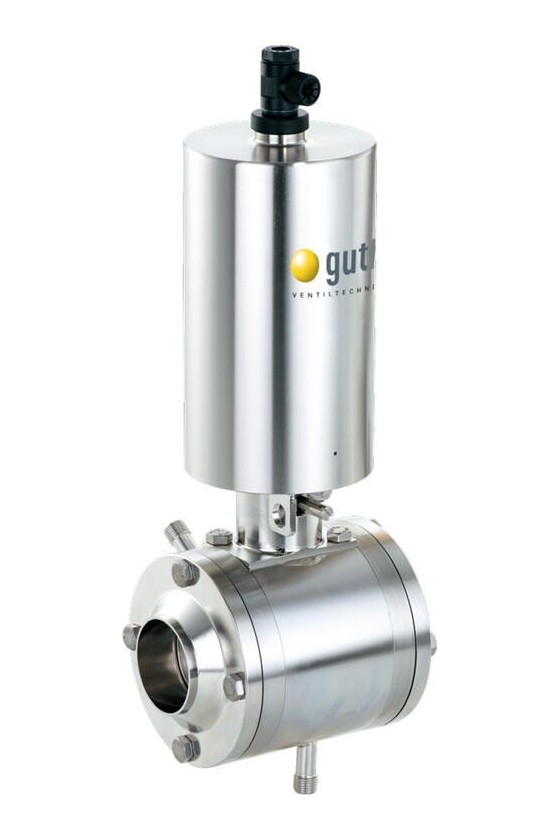

These hygienic stainless steel ball valves are manufactured on site in Germany to the highest standards. They are available in sizes 3/8" to 4".
Features include:
Stainless steel
The Magnum is a high quality stainless steel wafer ball valve (PN 16-40 / ANSI 150-300) manufactured on site at Omal in Italy. This valve is designed to be actuated and is suitable for many applications including oil and gas / petrochemical. Certifications include: ATEX, Fire Safe: UNI EN ISO 10497:2004 - API6FA: 1999, TA-LUFT VDI 2440 (2000), Fugitive Emission UNI EN ISO 15848: 2006.
Sizes PN 16-40
Pressure range PN16 to 40 bar
Temperature up to +200°C depending on material
ATEX certified
Wafer

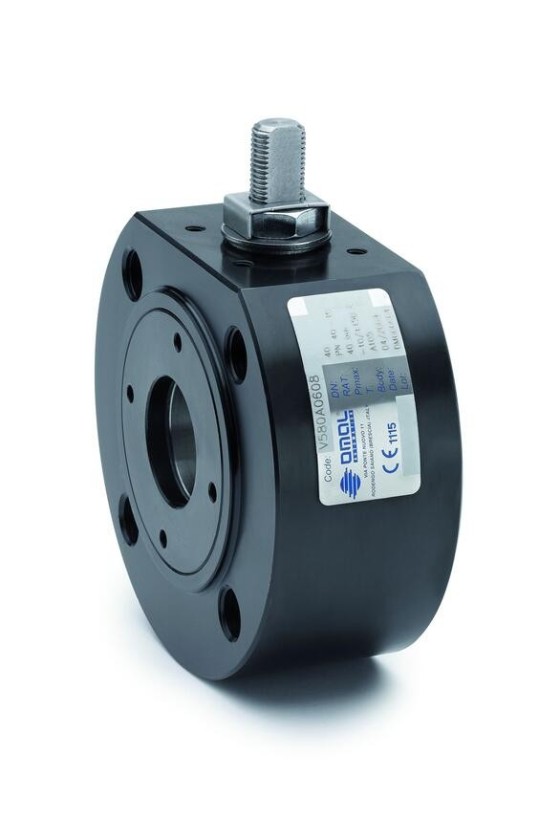

A high quality carbon steel ball valve (PN 16-40 / ANSI 150-300) manufactured on site at Omal in Italy. The Magnum is a non protruding full bore floating ball valve suitable for many applications including oil and gas. Certifications include ATEX, Fire Safe UNI ISO 10497:2004 - API6FA: 1999, Fugitive Emission UNI EN ISO 1548:2006, TA-LUFT VDI 2440 (2000).
Sizes PN 16-4
Pressure range PN16 to 40 bar
Temperature up to +200°C depending on material
ATEX certified
Stainless Steel

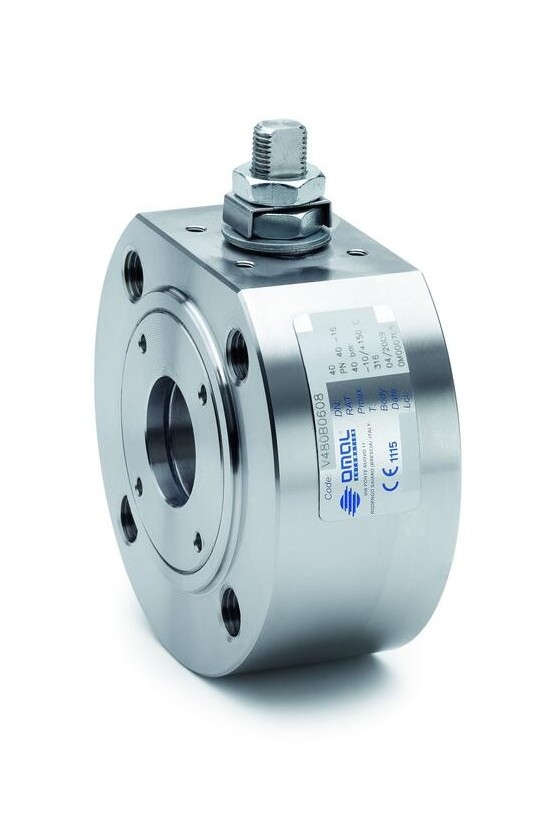

The Magnum is a 2-way stainless steel split wafer ball valve with PN16-40 / ANSI150-300 and PN 63-100 / ANSI 600 flanges, anti blow out stem and anti static device. ATEX available.
A high quality stainless steel ball valve (PN 16-40 / ANSI 150-300 and PN 63-100 / ANSI 600 flanges) manufactured on site at Omal in Italy
Sizes PN 16-40, PN 63-100
Pressure range PN16 to 40 bar
Temperature up to +200°C depending on material
ATEX certified
Split wafer

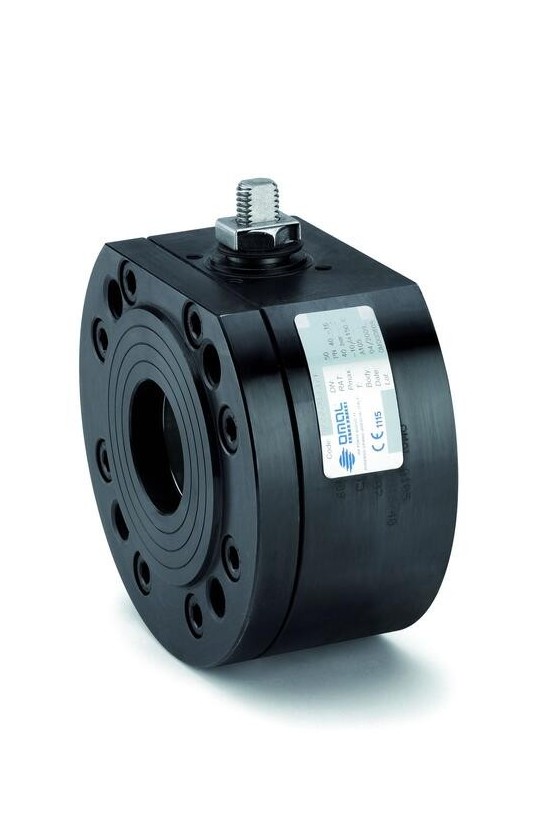

The Magnum is a 2-way carbon steel split wafer ball valve with PN 16-40 / ANSI 150-300 and PN 63-100 / ANSI 600 flanges,, anti blow out stem and anti static device. ATEX certified.
Sizes PN 16-40, PN 63-100
Pressure range PN16 to 40 bar
Temperature up to +200°C depending on material
ATEX certified
Valve Split body

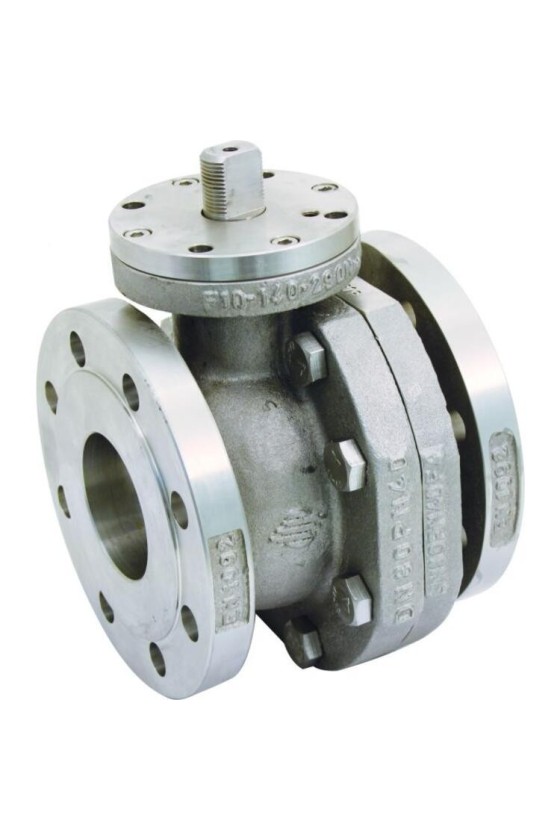

Pro-Chemie 60 – a stainless steel flanged ball valve series designed for the chemical industry.
The name “Pro-Chemie 60” wants to highlight that this PROfessional valve is dedicated to CHEMIcal applications and can reach 60,000 cycles with no fugitive emissions.
Available as a manual option or automated (using OMAL scotch-yoke actuators) and is also available with SIL3 / ATEX certificates.
Sizes DN15 to DN150
Pressure range PN16 to 40 bar
Temperature range -40°C to +150°C
ATEX available on request

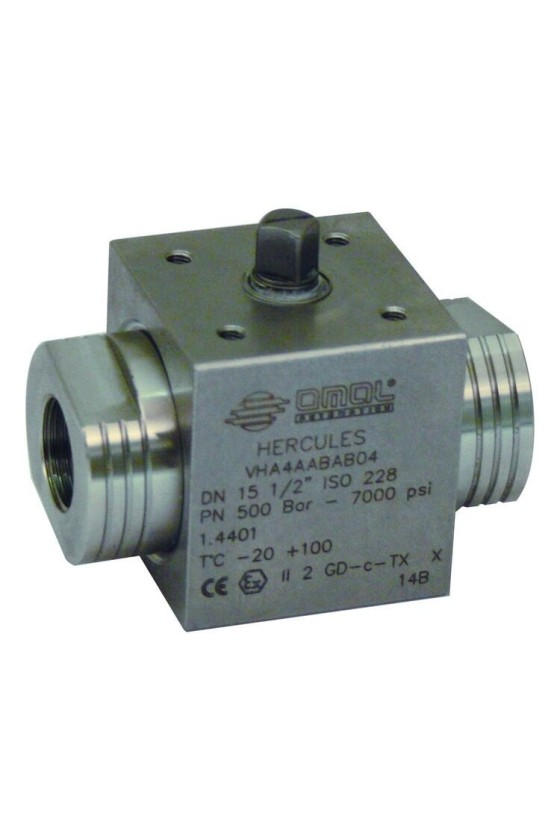

Hercules high pressure ball valve in stainless steel. Threaded ends EN ISO 228 NPT ATEX Certified. Working pressure 4,500 Psi to 7,000 Psi, DN6 to DN50 (1/8" - 2").
The Hercules high pressure ball valve in stainless steel is 100% manufactured in Italy to the highest standards. Threaded ends EN ISO 228 NPT - Working pressure 4,500 Psi to 7,000 Psi. DN6 to DN50 (1/8" - 2"). This valve is ATEX certified and features a fire safe design with anti static device.
Sizes DN06 to DN50
Pressure range 4,500 Psi to 7,000 Psi
Temperature range -30°C to +160°C
ATEX certified

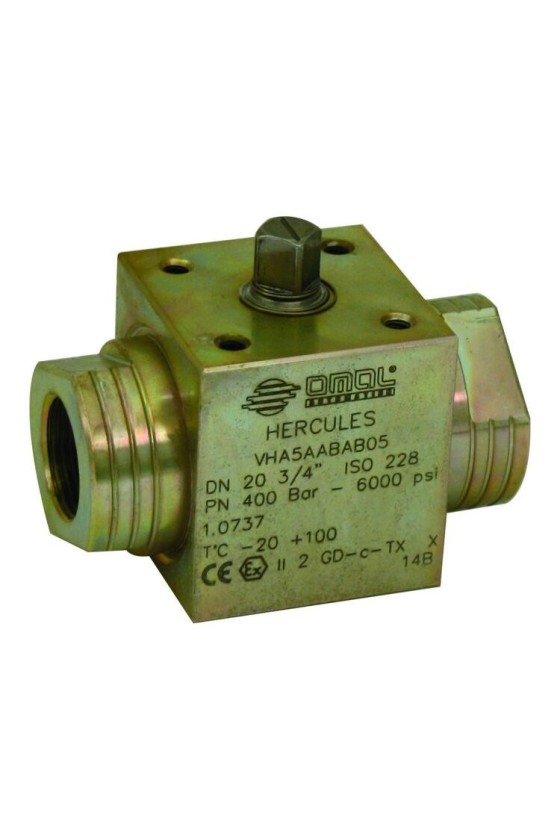

Hercules high pressure ball valve in carbon steel. Threaded ends EN ISO 228 NPT ATEX Certified. Working pressure 4,500 Psi to 6,000 Psi, DN6 to DN50 (1/8" - 2").
The Hercules high pressure ball valve in carbon steel is 100% manufactured in Italy to the highest standards. Threaded ends EN ISO 228 NPT - Working pressure 4,500 Psi to 6,000 Psi. DN6 to DN50 (1/8" - 2"). This valve is ATEX certified and features a fire safe design with anti static device,
Sizes DN06 to DN50
Pressure range 4,500 Psi to 6,000 Psi
Temperature range -20°C to +160°C
High cycle

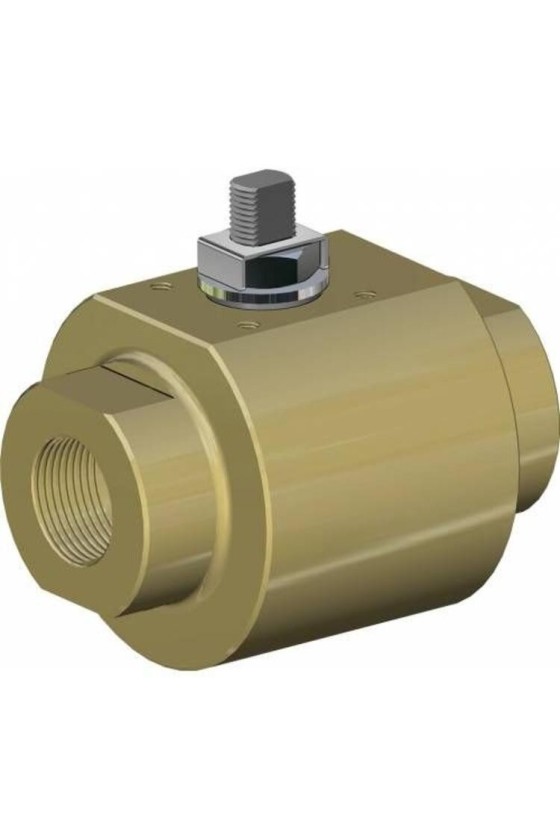

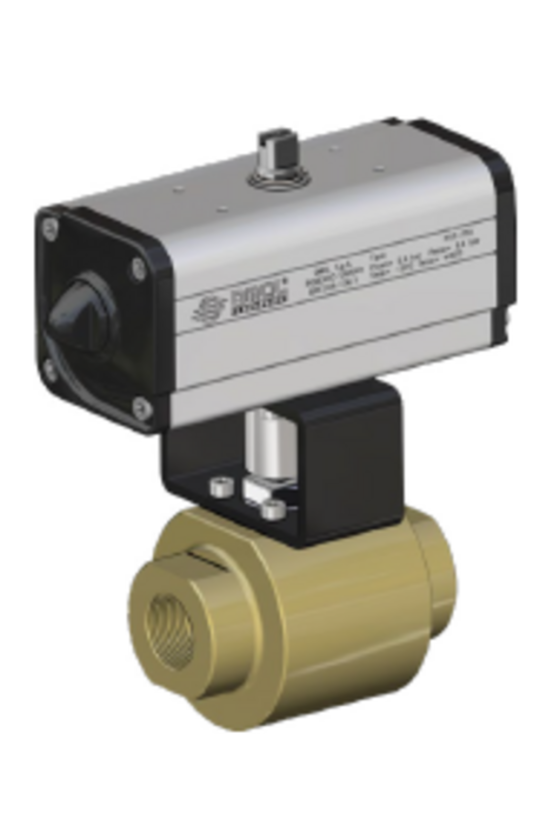

OMAL's KRATOS high cycle non self-lubricating media carbon steel ball valve features, threaded ends, floating ball and operating temperature up to 80°C.
High cycle

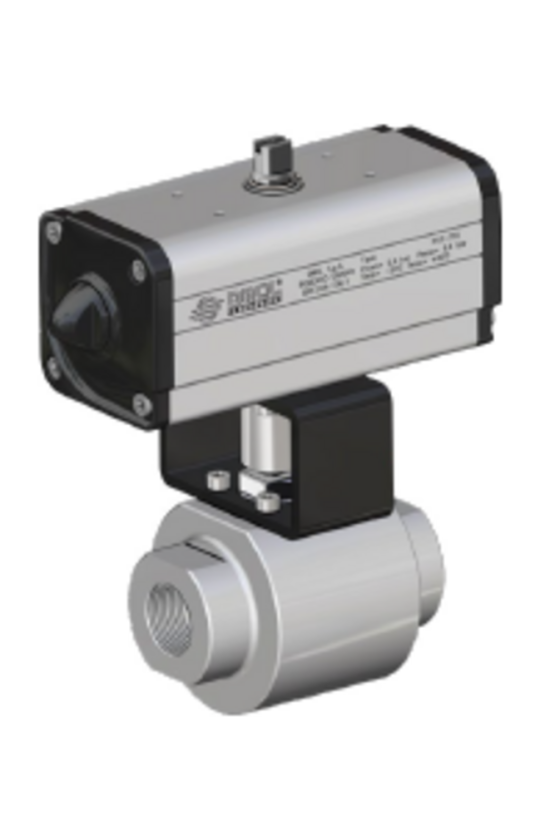

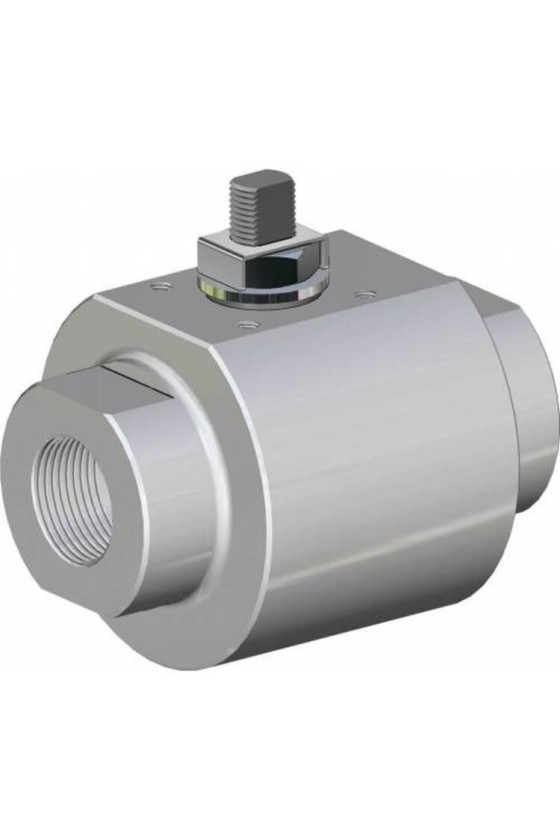

OMAL's KRATOS high cycle stainless steel ball valve features, threaded ends, floating ball and operating temperature up to 100°C.
Sizes DN08 to DN50
Pressure-relief hole in the ball
Temperature range -50°C to +100°C
ATEX available on request
High cycle
OMAL's KRATOS high cycle carbon steel ball valve features, threaded ends, floating ball and operating temperature up to 100°C.
Sizes DN08 to DN50
Pressure-relief hole in the ball
Temperature range -46°C to +100°C
ATEX available on request
Split wafer
he Magnum is a 2-way carbon steel split wafer ball valve with PN 16-40 / ANSI 150-300 and PN 63-100 / ANSI 600 flanges,, anti blow out stem and anti static device. ATEX certified.
A high quality carbon steel split wafer ball valve (PN 16-40 / ANSI 150-300 and PN 63-100 / ANSI 600 flanges,) manufactured on site at Omal in Italy. The Magnum is a non protruding full bore floating ball valve suitable for many applications including oil and gaspetrochemical. Certifications include ATEX, Fire Safe API 607:2005 ISO 10497:2010 - API6FA:1999, Fugitive Emission UNI EN ISO 1548:2006, TA-LUFT VDI 2440 (2000).
Sizes PN 16-40, PN 63-100
Pressure range PN16 to 40 bar
Temperature up to +200°C depending on material
ATEX certified

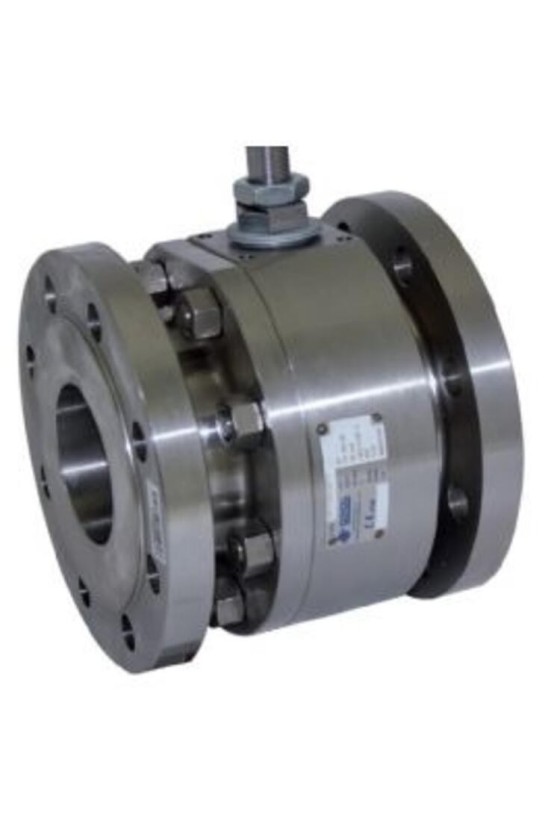

A high quality stainless steel split body ball valve (PN 16-40 / ANSI 150-300 or PN 63 - 100 / ANSI 600 flanges) manufactured on site at Omal in Italy. The Thor is a non protruding full bore floating ball valve suitable for many applications including oil and gas / petrochemical. Certifications include European Directive 97/23 EC PED, Fugitive Emission UNI EN ISO 154848 (2006), TA-LUFT VDI 2440 (2000), Fire Safe API 607:2005 ISO 10497:2010 - API6FA:1999, API6D: Certification 6D-1007 (Valves with ANSI). ATEX available. Also available in Reduced Bore.
PN 16-40 / ANSI 150-300 or PN 63 - 100 / ANSI 600 flanges
Non protruding full bore floating ball valve
Anti static device and anti blow out stem
ATEX available

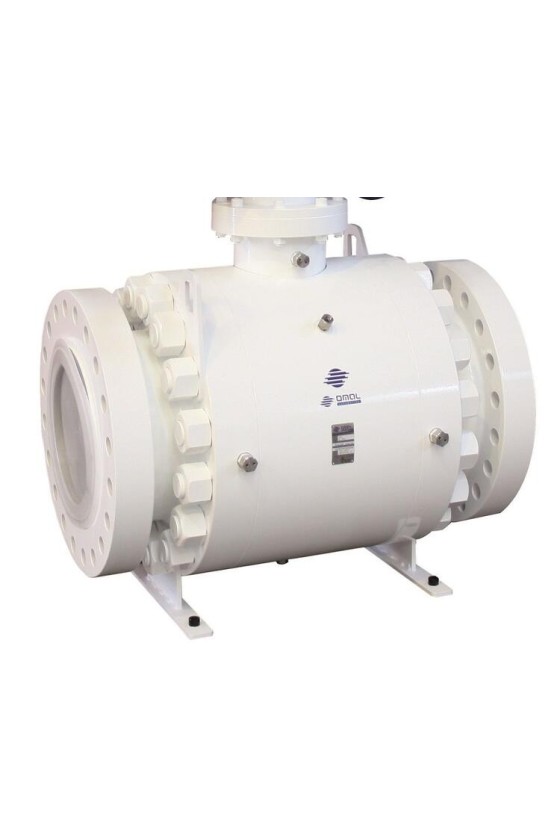

Trunnion Mounted Ball Valve in coated steel. ANSI 150 - ANSI 1500 DN50 to DN300. Features two or three piece split body, full bore or reduced bore, double block & bleed. Stem seals FKM O-rings with TFM 1600 V-ring anti blow out stem. ATEX certified, API 6D Certificate 6D-1007. This trunnion mounted ball valve is suitable for petrochemical plants, oil and gas production, power plants, liquids, gas, steam, hydrocarbons.
Sizes DN50 to DN300
Pressure class ANSI150 to ANSI1500
Two or three pieces split body
ATEX certified
Individual configuration of the valve
Factory set control range 90°<
Voltage 100-230V, 50-60Hz Pneumatic Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi)
Integrated stainless steel mounting inserts
Visual position indicator
