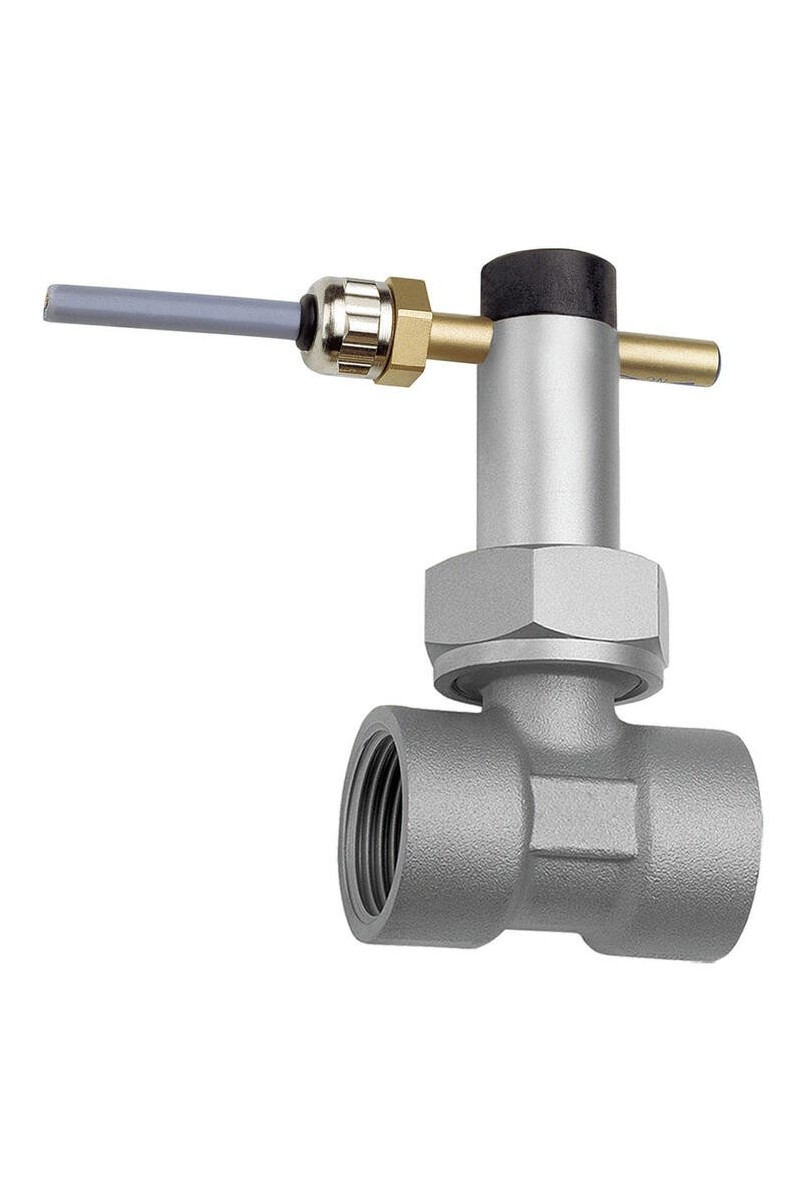

Honsberg - UR1 Series Flow Switch

Paddle

The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.

Special versions

Switching range 1,3..35 l/min

Water (oils, gases and aggressive media available on request)

G⅜" up to G2"

Brass or stainless steel wetted parts

Max pressure 25 bar

£0.00
Tax included
Quantity :
Ask a Question

Accuracy ±15% fs
Adjustable switching point l/min water 2,5..3,5 l/min
Connection type G3/8" female
Contact rating max 50 A
Electrical connection 1.5m cable
Flow max 10 l/min
Function Normally open or normally closed (SPST)
IP class IP65
Material breaker body Hard ferrite
Material of body Nickel-plated brass, Stainless steel 303
Material of connection Nickel-plated brass
Material of seals NBR
Material of wetted parts Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Material paddle Stainless steel 301
Media Water (oil, air and aggressive media on request)
Pressure drop Approx. 0.01 bar at max. flow
Pressure range max 25 bar
Temperature of media from 20 °C
Temperature of media to 110 °C
Type of flow component Flow Switches
Weight 0.35 kg
Viscosity 1 cSt
Voltage ac max 230 V
