Electrical Pressure Switches

SUCO's advanced Electronic Pressure Switches integrate cutting-edge technologies such as Ceramic Measuring Cells with Thick Film Technology and Silicon-on-Sapphire (SoS) Technology. These innovations ensure exceptional accuracy, extended service life, and consistent switching performance throughout the lifespan of the switch.

Our lineup includes the Performance Series, offering compact, cost-effective switches with impressive over pressure protection up to 2×, adjustable hysteresis (ranging from 2% to 98%), and programmable features via the PPD05 interface. For more demanding applications, our Hex 27 and Hex 30 A/F switches provide over pressure protection up to 500 bar, easy external adjustment of switching points, and high switching currents up to 1.4 A. Additionally, we offer menu-controlled models with displays that feature two switching outputs, one analog output, and programmable functions like switching delay, zero-point reset, and peak value memory.

The High-Performance Series, designed for mobile hydraulics, offers outstanding ove rpressure protection up to 4×, all-welded stainless steel and titanium construction for superior media compatibility, minimal temperature error, and exceptional long-term stability. With adjustable switching points, high protection ratings, and the elimination of contact corrosion issues, SUCO’s electronic pressure switches provide precise, reliable pressure monitoring solutions for a wide range of industrial applications.

There are 15 products.

Sort by:

Showing 1-15 of 15 item(s)

REQUEST A QUOTE

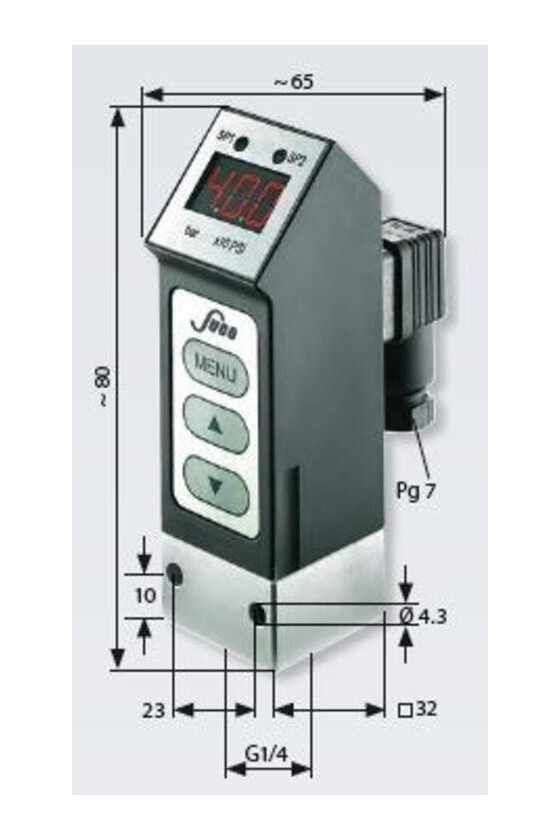

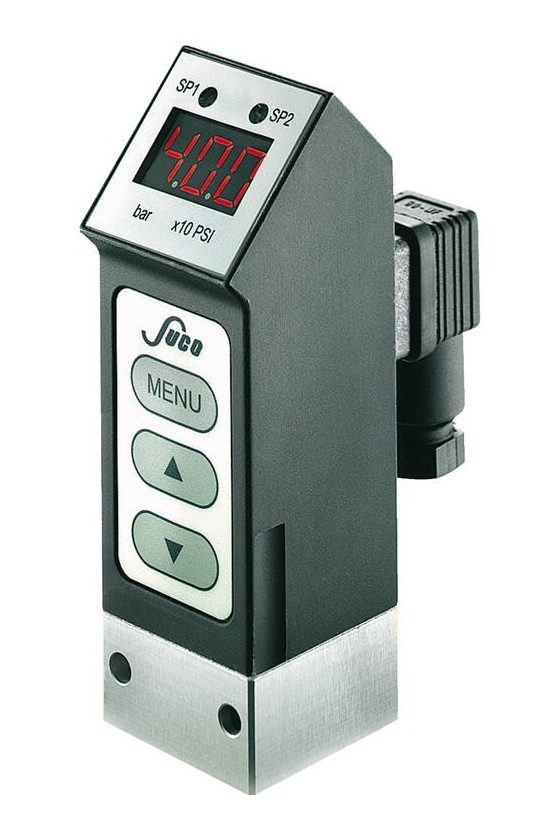

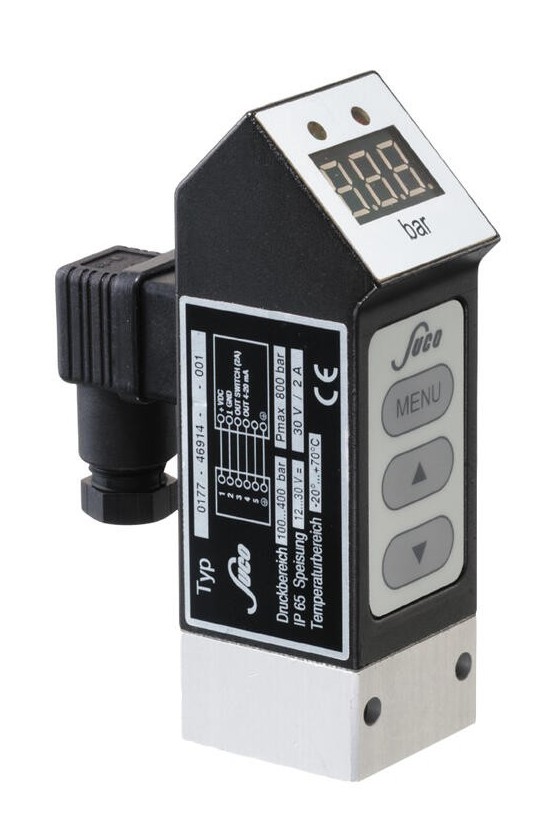

Suco 0570 Electronic Pressure Switch/Sensor

Dual output with display

The SUCO 0570 is a menu controlled electonic pressure switch with a built in 4-20mA output and simple to program through the touch keypad. There are two switch points available and either can be programmed to normally open or normally closed along with switching time delay, zero point reset, peak value memory an switch point counter. The current pressure is displayed on the LED display and and both switch points have an active indication light.

Common applications include factory monitoring, air systems, hydraulics and more.

LED Display

Programmable using keypad

Three adjustment ranges from 0..10 bar to 0..400 bar

2 PNP + 4-20 mA output

£0.00

REQUEST A QUOTE

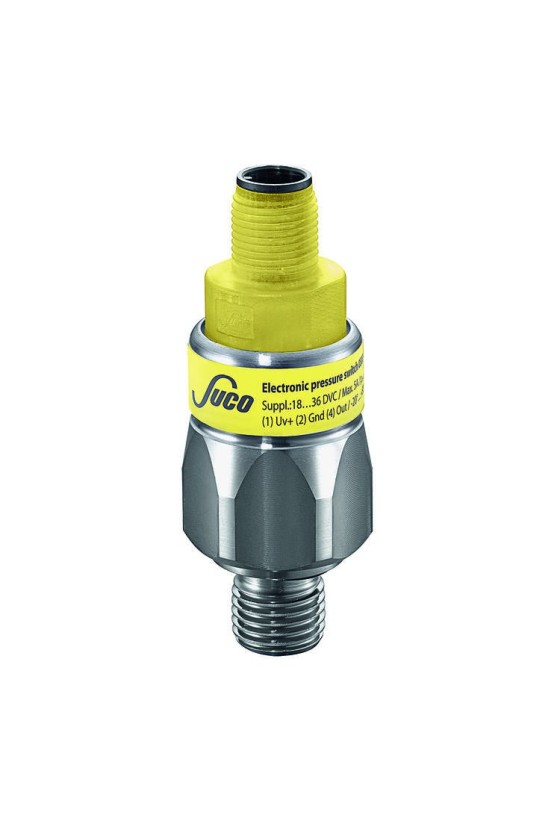

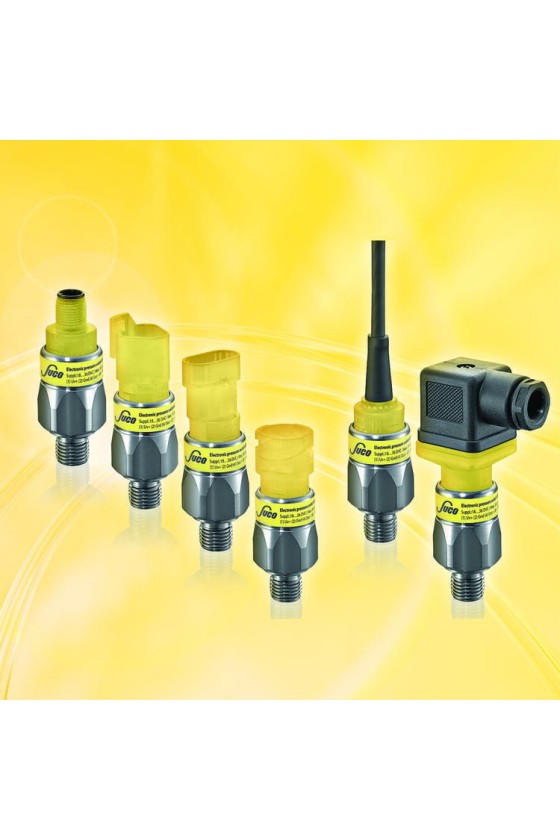

Suco 0500/0501 Electronic Pressure Switch

Factory set

The SUCO 0500/0501 performance series electronic pressure switch offers a small compact electronic switch without compromising on quality which comes factory set (unadjustable by the user) with overpressure protection (up to 2x), has a long service life and is also attractively priced especially at high volumes. Using a ceramic sensor in thick film technology for a good operating temperature range and accuracy, there are six standard pressure ranges starting from 0..2 bar all the way up to 0..100 bar and a hysteresis of 1%-98%, available in normally open or normally closed with a PNP transistor output.

Single switch point

Small & compact

Ceramic sensor

Stainless steel housing

£0.00

REQUEST A QUOTE

Suco 0510/0511 G1/4 Electronic Pressure Switch

Adjustable by user

The SUCO performance series electronic pressure switch offers a small compact electronic switch without compromising on quality which comes adjustable by the user (hysteresis not adjustable) with over pressure protection (up to 2x), has a long service life and is also attractively priced especially at high volumes.

Single switch point

Small & compact

Ceramic sensor

Stainless steel housing

£0.00

REQUEST A QUOTE

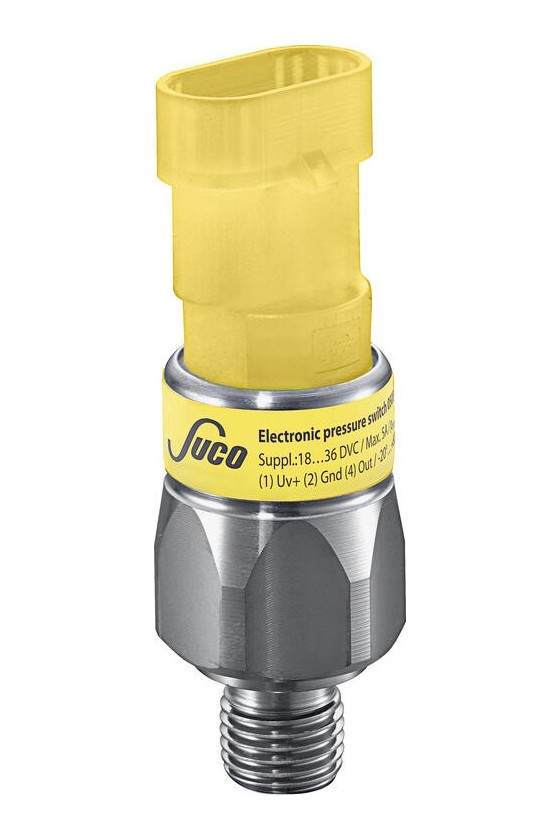

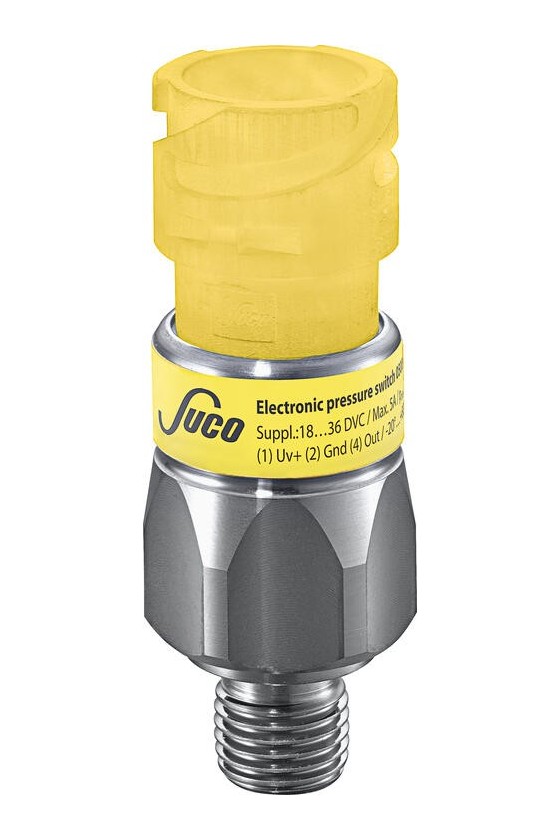

Suco 0510/0511 NPT1/4 Electronic Pressure Switch

Adjustable by user

The SUCO 0510/0511 series combines a compact stainless-steel (AISI 303) hex-24 housing with a high-performance ceramic thick-film sensor, offering exceptionally reliable, switchable pressure monitoring. Users can adjust the switching point and hysteresis on-site, covering ranges from just 0–2 bar up to 0–600 bar, with dual output configurations (NO or NC, PNP 500 mA capability), and visual LED status indication for easy diagnostics. They’re designed to withstand over pressure of up to 2× rated pressure and meet IP67 protection.

Single Switch Point

Small & Compact

Ceramic Sensor

Stainless Steel Housing

£0.00

REQUEST A QUOTE

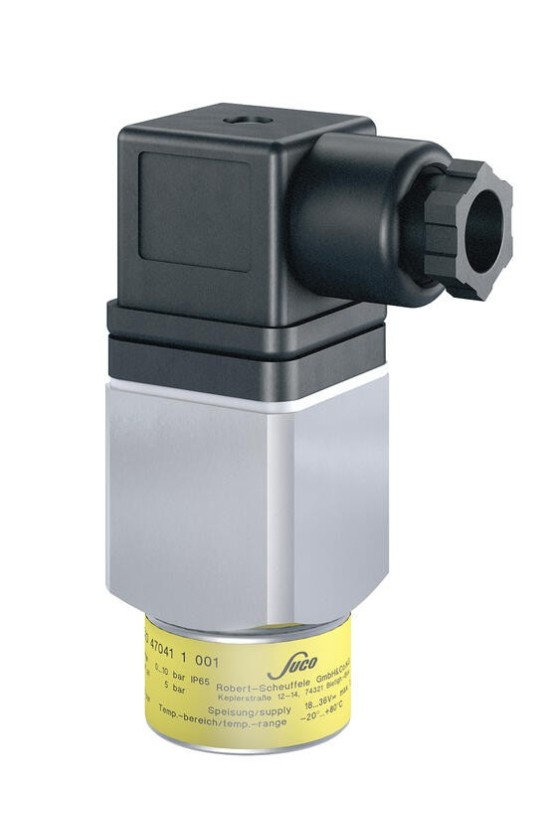

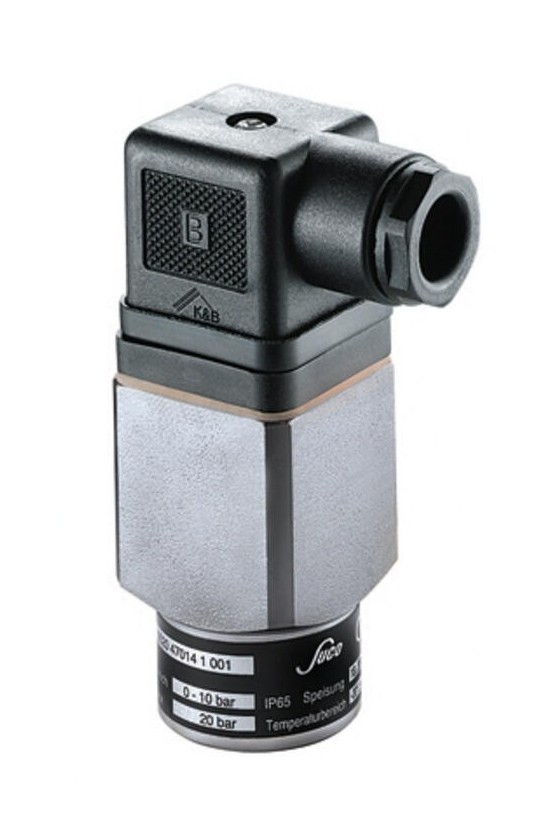

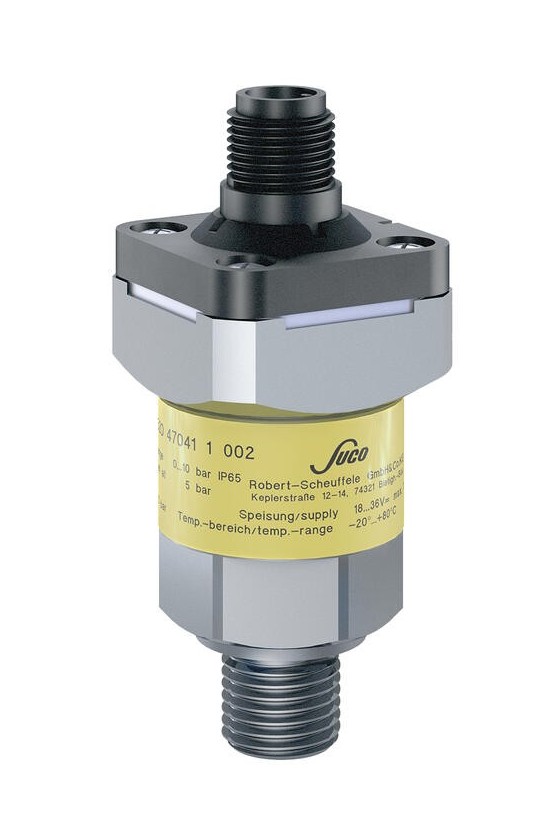

Suco - 0520 Electronic Pressure Switch

Compact electronic pressure switch in galvanized steel with a ceramic measuring cell for high accuracy. Very long life time and simple mechanical setting of switching point via potentiometer. Hysteresis adjustable from factory 2…95 % of working range.

Ceramic measuring cell
Adjustable up to 250 bar
High accuracy
Adjustment by mechanical screw

High over pressure and burst pressure

Multiple pressure options available

Stainless Steel design

Functions in a wide range of materials

£0.00
