Honsberg - RVM Series Flow Switch

Piston

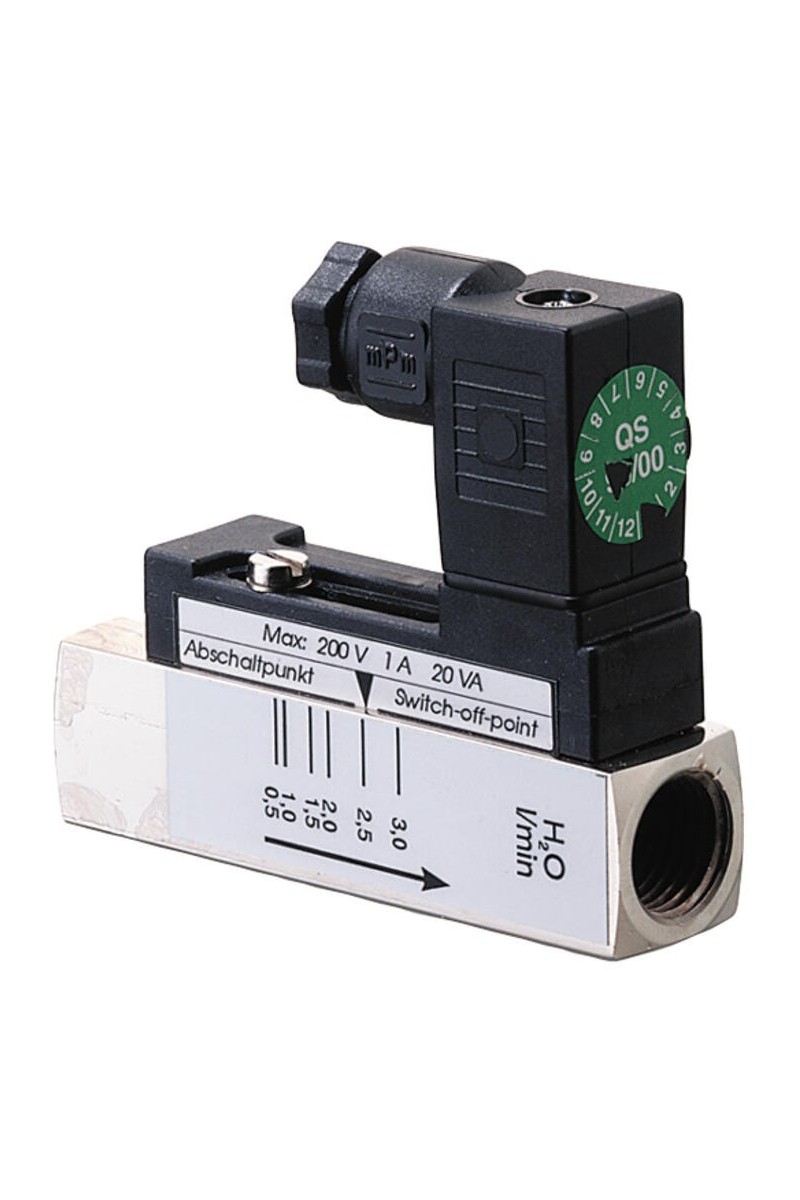

Mechanical flow switch, for fluid media, with magnetic triggering of a reed switch. Robust construction in brass or stainless steel.

Swittching Range 0,04..3 l/m H₂O

Water (gas and aggressive media available on request)

G¼"

Brass or Stainless Steel Wetted Parts

Max Pressure 300 bar

£0.00
Tax included
Quantity :
Ask a Question

Accuracy ± 10%
Connection type 1/4 "
Contact rating max 20 VA
Electrical connection Plug connector DIN 43650-C
Flow max 0.17 l/min
Flow range max 0.13 l/min
Flow range min 0.04 l/min
Function Flask, reed contact, ending
Hysteresis min 1 ml / min, depending on breaking value
IP class IP65
Material flask Brass
Material of body Nickel-plated brass
Material of seals NBR
Material spring Stainless steel 316Ti
Pressure drop 0.02-0.2 bar at maximum flow
Pressure range max 300 bar
Temperature of media to 100 °C
Type of flow component Flow Switches
Weight 0.14 kg
Viscosity 1 cSt
Voltage ac max 200 V
