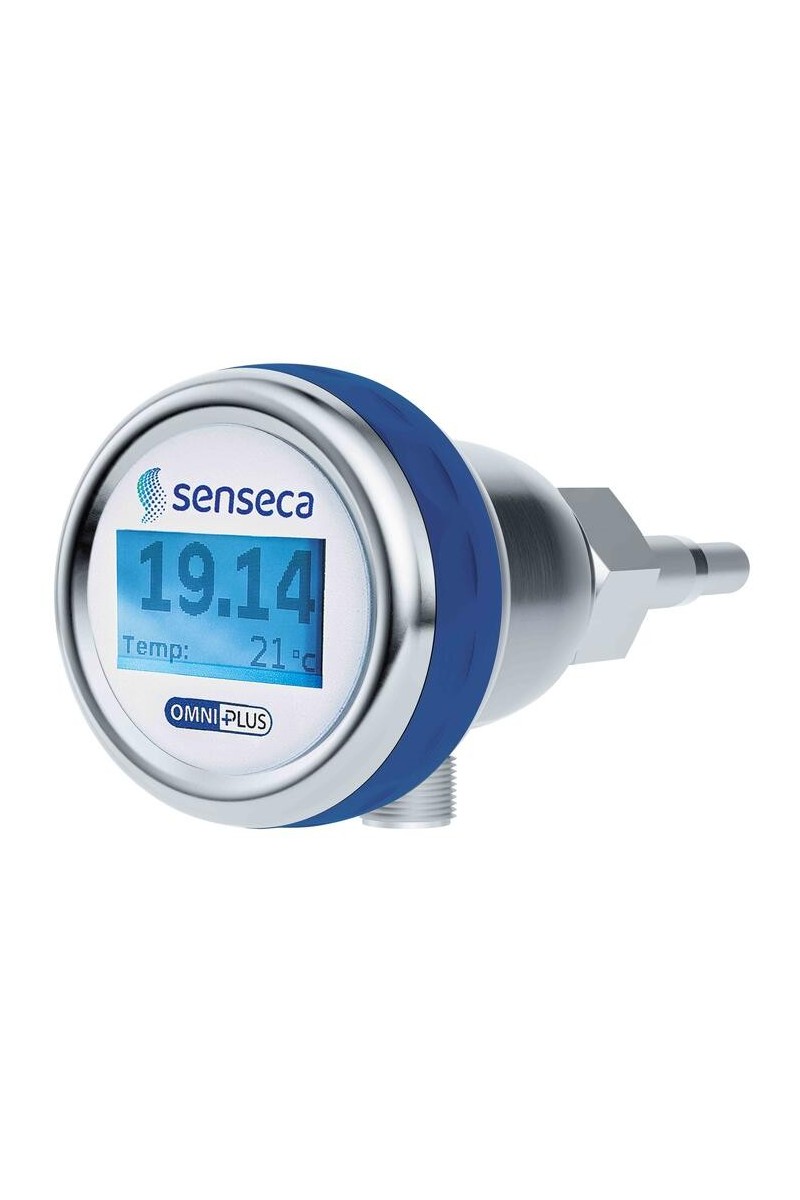

Honsberg OMNIPLUS-F Flow Sensor
  • Honsberg OMNIPLUS-F Flow Sensor

Honsberg OMNIPLUS-F Flow Sensor

OMNIPLUS is a thermal flow sensor using the calorimetric measuring principle for the measurement of the flow velocity, the temperature and the volume of liquid media.

The OMNIPLUS features IO-Link interface offering digital sensor communication within an  automation system.

For liquids up to 100 Bar

Flow range 0.02 to 3 m/2

Connection type from Push-in to threaded G1/s

IO-Link interface

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 100 bar
Approvals CE
Connection type G1/4
Electrical connection Round plug connector M12x1 / 5-pin
Flow range max 300 cm/s
Flow range min 2 cm/s
Function Calorimetric / Thermal
Head material Stainless steel 1.4305
IP class IP67
Material chain POM
Material display Tempered mineral glass
Material of body Stainless steel 1.4305
Material of wetted parts Stainless steel 316Ti (1.4571)
Power consumption 130 mA
Pressure max 100 bar
Pressure range max 0 bar
Pressure range min 100 bar
Signal outputs 4....20mA
Temperature ambient from -20 °C
Temperature ambient to 70 °C
Temperature of media from -20 °C
Temperature of media to 100 °C
Type of flow component Flow Measuring
Weight 0.3 kg
Voltage dc max 30 V
Voltage dc min 18 V
