Honsberg - UK and UKV Series Flow Indicator

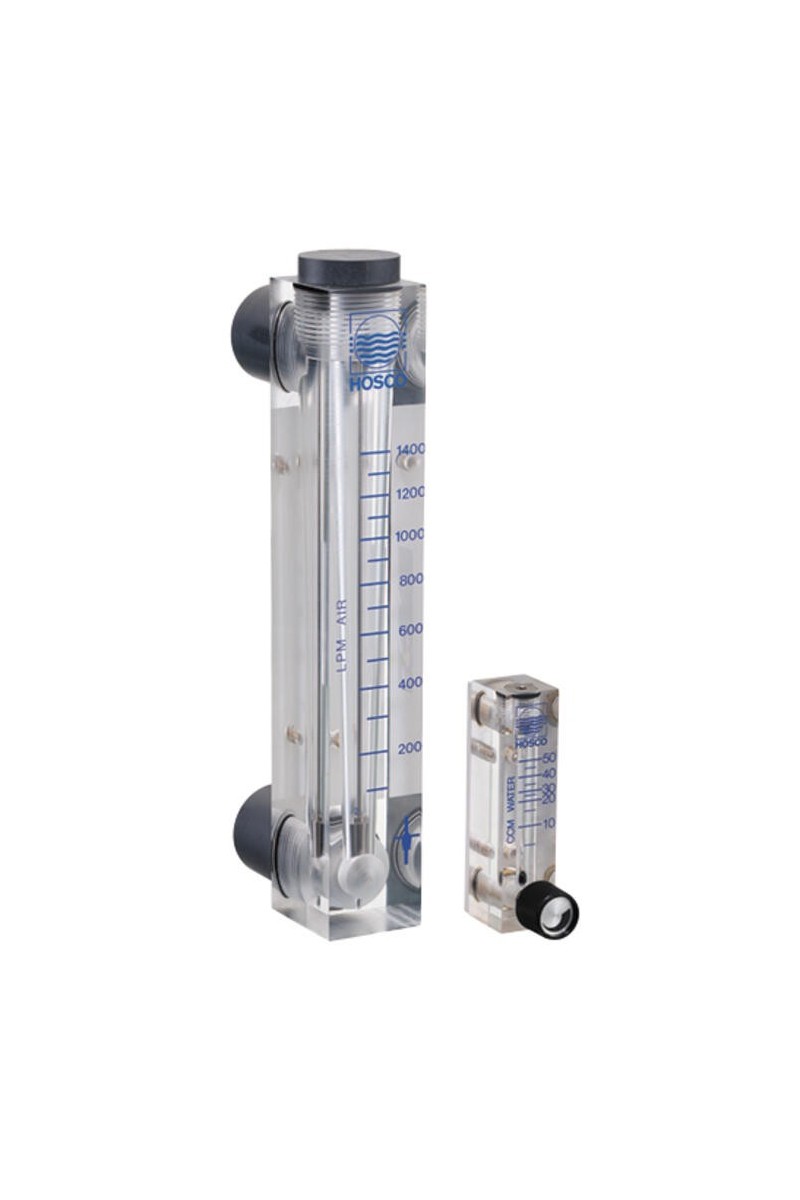

Flow display with float

Model UK is a variable area type flow meter. It is available in two different versions, with or without needle valve. It has been developed to measure liquids and gases in various forms.

Special versions

• Special scales
• Connections in stainless steel
• Connections upwards and downwards (PVC)

For liquids and air up to 6 bar

Flow from 0.04 to 100 Nl/min. air (0.2 to 220 l/h water)

With or without needle valve

£0.00
Tax included
Quantity :
Ask a Question

Accuracy ± 5% of full setpoint
Connection type Internal thread, NPT 1/8 "
Flow range max 0.5 Nl/min
Flow range min 0.04 Nl/min
Function Flow indicator, float body
Material of body Acrylic
Material of connection Brass
Material of seals NBR
Material suspension body Glass
Pressure drop Approx. 0.1 bar at maximum flow
Pressure range max 6 bar
Temperature of media to 65 °C
Type of flow component Flowmeter
Weight 0.13 kg
