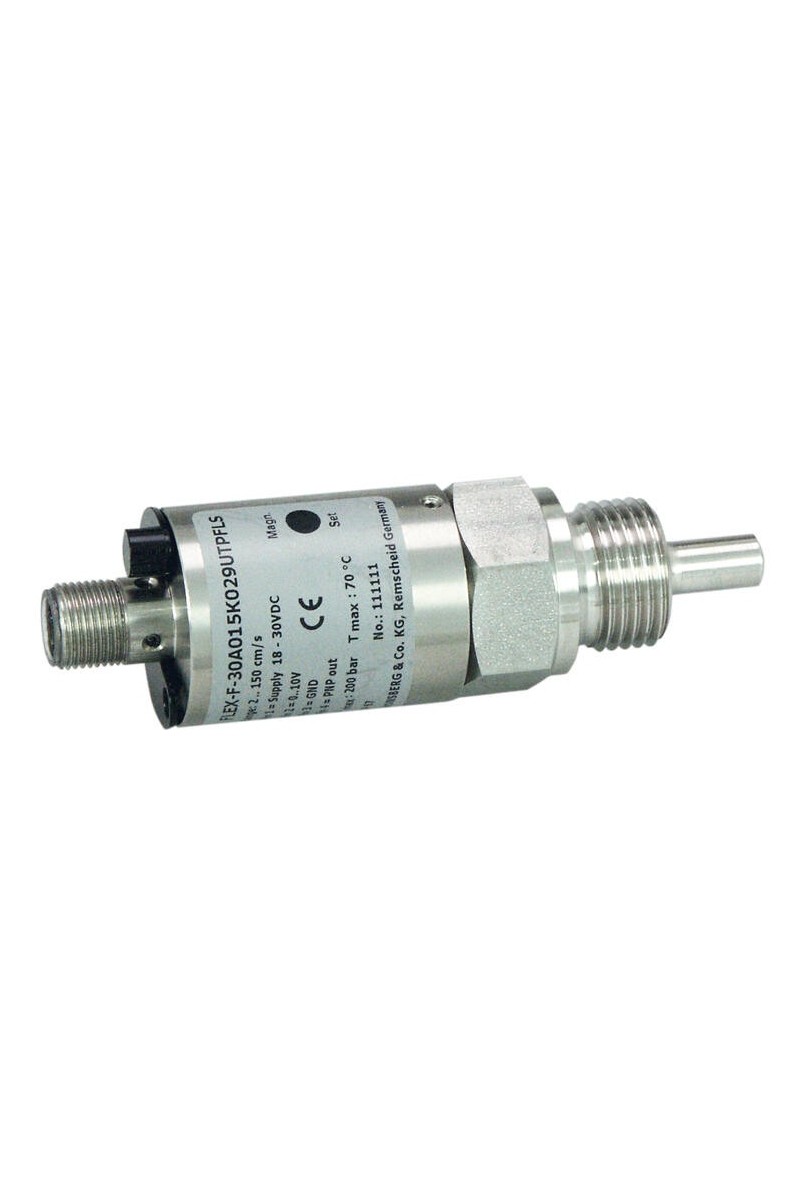

Honsberg - Flex-F Series Flow Meter
  • Honsberg - Flex-F Series Flow Meter
  • Honsberg - Flex-F Series Flow Meter
  • Honsberg - Flex-F Series Flow Meter

Honsberg - Flex-F Series Flow Meter

Calorimetric

Model Flex is a calorimetric flow sensor with analogue output signal and one switching point. It is equipped with LED indication and is simple to set via the magnetic tab.

No moving parts

Wetted parts in stainless steel

Simple installation of set point

£0.00
Tax included
Quantity :
Ask a Question

Accuracy +/- 10% of the final value, but at least +/- 2 cm / s

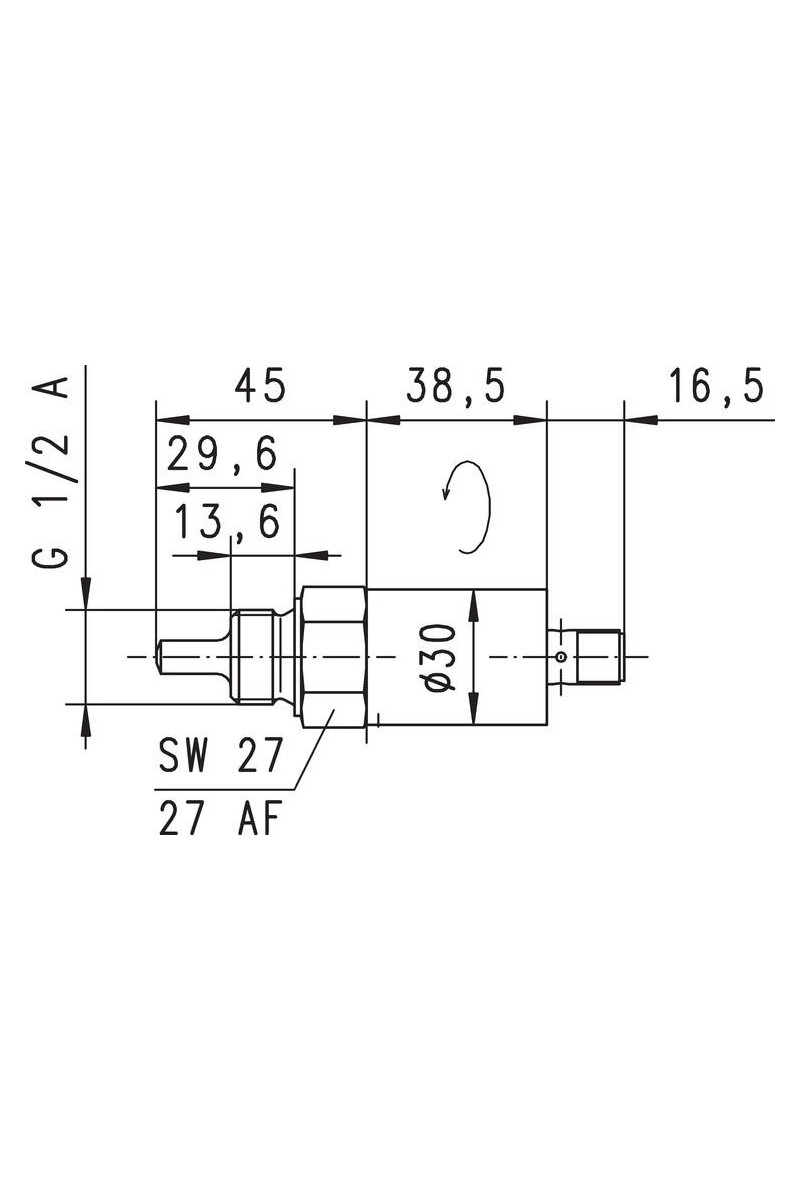

Connection type External thread, G 1/4 "

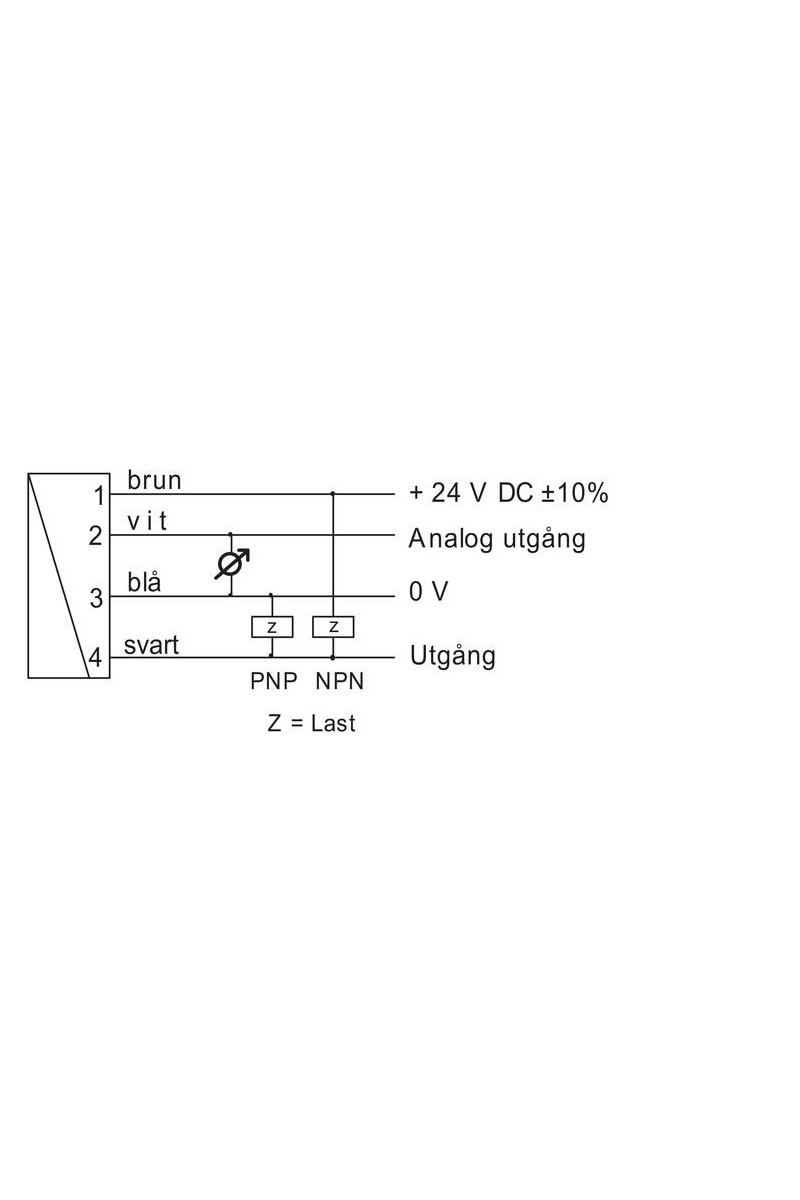

Electrical connection Plug M12x1, 4-pole
Flow range max 150 cm/s
Flow range min 1 cm/s
Function calorimetric
Hysteresis 0.04
IP class IP67
Load max 100 mA
Material of body Stainless steel 1.4305
Material of wetted parts Stainless steel 316Ti
Materials clips PA6.6
Power consumption 100 mA
Pressure range max 100 bar
Repeatability 1 %
Signal outputs 4-20 mA
Temperature of media to 70 °C
Voltage dc max 24 V
