Honsberg - FIS Series Flow Meter

Magnetic-Inductive

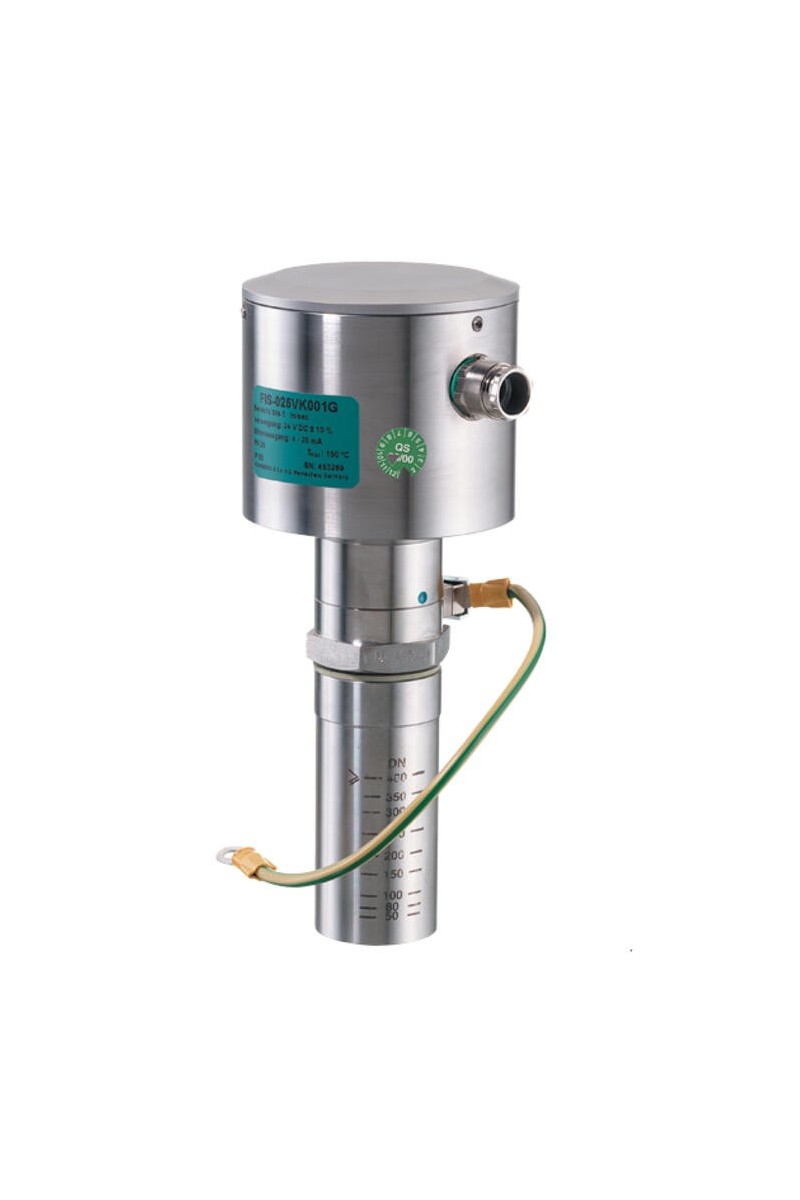

Model FIS is a flow sensor in stainless steel with absolutely no moving parts. It has been developed to measure, among other things, water flows in large pipe dimensions.

Special versions

•Clamp connection for plastic tube

For liquids up to 25 bar

For DN 50-400

Wetted parts in stainless steel
£0.00
Tax included
Quantity :
Ask a Question

Accuracy ± 5% of the measured value
Connection type External thread, G 1 "
Electrical connection Cable screw, PG 9
Flow area max 8 m/s
Flow area min 1 m/s
Function Magnetically inductive
Insulation material Ceramic
IP class IP65
Material of body Stainless steel 303
Material of seals Viton
Material of wetted parts Stainless steel 316L
Material welding muff Stainless steel 303
Power consumption 50 mA
Pressure range max 25 bar
Repeatability 2 %
Signal outputs 4-20 mA
Temperature of media from -25 °C
Temperature of media to 150 °C
Type of flow component Flow Measuring
Weight 2.4 kg
Voltage dc max 24 V
