Level Sensors

Hydrostatic

1..100mH2O

4-20mA & HART protocol

ATEX option

Marine certification (DNV) option

Hydrostatic

The SL conductive probe series provides a solution for controlling the level of liquid with a minimum value of conductivity of 1µs.

The probes are available in a wide variety of materials and process connections and are of construction appropriate to operation in extreme conditions such as those found on industrial plants.

1 to 4 St. Steel electrodes

Electrodes length from 100 mm. to 1500 mm.

Brass, St. Steel, PPL body materials

Working pressure up to 6 bar

Working temperature up to 100°C

Control units for SL model

The visual level indicators ILC series are used to visually monitor the status of the level of liquids in tanks, and are equipped with a minimum or maximum level switch. The indicators are mounted outside the tank by means of threaded connections. The system thus designed allows the vision of the level inside the tank at 360°.

Version with switch MIN/MAX

127 mm. to 1000 mm. length

Working pressure up to 2 bar

Working temperature up to 80°C

The visual level indicators ILC series are used to visually monitor the status of the level of liquids in tanks. The indicators are mounted outside the tank by means of threaded connections. The system thus designed (double vision pipe) allows the vision of the level inside the tank at 360°

127 mm. to 1000 mm. length

Aluminium anodized body, other on request

Working pressure up to 2 bar

Working temperature up to 80°C

Acrylic sight and protection tube

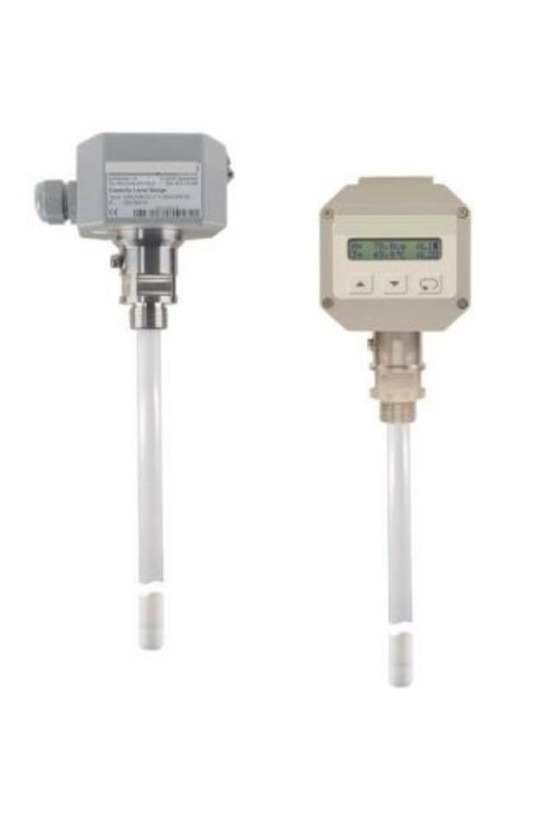

Level measurement with capacitive technology.

The liquid to be monitored must have a minimum conductivity of 50 µS / cm and must not be adherent to the probe.

All programming functions can be managed from the keypad on the front panel of the instrument. Level status is displayed on the LCD. The analog signal is proportional to the measured level, and can be calibrated according to the geometry of the tank. The absence of moving parts offers a system that does not require particular maintenance

Measuring ranges 100 … 3000 mm

Programming via the front panel keypad and LCD display

0-10 V or 4-20mA analog output

Measuring units programmable in linear values or %.

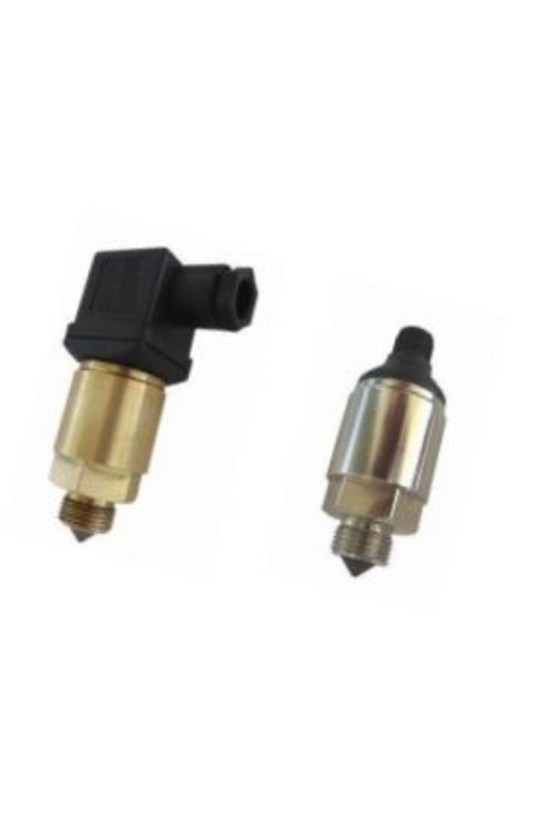

The optical sensors, SLO series, are a valid solution for level control of liquids, even for applications in small tanks. The optical sensor is located in a metallic body which includes a polysulfone prism inside of which there is inserted an infrared transceiver. As soon as the sensor is immersed in the liquid, the refraction index of the prism is changed and a large part of the infrared beam is dispersed in the liquid, causing the output to change state. The sensor is particularly suitable to be side mounted for control of translucent liquids even coloured.

No moving parts

Hermetic construction, sealed electronics

Minimum protection degree IP65

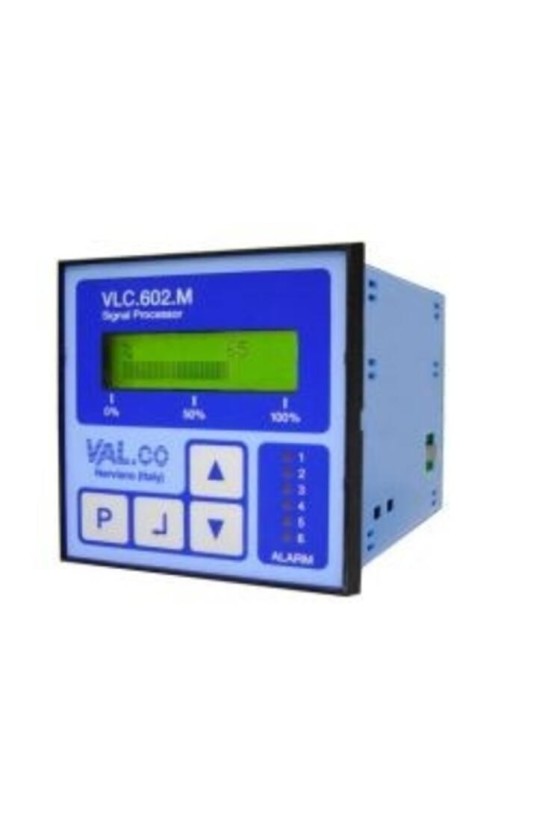

This universal signal processor was designed as interface for continuous level sensors with potentiometric output (LC series). Subsequently evolved until the current version that can be interfaced with any sensor or signal transmitter. This electronic unit handles standard industrial signals 0-5V, 0-10V, 0-20mA, 4-20mA, frequency and potentiometers.

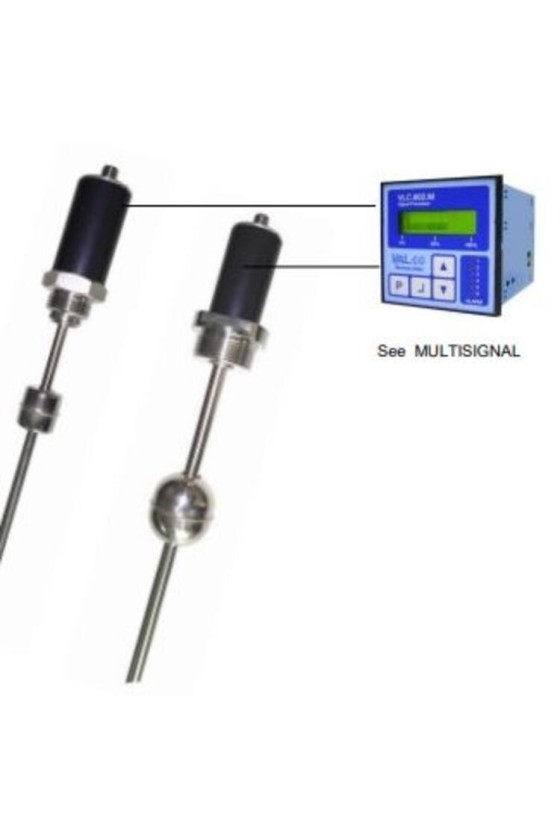

Magnetostrictive continuous level transmitters base their operation on the physical principle called Wiedemann effect and it allows continuous and precise measurement of liquid levels. The electronic unit sends a pulse within a waveguide contained in the measuring rod; the magnetic float intercepts the pulse generating an echo that is detected by the same electronic unit. The elapsing time between the emission of the pulse and its recognition is directly proportional to the position of the float, and then to the value of the level to be measured.

Brass - Spansil

2 analog outputs, current and voltage

RS485 serial output, Valco protocol

Up to 2, 9 m length

Working pressure up to 20 bar

Magnetostrictive continuous level transmitters base their operation on the physical principle called Wiedemann effect and allow a continuous and precise measurement of liquid levels. The electronic unit sends a pulse to a waveguide contained in the measuring rod; the magnetic float intercepts the pulse generating an echo that is detected by the same electronic unit. The elapsing time between the emission of the pulse and its recognition is directly proportional to the position of the float, and then to the value of the level to be measured.

Stainless steel ─ AISI 316

2 analog outputs, current and voltage

RS485 serial output, Valco protocol

Up to 2, 9 m length

Working pressure up to 50 bars depending on the used float

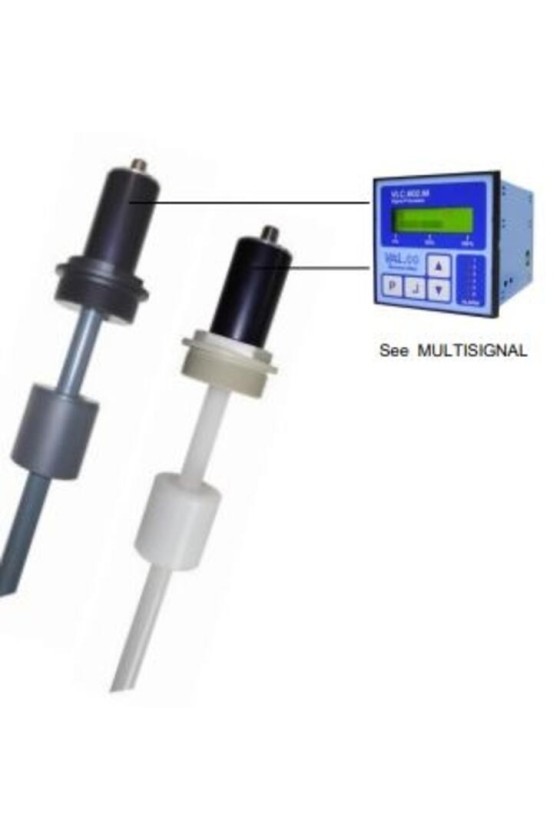

Magnetostrictive continuous level transmitters base their operation on the physical principle called Wiedemann effect and allow a continuous and precise measurement of liquid levels. The electronic unit sends a pulse to a waveguide contained in the measuring rod; the magnetic float intercepts the pulse generating an echo that is detected by the same electronic unit. The elapsing time between the emission of the pulse and its recognition is directly proportional to the position of the float, and then to the value of the level to be measured.

PVC – PP – PVDF

2 analog outputs, current and voltage

RS485 serial output, Valco protocol

Up to 2, 9 m length

Working pressure up to 6 bar depending on the used float

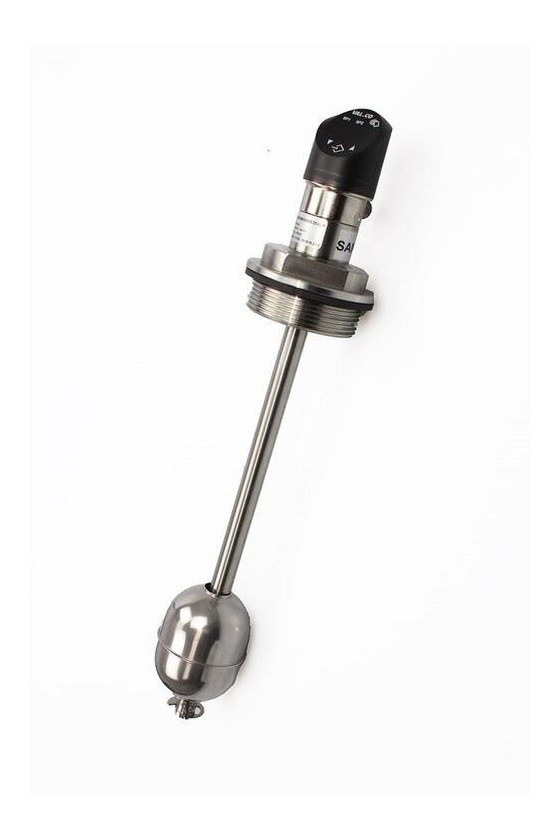

The principle operation of the LCD-S level switch is based on the moderate shutdown of a series of resistors and reed contacts. These are placed inside the guiding rod by a magnetic float. The only moving parts will be the float which moves along the measuring rod. You can program the sensor manually or via the “MYVALCO” app using NFC technology, available on Android® app store.

General specifications for continuous level sensor with display. Other specifications are selectable in the part number builder form below.

LCD.S29.5.450/500.S.25GS.M12

Local indicator 4 digit (9999)

Integrated data logger + export file data .csv

Up to 6m length

Analogue output switchable mA or V

Configured via NFC communication system through "MYVALCO" APP

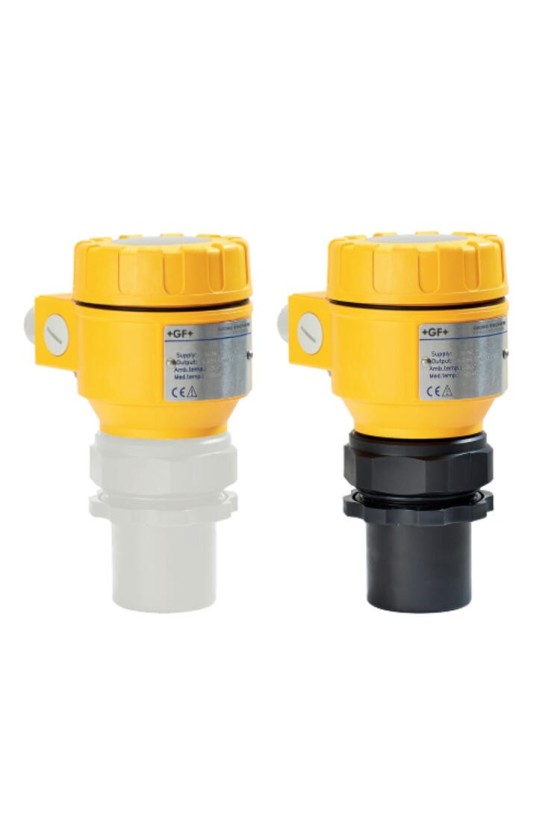

The type 2260 is a rugged, high performance ultrasonic level measurement transmitter, having transducer and processing electronics and a display/ programming unit incorporated in one single housing. All type 2260 Level Transmitters are using established high end pulse echo transducers, which provide narrow beam angles and reliable measurement ranges up to a distance of 15 meters.

Non-contact level metering

4 to 20 mA / HART interface (Optional)

Level, volume and open channel flow

Fully temperature compensated electronics

32-point linearization

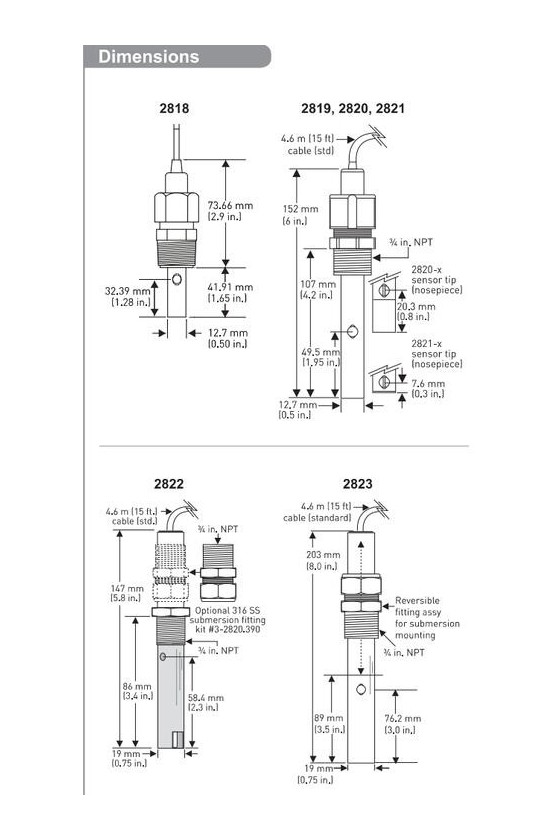

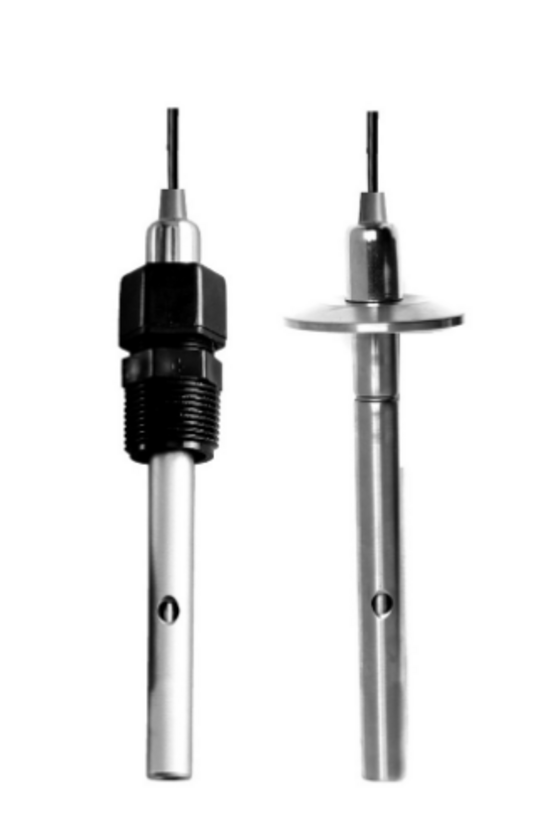

Conductivity/Resistivity Electrodes are designed to provide versatile installation and accurate sensing across a very broad dynamic range. These electrodes are built with a controlled surface finish to ensure accuracy and repeatability. The standard electrode material is 316 stainless steel, but there are other materials available for maximum chemical compatibility. Reversible threads or sanitary flanges allow for maximum installation versatility. S
In-line or submersible mounting

316 SS or Titanium (indicated tri-clamp only) standard electrode

Alternative electrode materials available - Hastelloy-C - Monel - Titanium

NIST traceable certified cells ±1%

Meet USP requirements

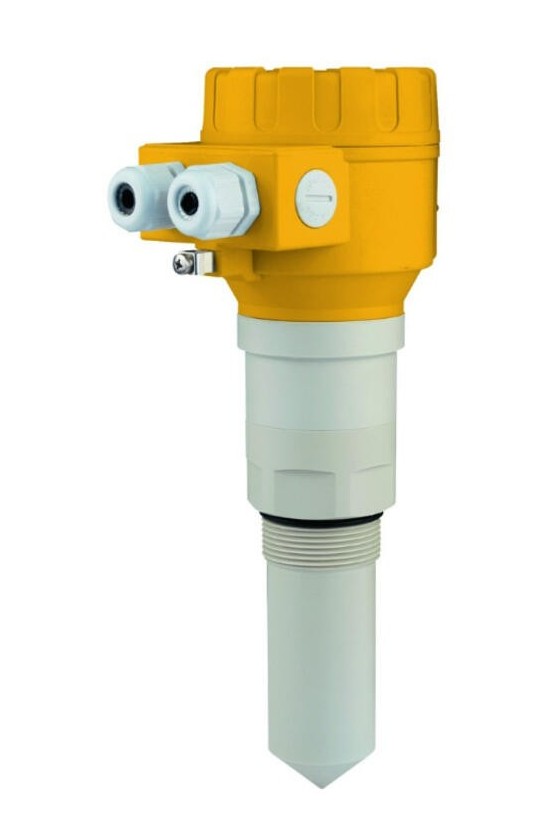

The 25 GHz (K-band) 2290 Pulse Radars are the most progressive non-contact level transmitter technology for industrial processes. With an excellent accuracy, compact antennas and a user-friendly set-up the 2290 is an effective, simple, low cost choice for demanding level applications. GF’s new K-band radar featuring ±3 mm (±0.1 in.) accuracy and short dead band excels with its full plastic housing. Its antenna range incorporates a stainless steel horn and enclosed plastic tube choices.

19° beam angle

Tank mapping function

Large dot matrix LCD display

Predefinded tank shapes

Works with fumes, condensation, and light foam layers
