Honsberg - GK Series Flow Indicator

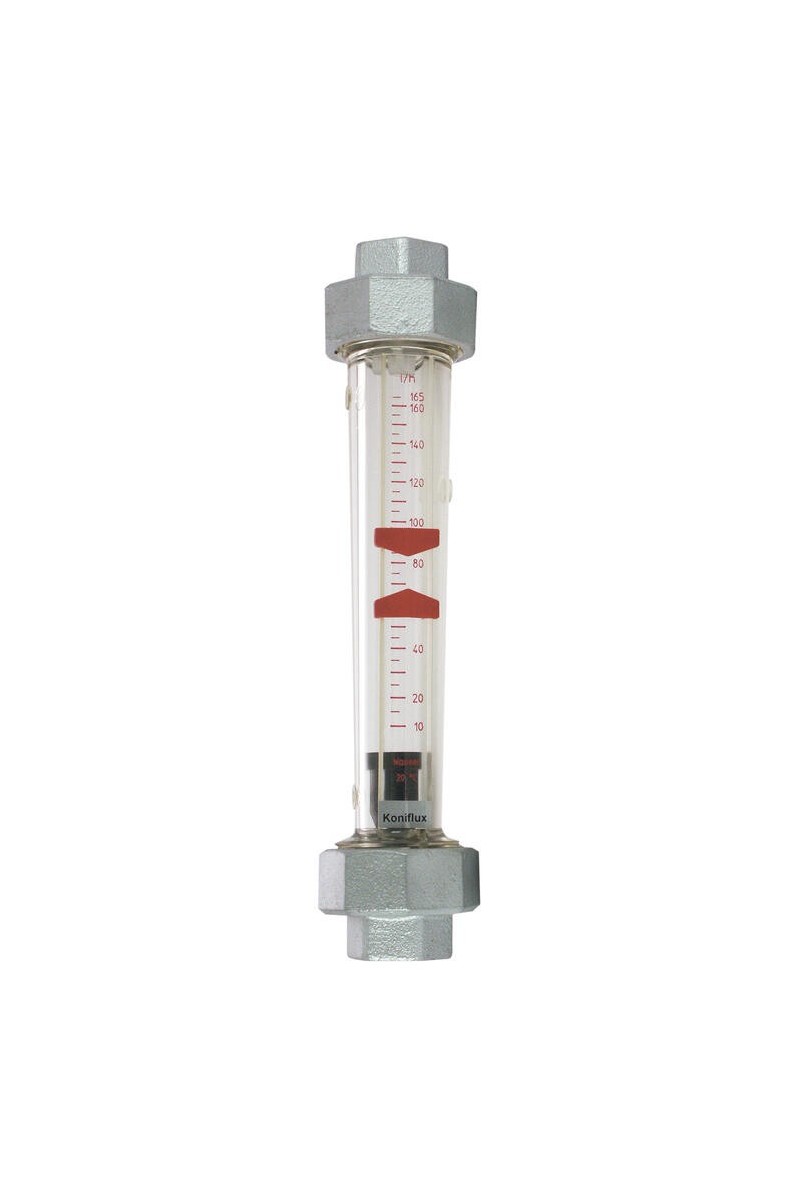

Model GK is a variable area flow meter with a scale that is easy to read. It has been developed to measure liquids and gases/air in various forms.

  • Flow from 0.2 to 10 Nm2/h3/h air and 10-640 l/h water

  • For pressure up to 15 bar

  • With min. and max. indication
£0.00
Tax included
Quantity :
Ask a Question

Model GK is a variable area flow meter with a scale that is easy to read. It has been developed to measure liquids and gases/air in various forms.

Technical data

Accuracy +/- 3% of the final value
Connection type Internal thread, G 3/8 "
Flow range max 1.66 l/min
Flow range min 0.16 l/min
Function Flow indicator, float body
Material of body Polysulfone
Material of connection Die cast metal
Material of seals Viton
Material suspension body Polypropylene
Pressure drop Max 20 mbar
Pressure range max 15 bar
Temperature of media to 60 °C
Type of flow component Flowmeter
Weight 0.2 kg
