Electric Actuator Packages

Electric actuators are available in both quarter-turn and multi-turn designs. Whether you are looking for a cost-effective option, integrated intelligent controls, project-specific designs in either compact housing designs or actuator and gearbox combinations (for higher torques) we have a solution to meet your needs.

European certified manufacturers Bernard Controls, Valpes, and Schischek produce high-quality actuators with torque outputs from 10Nm to in excess of 600,000Nm.

With electric valve actuator models suitable for a safe area, ATEX zones and nuclear environments and for use in on/off, modulating / positioning and failsafe (both spring return and battery backup) operation.

We can meet your requirements for ingress protection from IP65 to IP68, supply housings in all stainless steel and deliver specialist marine coatings with ACQPA certification for coastal and offshore installations.

Many of the electric actuators are now also available with in-built intelligent operating control systems and with non-intrusive Bluetooth integration allowing the operator to connect, control and check the actuator via a phone or tablet.

There are 11 products.

Sort by:

Showing 1-11 of 11 item(s)

REQUEST A QUOTE

Low Voltage Actuator with Ball Valve 25-64Bar

Electrically actuated valve

2 Way High Pressure Electrically Actuated Ball Valve. Rated IP66. Low multi voltage. Working temperature from ‐20°C to +150°C for fluids. Fluid range: air, water, oil, gas, petroleum and petrochemical products, vacuum. Threaded ends as per UNI/ISO 7/1 Rp (BSPT). Available in sizes 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1.5", 3".

Size 3/8" to 3"

IP66 rated protection

Working pressure up to 64 bar

Working temperature ‐20°C to +150°C

£0.00

REQUEST A QUOTE

High Voltage Actuator with Ball Valve 25-64 Bar

Electrically actuated valve

2 Way High Pressure Electrically Actuated Ball Valve. Rated IP66. High multi voltage. Working temperature from ‐20°C to +150°C for fluids. Fluid range: air, water, oil, gas, petroleum and petrochemical products, vacuum. Threaded ends as per UNI/ISO 7/1 Rp (BSPT). Available in sizes 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1.5", 3".

Size 3/8" to 3"

IP66 rated protection

Working pressure up to 64 bar

Working temperature ‐20°C to +150°C

£0.00

REQUEST A QUOTE

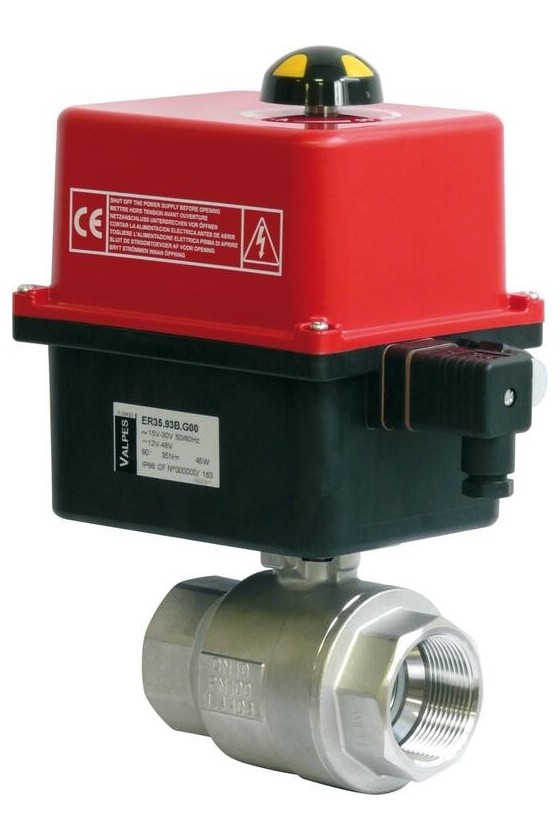

Low Voltage Actuator with Ball Valve 16 Bar

Electrically actuated valve

2 Way Electrically Actuated Low Pressure Ball Valve Rated IP66. Low multi voltage. Working pressure 16 bar. Working temperature from ‐20°C to +150°C for fluids. Fluid range: water, oil, gas and light applications. Threaded ends as per UNI/ISO 7/1 Rp (BSPT). Available in sizes 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2" 2".

Size 3/8" to 2"

IP66 rated protection

Working pressure up to 16 bar

Working temperature ‐20°C to +150°C

£0.00

REQUEST A QUOTE

High Voltage Actuator with Ball Valve 16 Bar

Electrically actuated valve

2 Way Electrically Actuated Low Pressure Ball Valve Rated IP66. High multi voltage. Working pressure 16 bar. Working temperature from ‐20°C to +150°C for fluids. Fluid range: water, oil, gas and light applications. Threaded ends as per UNI/ISO 7/1 Rp (BSPT). Available in sizes 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2" 2".

Size 3/8" to 2"

IP66 rated protection

Working pressure up to 16 bar

Working temperature ‐20°C to +150°C

£0.00

REQUEST A QUOTE

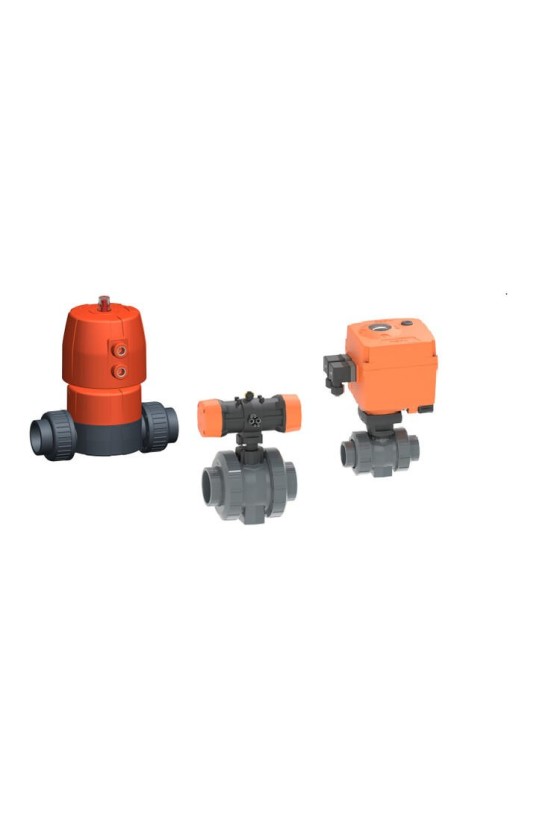

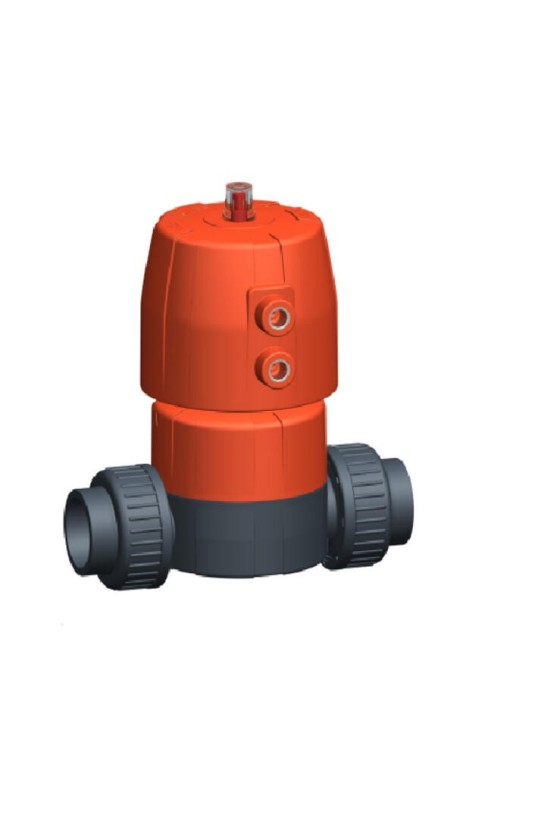

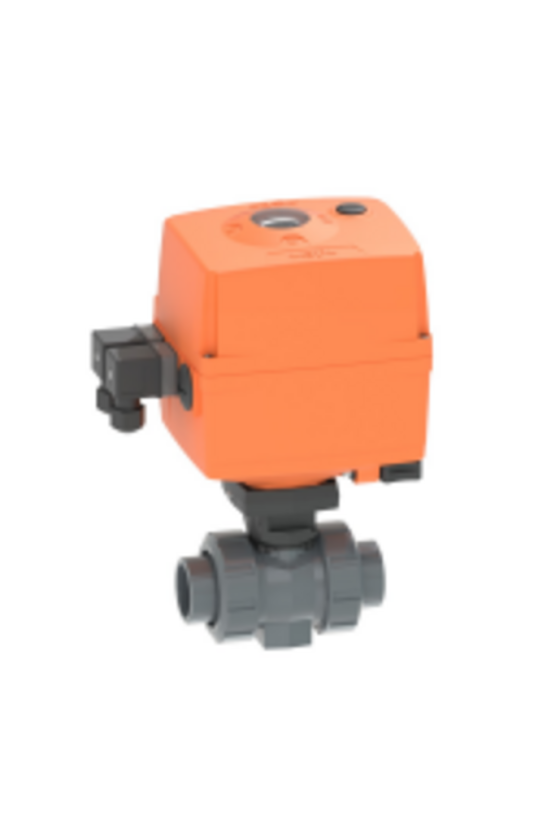

Georg Fischer Actuated Valves

Ball valve PVC-U FC (Fail safe to close) Without manual override With solvent cement sockets Inch BS

Individual configuration of the valve

Factory set control range 90°<

Voltage 100-230V, 50-60Hz Pneumatic Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi)

Integrated stainless steel mounting inserts

Visual position indicator

£0.00

REQUEST A QUOTE

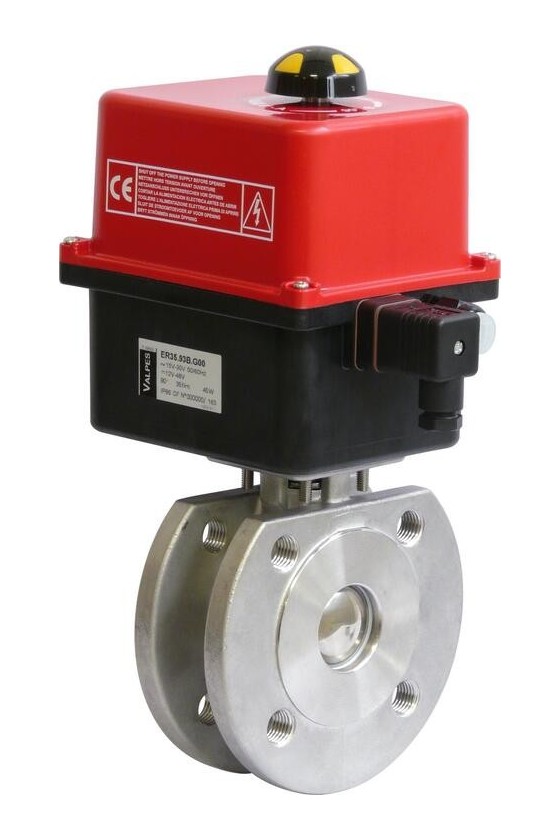

2 Way Wafer Ball Valve with Actuator

With Valpes ER electric actuator

This two way stainless steel wafer ball valve is operated by a Valpes ER electric Actuator. Valve available in sizes 1/2" to 3".

Size 1/2" to 3"

IP66 rated protection

Operated by a Valpes ER electric actuator

Available in sizes 1/2" to 3"

£0.00

REQUEST A QUOTE

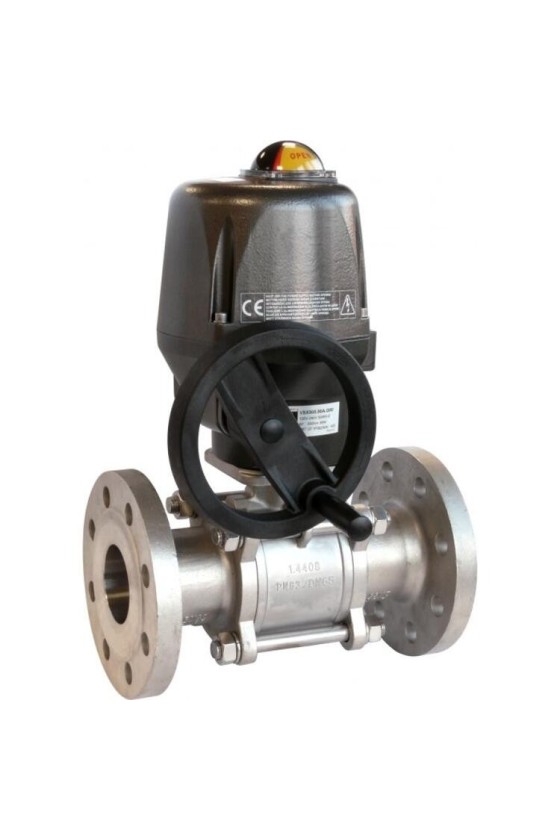

Flanged Ball Valve with Actuator

With Valpes VSX electric actuator

A stainless steel flaged ball valve operated by a Valpes VSX electric actuator. Available in sizes 1/2" to 4"

Size 1/2" to 4"

IP68 rated protection

Operated by a Valpes VSX electric actuator

Available in sizes 1/2" to 4"

£0.00

REQUEST A QUOTE

High Multi Voltage Actuator and 2 Way Ball Valves

Stainless steel

Valpes 2 Way 3 Piece Electrically Actuated Ball Valve. Rated IP66. Working pressure 1000 psi. Working temperature from ‐20°C to +200°C for fluids. Fluid range: water, gas and corrosive media. Threaded ends as per UNI/ISO 228 Rp (BSPP). Available in sizes 3/8", 1/2", 3/4", 1", 1.1.4", 2", 2.1/2", 3", 4".

Size 3/8" to 4"

IP66 rated protection

Working pressure up to 1000 psi

Working temperature -20°C to +200°C

£0.00

REQUEST A QUOTE

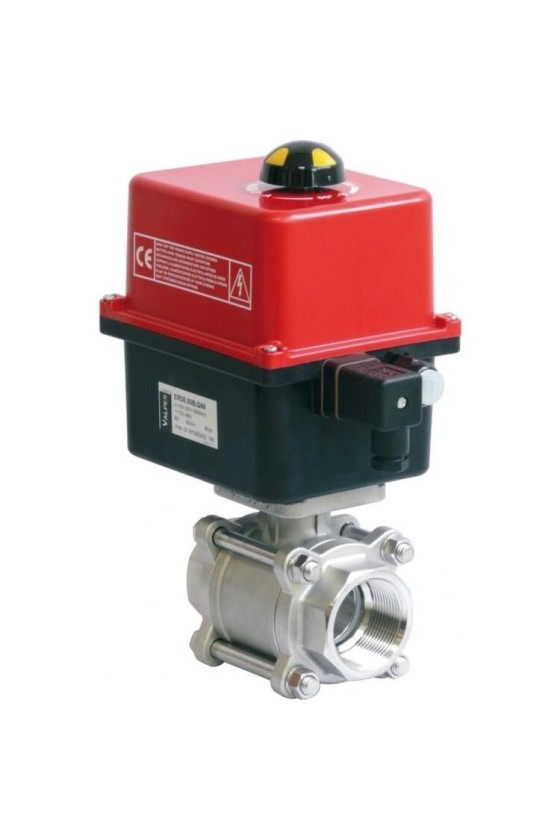

Low Multi Voltage Actuator and 2 Way Ball Valve

Stainless steel

Size 3/8" or 4"

IP66 rated protection

Working pressure up to 1000 psi

Working temperature -20°C to +200°C

£0.00

REQUEST A QUOTE

High Multi Voltage Actuator and 3 Way L Ported Ball Valve

Brass

Electrically Actuated 3 Way L‐Port Ball Valve ‐ only the centre port can be used as an inlet. High multi voltage. Rated IP66. Working pressure 16 bar. Working temperature from ‐20°C to +120°C. Fluid range: air, water, oil, gas, petroleum and petrochemical products. Threaded ends as per UNI/ISO 7/1 Rp (BSPT). Available in sizes 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2".

Size 3/8" to 2"

IP66 rated protection

Working pressure up to 16 bar

Working temperature -20°C to +120°C

£0.00

REQUEST A QUOTE

Low Multi Voltage Actuator and 3 way L Ported Ball Valve

Brass

Electrically Actuated 3 Way L‐Port Ball Valve ‐ only the centre port can be used as an inlet. Low multi voltage. Rated IP66. Working pressure 16 bar. Working temperature from ‐20°C to +120°C. Fluid range: air, water, oil, gas, petroleum and petrochemical products. Threaded ends as per UNI/ISO 7/1 Rp (BSPT). Available in sizes 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2".

Size 3/8" to 2"

IP66 rated protection

Working pressure up to 16 bar

Working temperature -20°C to +120°C

£0.00
