Pneumatic Actuator Packages

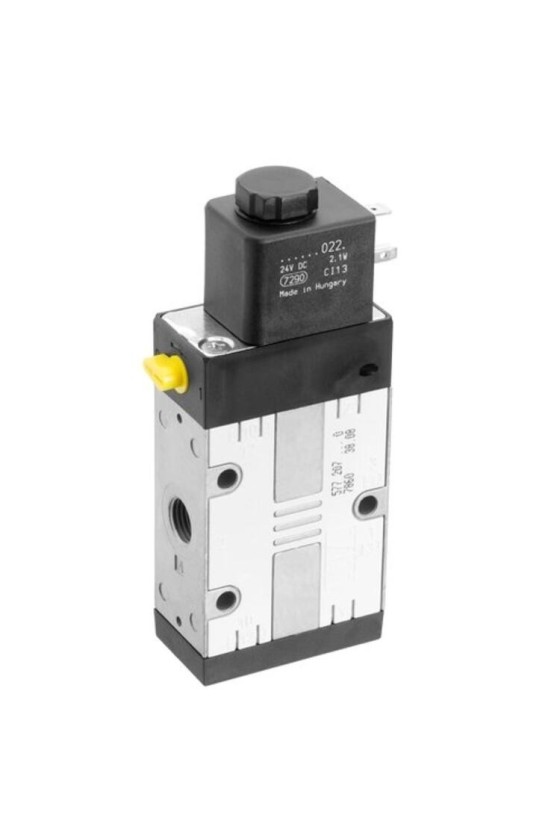

3/2" 5/3" 5/2"

• Compressed air connection G1/4"-G1/2"

  Flow capacity 900 to 4100 l/min

  Temperature range -15/25°C to +50°C

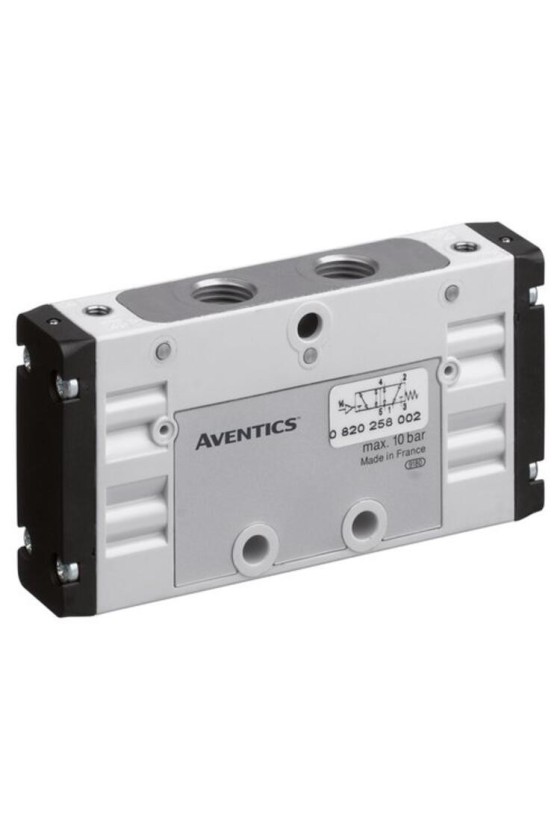

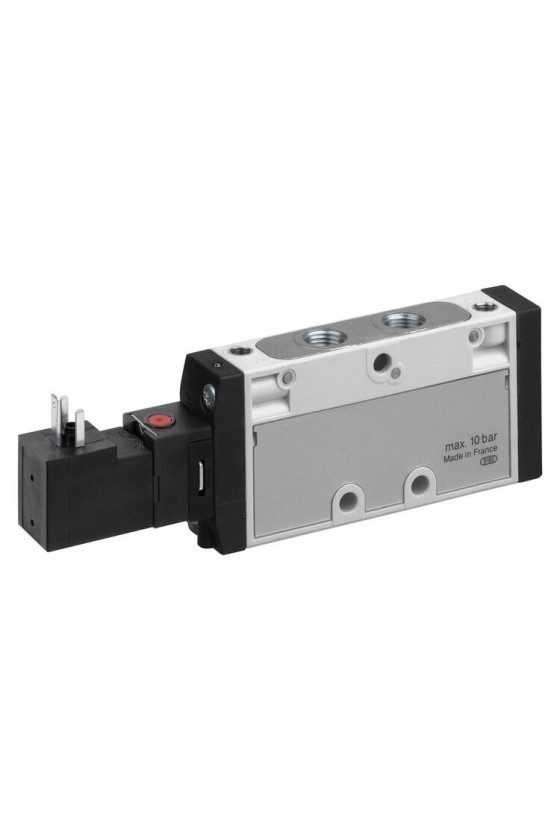

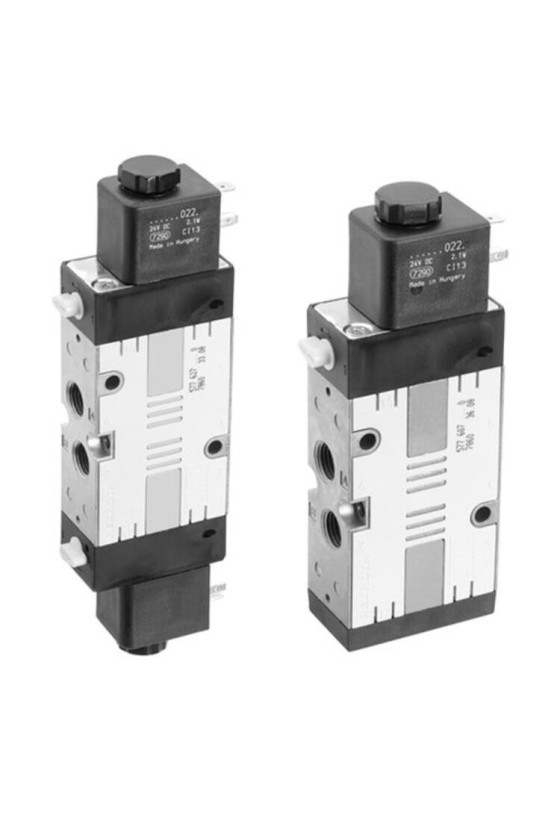

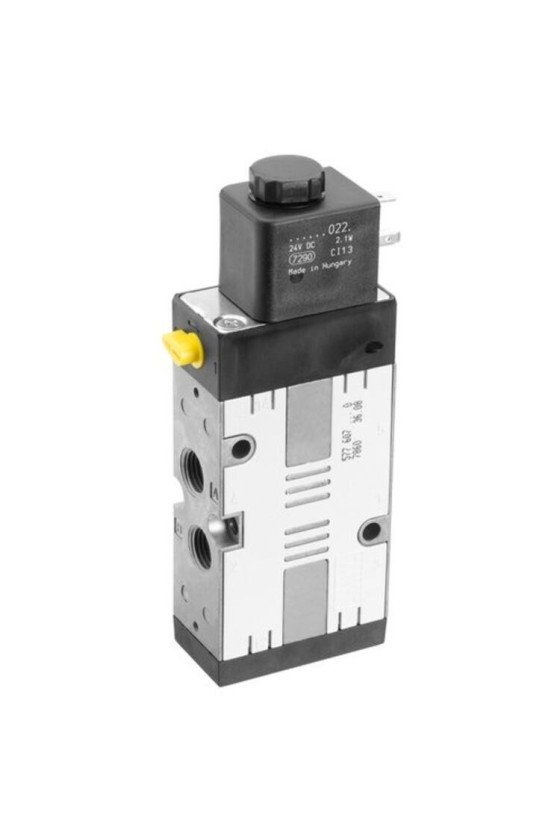

5/3 5/2

• Connection 1/8 ", 1/4"

  Flow capacity 800 l/min

  Temperature range -10°C to +50°C



• Connection Plug, EN 175301-803, form A

  Flow capacity 1100l / min

  Temperature range -25 to +50 °C

  ATEX available on request

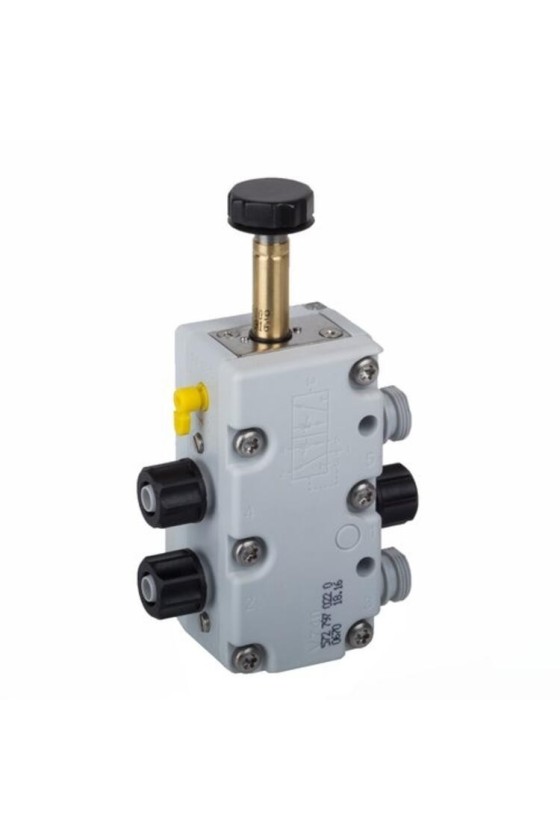

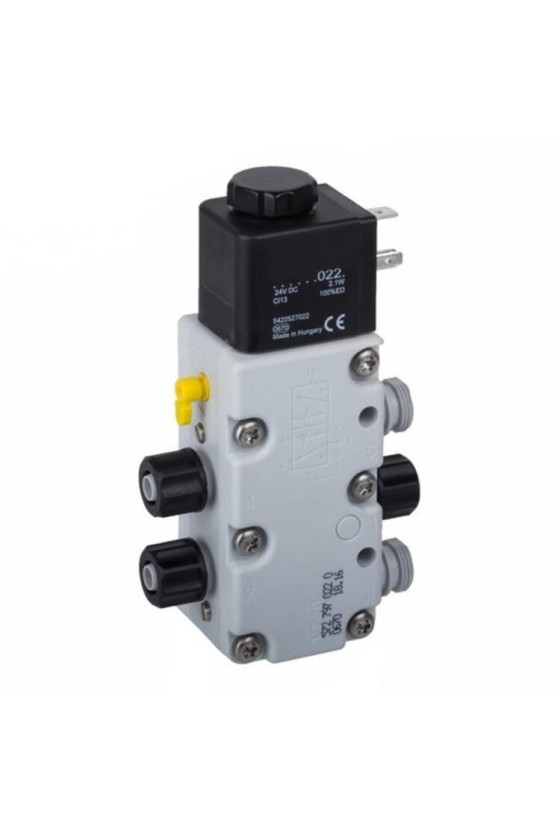

Solenoid/spring diaphragm valve

Compressed Air Connection 6x1

IP65

Temperature range -15°C to +50°C

Nominal Flow Qn = 200 l/min

The Omal “Rackon” actuators use a Rack & Pinon design to transform a linear motion generated by the actuator pistons directly into a rotational output shaft motion 0°÷90°.

Standard actuators (DA and SR) have a clockwise rotation (CW) direction to close the valves (0° closed valve, 90° opened valve), but counter-clockwise rotation (CCW) versions (0° opened valve, 90° closed valve) are available too.

DA 10Nm to 474Nm, SR 15Nm to 347Nm

Air supply 2 bar to 8 bar

Temperature range -20°C to +80°C

ATEX available

The new and updated Omal aluminium standard spring return pneumatic actuator - now with an integrated NAMUR interface and adjustable end of travel stops - from SRN15 and bigger, to 4000Nm.

Torque output from 15Nm to 4000Nm. Torque: the return torque depends on spring action only not withstanding the air supply. The spring is provided in four different sizes.

Torque output 15Nm to 4000Nm

Air supply 5,6 bar; maximum 8,4 bar

Temperatue range 0°C to +80°C

ATEX available on request

Omal's Smallest standard double acting Scotch Yoke design pneumatic actuator - DA008401S - which has an output torque of 8Nm. ISO F03 Mounting flange. Additional Namur interface plate, ATEX & SIL3 certification options on request.

Torque output 8Nm

Air supply 5,6 bar; maximum 8,4 bar

Temperatue range 0°C to +80°C ATEX available

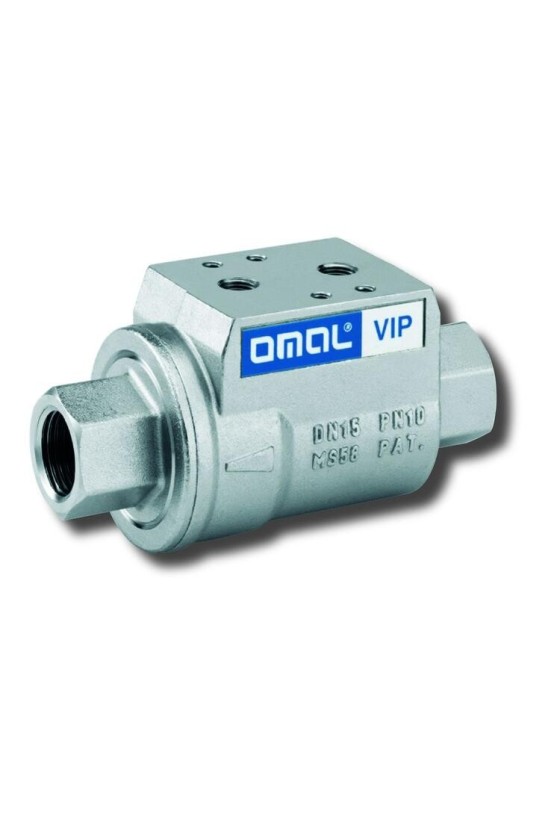

Spring return

Sizes 3/8" to 2"

Maximum pressure 10 bar

Temperature range -20°C to +150°C

ATEX available on request

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request

High quality cast iron butterfly valve to be used between two flanges. DN40 to DN300, PN10 to PN16 Suitable for Drinking Water, Gas, or Food (With NBR White) with double acting pneumatic actuator. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C. Complete with spring return pneumatic actuator.

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request

High quality pneumatically actuated cast iron butterfly valve to be used between two flanges. PN10 - PN16 - ANSI 150 from DN40 to DN300 with double acting pneumatic actuator. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C.

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request

High quality cast iron butterfly valve to be used between two flanges. DN40 to DN300, PN10 to PN16 Suitable for Drinking Water, Gas, or Food (With NBR White) with spring return pneumatic actuator. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C. Complete with spring return pneumatic actuator.

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request
