Butterfly Valves

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request

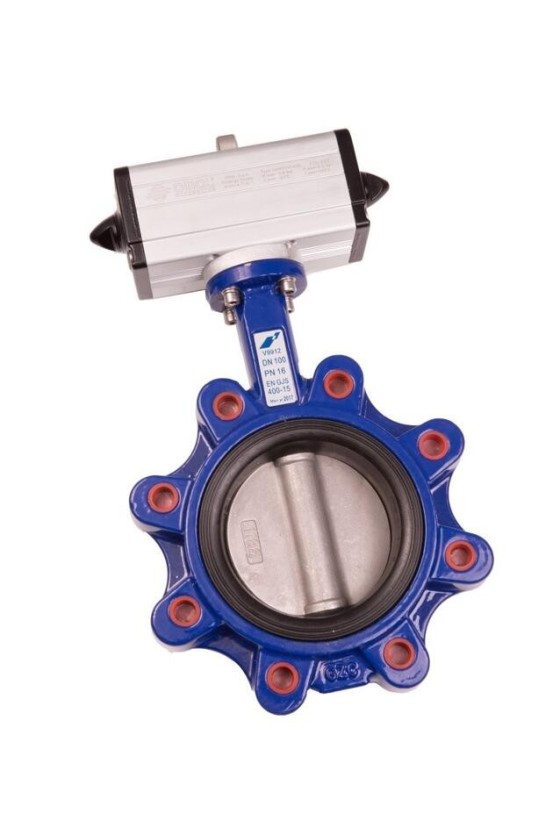

High quality cast iron butterfly valve to be used between two flanges. DN40 to DN300, PN10 to PN16 Suitable for Drinking Water, Gas, or Food (With NBR White) with double acting pneumatic actuator. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C. Complete with spring return pneumatic actuator.

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request

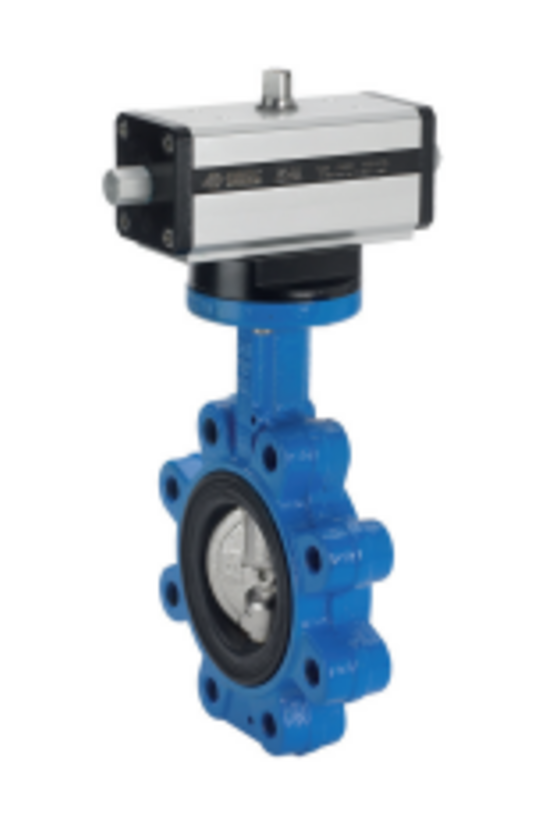

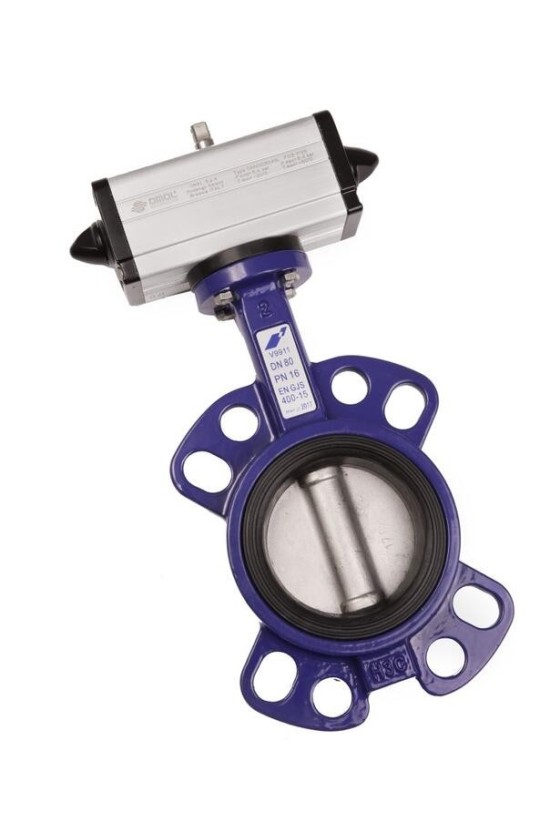

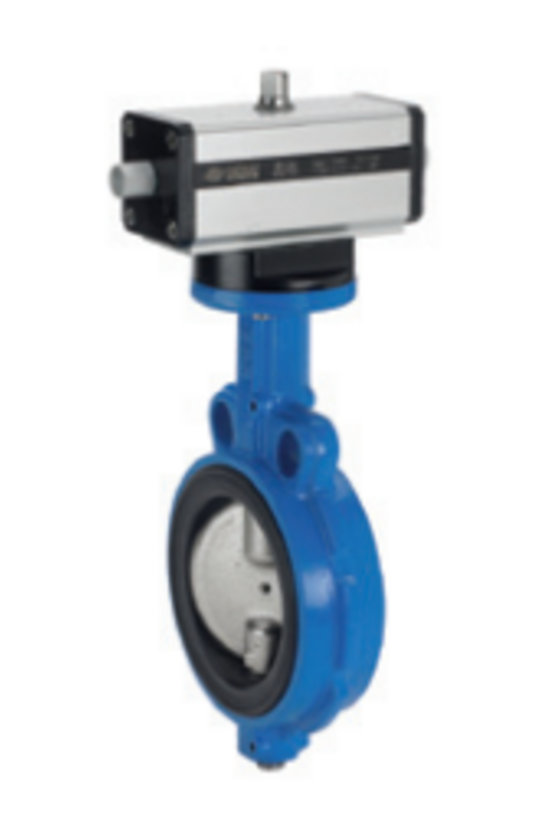

High quality pneumatically actuated cast iron butterfly valve to be used between two flanges. PN10 - PN16 - ANSI 150 from DN40 to DN300 with double acting pneumatic actuator. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C.

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request

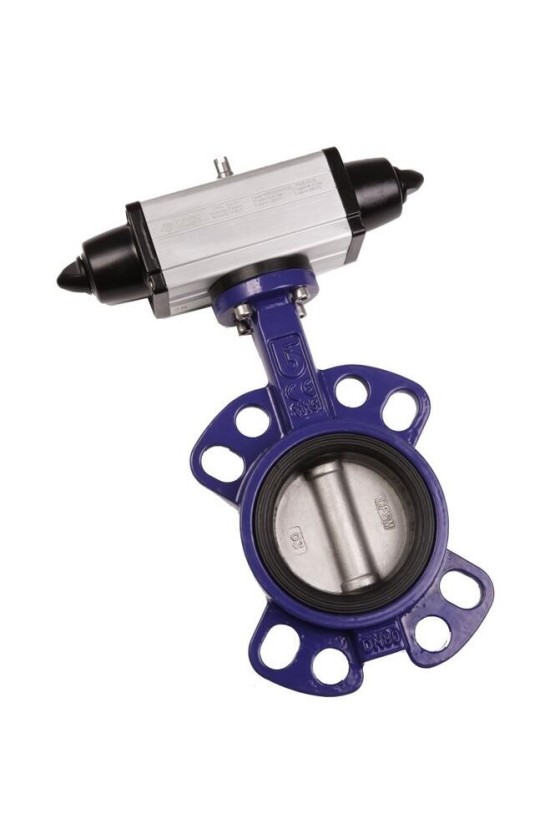

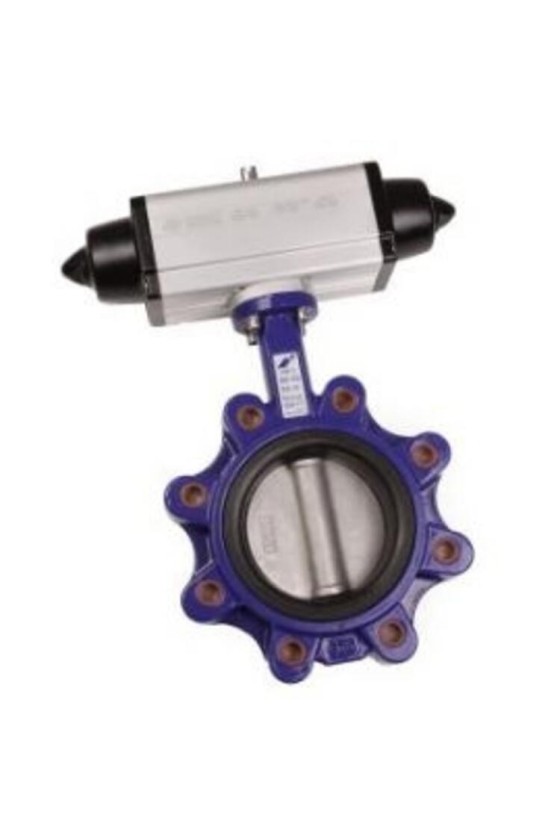

High quality cast iron butterfly valve to be used between two flanges. DN40 to DN300, PN10 to PN16 Suitable for Drinking Water, Gas, or Food (With NBR White) with spring return pneumatic actuator. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C. Complete with spring return pneumatic actuator.

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request

We offer high quality butterfly valves that meet the strongest requirements of process technology, and are the ideal solution for food, brewery, cosmetic and pharmaceutical processes.

• Reliable and economical technology
• Quick installation and removal
• Can be used anywhere, many different types of gaskets
• Low pressure drop
• Product flow without media retention

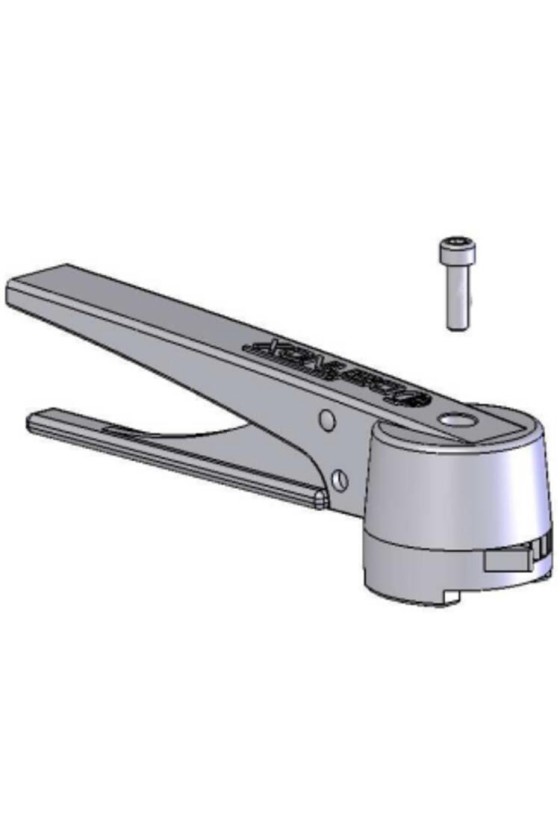

• Handle for butterfly valves stainless and plastic

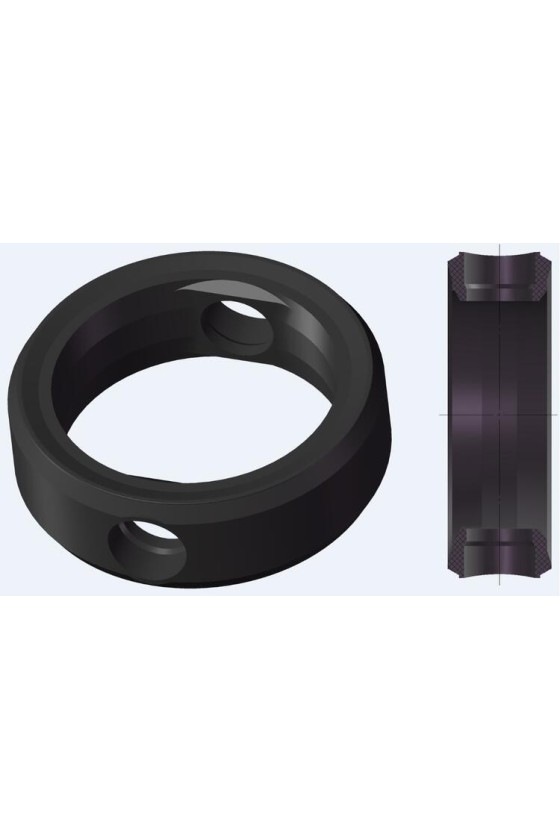

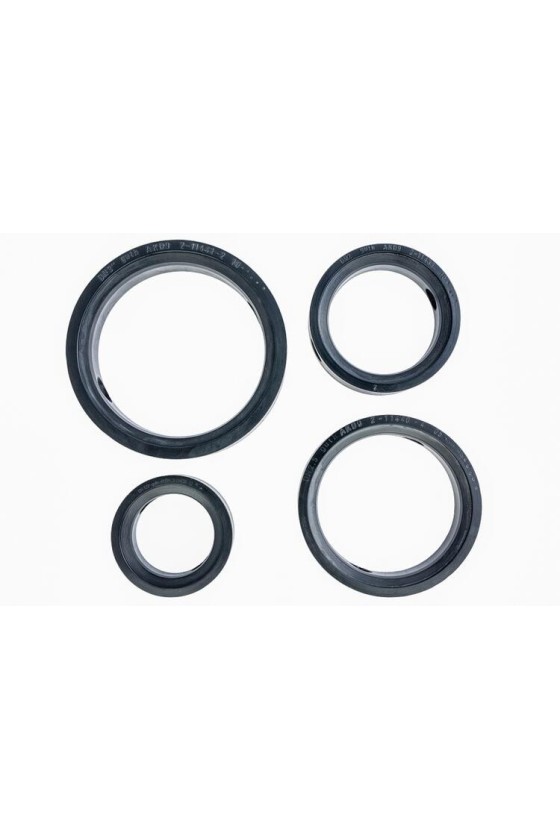

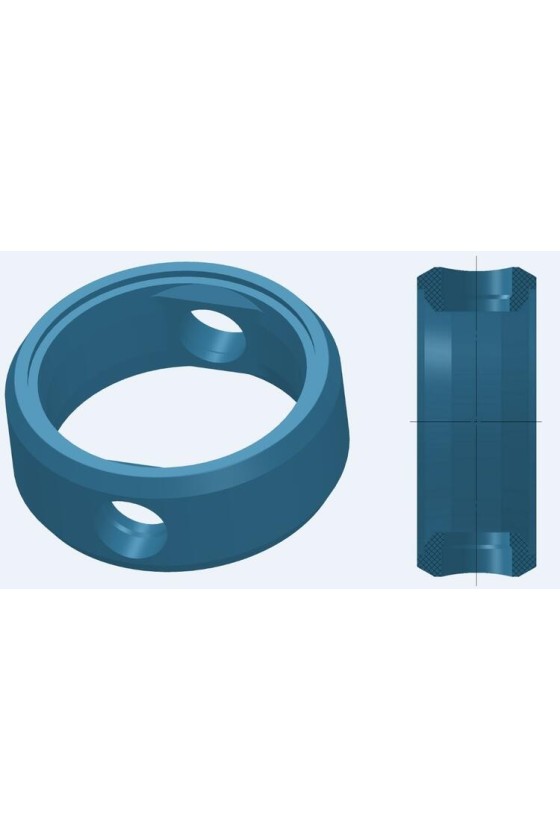

• Gaskets for butterfly valves
• Sliding sleeve for butterfly valves

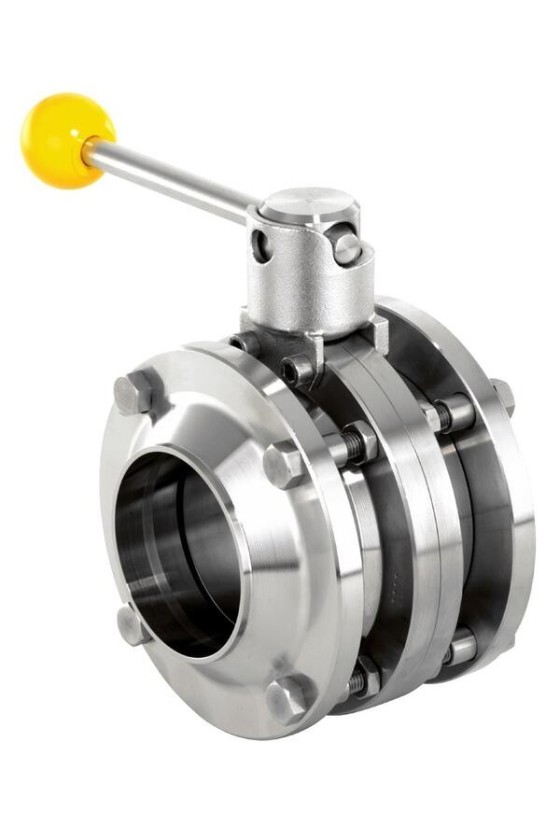

These hygienic butterfly valves are manufactured on site in Germany to the highest standards. They're available in sizes 1" to 6" with an O.D tube of 1/2" to 6".

• Available in sizes 1" to 6"


• Single or double acting

• Chambered low wear seal


• High pressure resistance

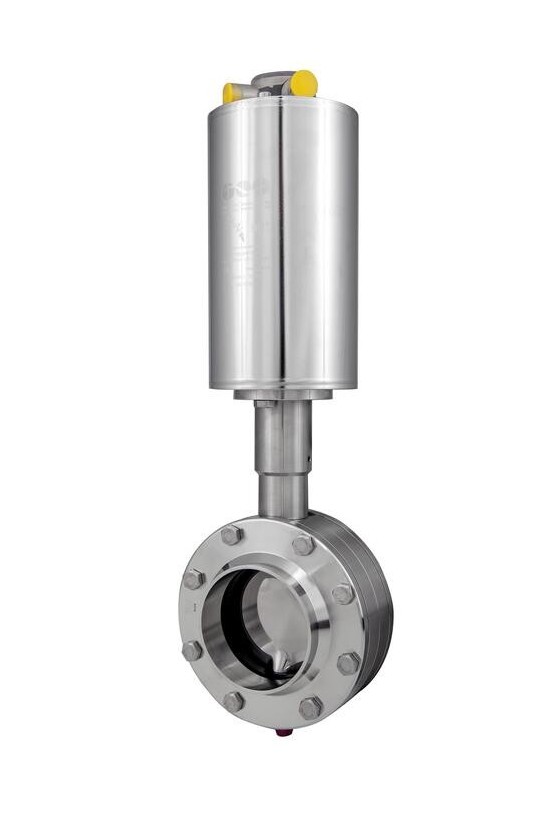

High Pressure butterfly valves in high quality stainless steel. Available in sizes 1" - 4".

• Sizes 1" - 4"


• Nominal widths: DN25-100


• High pressure resistance up to 33 bar/housing PN40


• Low-wear seals

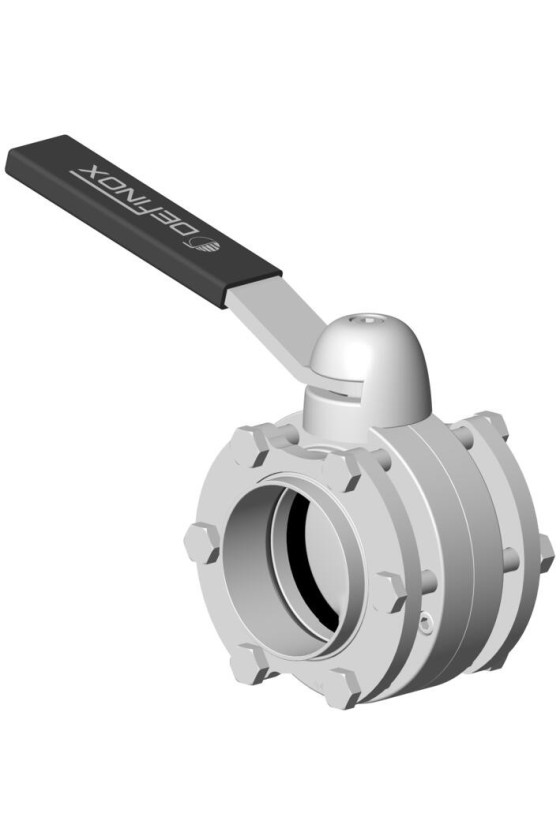

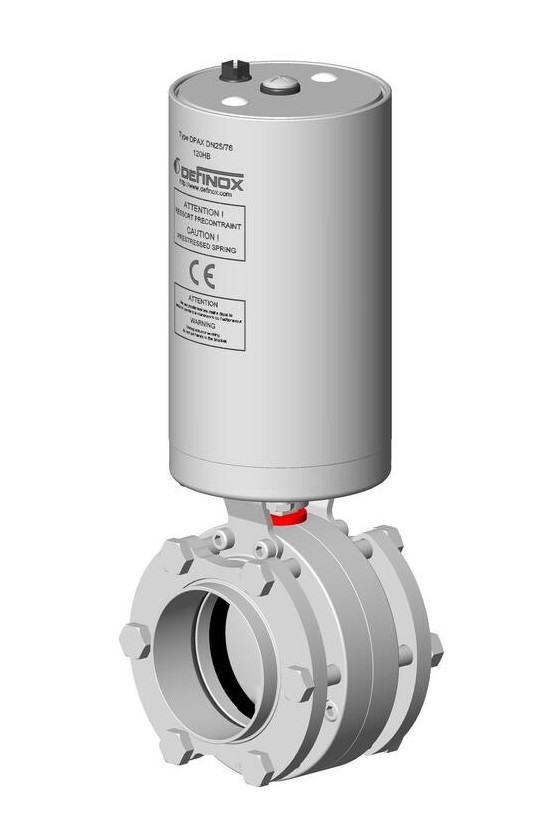

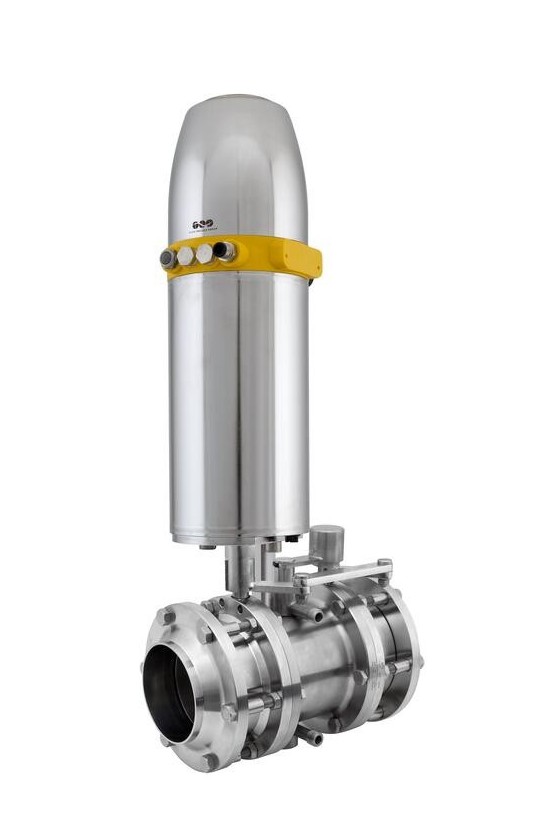

These double butterfly valves are leakage / mixproof valves that are made in high quality stainless steel to hygienic standards in Germany and are available in sizes 1" to 6".

• Manual or air actuated


• Sizes 1" to 6"


• Leakage chamber with flushing connections


• Securely sealed lifter to prevent contamination

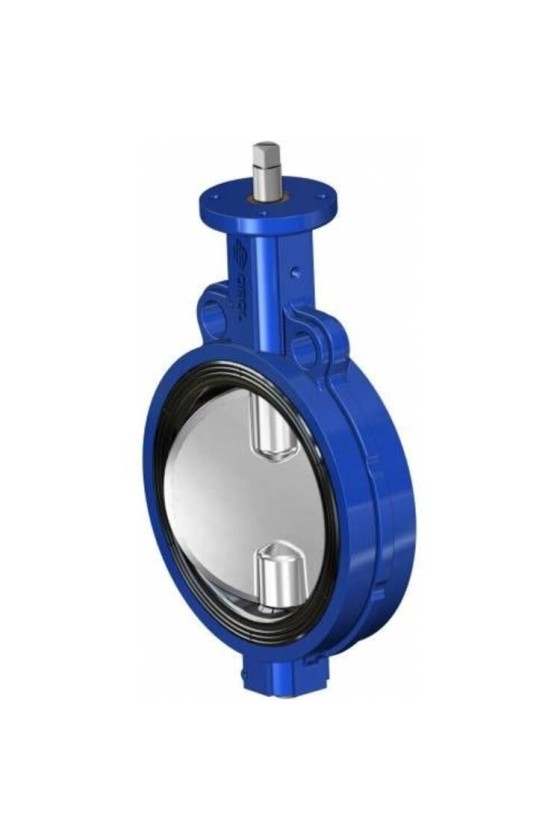

A cast iron Butterfly Valve to be used between two flanges. PN10 - PN16 - ANSI 150 from DN40 to DN300. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C. Valve is available with an operating handle or bare shaft for actuation.

• Sizes DN40 to DN300
• Pressure range PN10 to PN16
• Temperature range -40°C to +150°C
• ATEX available on request

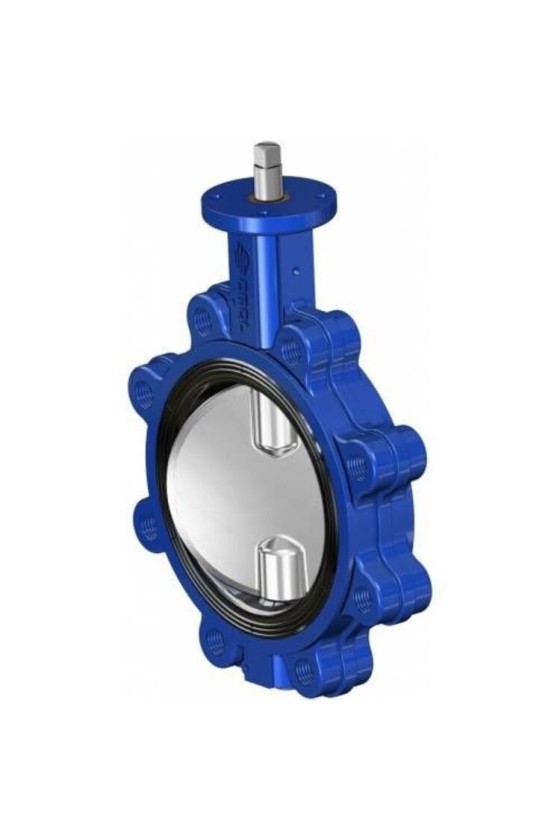

A high quality cast iron Butterfly Valve to be used between two flanges. DN40 to DN300, PN10 to PN16. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C. Valve is available with an operating handle or bare shaft for actuation. ATEX on request.

• Sizes DN40 to DN300


• Pressure range PN10 to PN16


• Temperature range -40°C to +150°C


• ATEX available on request

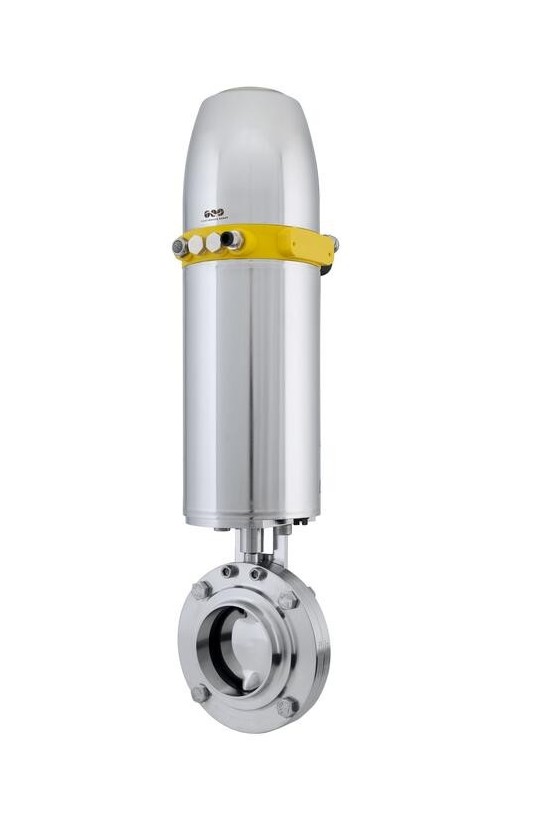

This hygienic sandwich style butterfly valve with a working pressure of up to 16 Bar The valve is available in sizes DN 25 - 150 / 1" - 6" and is made to a very high standard in Germany.

• sizes DN 25 - 150 / 1" - 6"
• working pressure of up to 16 Bar
• operating pressure 95° C

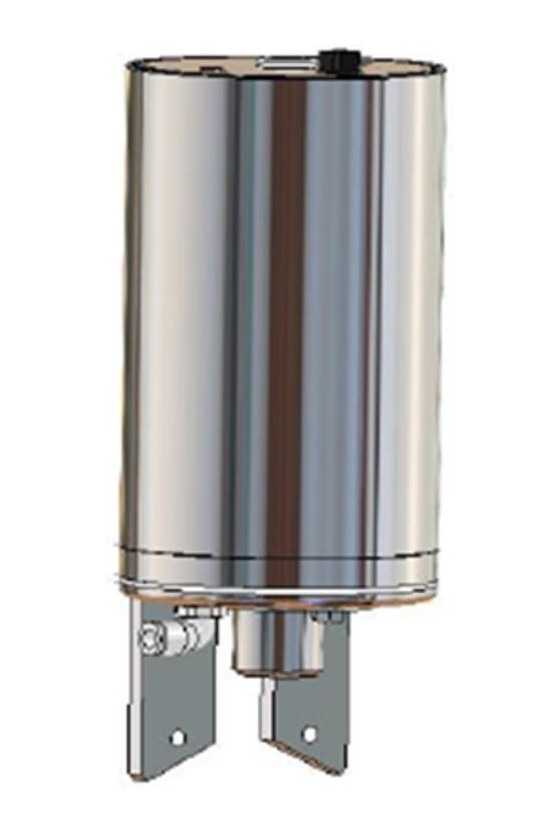

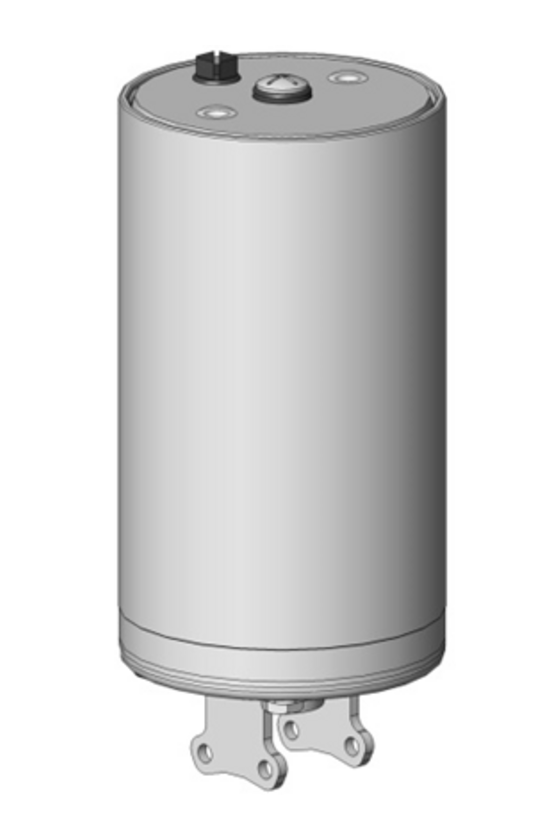

• PDA 75 / PDA 100 / PDA 125 actuator
