Honsberg - CRG Series Flow Switch

Paddle

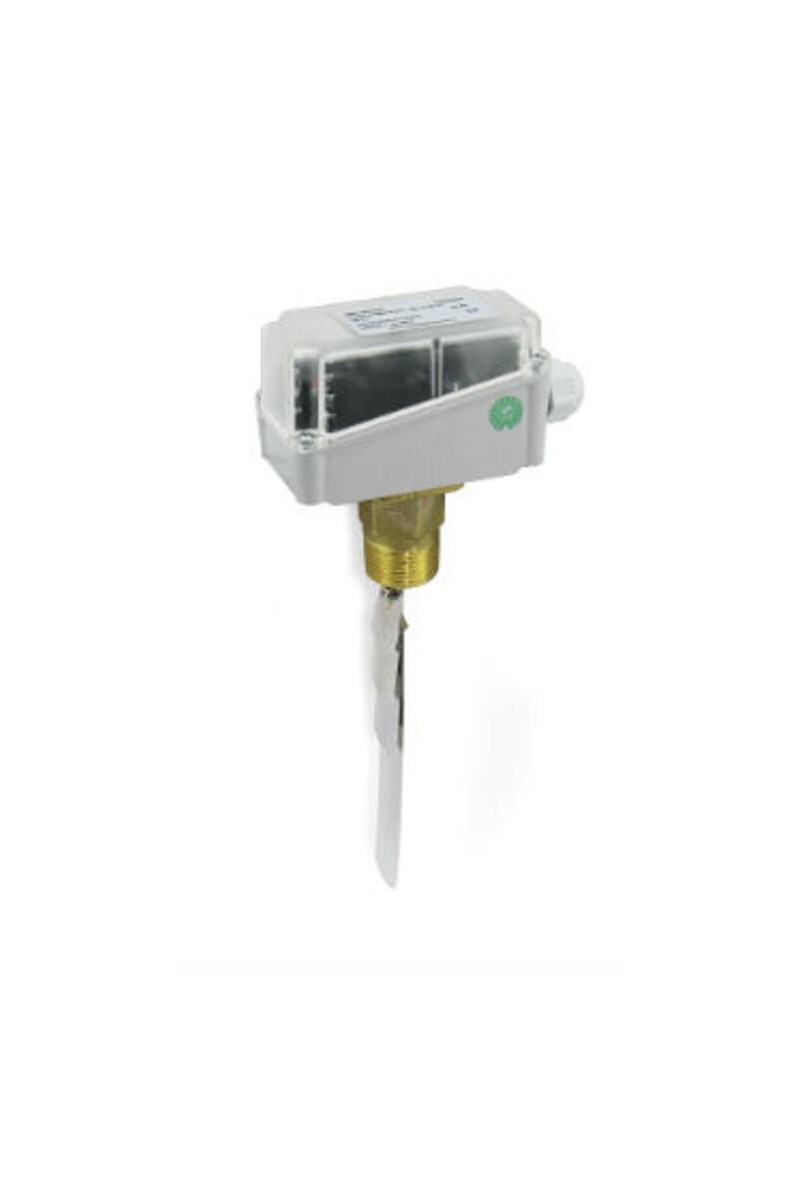

Model CRG is a universal flow switch in brass or stainless steel. The same switch can be used for a large number of different pipe dimensions by using one or more paddle lengths. Four different paddle lengths are included.

Switching Range 0,2...165,7 m3/h

Water (oils and aggressive media available on request)

Male Thread R1"

Brass or Stainless Steel Wetted Parts

Max Pressure 11 bar

£0.00
Tax included
Quantity :
Ask a Question

Connection type External thread 1 "
Contact rating max 15 A
Deviation max ±15 %
Electrical connection PG11
Flow range max 165.7 m³/h
Flow range min 0.6 m³/h

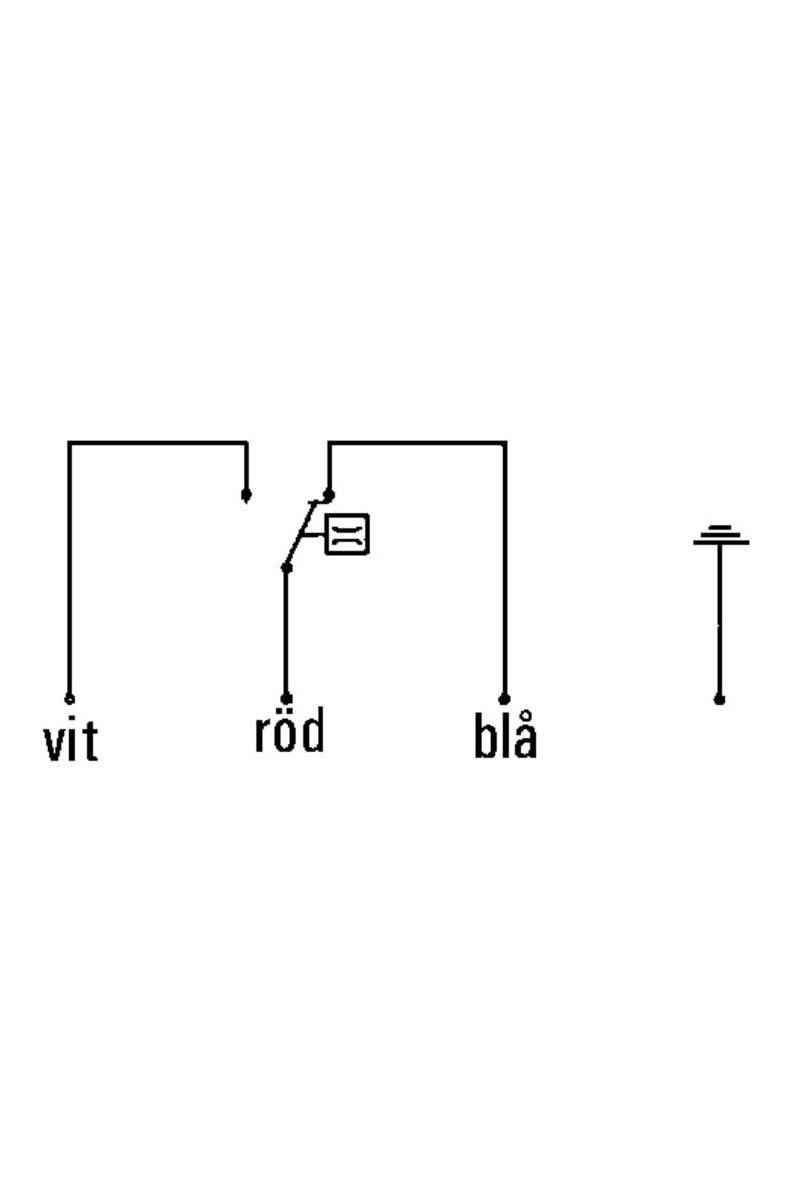

Function Paddle, micro switch switching
Hysteresis Depending on the breaking value, however, at least 0.1 l / min
IP class IP65
Material base Zinc-plated steel
Material bellows Tombak
Material cover ABS plastic
Material of connection Brass
Material paddle Stainless steel 316Ti
Media Water, (oil on request)
Pipe dimension max 200 mm
Pipe dimension min 25 mm
Pressure drop Approx. 0.08 bar at max. flow
Pressure range max 11 bar
Temperature of media to 120 °C
Type of flow component Flow Switches
Weight 0.95 kg
Viscosity 1 cSt
Voltage ac max 250 V
