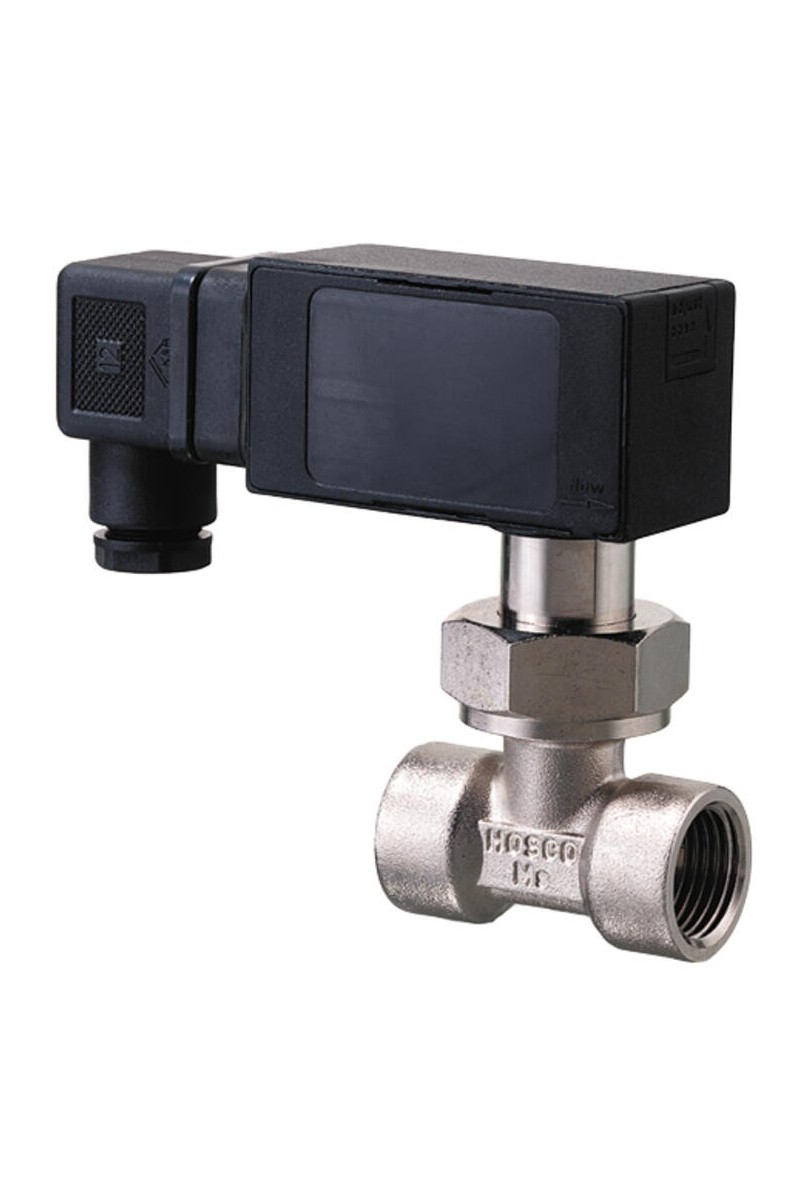

Honsberg - UM3K Series Flow Switch

Paddle

Model UM3K is a mechanical flow switch with very low pressure drop. This type of switch is used in applications including industrial cooling systems. Available in nickel-plated brass and stainless steel.

Switching Range 4..93 l/min H₂O

Water (oils, gases and aggressive media available on request)

G⅜" up to G1"

Brass or Stainless Steel Wetted Parts

Max Pressure 25 bar

£0.00
Tax included
Quantity :
Ask a Question

Accuracy ± 15% of full set point
Connection type Internal thread G 3/8 "
Contact rating max 5 A
Electrical connection Plug connector DIN 43650-A
Flow max 10 l/min
Flow range max 5.5 l/min
Flow range min 4 l/min

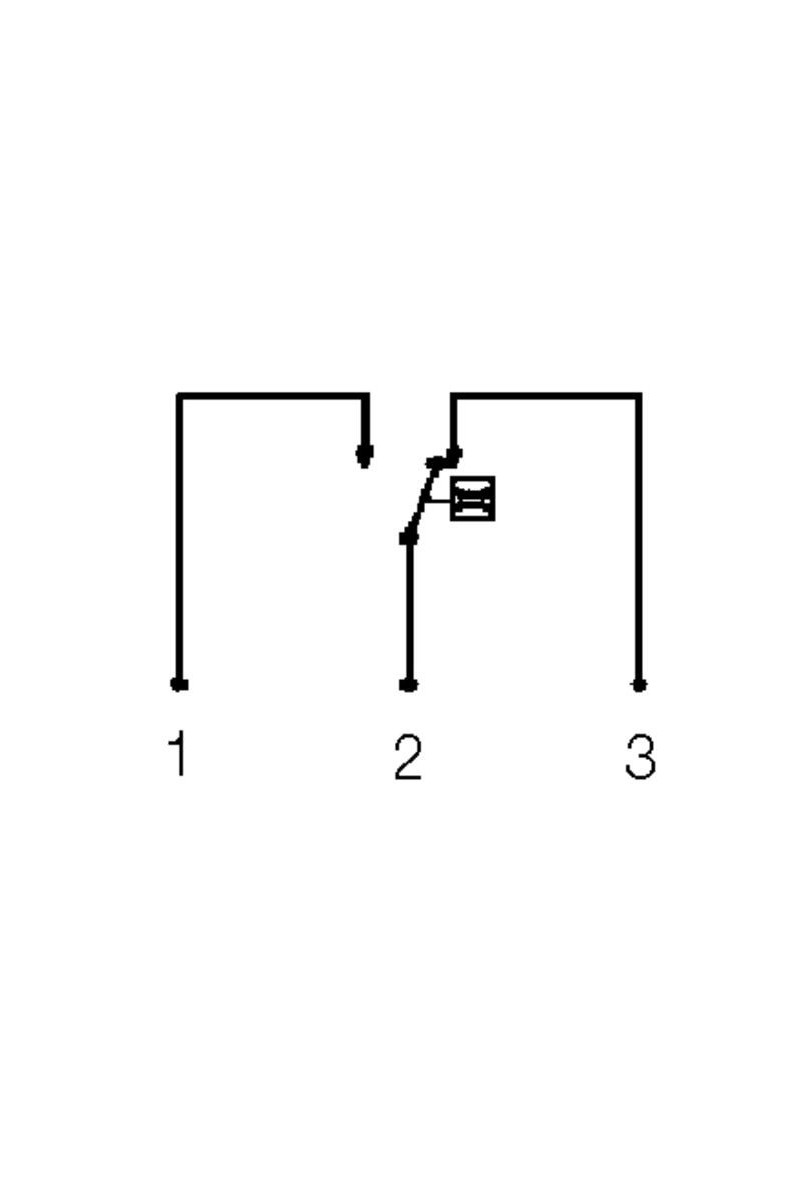

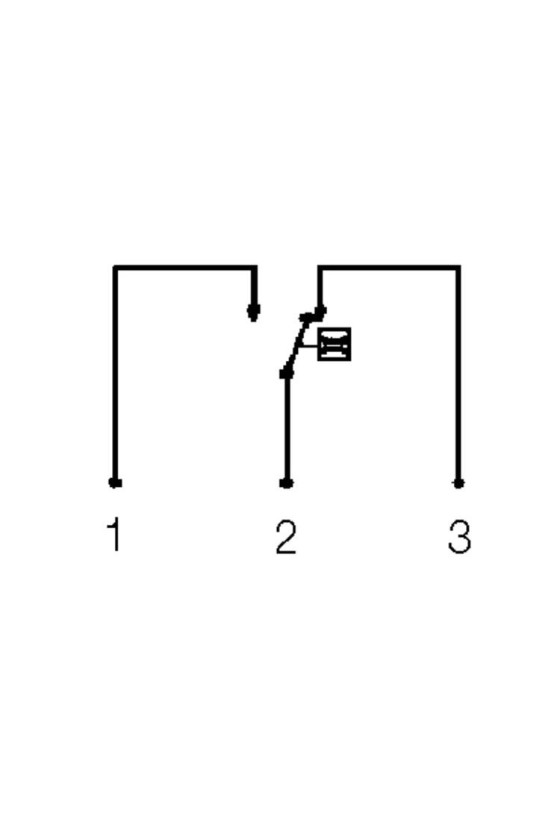

Function Paddle, micro switch, alternating
Hysteresis about 15% of the breaking value
IP class IP65
Material of body Nickel-plated brass
Material of connection Nickel-plated brass
Material of magnet Hard ferrite
Material of seals NBR
Material paddle Stainless steel AISI 304, Stainless steel 316Ti
Material spring Stainless steel 301
Pressure drop max. 0.01 bar at maximum flow
Pressure range max 25 bar
Temperature of media to 110 °C
Type of flow component Flow Switches
Weight 0.35 kg
Viscosity max 1 cSt
Voltage ac max 250 V
