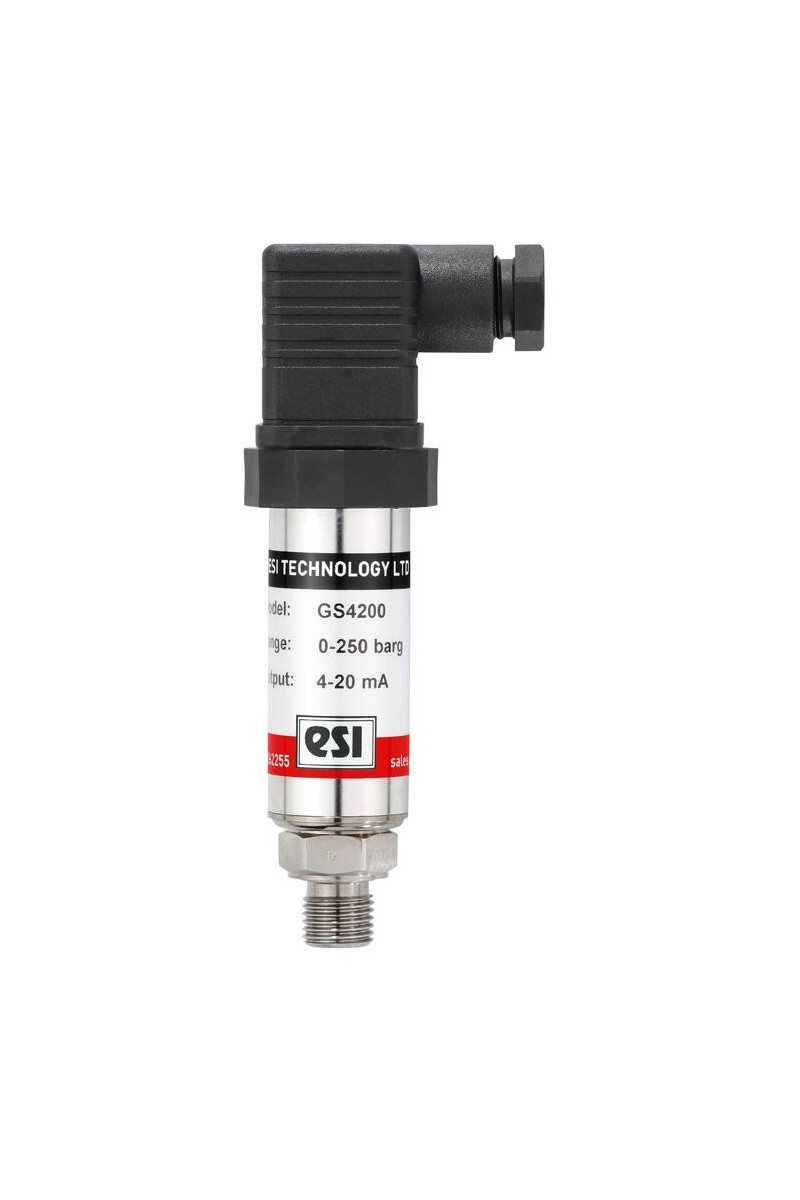

ESI GS4200H Hydrogen Pressure Sensors 100-1,500bar
  • ESI GS4200H Hydrogen Pressure Sensors 100-1,500bar

ESI GS4200H Hydrogen Pressure Sensors 100-1,500bar

£0.00
Tax included
Quantity :
Ask a Question

Ambient temperature -40..85°C
Approvals CE, DNV, EX, IECEx, RoHS
Electrical connection DIN A
EMC EN61000-6-2, EN61000-6-3
Linearity ≤±0.25% BFSL
Material of wetted parts Titanium alloy
Media temperature -50..125°C
Output 4-20 mA
Overpressure protection 200
Pressure range max 100 bar
Pressure range min 0 bar
Pressure reference Gauge
Process connection G1/4
Sensor technology Silicon-on-Sapphire
Storage temperature 5..40°C
Supply voltage 10-36 V DC
