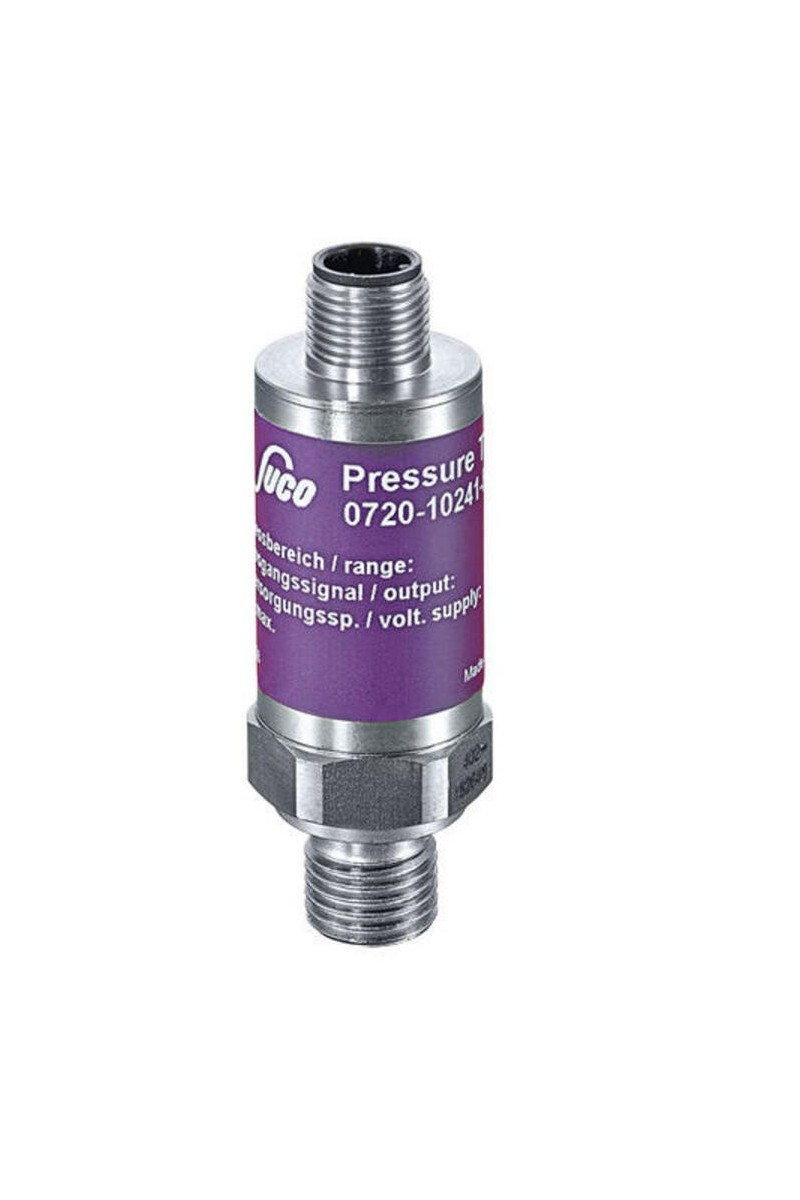

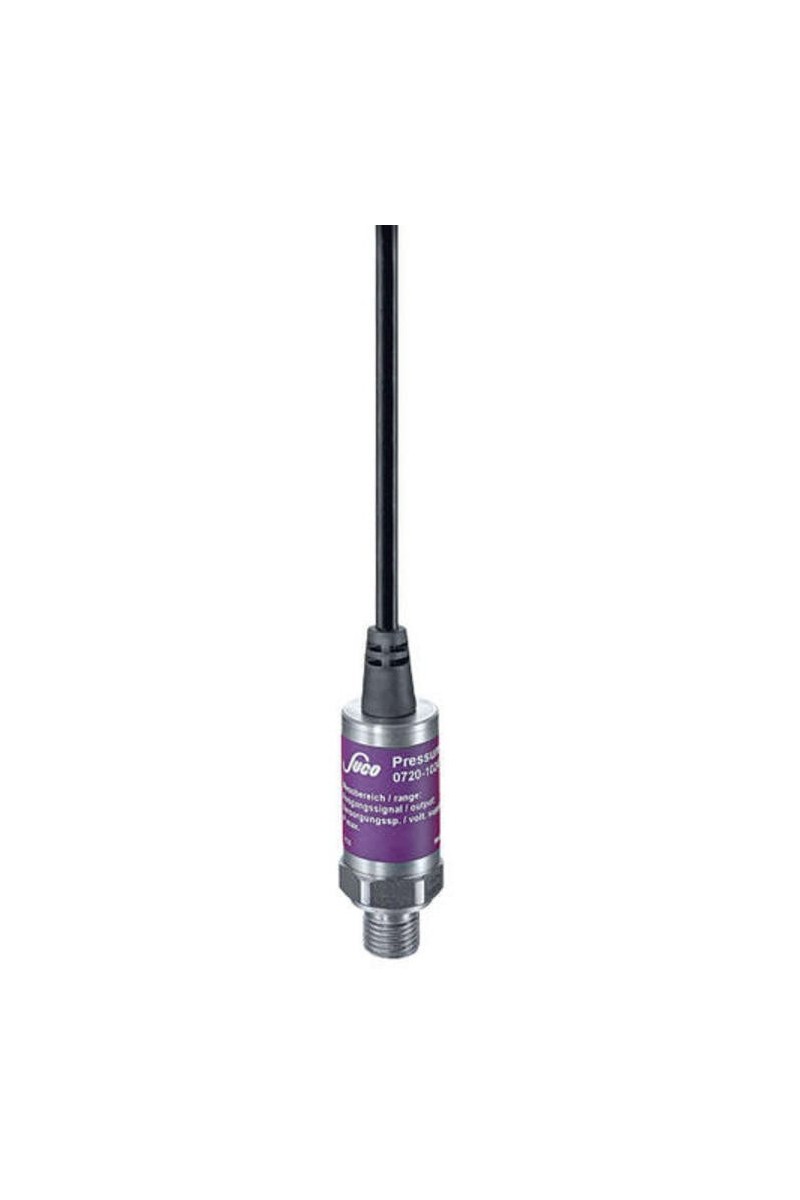

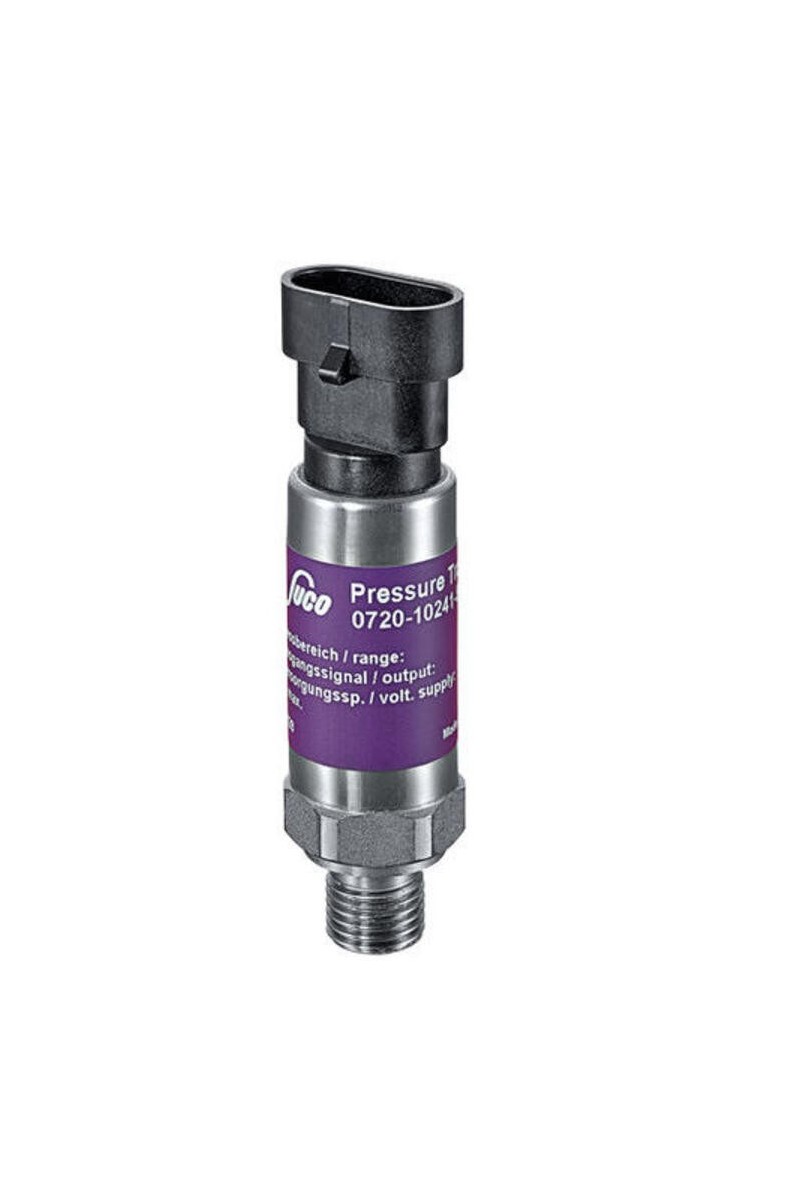

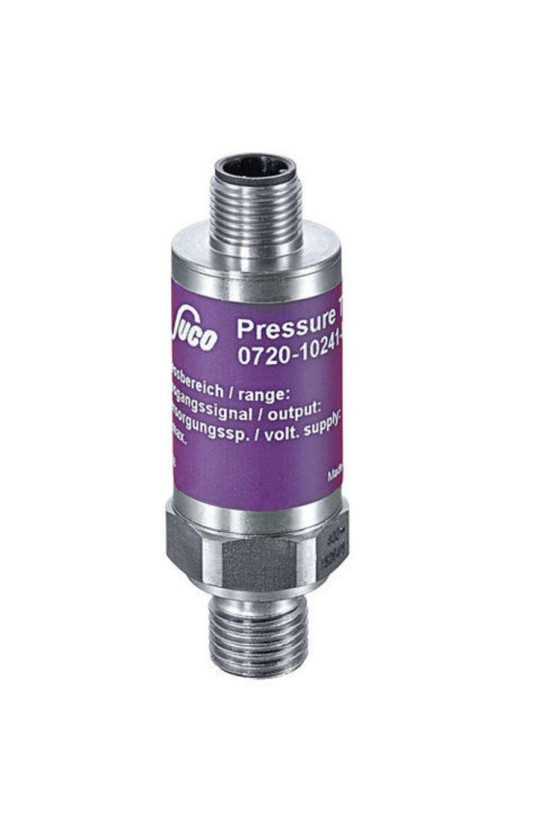

Suco - 0705/0710/0720 Pressure Sensor

Name: Suco - 0705/0710/0720 Pressure Sensor
Brand: PWM Trading Group
SKU: 070510141B001
Availability: InStock

Reference: 070510141B001

High performance series

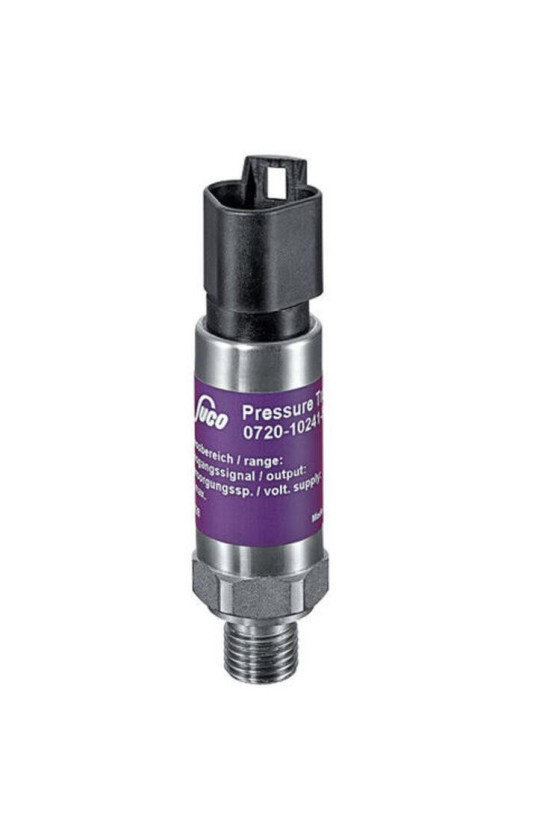

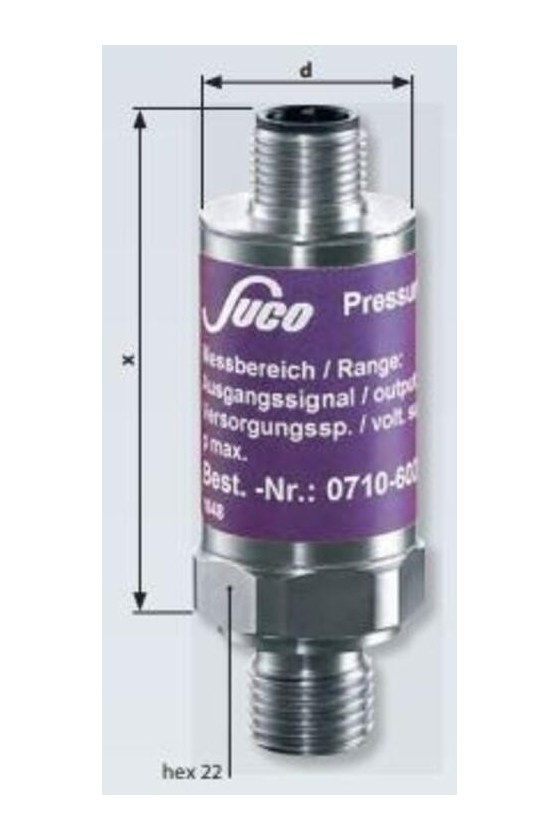

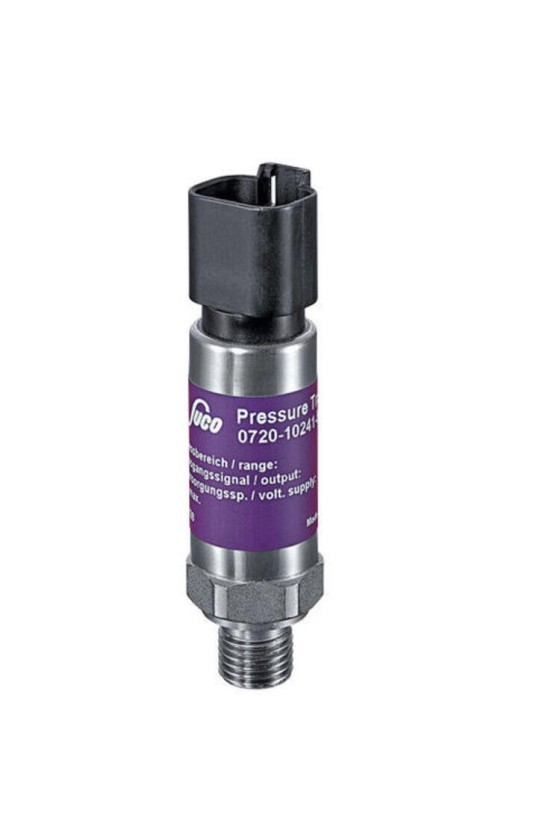

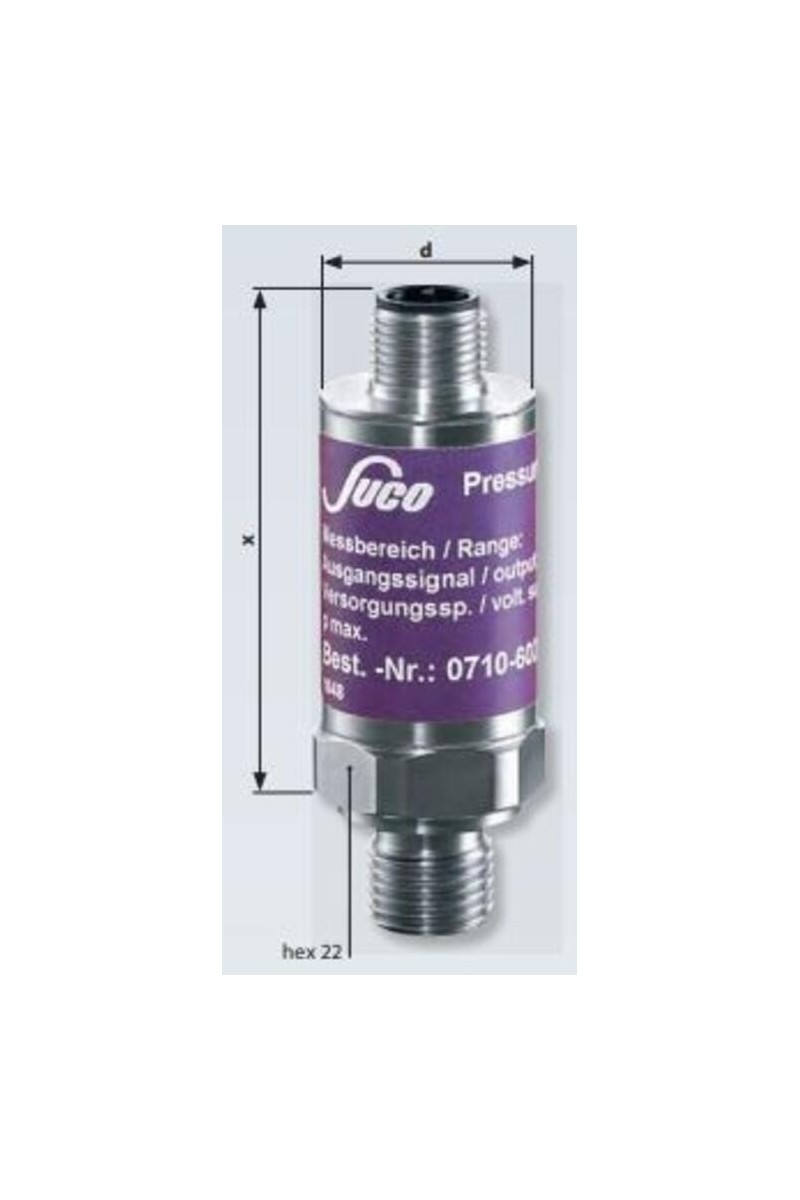

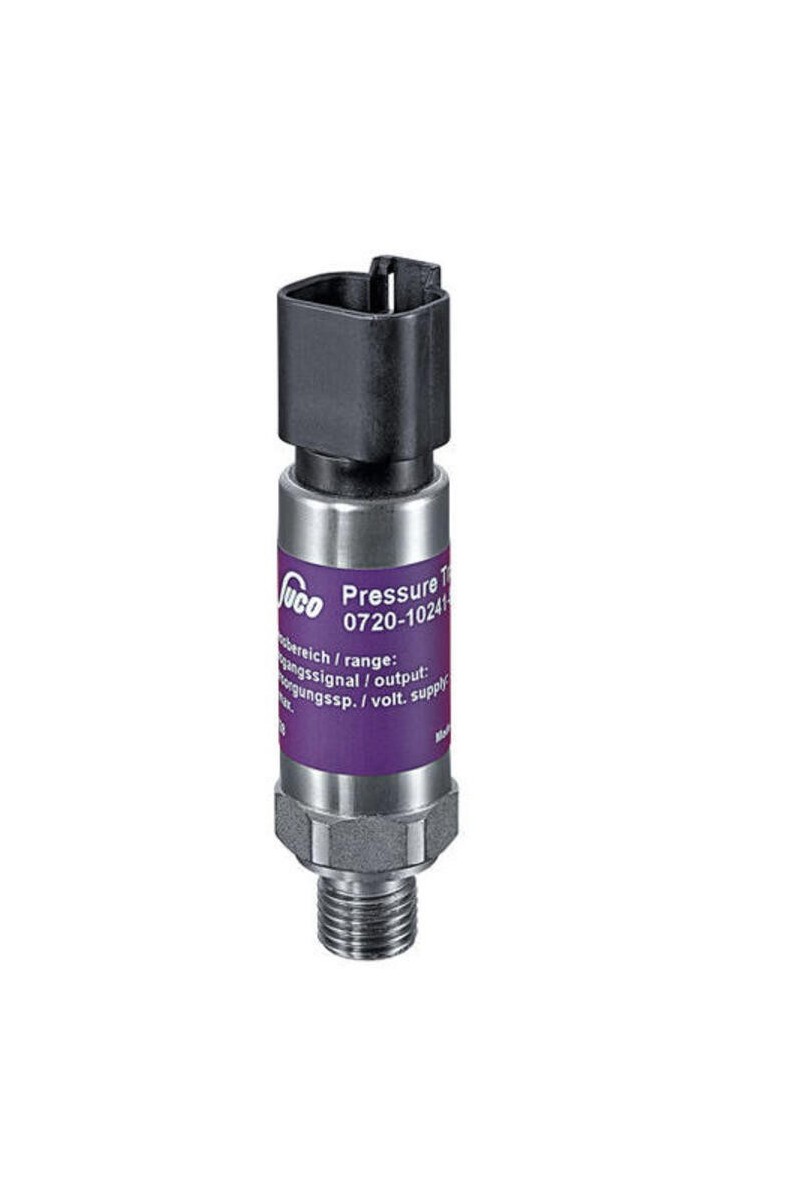

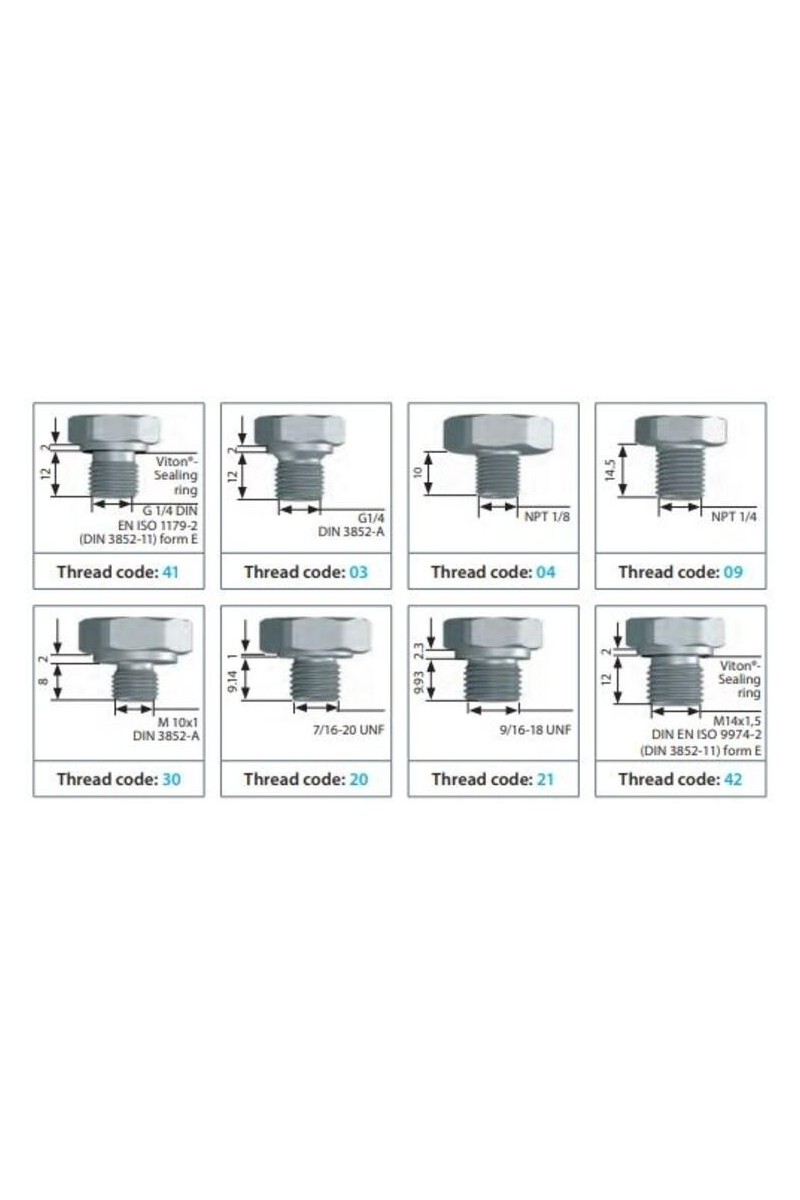

The SUCO 0705/0710/0720 high performance series pressure sensor is an advanced pressure monitoring solution with unrivalled attributes. Offering ten standard pressure ranges with options of six different electrical connectors a thread of G1/4 (eight available in total) and 0.5-4.5 V ratiomateric, 0-10V or 4-20mA outputs. The 07 series uses silicon-on-sapphire technology in a titanium all welded design offering outstanding overpressure protection, media compatibility and the the highest repeatability.

Common applications include mobile hydraulics, off-shore/marine, high pressure systems and more.

Measuring range up to 600 bar

Silicon-on-sapphire sensor

Outstanding overpressure protection

Outstanding repeatability

Quantity :

Description
Product Details

Accuracy	±0.5% FS
Burst pressure	80 bar

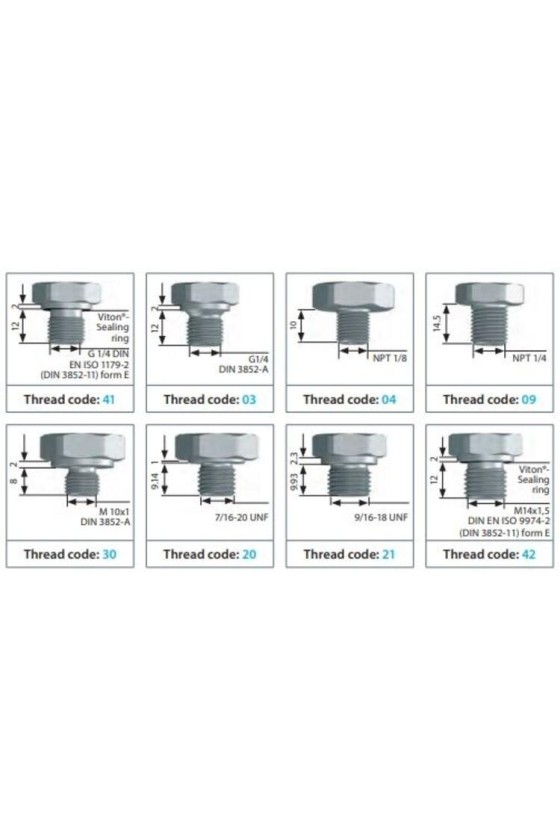

Connection	G1/4-E

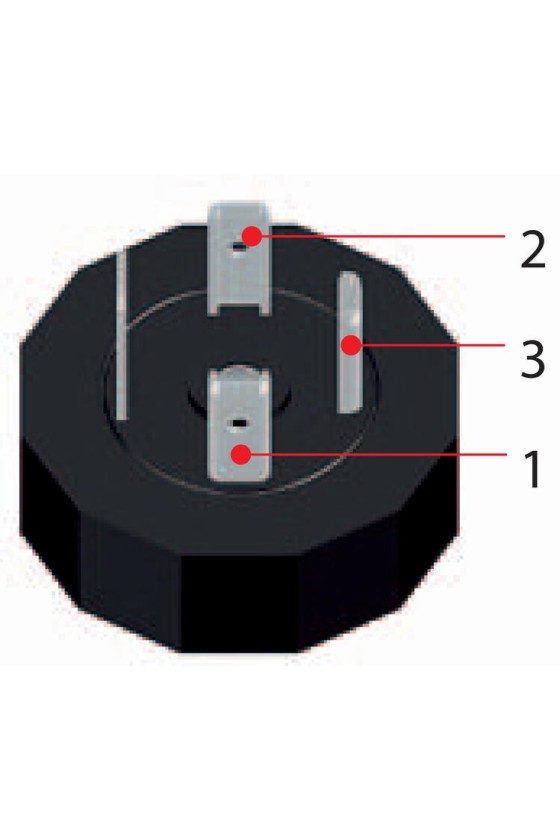

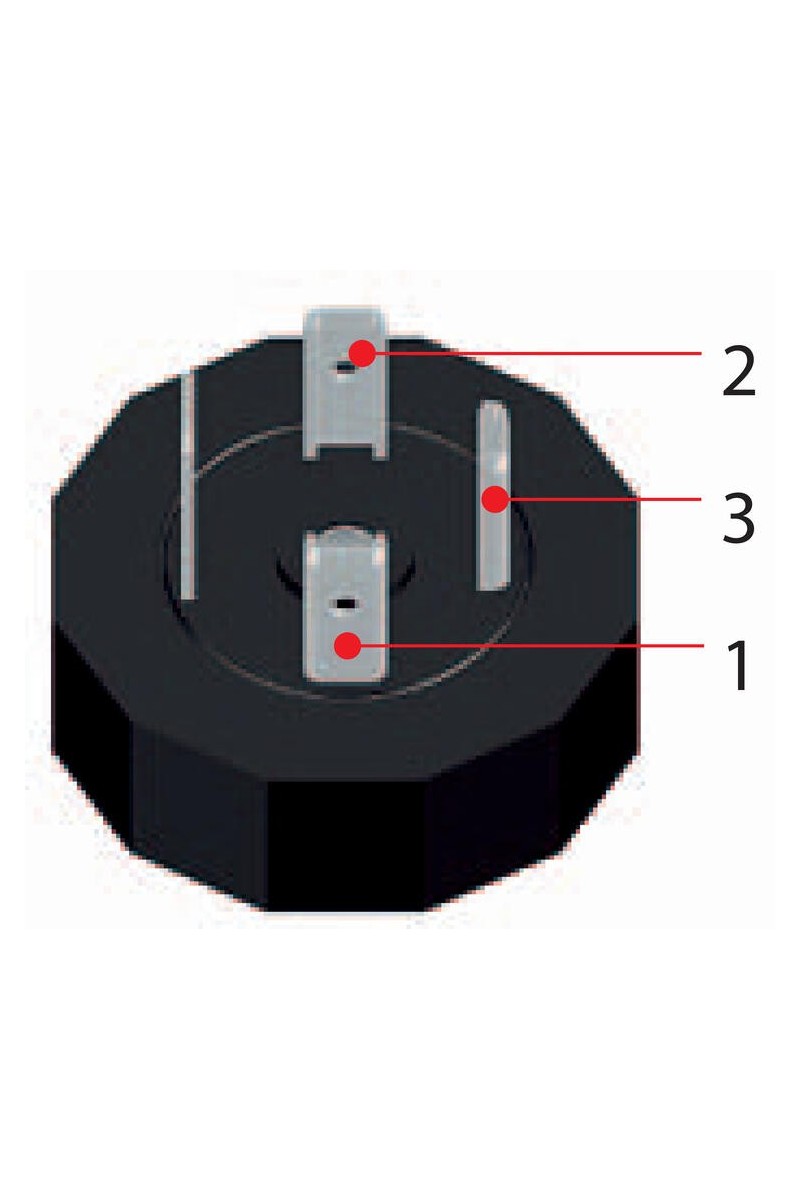

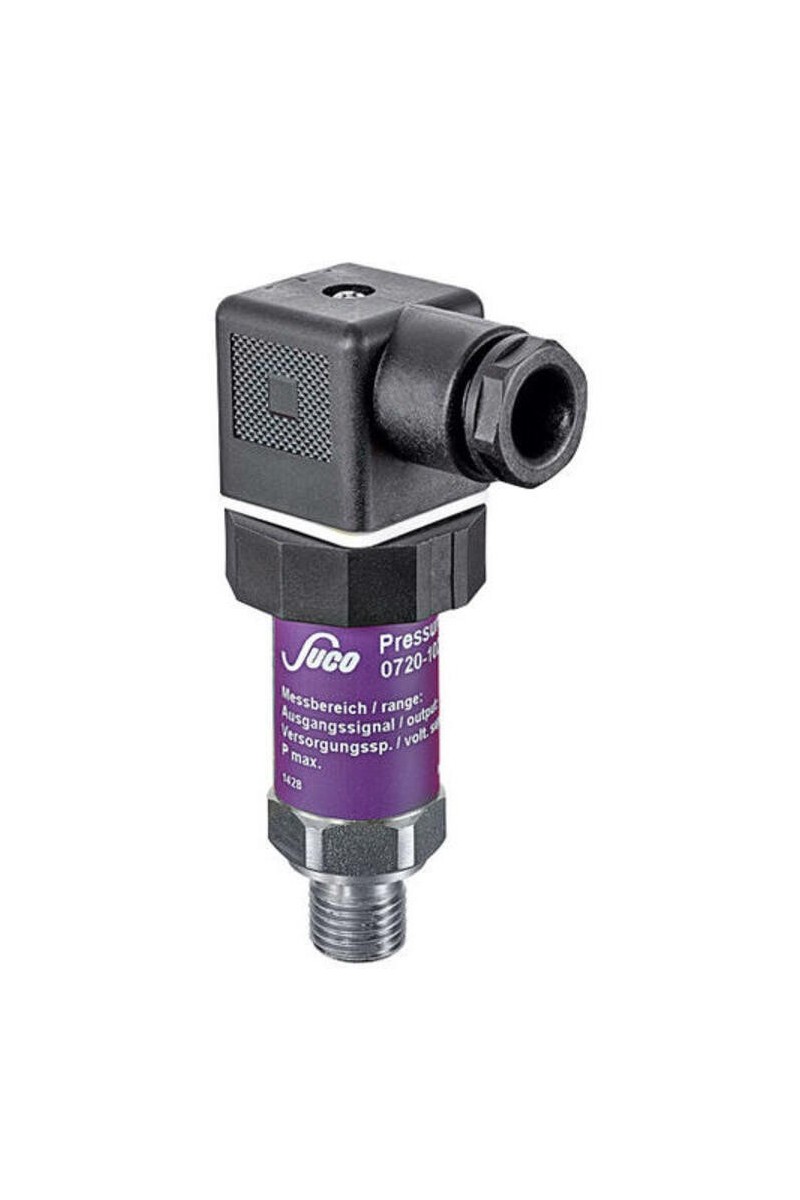

Electrical connection	DIN EN 175301-803-A
IP class	IP67
Long term stability	±0.1% FS p.a.
Material of body	Stainless steel 1.4305
Material of wetted parts	Stainless steel 1.4305, Titanium
Overpressure protection	40 bar
Pressure range max	10 bar
Pressure range min	0 bar
Pressure reference	Gauge
Pressure rise	5 bar/ms
Repeatability	±0.1% FS

Response time	2 ms
Shock resistance	500m / s²; 11 ms half sine wave; DIN EN 60068-2-27
Signal type	0.5-4.5 V ratiometric
Supply voltage dc max	6.5 V DC
Supply voltage dc min	5 V DC
Temperature ambient from	-40 °C
Temperature ambient to	100 °C
Temperature error	±0.01% FS/°C
Temperature of media from	-40 °C
Temperature of media to	125 °C
Weight	80 g
Vibration resistance	20g: 4..2000 Hz sine wave, DIN EN 60068-2-6

Reference 070510141B001
