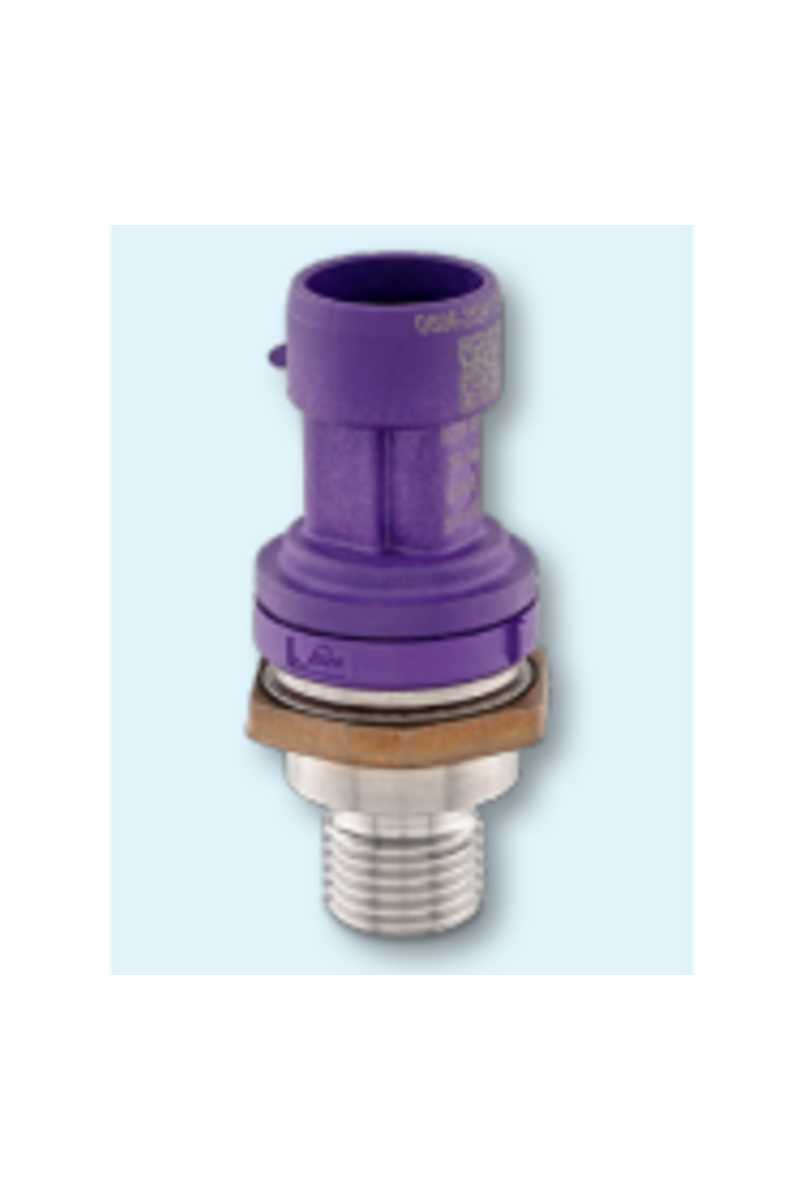

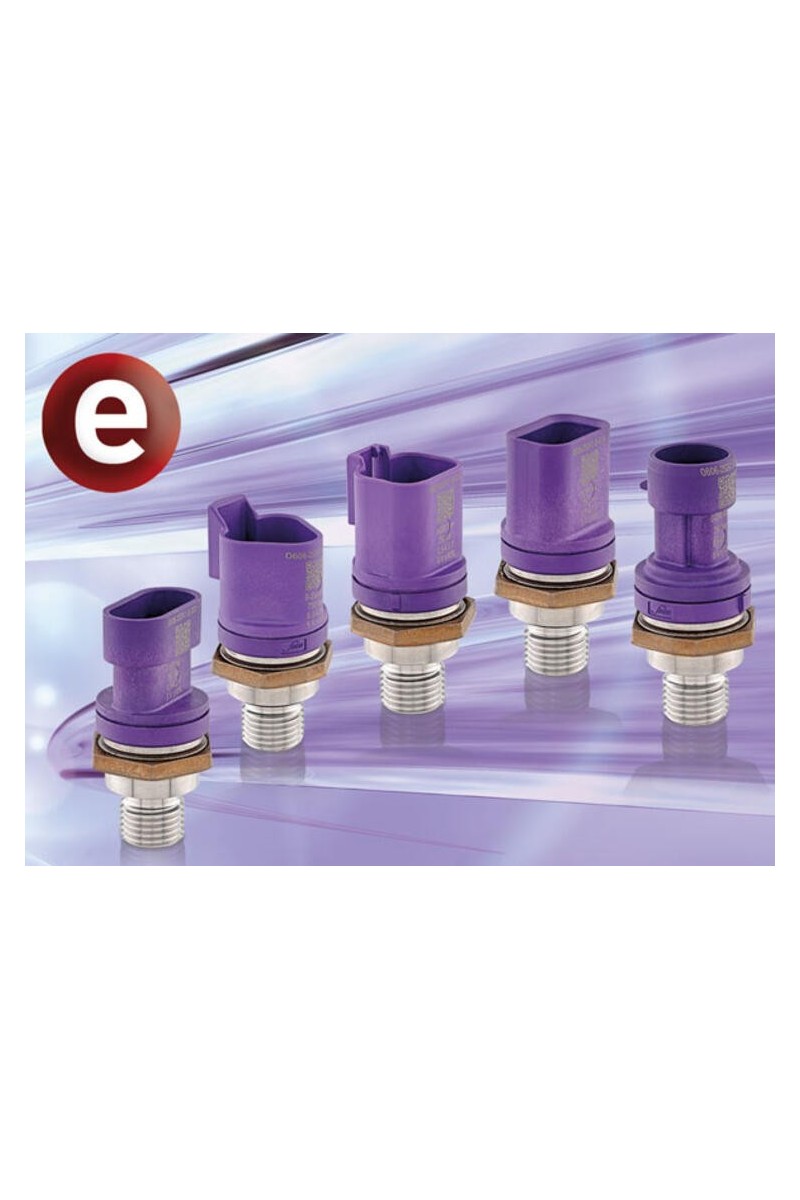

SUCO 0606 Series Pressure Sensor

Compact Series

The economy 0606 pressure transmitters can offer a high wear resistance and withstand pressure cycling rates of 5,000 bar/s. Through accredited static and dynamic pressure cycling tests we also guarantee a service life of at least 10 million pulsations.

All materials in contact with the media consist of stainless steel in fully welded design and without any elastomeric sealing material. This ensures compatibility with almost all media applications.

High IP protection up to IP6K9K

Pressure ranges from vacuum to 5,000 bar

Wide range of connectors and threads

Protection against overload, overvoltage or short circuit

Various interfaces (CAN, SAE J1938, SENT, RS-485
£0.00
Tax included
Quantity :
Ask a Question

Accuracy ± 0.5 % full scale (FS) at room temperature, ± 0.25 % BFSL
Adjustment range max 40 bar
Adjustment range min 0 bar
Burst pressure 400 bar
Connection 1/4 NPT
Electrical connection AMP Superseal 1.5
IP class IP67
Long term stability ± 0.2 % (<100 bar) / ± 0.1 % full scale (FS) per year
Material of body Stainless steel 304L (1.4306)
Material of wetted parts Stainless steel 630
Mechanical life expectancy 10,000,000 pulsations at rise rates to 5,000 bar/s
Operating temperature from -40 °C
Operating temperature to 125 °C
Output signal 0.5 ... 4.5 V ratiometric (3-wire)
Overpressure protection 250
Pressure range max 40 bar
Pressure range min 0 bar
Process connection 1/4 NPT
Repeatability ± 0.2 % (<100 bar) / ± 0.1 % full scale (FS)
Response time 1 ms
Signal type 0.5-4.5 V ratiometric
Supply voltage dc max 6.5 V DC
Supply voltage dc min 5 V DC
Vibration resistance IEC 60068-2-6
