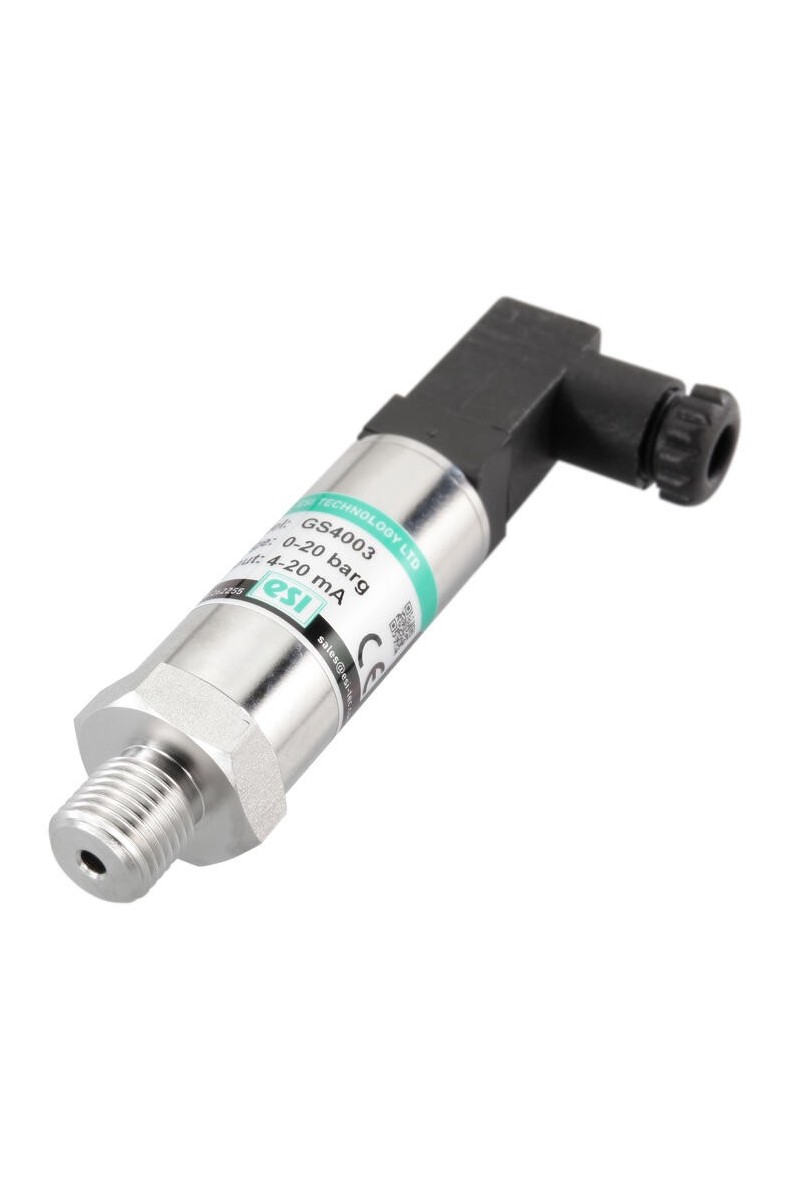

ESI - GS4000 - Industrial Pressure Sensor

The ESI Technology GS4000 is a standard industrial pressure sensor designed to deal with the majority of general industrial applications.

The GS4000 offers a robust yet compact sensor that still offers good performance and is very reliable. The GS4000 starts from -1 - 0 bar up to 0 to 700 bar with a total of eight standard pressure ranges, four options of outputs including 4-20mA and 0-10V and also four different electrical connections including a DIN connector and M12.

Suitable for the majority of industrial applications

Reliable pressure measurement

Long service life

All stainless steel construction

£0.00
Tax included
Quantity :
Ask a Question

The GS4000 offers a robust yet compact sensor that still offers good performance and is very reliable. The GS4000 starts from -1 - 0 bar up to 0 to 700 bar with a total of eight standard pressure ranges, four options of outputs including 4-20mA and 0-10V and also four different electrical connections including a DIN connector and M12.

Application examples

  • Aerospace
  • Power packs
  • Mobile hydraulics


Ambient temperature -20..85°C
Approvals CE, IEC
Electrical connection DIN A 43650
EMC EN61000-6-4, EN61000-6-2
Linearity ≤±0.4% BSFL
Material of wetted parts Stainless steel 17-4, Stainless steel 303
Media temperature -20..85°C
Output 2mV/V
Overpressure protection 50 bar
Pressure range max 25 bar
Pressure range min 0 bar
Pressure reference Gauge or Absolute
Process connection G1/4
Sensor technology Cereamic thick film or Bonded foil strain gauge
Storage temperature 5..40°C
Supply voltage 10 V DC (5-15 V)
