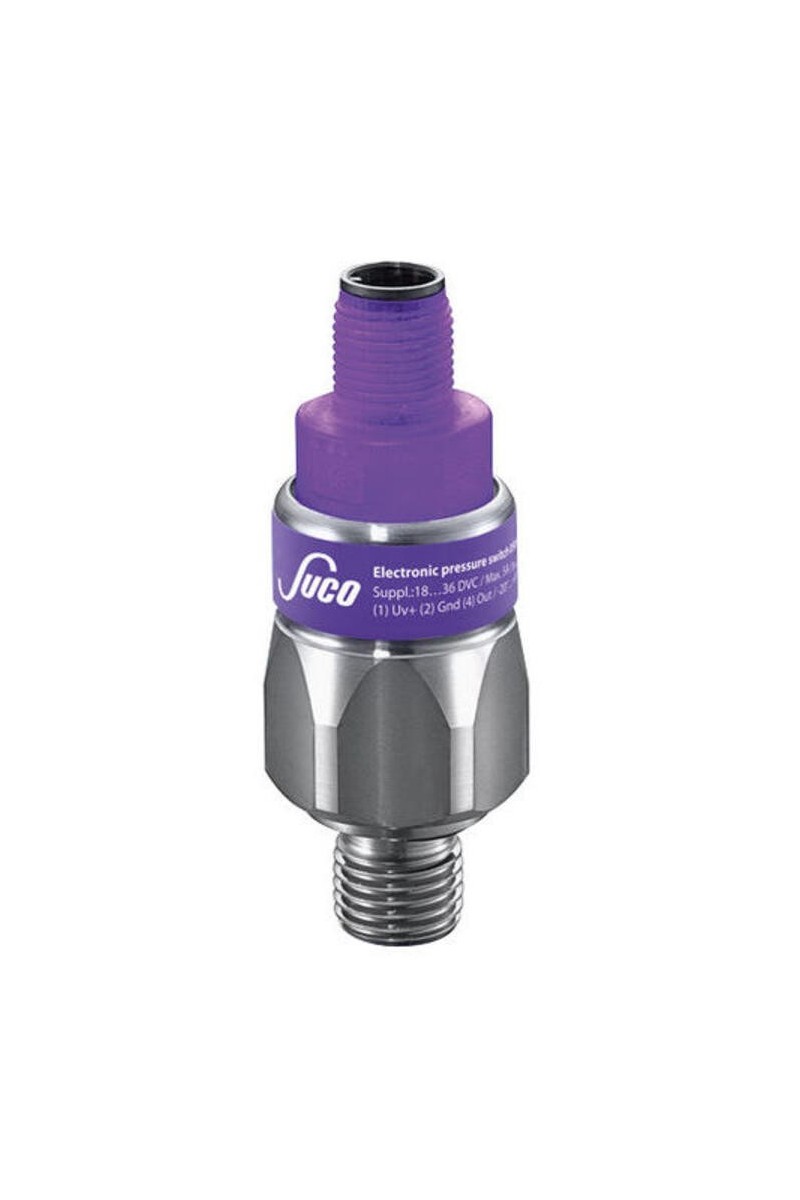

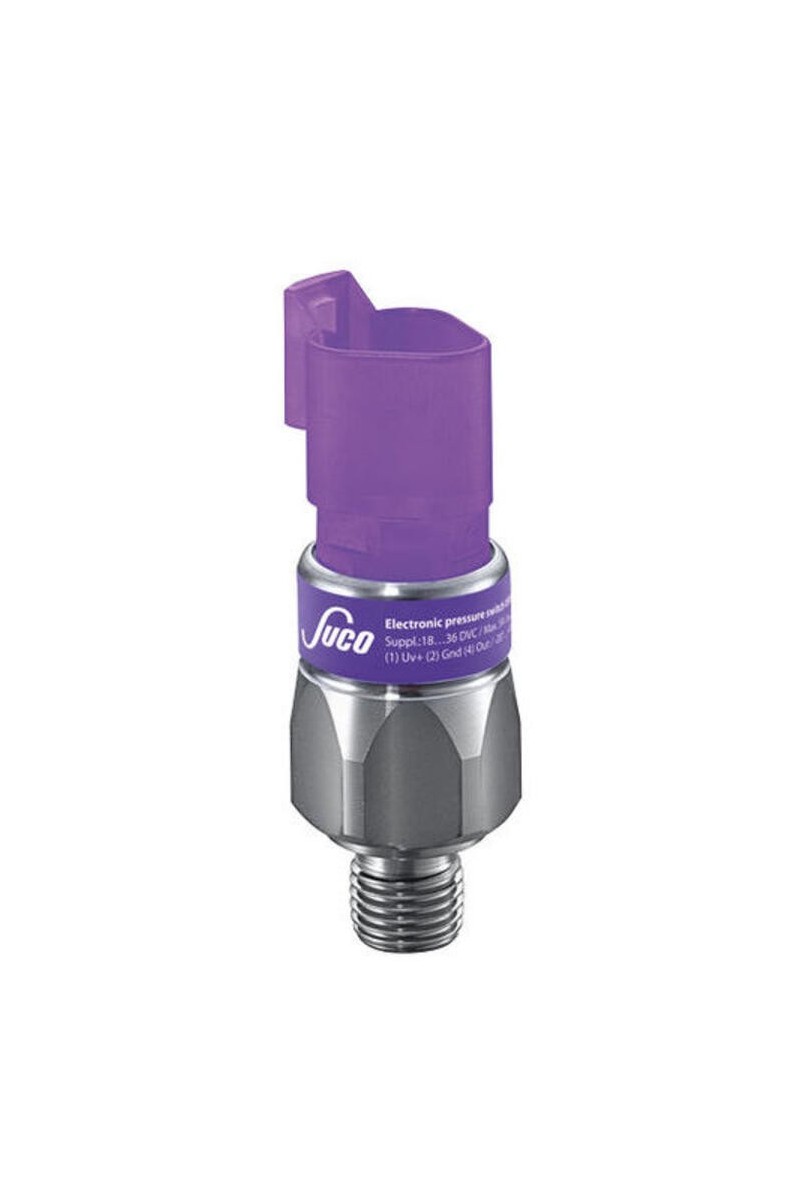

Suco - 0601/0602 Pressure Sensor
Performance series

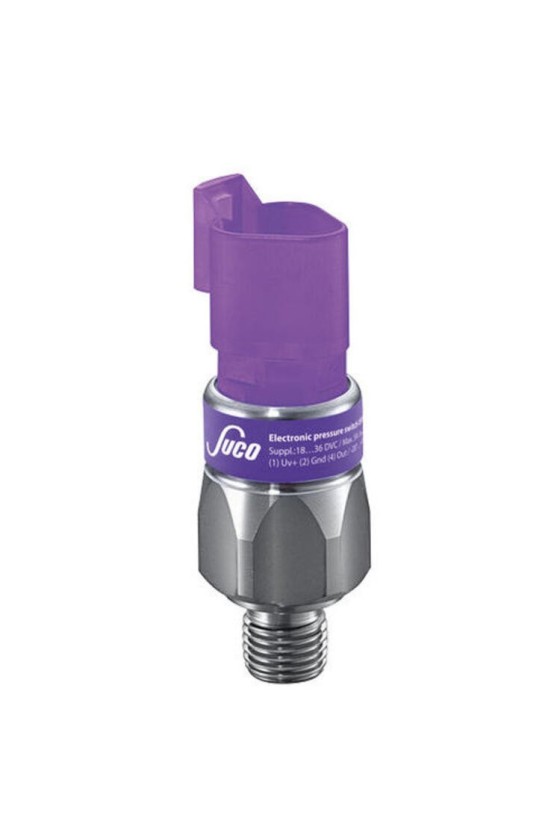

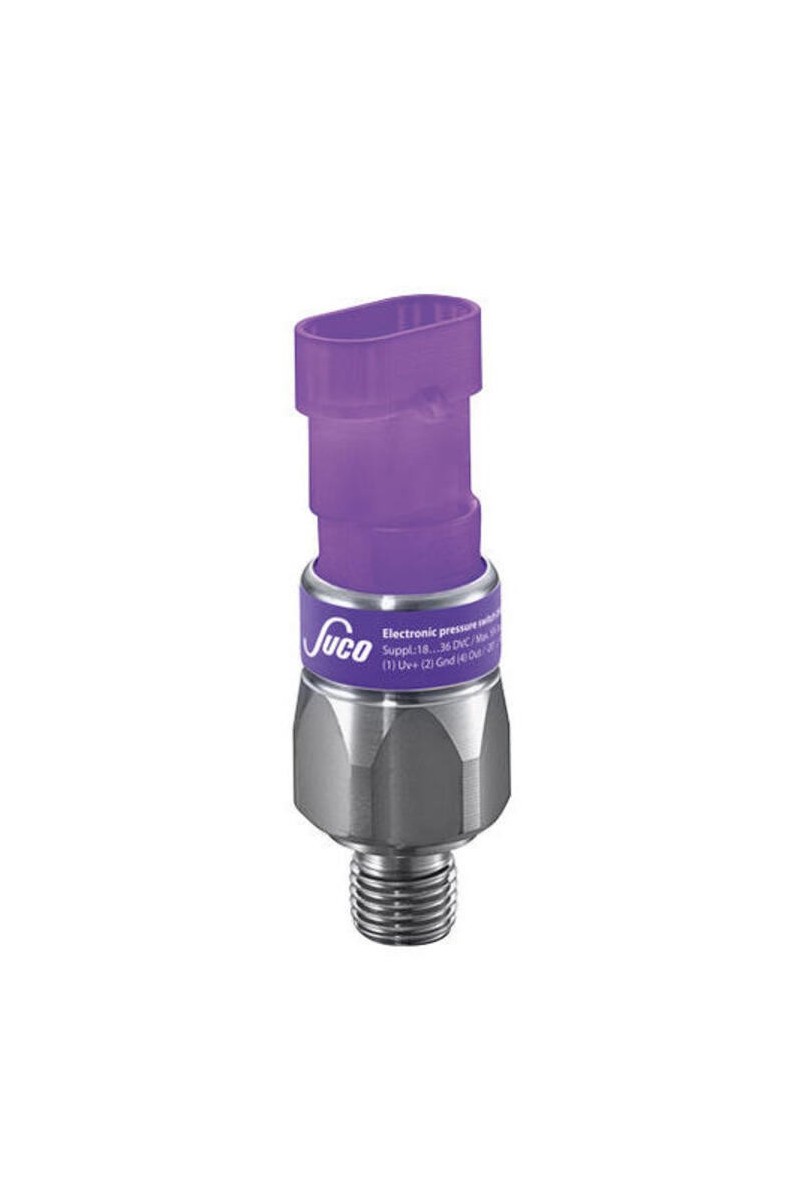

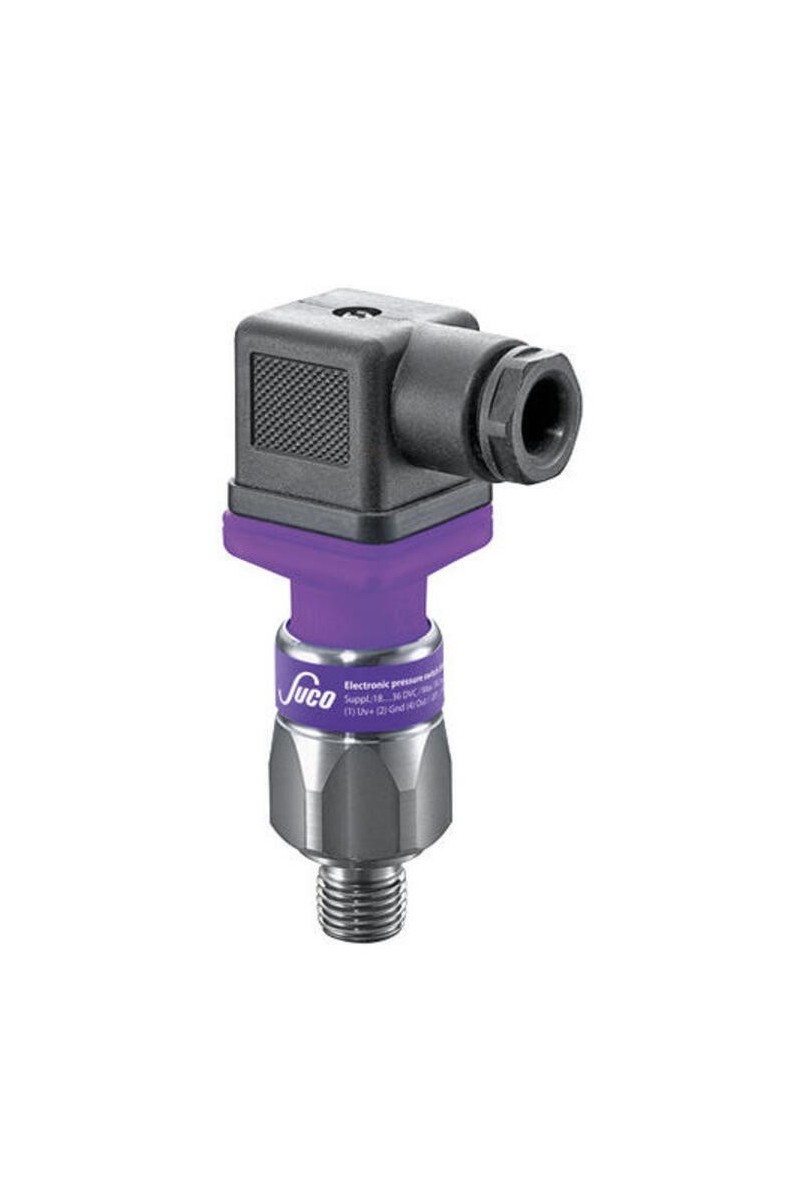

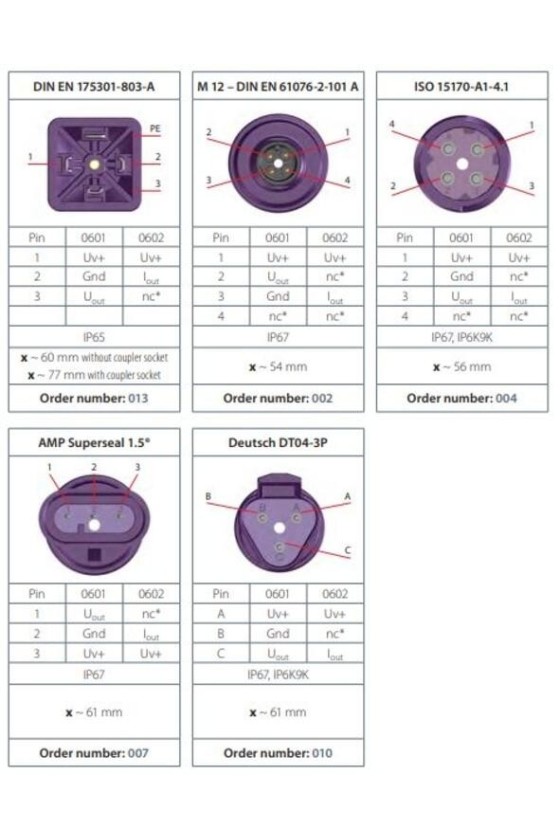

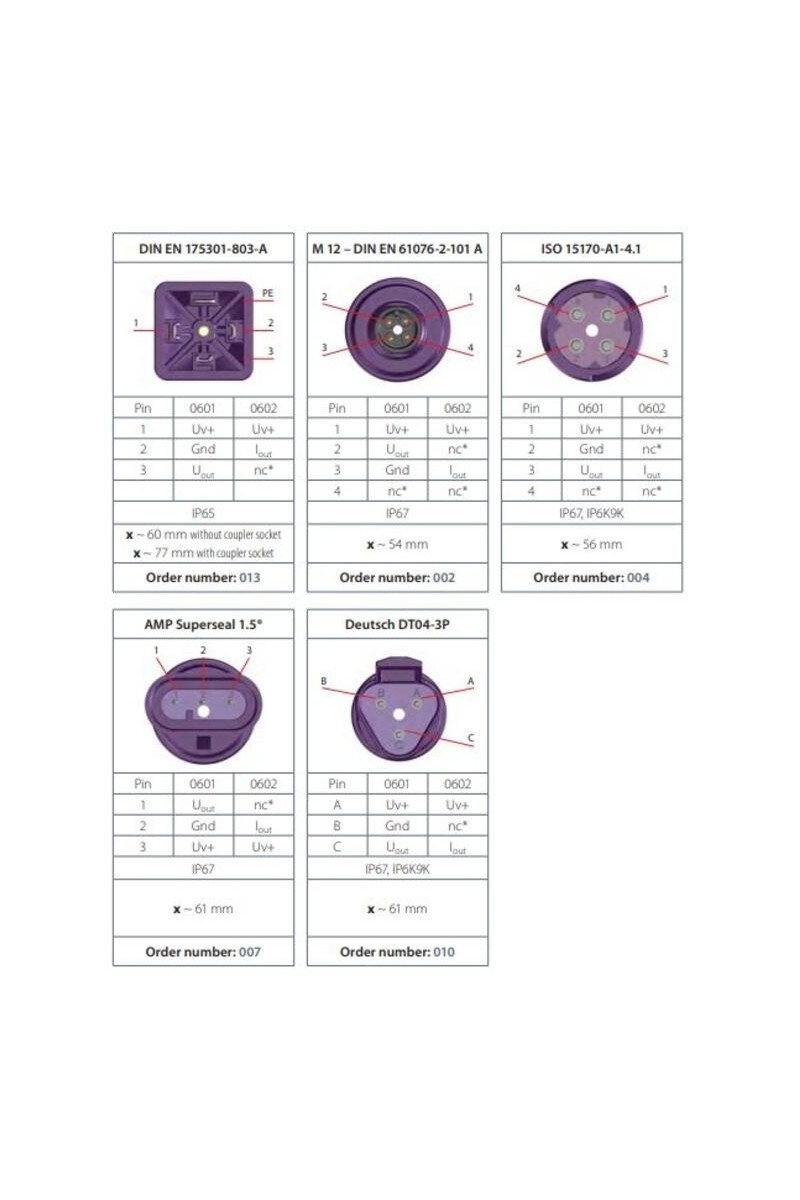

The SUCO 0601/0602 performance series pressure sensor is a small, compact and cost effective pressure monitoring solution. Offering six standard pressure ranges with options of four different electrical connectors a thread of G1/4 and 0-10V or 4-20mA outputs. The 06 series uses a ceramic sensor in thick film technology which is housed in a stainless steel body.
Common applications include mobile hydraulics and power packs.
Measuring range up to 100 bar
Ceramic sensor
Small and compactStainless steel housing
The SUCO 0601/0602 performance series pressure sensor is a small, compact and cost effective pressure monitoring solution. Offering six standard pressure ranges with options of four different electrical connectors a thread of G1/4 and 0-10V or 4-20mA outputs. The 06 series uses a ceramic sensor in thick film technology which is housed in a stainless steel body.
Common applications include mobile hydraulics and power packs.

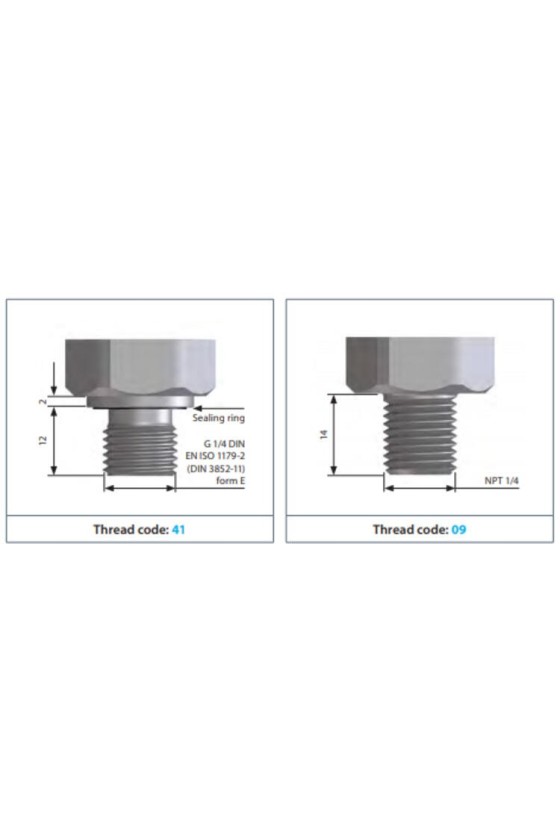

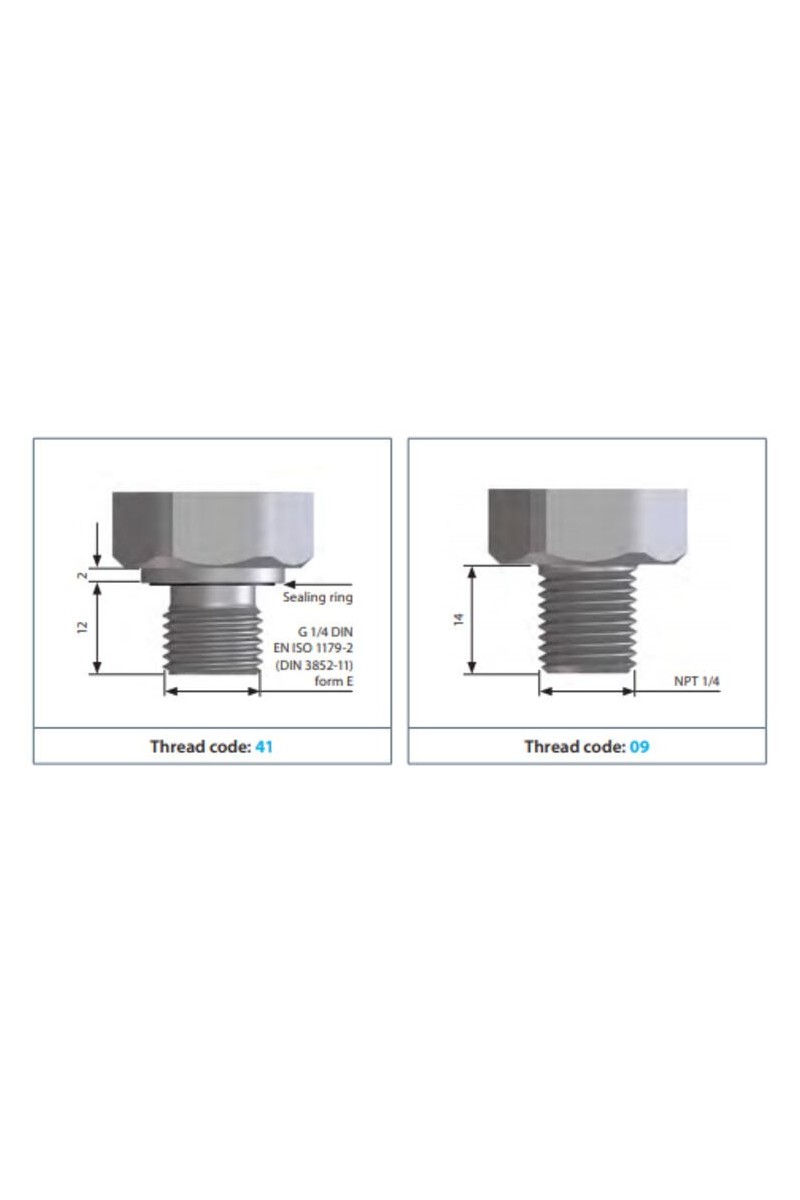

Accuracy ±1% FS Burst pressure 8 bar Connection G1/4-E Electrical connection M12x1 4-pole IP class IP67 Long term stability ±0.3% FS p.a. Material of body Stainless steel 1.4305 Material of wetted parts Stainless steel 1.4305, Ceramic, NBR Mechanical life expectancy 5 million cycles Overpressure protection 4 bar Pressure range max 2 bar Pressure range min 0 bar Pressure reference Gauge Pressure rise 1 bar/ms Repeatability ±0.1% FS Response time 2 ms Shock resistance 500m / s²; 11 ms half sine wave; DIN EN 60068-2-27 Signal type 0-10 V Supply voltage dc max 32 V DC Supply voltage dc min 11 V DC Temperature ambient from -30 °C Temperature ambient to 100 °C Temperature error ±0.04% FS/°C Temperature of media from -30 °C Temperature of media to 100 °C Weight 80 g Vibration resistance 20g: 4..2000 Hz sine wave, DIN EN 60068-2-6
