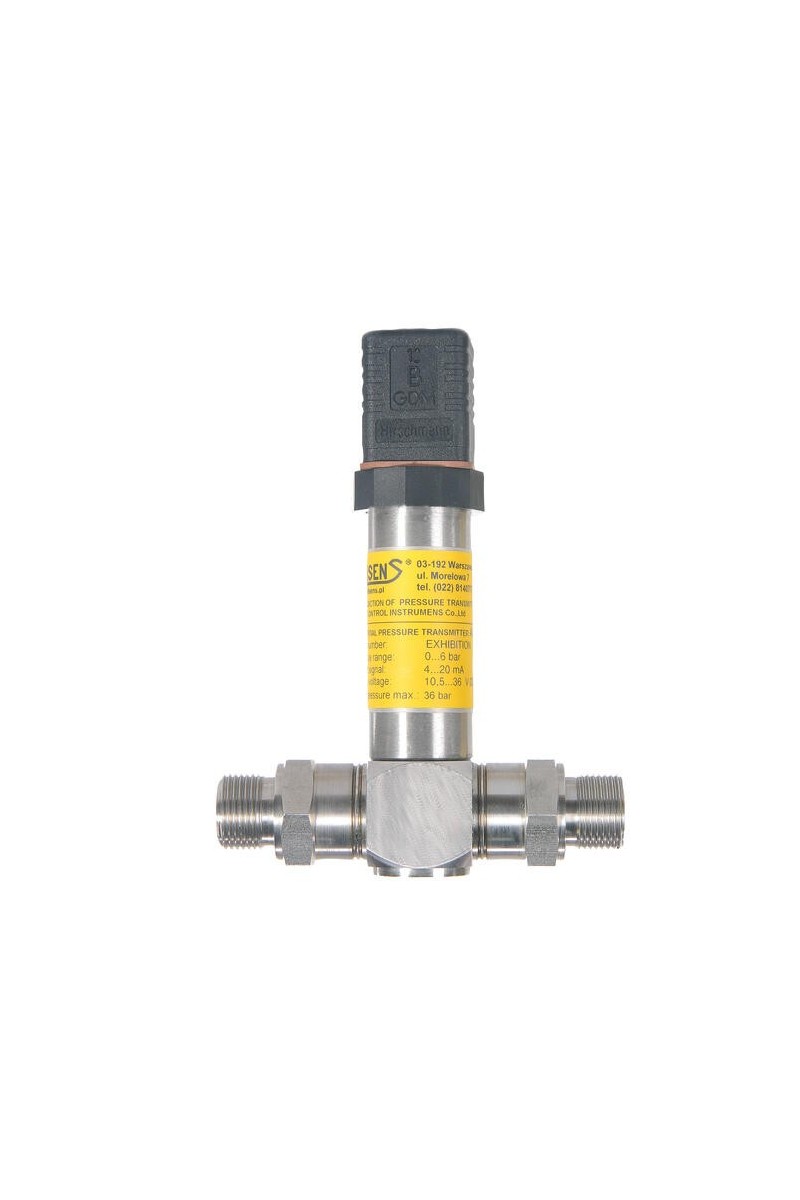

Aplisens - PRE-28 Smart Differential Pressure Transmitter

This pressure sensor comes with many extra options such as ATEX, DNV marine certificate, housing options, process connections and materials making this sensor very versatile.

Through the data interchange (HART) with the sensor you can:

• Identify the transmitter
• Configure the ouput parameters as below:

Measurement units and the values of the start and end points of the range.Damping time constant

Conversion characteristic (inversion, user's non-linear characteristics)

• Read the currently measured hydrostatic pressure value, output current and percenatge of measuring range
• Force an output current with a set value
• Calibrate the transmitter in relation to a model pressure



  Application examples:

• Oil & Gas
• Process
• Chemical
• Water management



  Connection	1/4" NPT-F
  Deviation max	0,1 %
  Electrical connection	DIN EN 175301-803-A
  IP class	IP65
  Material of body	Stainless steel AISI 304
  Material of wetted parts	Stainless steel 316L
  Pressure range max	70 bar
  Pressure range min	0 bar
  Signal type	4-20 mA / Hart

  Static pressure	70 bar
  Supply voltage dc max	55 V DC
  Supply voltage dc min	7.5 V DC
  Temperature ambient from	-25 °C
  Temperature ambient to	85 °C
  Temperature of media from	-25 °C
  Temperature of media to	120 °C
