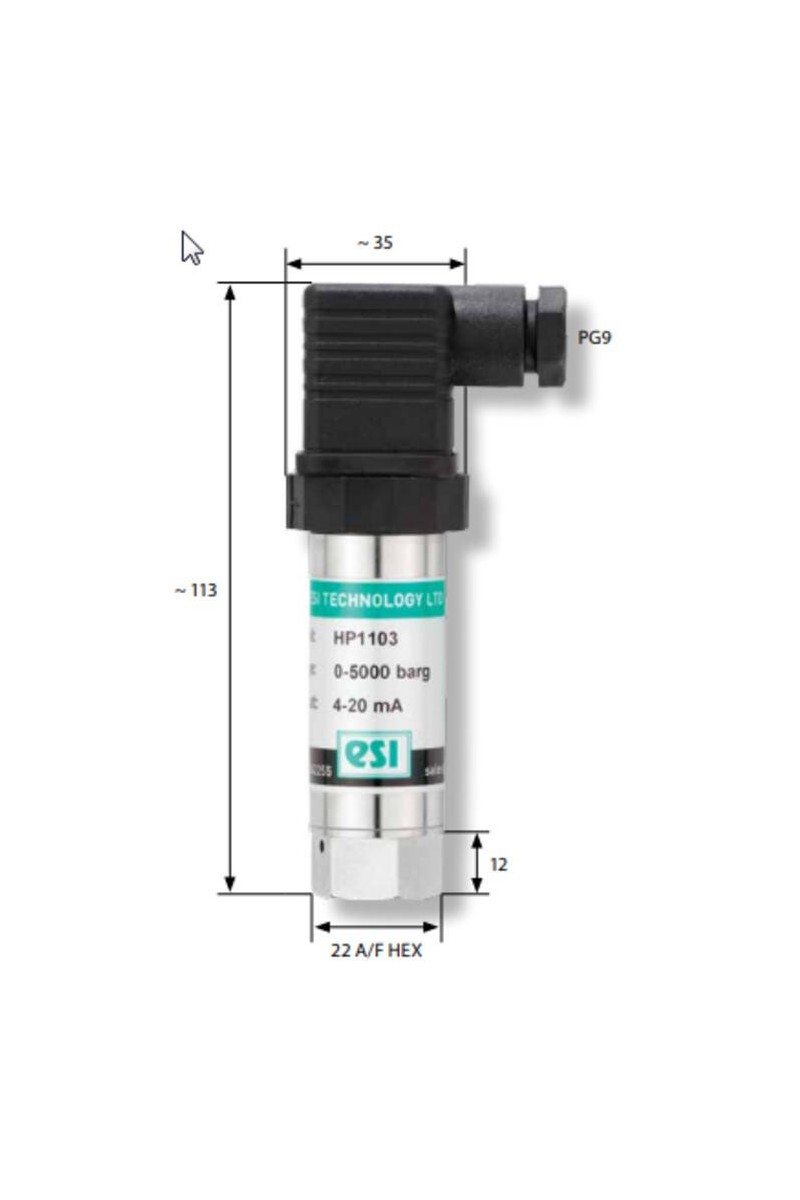

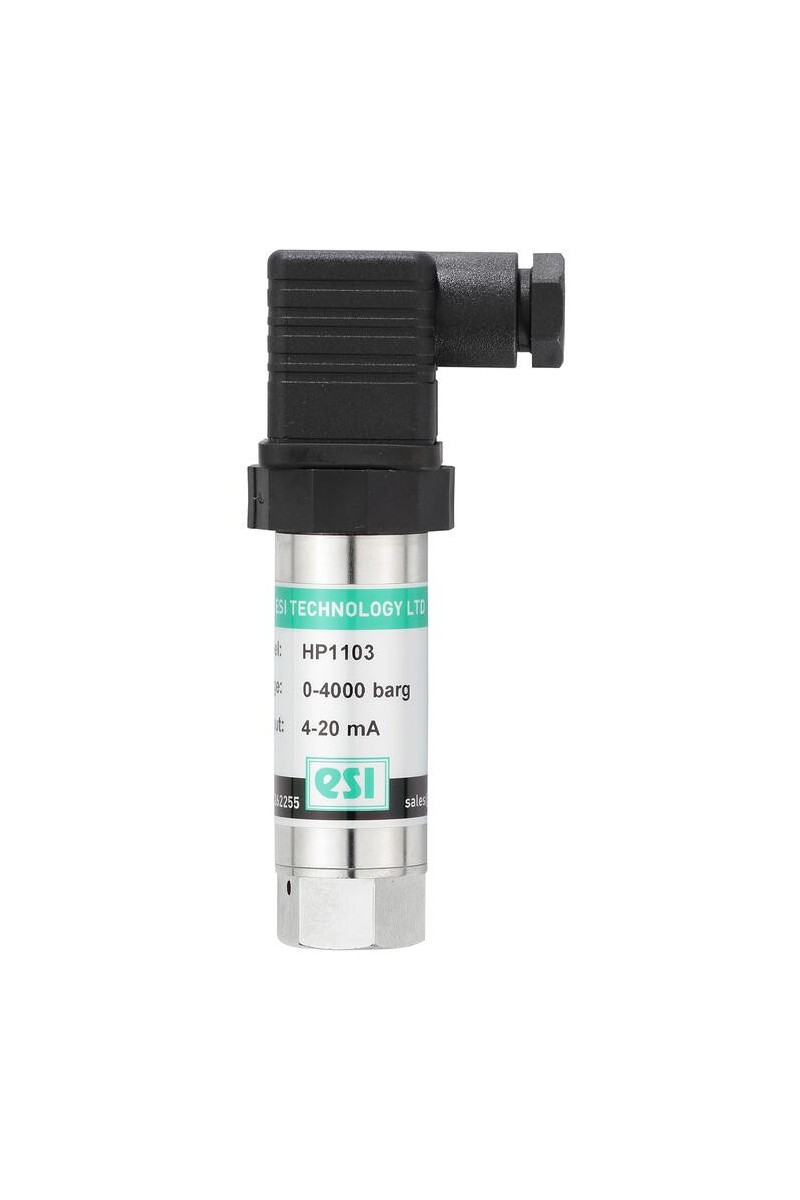

ESI - HP1000 - High Pressure Sensor

The ESI Technology HP1000 high pressure sensors extends the ESI pressure range up to 4000 bar whilst still maintaining an high performance level.

For pressures over 1000 bar the wetted parts and diaphragm are machined from a single piece of titanium alloy which gives this sensor its high pressure integrity and overload capacity. The HP1000 starts from 0 - 600 bar up to the impressive 4000 bar with a total of six standard pressure ranges,four options of outputs including 4-20mA and 0-10V and also four different electrical connections including a DIN connector and M12.

 Application examples

• Aerospace
• Laboratory and test
• Oil and gas monitoring systems
• Presses
• Test benches



  Ambient temperature	-40..85°C
  Approvals	CE, DNV, IEC
  Electrical connection	DIN A 43650
  EMC	EN61000-6-4, EN61000-6-2
  Linearity	≤±0.25% BSFL
  Material of wetted parts	Titanium alloy, Stainless steel 316
  Media temperature	-50..125°C
  Output	0-10mV/V
  Overpressure protection	1,500 bar

  Pressure range max	1000 bar
  Pressure range min	0 bar
  Pressure reference	Gauge
  Process connection	Autoclave F-250-C female
  Sensor technology	Silicon-on-Sapphire
  Storage temperature	5..40°C
  Supply voltage	10 V DC (5-15 V)
