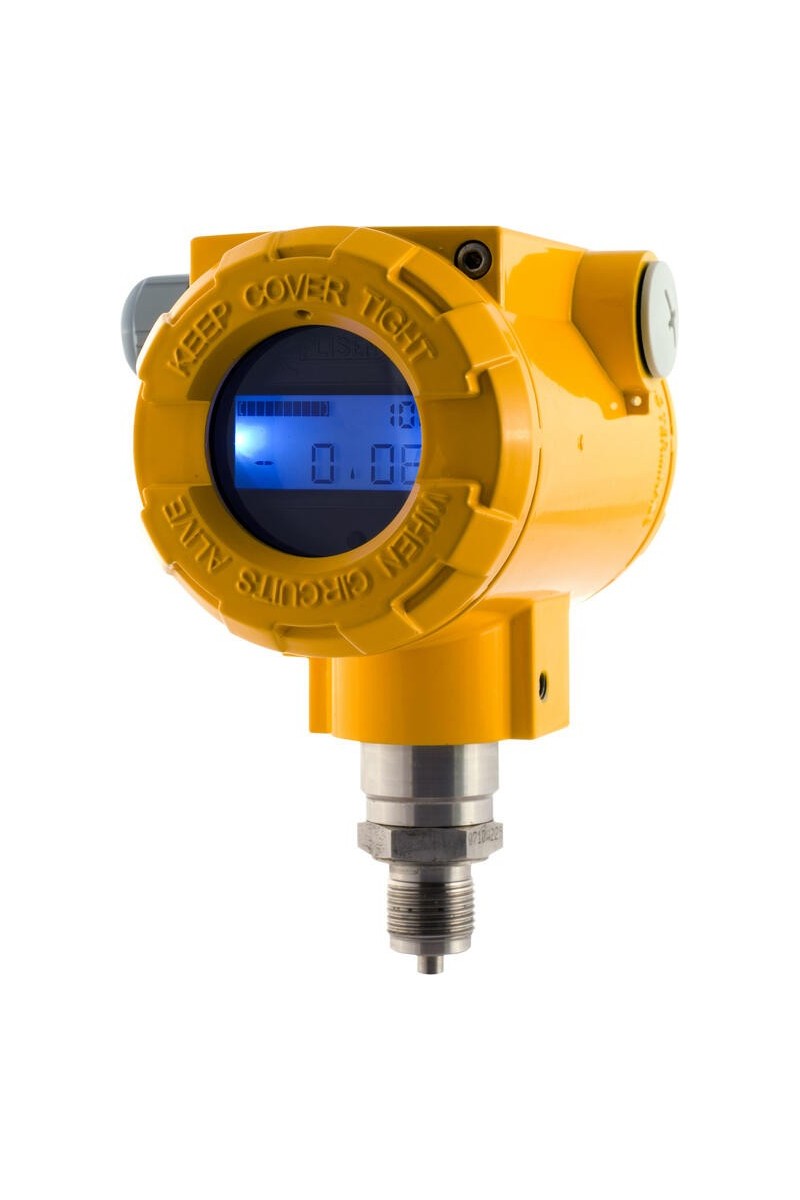

Aplisens - APC-2000ALW Smart Pressure Transmitter

Through the data interchange (HART) with the sensor you can:

• Identify the transmitter
• Configure the ouput parameters as below:

Measurement units and the values of the start and end points of the range.Damping time constant

Conversion characteristic (inversion, user's non-linear characteristics)

• Read the currently measured hydrostatic pressure value, output current and percenatge of measuring range
• Force an output current with a set value
• Calibrate the transmitter in relation to a model pressure

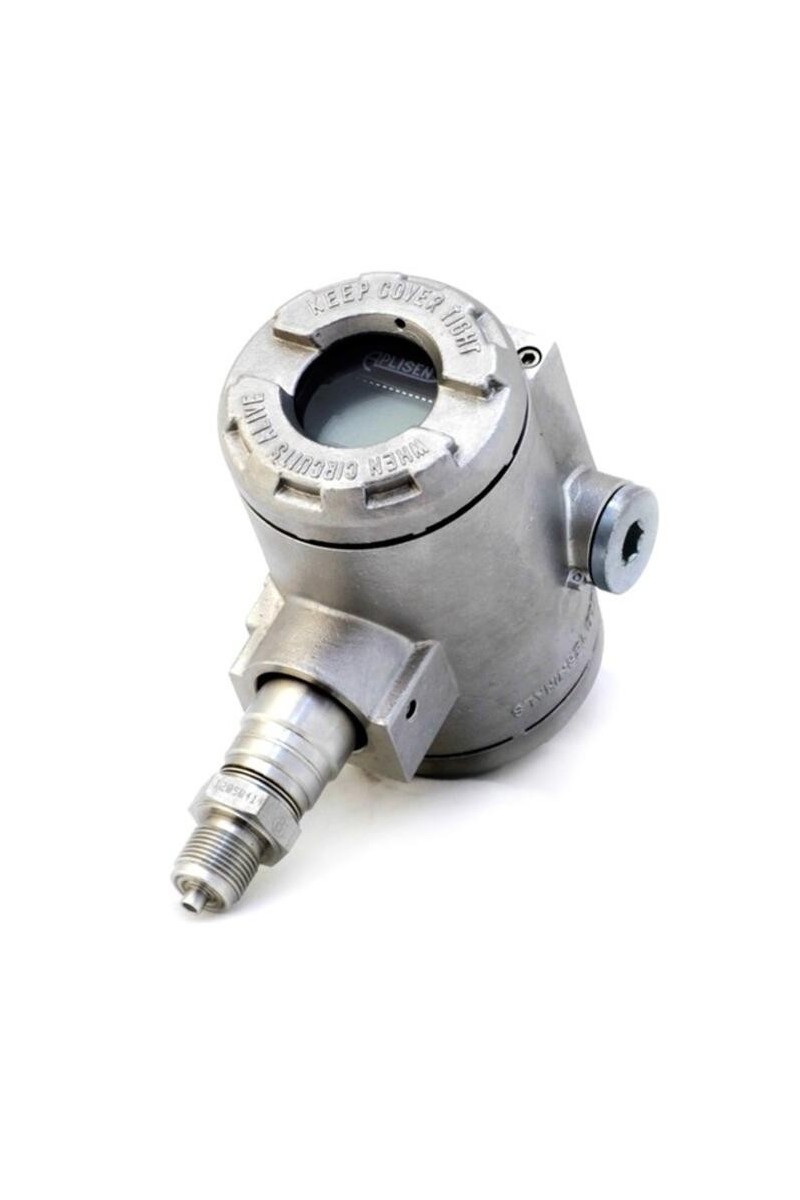

The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type manometric liquid. The casing is made of aluminium alloy cast or SS316, degree of protection IP66/IP67. The design of the casing enables the use of a local display, rotation of the display by 90°, rotation of the casing by 0-355° relative to the sensor, and a choice of cable direction.

 Application examples:

• Oil & Gas
• Process
• Chemical
• Water management



  Connection	G1/2
  Deviation max	0,075 %
  Electrical connection	M20x1,5
  IP class	IP66
  Manufacturer part no.	APC-2000/ALW/-1÷25 bar/-1-9bar/G1/2''
  Material of body	Aluminium
  Material of wetted parts	Stainless steel 316L
  Pressure range max	9 bar
  Pressure range min	-1 bar

  Signal type	4-20 mA / Hart
  Supply voltage dc max	55 V DC
  Supply voltage dc min	12 V DC
  Temperature ambient from	-40 °C
  Temperature ambient to	85 °C
  Temperature of media from	-40 °C
  Temperature of media to	120 °C
