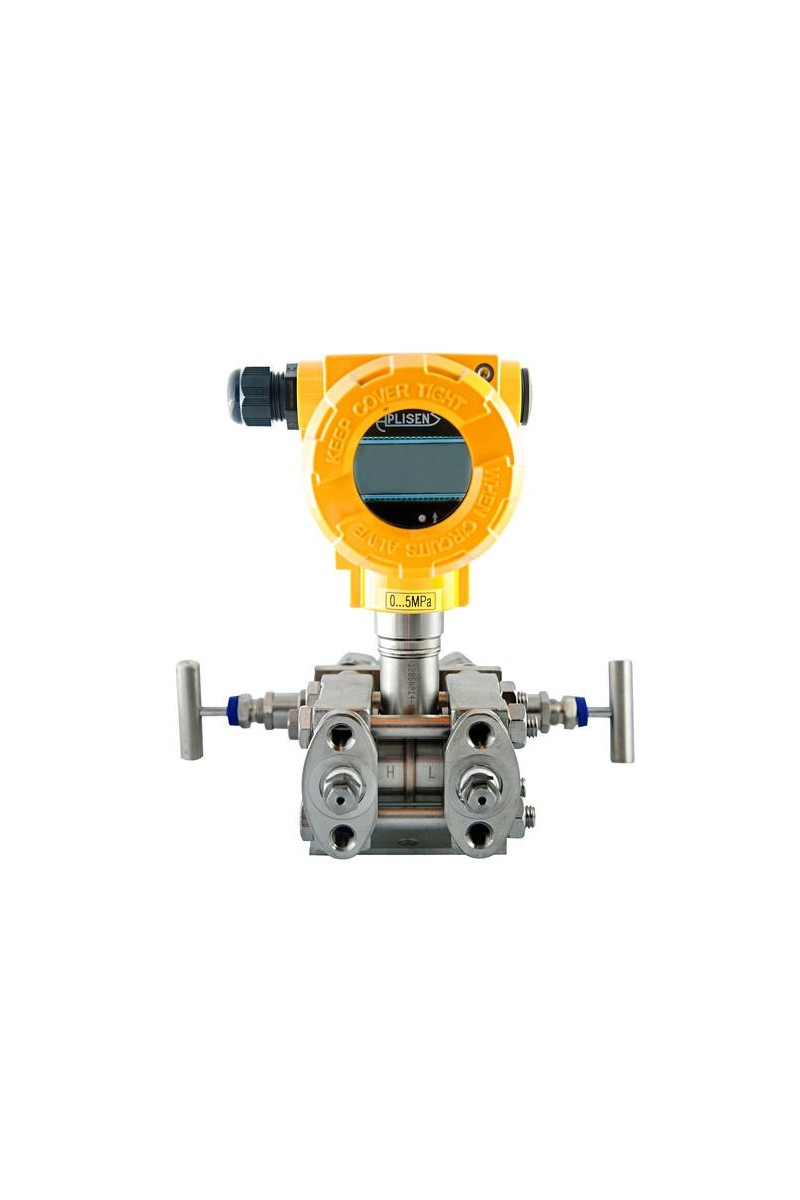

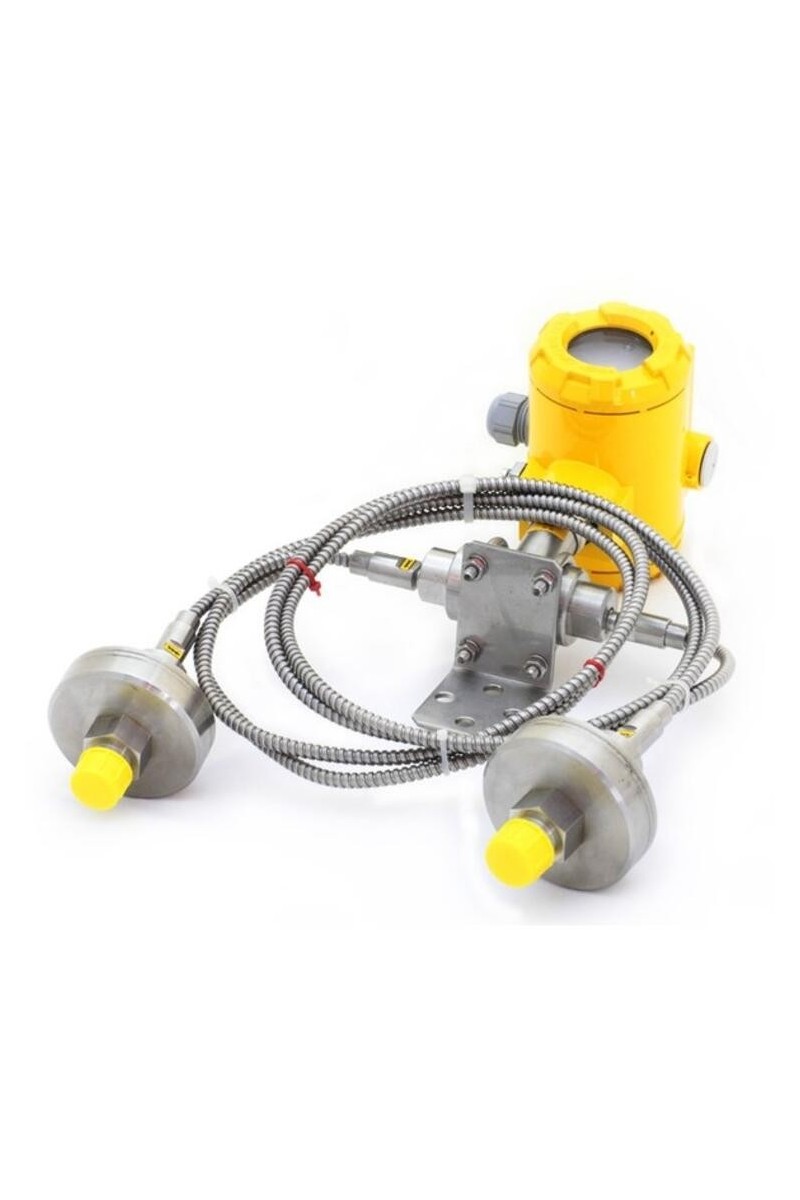

Aplisens - APR-2000ALW Smart Differential Pressure Transmitter

The Aplisens APR-2000ALW Smart differentail pressure sensor is applicable to the measurment of the pressure, underpressure and absolute pressure of gases, vapours and liquids.

This pressure sensor comes with many extra options such as PED, SIL 2, ATEX, DNV marine certificate, housing options, thread connections and materials making this sensor very versatile.

HART or profibus

Rotatable display

Various process connections

Ten standard pressure ranges

£0.00
Tax included
Quantity :
Ask a Question

Through the data interchange (HART) with the sensor you can:

  • Identify the transmitter
  • Configure the ouput parameters as below:

Measurement units and the values of the start and end points of the range.Damping time constant

Conversion characteristic (inversion, user's non-linear characteristics)

  • Read the currently measured hydrostatic pressure value, output current and percenatge of measuring range
  • Force an output current with a set value
  • Calibrate the transmitter in relation to a model pressure



The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type manometric liquid. The casing is made of aluminium alloy cast or SS316, degree of protection IP66/IP67. The design of the casing enables the use of a local display which is rotatable and a choice of cable direction.

Application examples:

  • Oil & Gas
  • Process
  • Chemical
  • Water management


Connection Manifold
Deviation max 0,075 %
Electrical connection M20x1,5
IP class IP66
Manufacturer part no. APR2000/ALW/0-0,25/0-25mBAR/C-TYPE
Material of body Aluminium
Material of wetted parts Stainless steel 316L
Pressure range max 0.025 bar
Pressure range min 0 bar
Signal type 4-20 mA / Hart
Static pressure 250 bar
Supply voltage dc max 55 V DC
Supply voltage dc min 10 V DC
Temperature ambient from -25 °C
Temperature ambient to 85 °C
Temperature of media from -40 °C
Temperature of media to 120 °C
