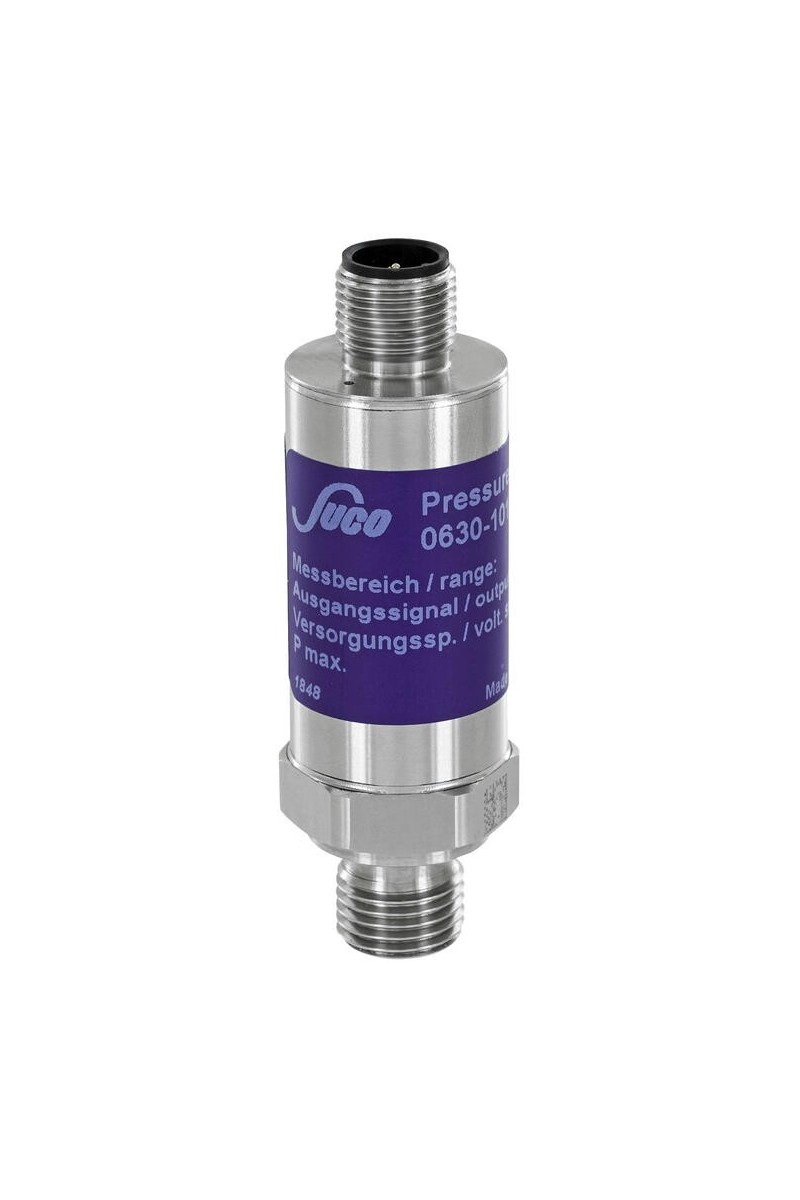

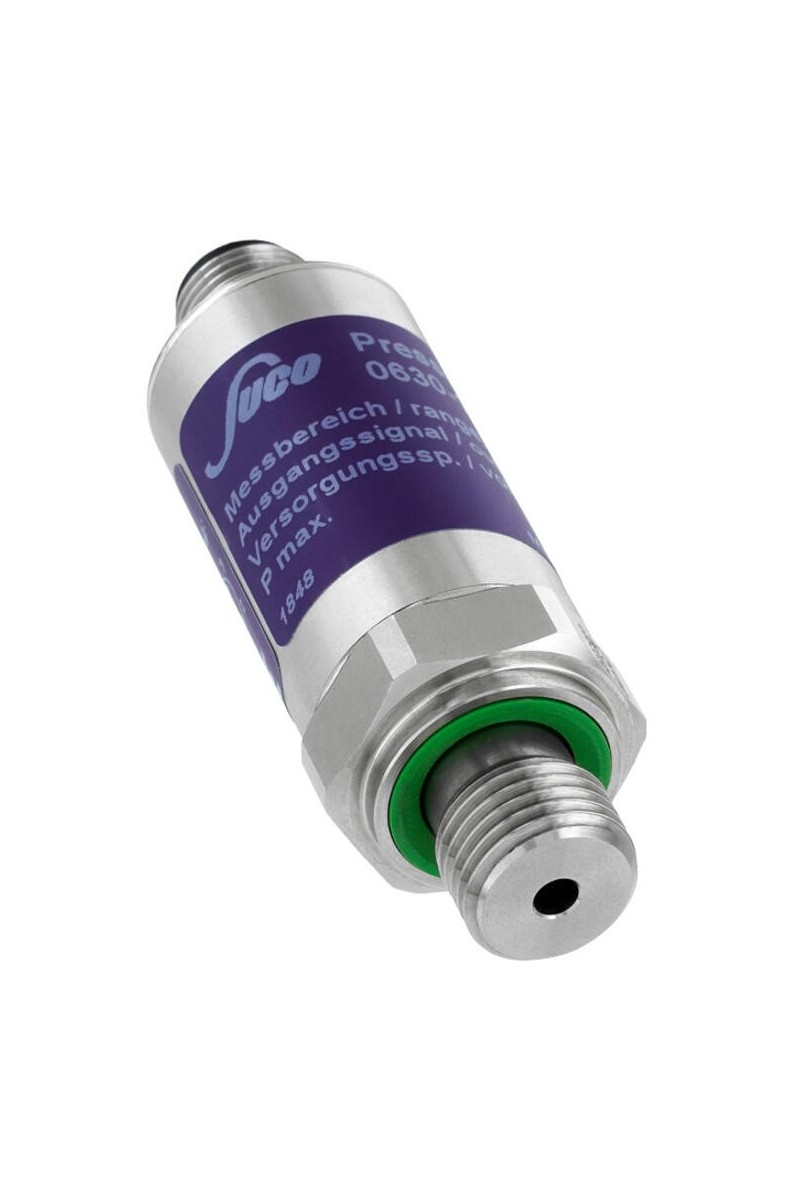

Suco - 0630/0631 Pressure Sensor

CANopen/CAN J1939 Series

Initially developed for automotive purposes CAN is a serial bus protocol which allows components such as sensors to communicate over a single or dual wired network to a vehicles system. This vastly reduces the amount of cable used, wiring time and connections used in standard wiring looms whilst still communicating data at high speeds.

Type 0630: CANopen protocol according to CiA DS-301, Device profile according to CiA DS-404

Type 0631: CAN J1939 protocol according to SAE J1939

14 Standard pressure ranges from 0..1 bar up to 0..600 bar

M12 electrical connector
£0.00
Tax included
Quantity :
Ask a Question

Accuracy ±0.5% FS
Burst pressure 9 bar
Connection G1/4-E
Electrical connection M12x1
IP class IP67
Long term stability <±0.1% of full scale per year
Material of body Stainless Steel 1.4301
Material of wetted parts Stainless steel 1.4542
Mechanical life expectancy 10 Million cycles
Overpressure protection 6 Bar
Pressure range max 1 bar
Pressure range min 0 bar
Pressure reference Gauge
Pressure rise ≤ 1 bar/ms
Repeatability ±0.1% FS
Response time 1 ms
Shock resistance 1000g according to IEC68-2-32
Signal type CANopen, CAN 2.0 A
Supply voltage dc max 32 V DC
Supply voltage dc min 10 V DC
Temperature ambient from -40 °C
Temperature ambient to 105 °C
Temperature error 1.5% FS
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 90 g
Vibration resistance 20g according to IEC 68-2-6 and IEC 68-2-36
