There are 79 products.
Active filters
Operates in a wide variety of temperatures
Over pressure protection up to four times the operating pressure
Long service life
Utilises Silicon-on-sapphire technology
The 0110/0111 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated Deutsch DT04-2P connector and a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include automotive, mobile hydraulics, water applications and braking systems.
Up to 42 V
Deutsch DT04-2P integrated connector
Six adjustment ranges from 0,1..1 bar to 50..150 bar
Normally open or normally closed
Over pressure safety of 300 bar or 600 bar
The ESI Technology GS4000 is a standard industrial pressure sensor designed to deal with the majority of general industrial applications.
The GS4000 offers a robust yet compact sensor that still offers good performance and is very reliable. The GS4000 starts from -1 - 0 bar up to 0 to 700 bar with a total of eight standard pressure ranges, four options of outputs including 4-20mA and 0-10V and also four different electrical connections including a DIN connector and M12.
Suitable for the majority of industrial applications
Reliable pressure measurement
Long service life
All stainless steel construction
Multiple Pressure options available
High over pressure protection
Adjustable pressure
IP65
The 0140/0141 series is a compact pressure switch and is part of the changeover contact range from SUCO. Including polyamide cap and a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include power packs, mobile hydraulics, water systems, hydraulics generally and pneumatics.
Up to 250 V
Includes Polyamide Cap
Ranges from 0,3..1,5 bar to 50...150 bar
Changeover (SPDT)
Over pressure safety from 300 bar up to 600 bar
General Pressure Sensor
The ESI Technology GS4200 pressure sensor is designed to meet the operational requirements of demanding pressure measurement applications where good quality, fast delivery and low cost are of the highest priority.
Silicon-on-sapphire sensor technology
Pressure ranges up to 25 bar
Umblemished track record of reliability
Titanium wetted parts
Ideal choice for mobile hydraulic applications
Functions in a wide range of temperatures
All welded design
High reliability, accuracy and process monitoring
Basic changeover switch
The 0170/0171 series is a compact pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 42 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include power packs, mobile hydraulics, water systems, hydraulics generally and pneumatics.
Up to 42 V
Spade terminals
Five adjustment ranges from 0.3-1.5 bar to 50-200 bar
Changeover (SPDT)
Over pressure safety from 100 bar up to 600 bar
General Pressure Sensor
The ESI Technology GS4200 pressure sensor is designed to meet the operational requirements of demanding pressure measurement applications where good quality, fast delivery and low cost are of the highest priority.
Silicon-on-sapphire sensor technology
Pressure ranges up to 1,500 bar
Umblemished track record of reliability
Titanium wetted parts
High over pressure and burst pressure
Multiple pressure options available
Stainless Steel design
Functions in a wide range of materials
Stainless steel body
The 0164 series pressure switch is a stainless steel bodied pressure switch from SUCO which is more rugged for pressure montioring when using corrosive media or for more hygienic applications. Offering a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 stainless steel body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and also adjustable on site and can come pre-set.
Up to 42 V
Spade or screw terminals
Five adjustment ranges from 0,1..1 bar to 20..50 bar
Normally open or Normally closed
Over pressure safety of 600 bar
Data Logger
The ESI Technology GS4200-USB digital pressure transducer has been designed to measure, analyse and record pressure directly on to a computer without the need for costly I/O interface boards. It allows up to 16 sensors to be monitored simultaneously and to create customised test certificates or export the data to excel.
High pressure
The 0183 series is a high pressure version pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include power packs, mobile hydraulics, water systems and high pressure systems.
Up to 250 V
Spade terminals
Two adjustment ranges of 100..300 bar & 200..400 bar
Changeover (SPDT)
Over pressure safety of 600 bar
The ESI Technology HI2200 & HI2300 high temperature pressure sensor series is designed to operate in applications with high demands on media and ambient temperature effects.
Silicon-on-sapphire sensor technology
Media temperature up to 200°C
Ambient temperature up to 200°C
Good chemical compatibility for a range of applications
Gold contacts
The 0190/0191 series is a compact pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 24 V (gold contacts) with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include power packs and mobile hydraulics
Up to 24 V
Spade terminals
Ranges from 0,3..1,5 bar to 50..200 bar
Changeover (SPDT) with gold contacts
Over pressure safety from 100 bar up to 600 bar
The ESI Technology HP1000 high pressure sensors extends the ESI pressure range up to 4000 bar whilst still maintaining an high performance level.
Stainless steel body
The 0196/0197 series is a compact pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 24 V (gold contacts) with a normally open and normally closed contact housed in a hex 27 stainless steel body offering offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include power packs and mobile hydraulics
Up to 24 V
Spade terminals
Five adjustment ranges from 0,5..5 bar to 50..200 bar
Changeover (SPDT) with gold contacts
Over pressure safety of 300 bar up to 600 bar

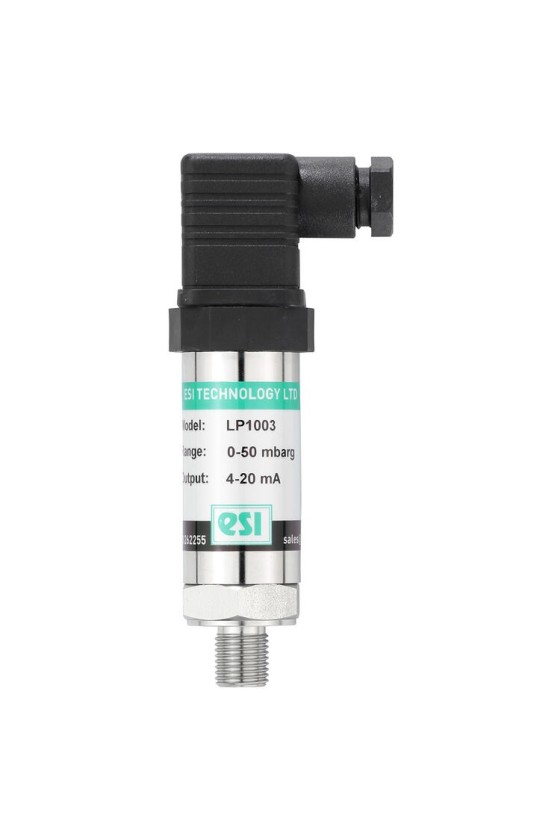

The ESI Technology LP1000 pressure sensor is designed for low pressure measurement applications whilst still maintaining high performance.
Piezoresistive sensor technology for high performance
Low pressure measurement from 50 mbar
Low hysteresis and excellent long term stability
Robust stainless steel construction for durability
