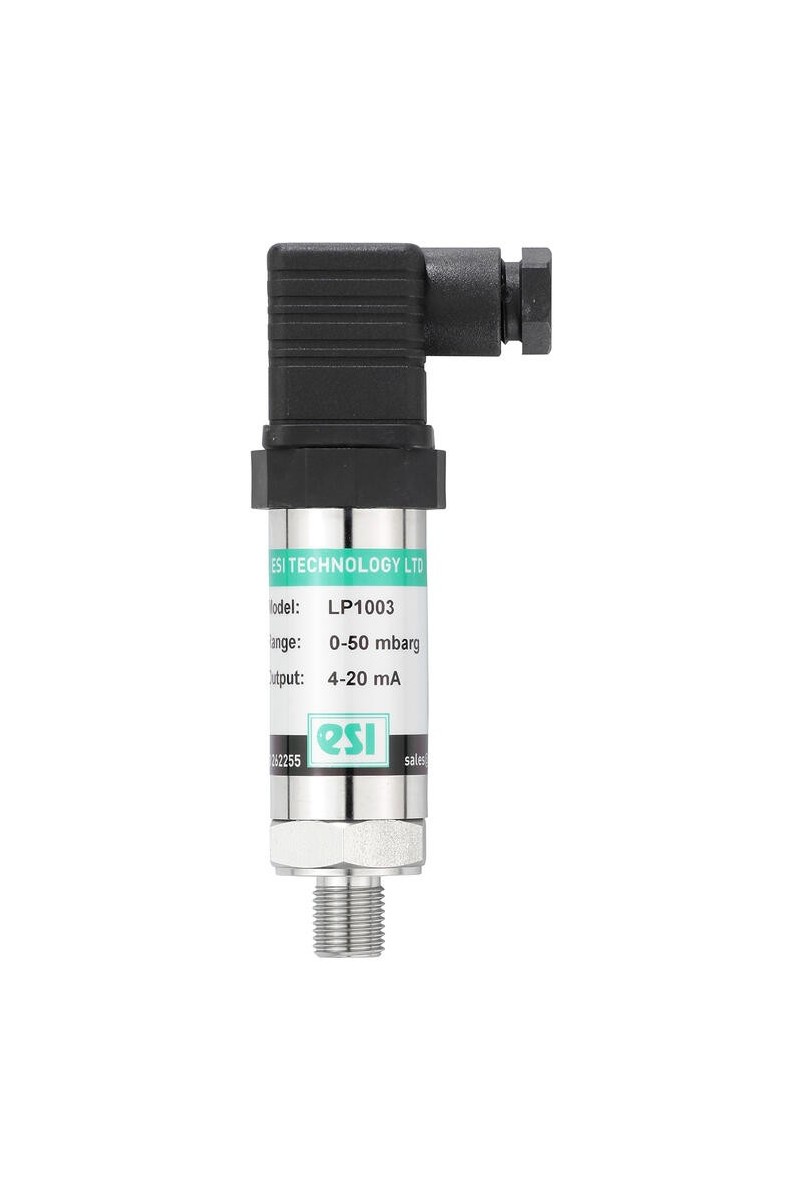

ESI - LP1000 - Low Pressure Sensor

The ESI Technology LP1000 pressure sensor is designed for low pressure measurement applications whilst still maintaining high performance.

This pressure sensor provides has outstanding performance and gives excellent stability over a wide temperature range. The LP1000 starts from 0 - 50 mbar up to 0 to 500 mbar with a total of four standard pressure ranges, four options of outputs including 4-20mA and 0-10V and also four different electrical connections including a DIN connector and M12.

This sensor offers everything you need in a low pressure transducer including high accuracy, impressive over pressure safety, reliability and low temperature error.

 Application examples

• Aerospace
• Gas monitoring
• Hydrostatic pressure measurement
• Laboratory and test
• Leak detection



  Ambient temperature	-20..85°C
  Approvals	CE
  Electrical connection	DIN A 43650
  EMC	EN61000-6-4, EN61000-6-2
  Linearity	≤±0.5% BSFL
  Material of wetted parts	Stainless steel 316
  Media temperature	-20..85°C
  Output	0-10mV/V
  Overpressure protection	0.2 bar

  Pressure range max	0.05 bar
  Pressure range min	0 bar
  Pressure reference	Gauge
  Process connection	G1/4
  Sensor technology	Piezoresistive Silicon or Isolated Piezoresistive Silicon
  Storage temperature	5..40°C
  Supply voltage	10 V DC (5-15 V)
