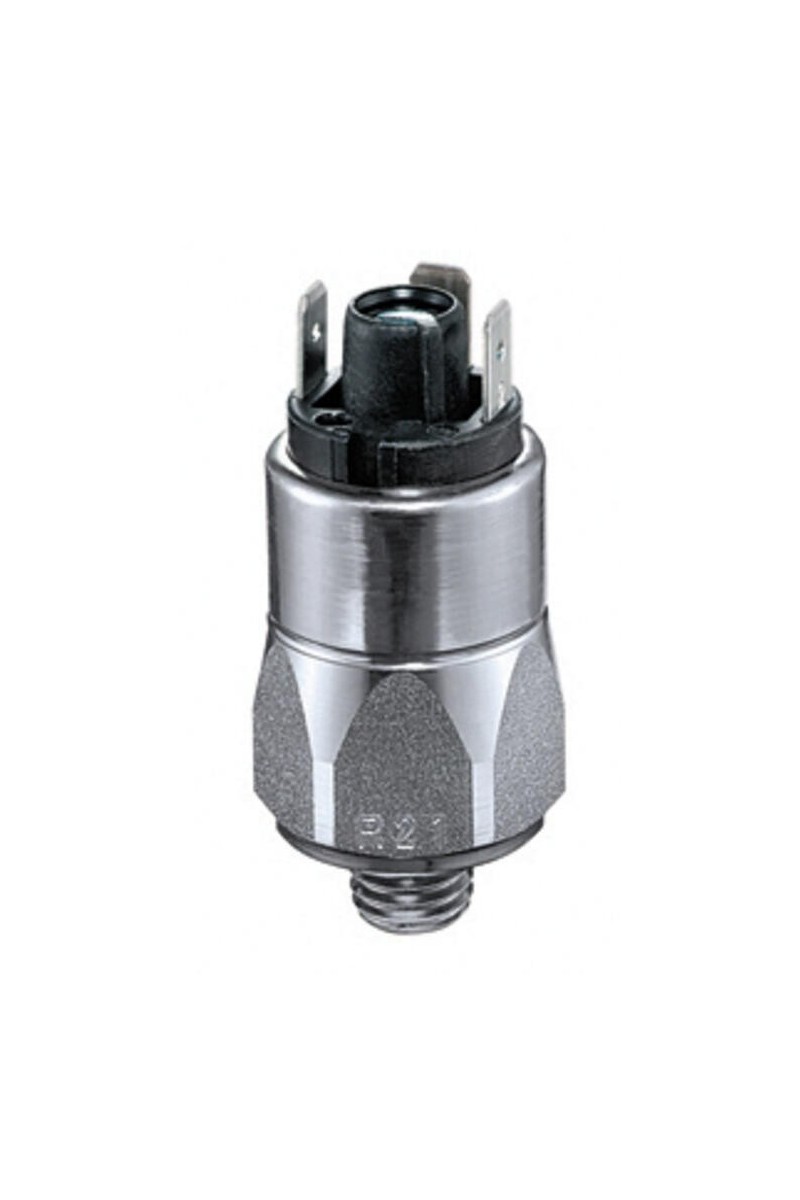

Suco - 0170/0171 Pressure Switch

Basic changeover switch

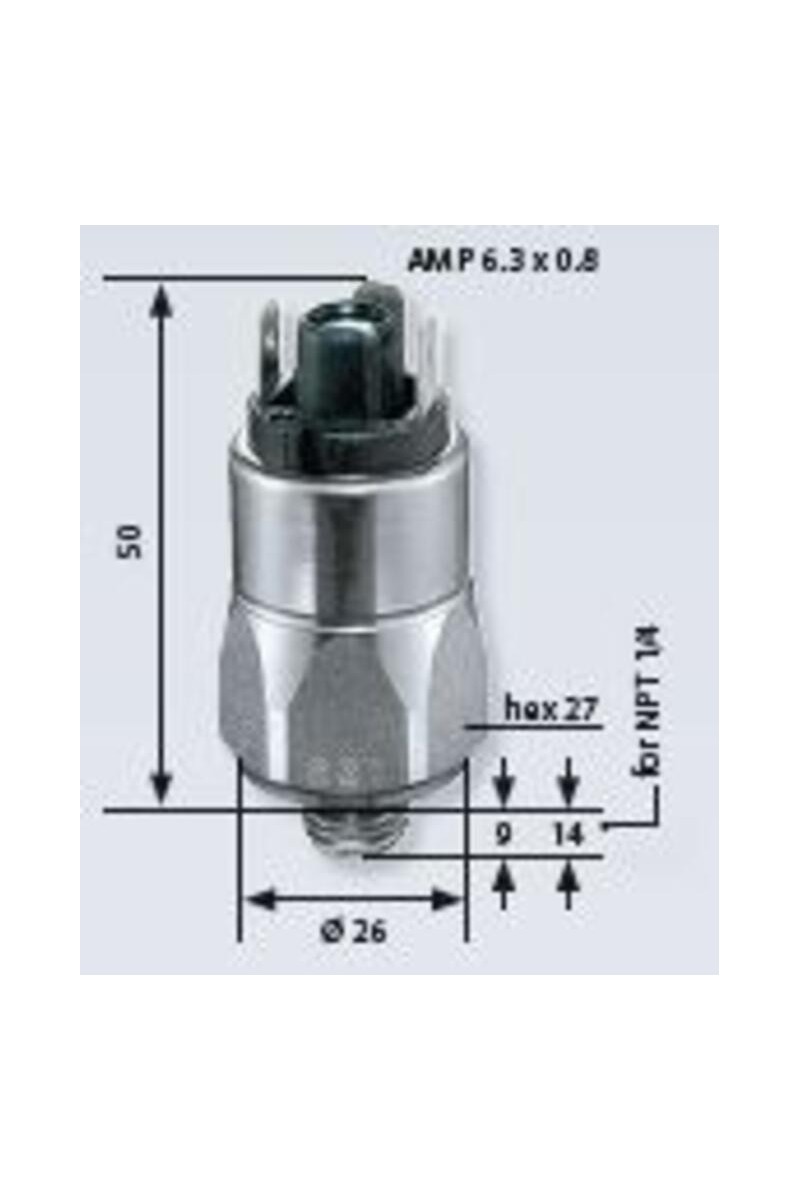

The 0170/0171 series is a compact pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 42 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Common applications include power packs, mobile hydraulics, water systems, hydraulics generally and pneumatics.

Up to 42 V

Spade terminals

Five adjustment ranges from 0.3-1.5 bar to 50-200 bar

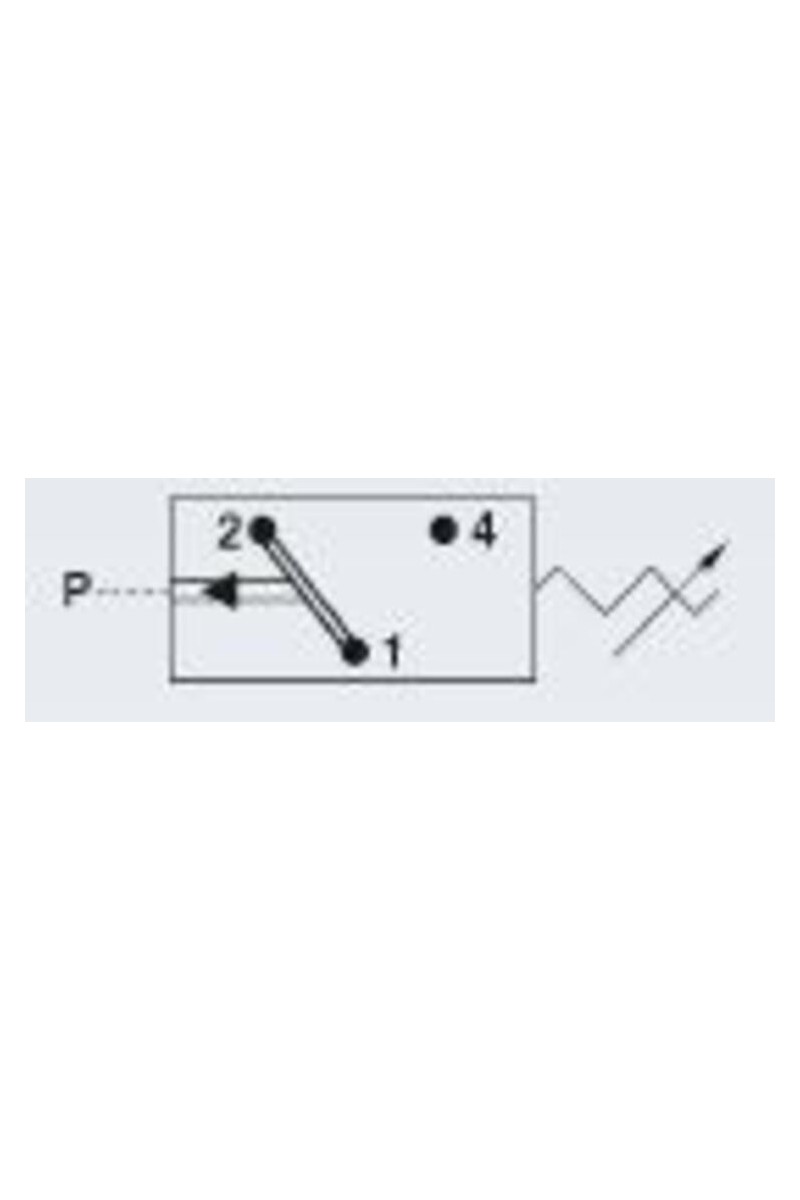

Changeover (SPDT)

Over pressure safety from 100 bar up to 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1.5 bar
Adjustment range min 0.3 bar
Approvals CSA US, RoHS II
Contact load max ac 4 A
Contact load max dc 0.25 A
Deviation max ±0,2
Electrical connection Spade (AMP 6,3x0,8 mm)
Function Changeover (SPDT)
Hysteresis 10-30% depending on set value
IP class IP00
Material membrane NBR
Material of body Galvanized steel
Material of wetted parts Galvanized steel, NBR
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 100 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -30 °C
Temperature of media to 100 °C
Weight 100 g
Voltage ac/dc max 42 V
Voltage ac/dc min 10 V
