Suco - 0196/0197 Pressure Switch

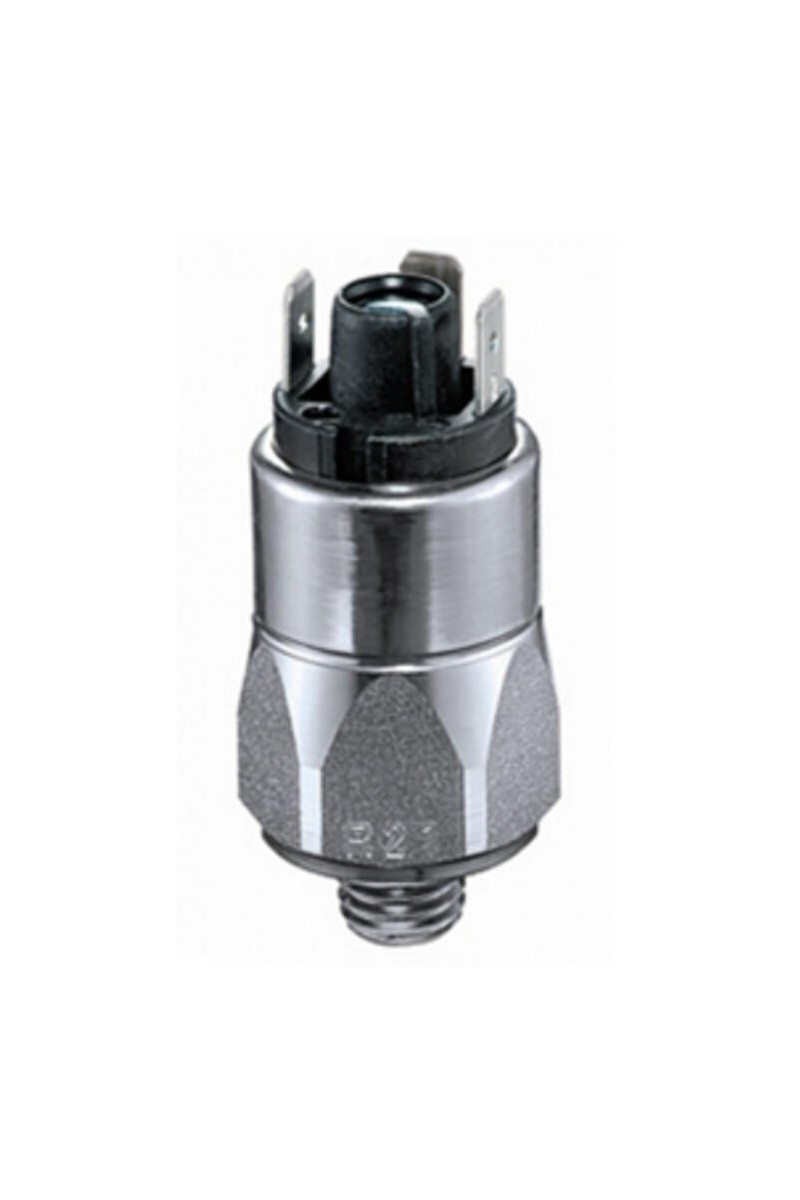

Stainless steel body

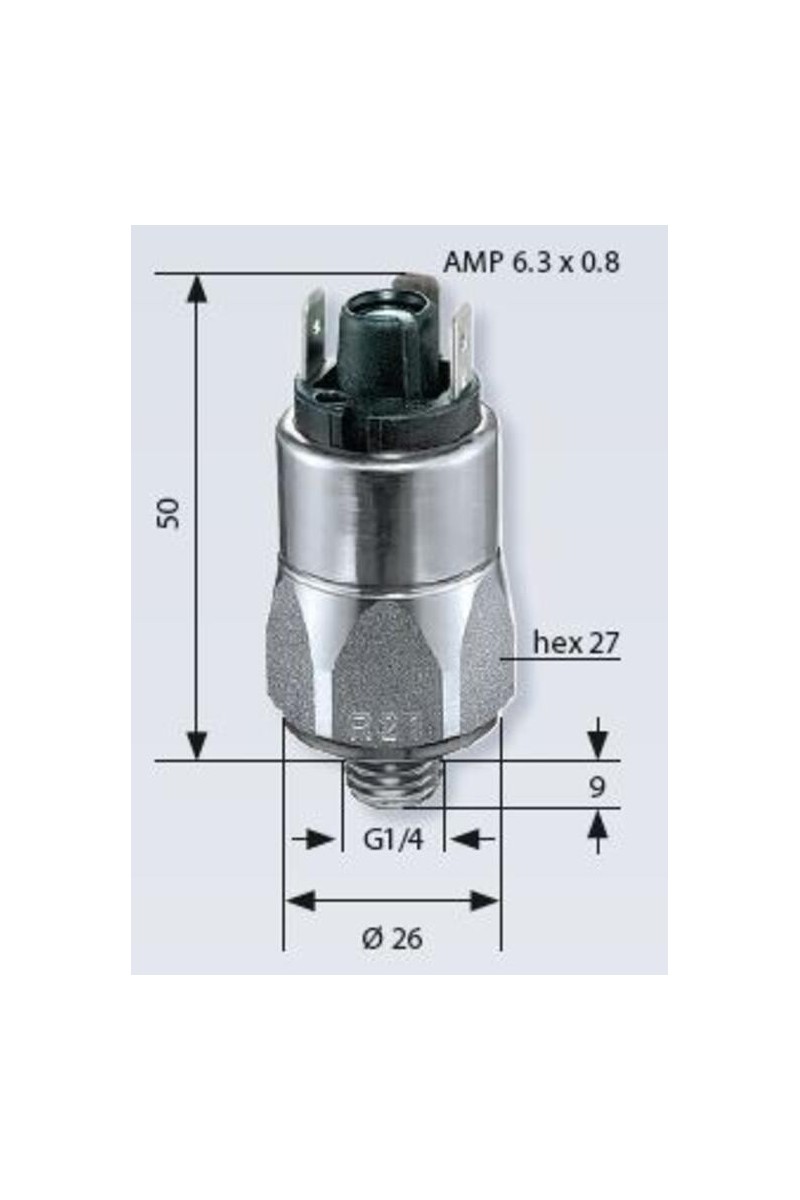

The 0196/0197 series is a compact pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 24 V (gold contacts) with a normally open and normally closed contact housed in a hex 27 stainless steel body offering offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Common applications include power packs and mobile hydraulics

Up to 24 V

Spade terminals

Five adjustment ranges from 0,5..5 bar to 50..200 bar

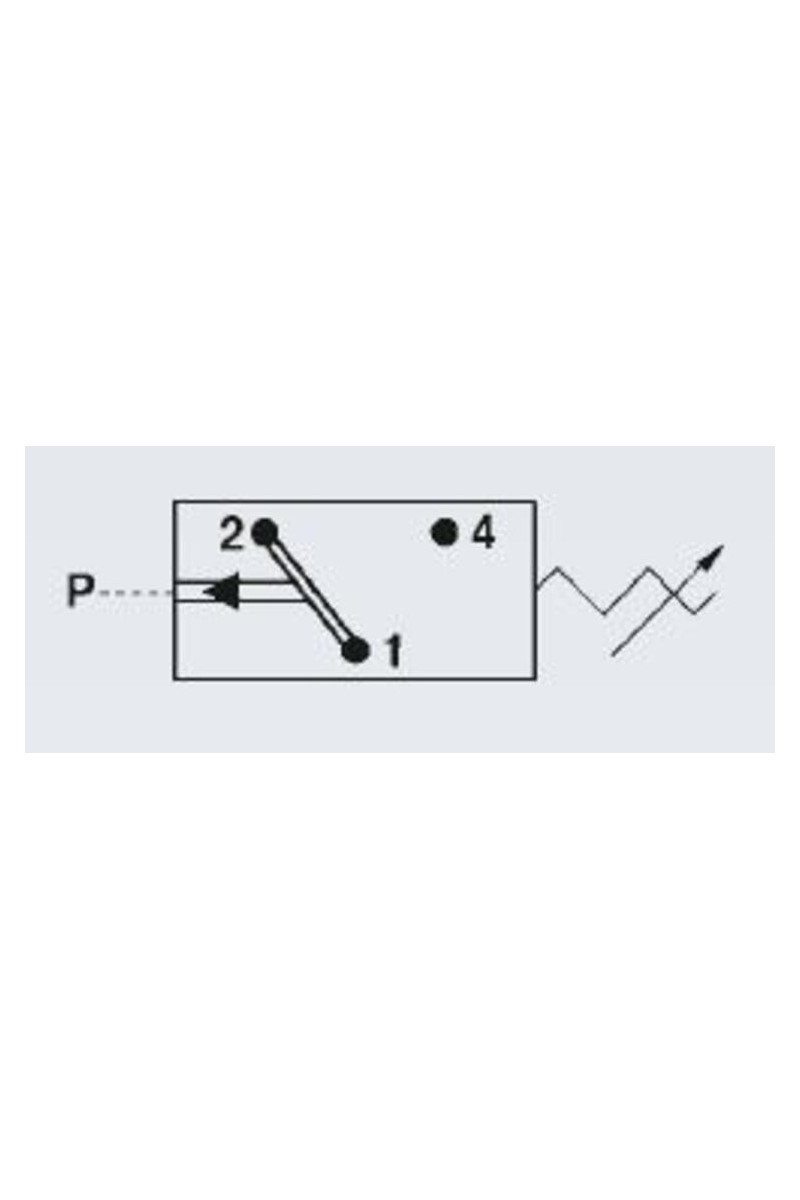

Changeover (SPDT) with gold contacts

Over pressure safety of 300 bar up to 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 5 bar
Adjustment range min 0.5 bar
Approvals CSA US, RoHS II
Contact load max ac 4 A
Contact load max dc 0.25 A
Deviation max ±0,3
Electrical connection Spade (AMP 6,3x0,8 mm)
Function Changeover (SPDT)
Hysteresis 10-30% depending on set value
IP class IP00
Material membrane NBR
Material of body Stainless steel 1.4305
Material of wetted parts NBR, Stainless steel 1.4305
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 300 bar
Process connection G1/4
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 100 g
Voltage ac/dc max 250 V
Voltage ac/dc min 10 V
