Suco - 0183 Pressure Switch

High pressure

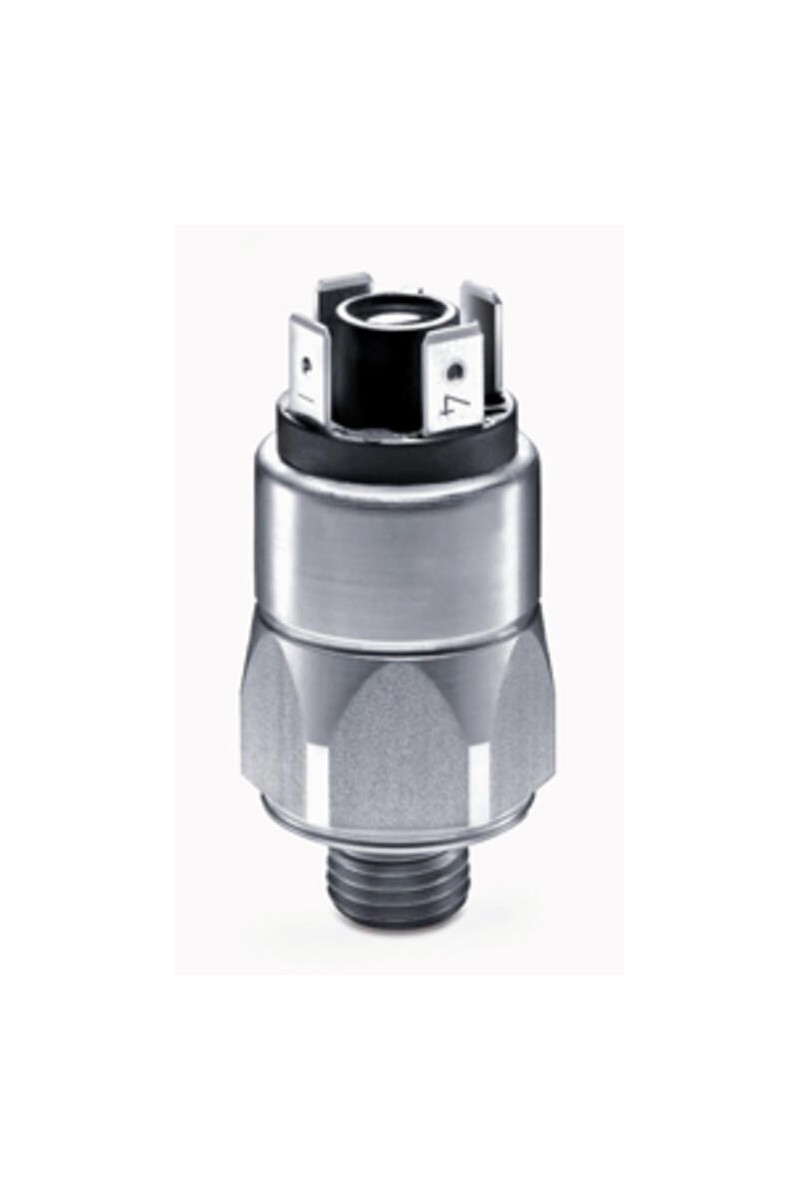

The 0183 series is a high pressure version pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Common applications include power packs, mobile hydraulics, water systems and high pressure systems.

Up to 250 V

Spade terminals

Two adjustment ranges of 100..300 bar & 200..400 bar

Changeover (SPDT)

Over pressure safety of 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 300 bar
Adjustment range min 100 bar
Approvals CSA US, RoHS II
Contact load max ac 4 A
Contact load max dc 0.25 A
Deviation max ±10,0

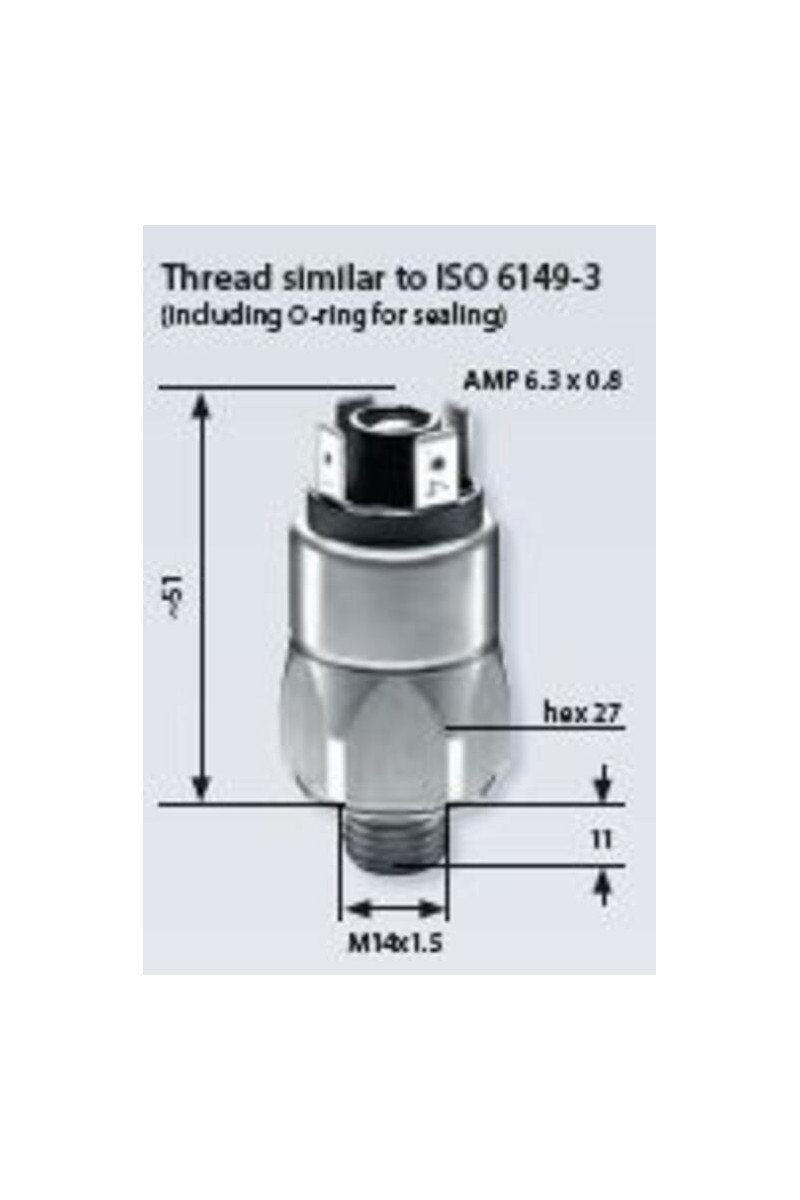

Electrical connection Spade (AMP 6,3x0,8 mm)
Function Changeover (SPDT)
Hysteresis 10-30% depending on set value
IP class IP00
Material membrane NBR
Material of body Zinc-plated steel
Material of wetted parts Zinc-plated steel, NBR
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 600 bar
Process connection M14x1.5
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 100 g
Voltage ac/dc max 250 V
Voltage ac/dc min 10 V
