Suco - 0164 Pressure Switch

Stainless steel body

The 0164 series pressure switch is a stainless steel bodied pressure switch from SUCO which is more rugged for pressure montioring when using corrosive media or for more hygienic applications. Offering a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 stainless steel body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and also adjustable on site and can come pre-set.

Up to 42 V

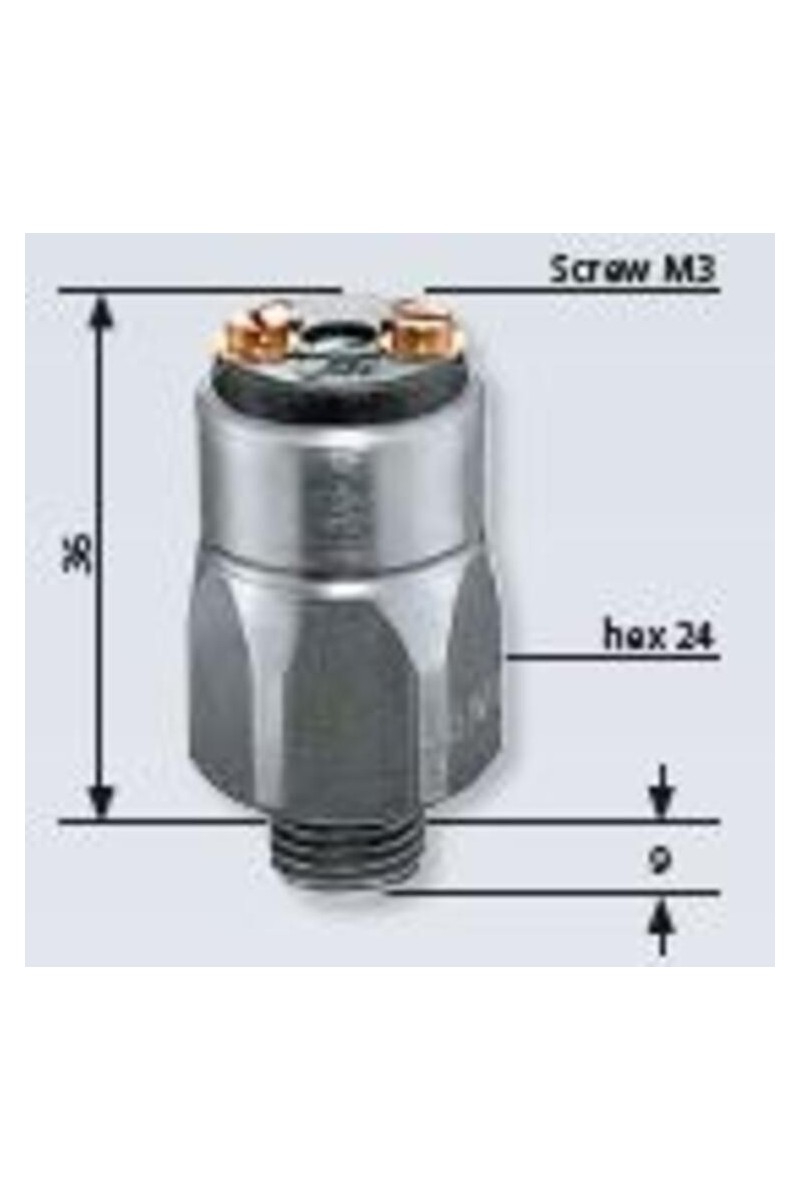

Spade or screw terminals

Five adjustment ranges from 0,1..1 bar to 20..50 bar

Normally open or Normally closed

Over pressure safety of 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1 bar
Adjustment range min 0.1 bar
Approvals CSA US, RoHS II
Contact rating max 4 A
Deviation max ±0,2

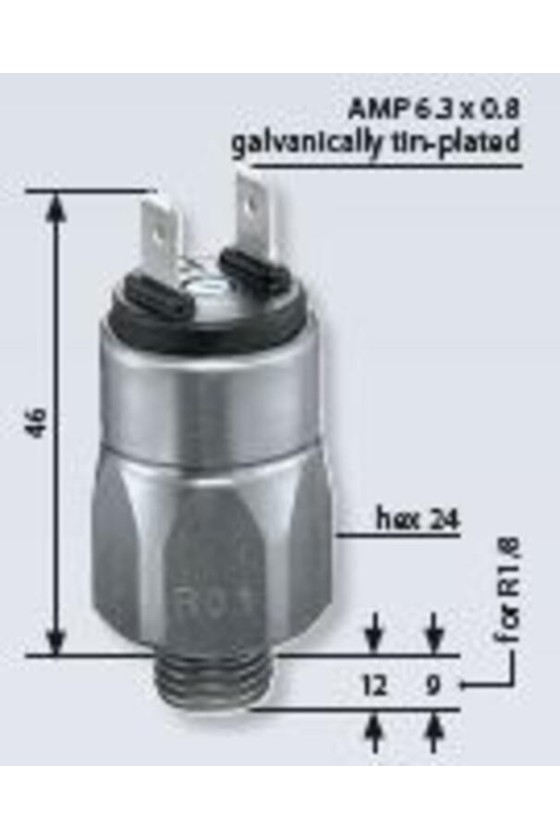

Electrical connection Spade (AMP 6,3x0,8 mm)
Function Normally open (SPST)
IP class IP00
Material membrane NBR
Material of body Stainless steel
Material of wetted parts NBR, Stainless steel
Max switching frequency/min 200
Pressure max 600 bar
Process connection G1/4-E
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 90 g
Voltage ac/dc max 42 V
Voltage ac/dc min 10 V
