Suco - 0190/0191 Pressure Switch

Gold contacts

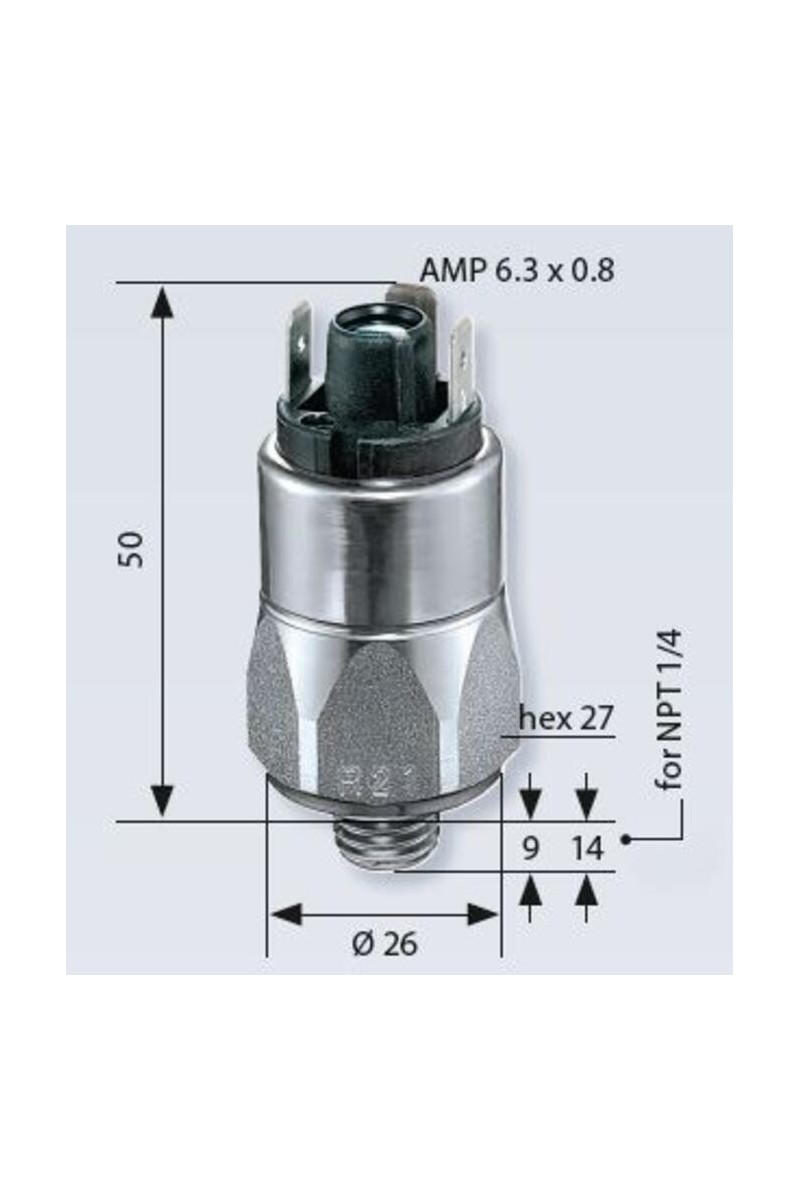

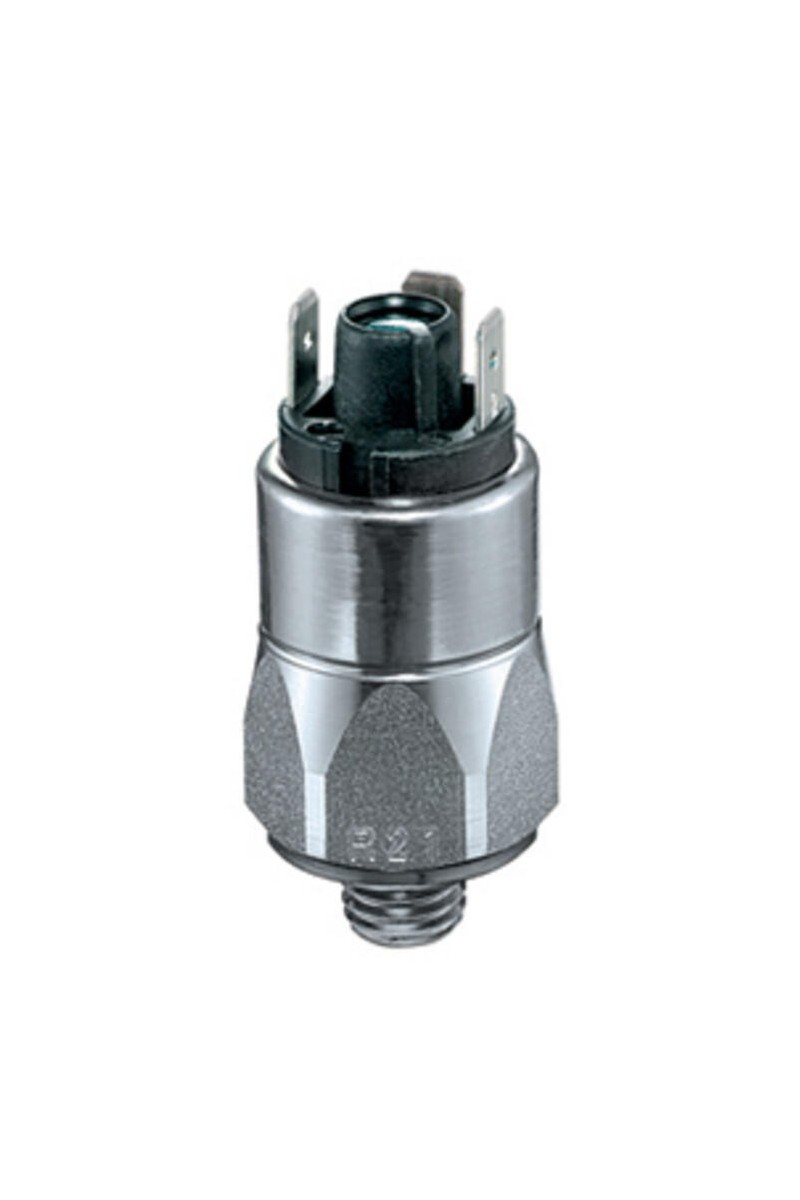

The 0190/0191 series is a compact pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 24 V (gold contacts) with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Common applications include power packs and mobile hydraulics

Up to 24 V

Spade terminals

Ranges from 0,3..1,5 bar to 50..200 bar

Changeover (SPDT) with gold contacts

Over pressure safety from 100 bar up to 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1.5 bar
Adjustment range min 0.3 bar
Approvals CSA US, RoHS II
Contact load max ac 4 A
Contact load max dc 0.25 A
Deviation max ±0,2
Electrical connection Spade (AMP 6,3x0,8 mm)

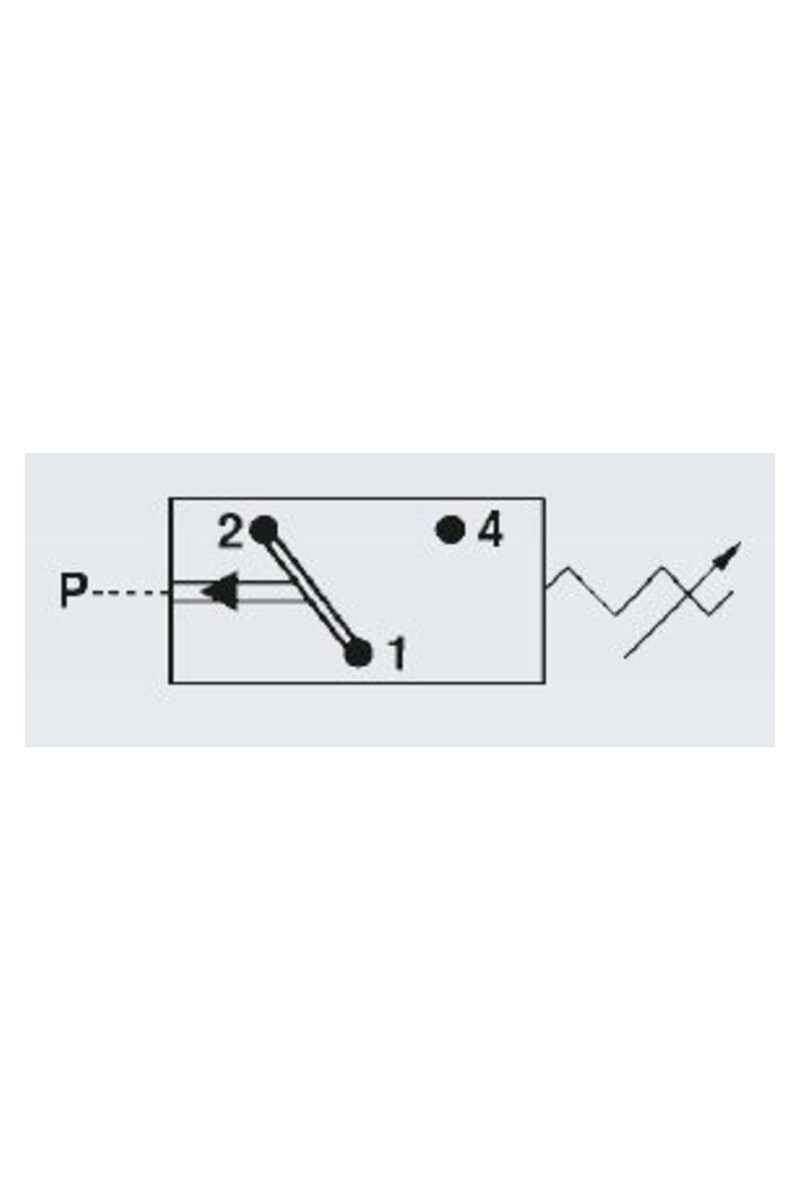

Function Changeover (SPDT)
Hysteresis 10-30% depending on set value
IP class IP00
Material membrane NBR
Material of body Zinc plated steel
Material of wetted parts NBR, Zinc plated steel
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 100 bar
Process connection G1/4
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -30 °C
Temperature of media to 100 °C
Weight 100 g
Voltage ac/dc max 250 V
Voltage ac/dc min 10 V
