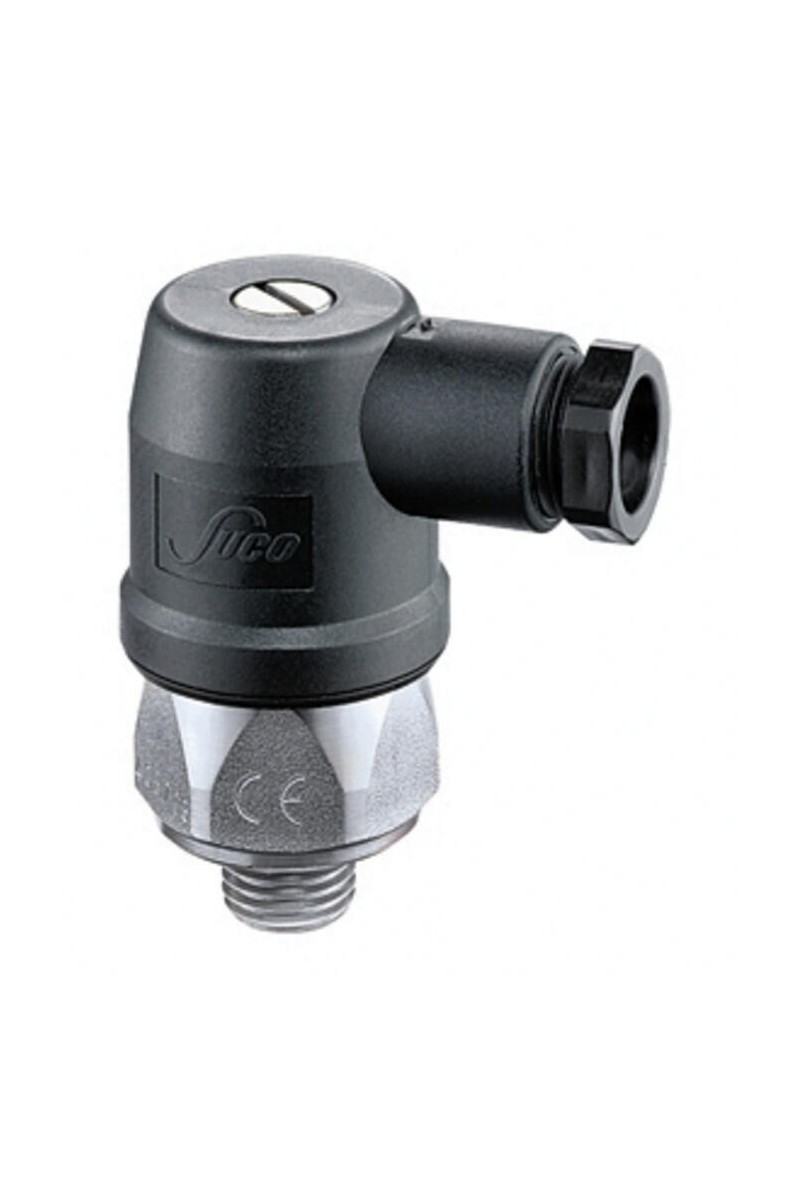

Suco - 0140/0141 Pressure Switch

IP65

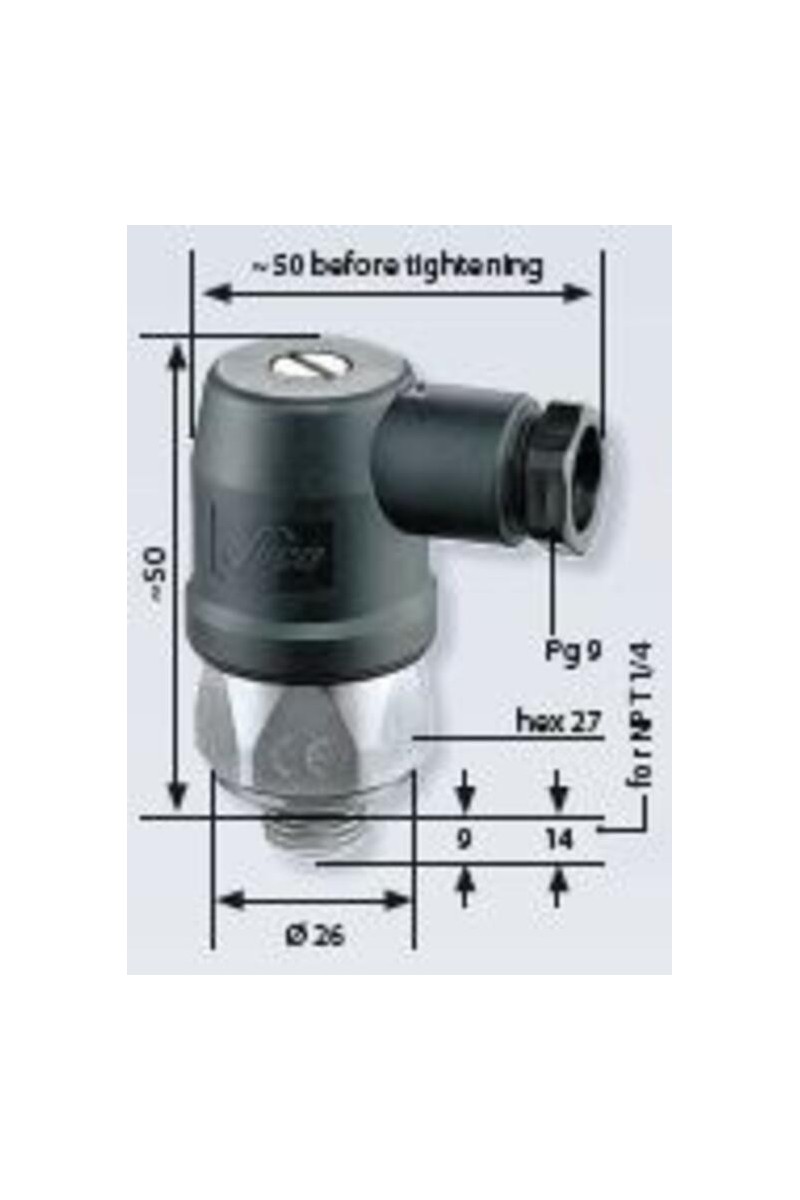

The 0140/0141 series is a compact pressure switch and is part of the changeover contact range from SUCO. Including polyamide cap and a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

 Common applications include power packs, mobile hydraulics, water systems, hydraulics generally and pneumatics.

Up to 250 V

Includes Polyamide Cap

Ranges from 0,3..1,5 bar to 50...150 bar

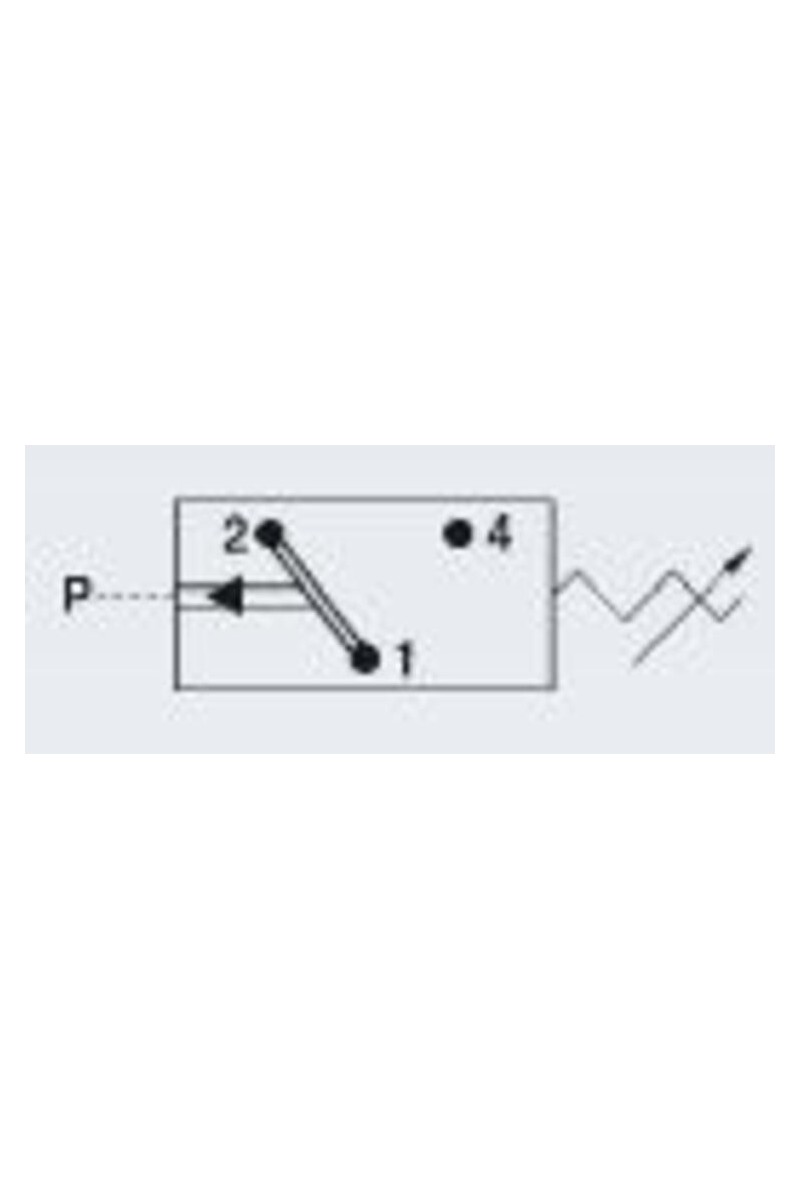

Changeover (SPDT)

Over pressure safety from 300 bar up to 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1.5 bar
Adjustment range min 0.3 bar
Approvals CSA US, RoHS II
Contact load max ac 2 A
Contact load max dc 0.25 A
Deviation max ±0,2
Electrical connection DIN
Function Changeover (SPDT)
IP class IP65
Material membrane NBR
Material of body Zinc-plated steel
Material of wetted parts Zinc-plated steel, NBR
Max switching frequency/min 200
Pressure max 300 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 100 g
Voltage ac/dc max 250 V
Voltage ac/dc min 10 V
