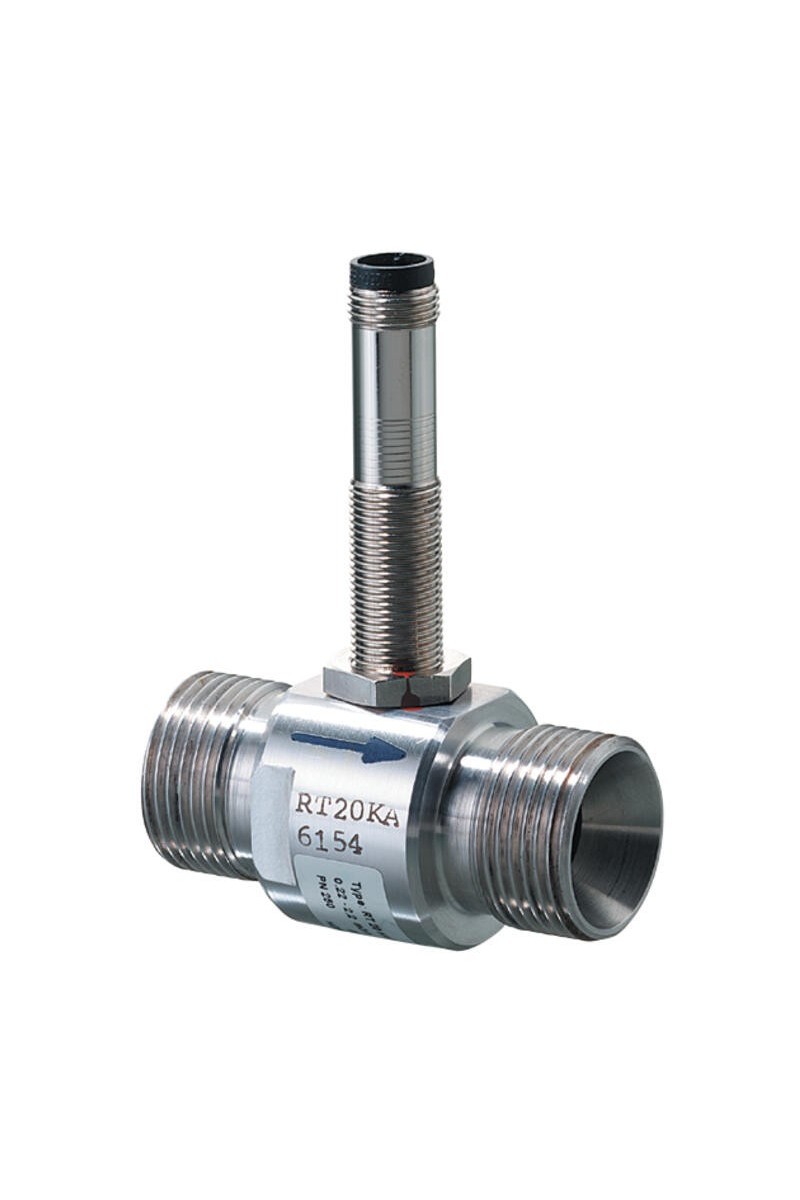

Honsberg - RT Series Flow Meter

Turbine

Model RT is a turbine transmitter entirely in stainless steel with high flow capacity. It is suitable for applications where there are requirements include a high level of accuracy. The design also makes it suitable for applications with aggressive media or extreme pressure.

For liquids up to 250 bar

Flow from 0.1 to 68 m3/h (1-5 cSt)

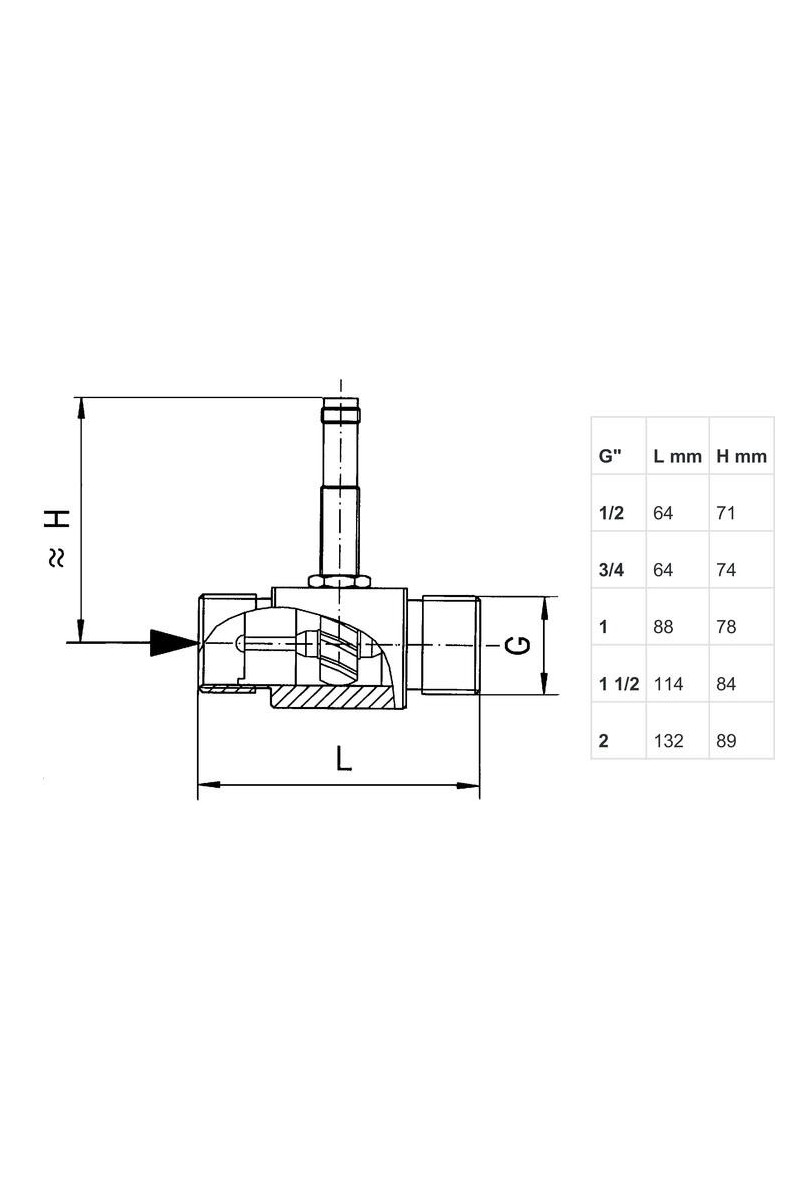

Connection from 1/2" to 2"

Entirely in stainless steel

£0.00
Tax included
Quantity :
Ask a Question

Accuracy ± 1% of full setpoint
Connection type External thread G ½ "

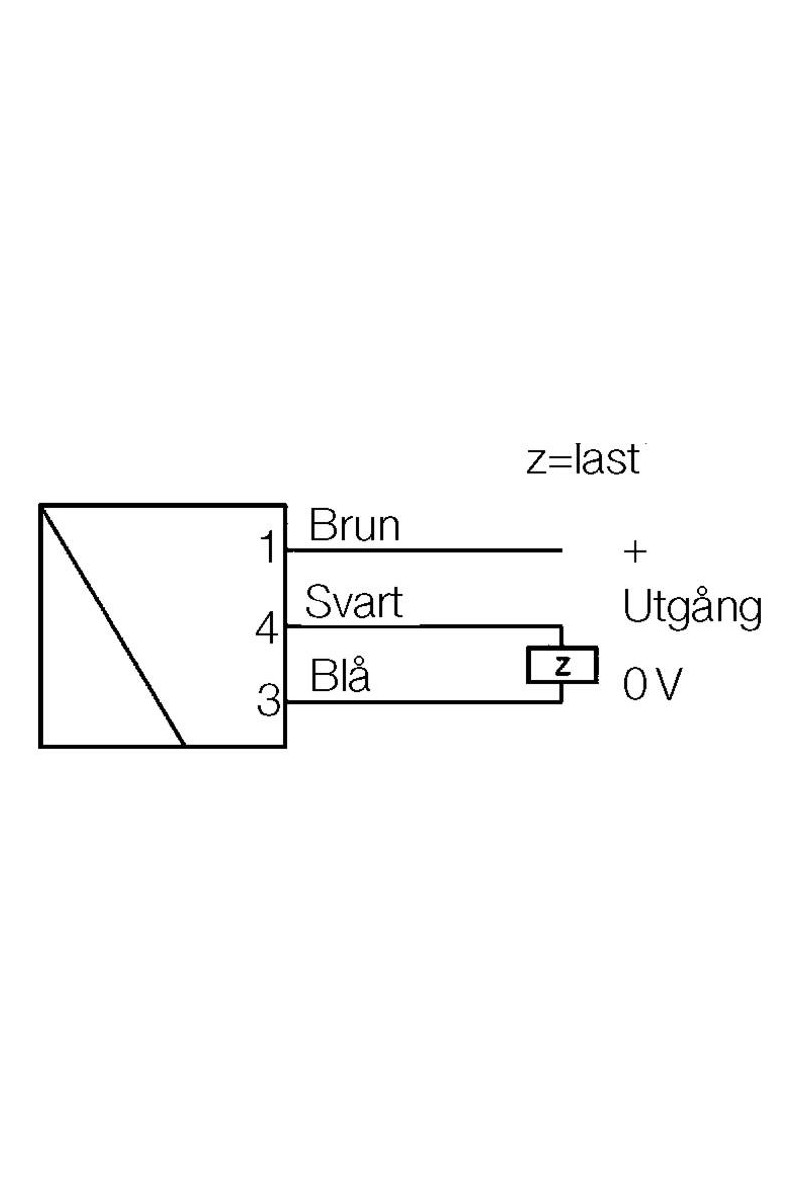

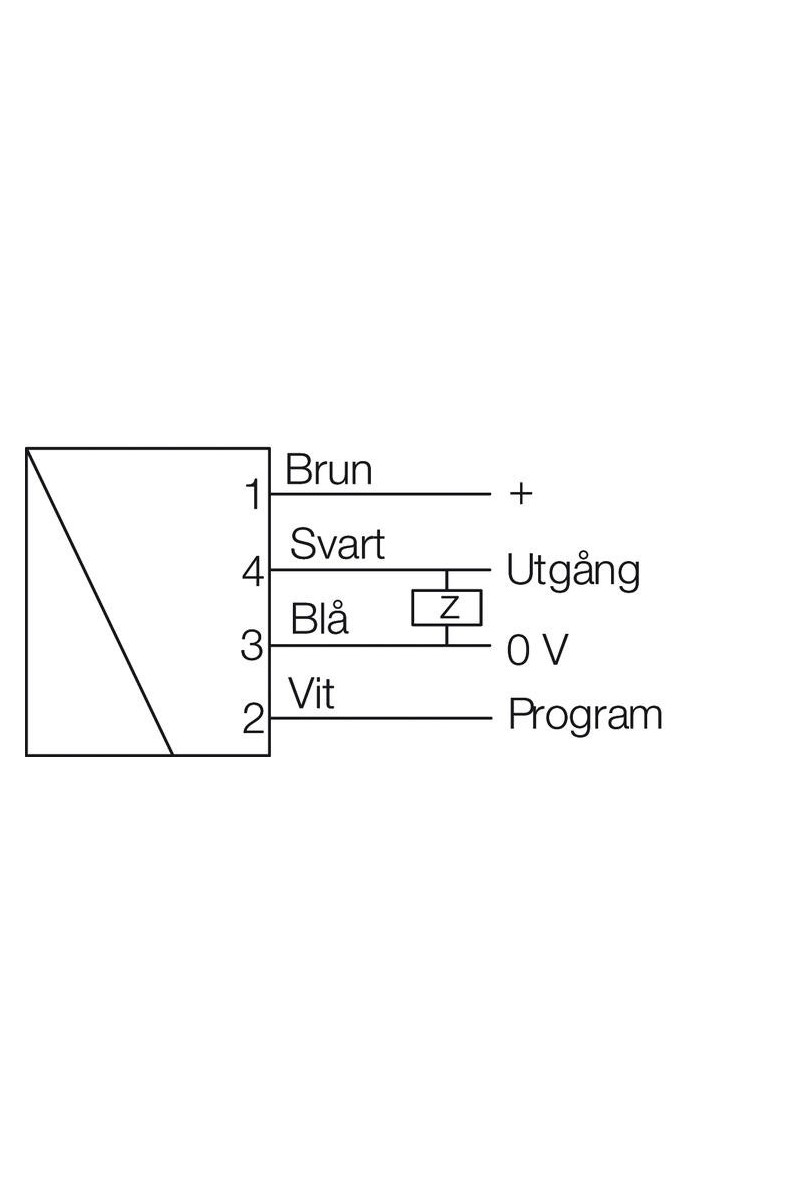

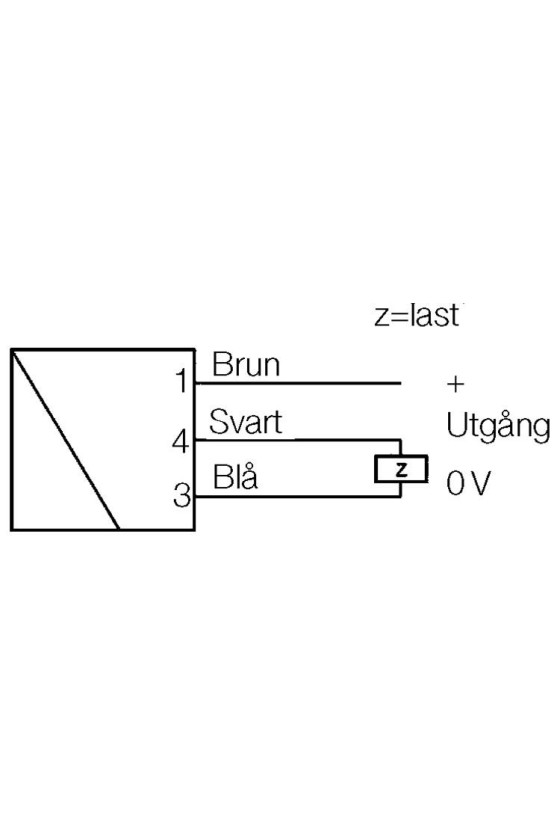

Electrical connection M12x1, 4-pole
Flow range max 1.1 m³/h
Flow range min 0.11 m³/h
Function Turbine, hall sensor
IP class IP67
Load max 100 mA
Material of body Stainless steel 316
Material storage Tungsten carbide
Material turbine Stainless steel 430
Number of pulses/L Ca 2900
Power consumption 20 mA
Pressure drop Approx. 0.3 bar at maximum flow
Pressure range max 250 bar
Signal outputs PNP, square wave
Temperature of media from -20 °C
Temperature of media to 85 °C
Type of flow component Flow Measuring
Weight 0.32 kg
Viscosity max 5 cSt
Viscosity min 1 cSt
Voltage dc max 30 V
Voltage dc min 10 V
