Aplisens - PEM-1000 Series Flow Meter

Electromagnetic (Magflow)

The Aplisens PEM-1000 'Mag flow meter' is a very robust flowmeter for a wide range of applications at a competitive price.

The magnetic flowmeter is for bidirectional measurement of liquids with a minimum conductivity 5μS/cm such as acid/alkalis, paints, pastes and water/wastewater.


  • 0,085..28,274,3 m3/h

    3/8" up to 40" pipe size

    1,6 MPa

    Acids, alkalis, paints, pastes, water etc

    4-20mA or Pulse/frequency
£0.00
Tax included
Quantity :
Ask a Question

The Aplisens PEM-1000 'Mag flow meter' is a very robust flowmeter for a wide range of applications at a competitive price.

The magnetic flowmeter is for bidirectional measurement of liquids with a minimum conductivity 5μS/cm such as acid/alkalis, paints, pastes and water/wastewater.

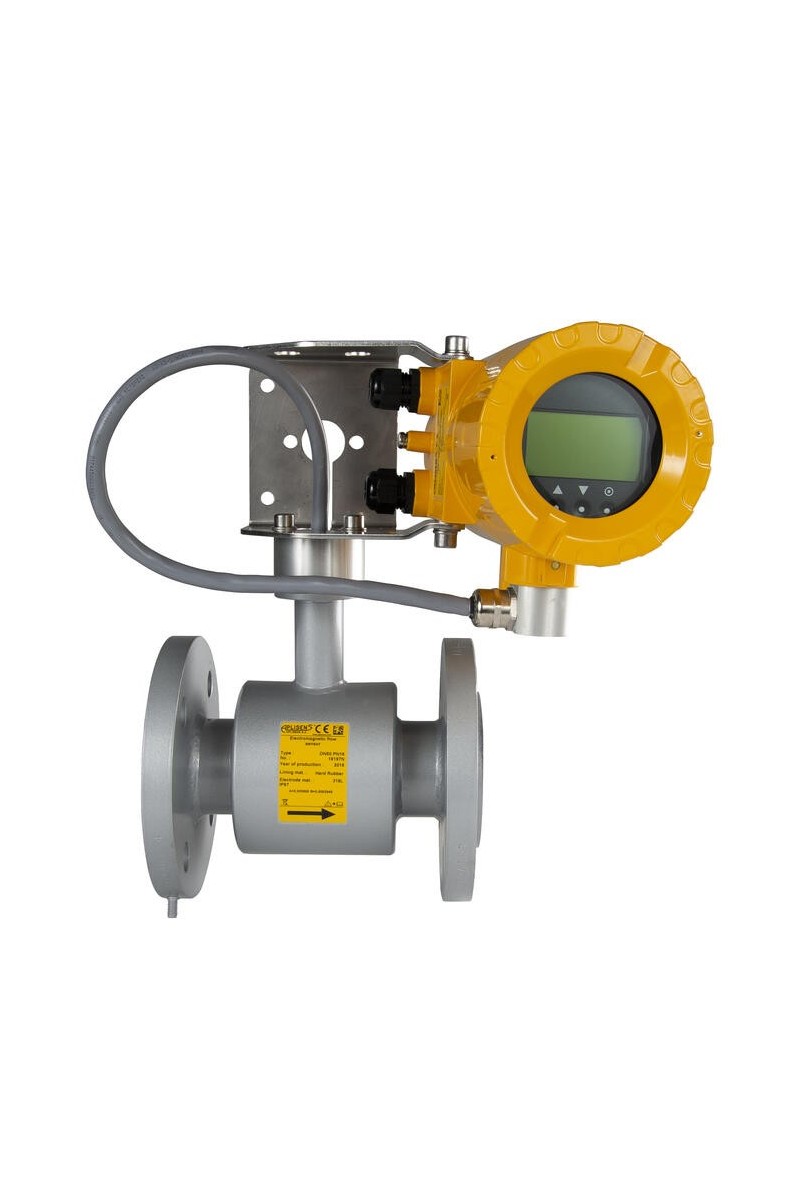

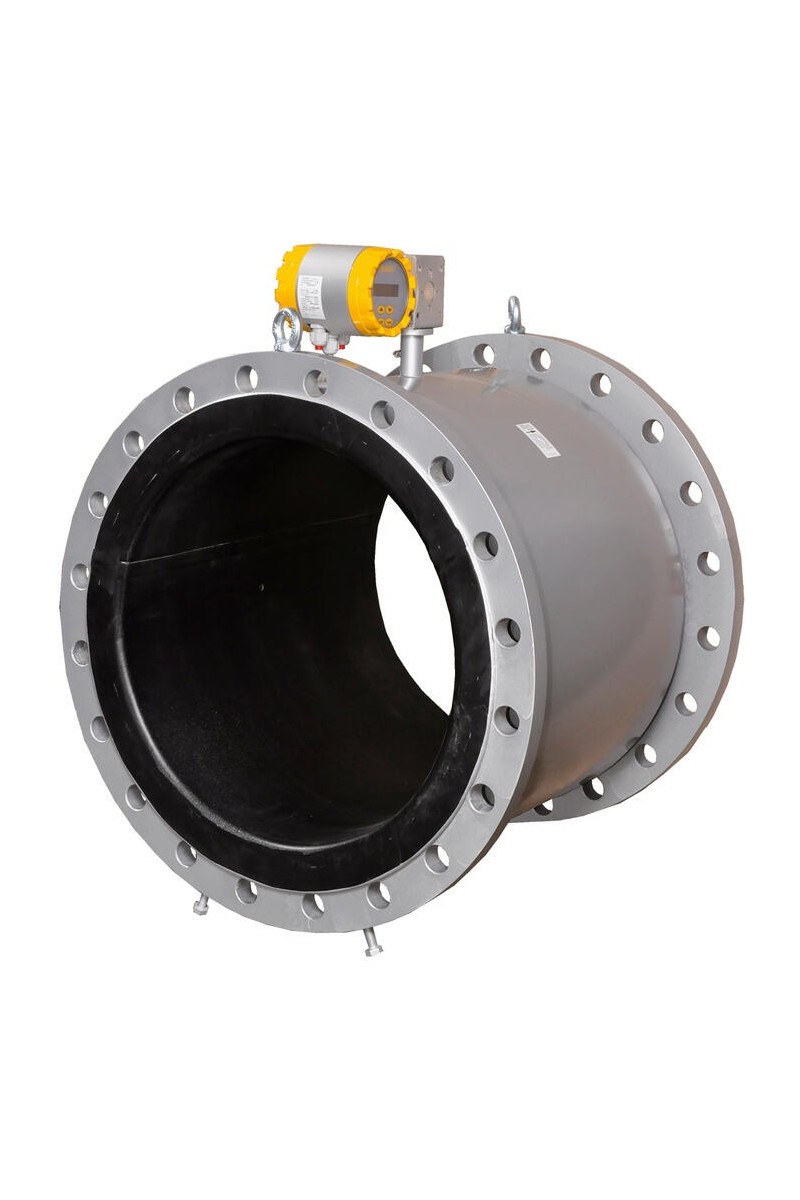

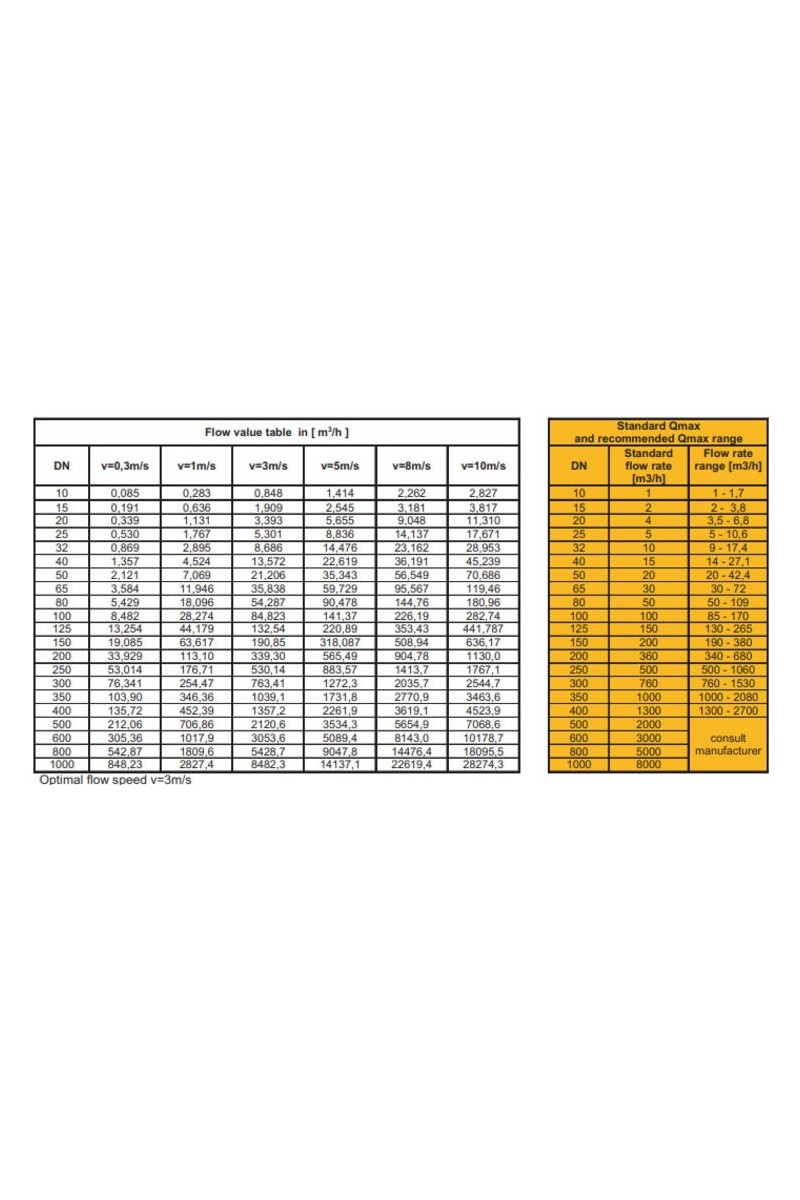

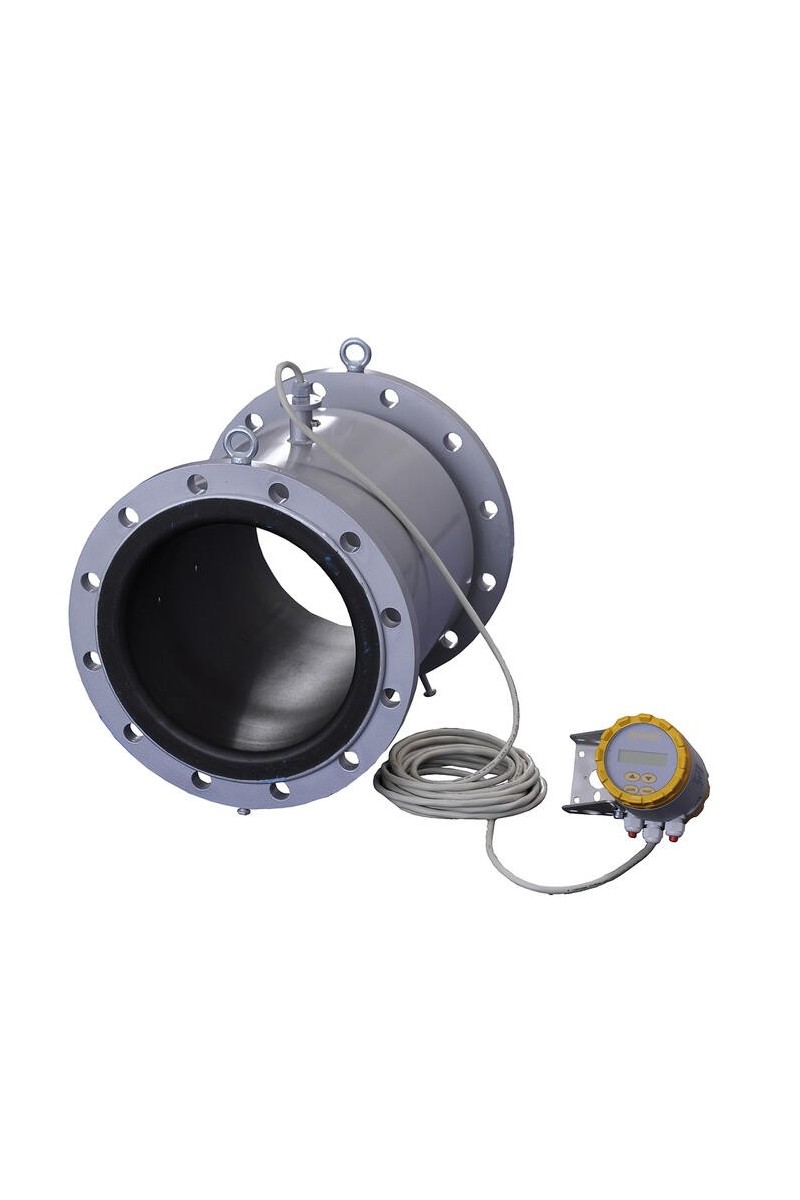

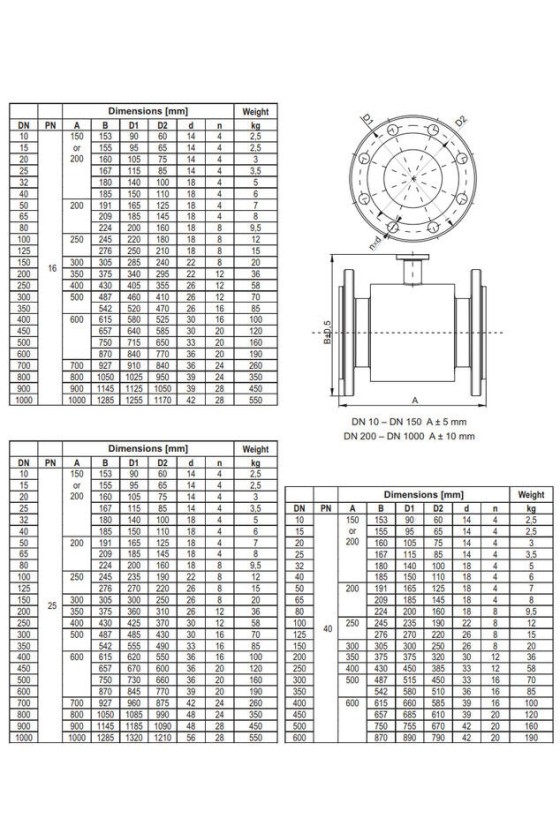

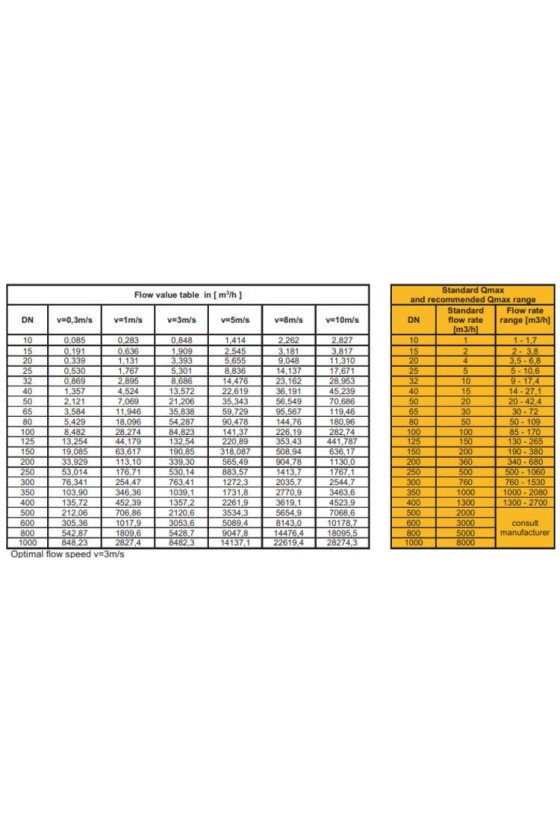

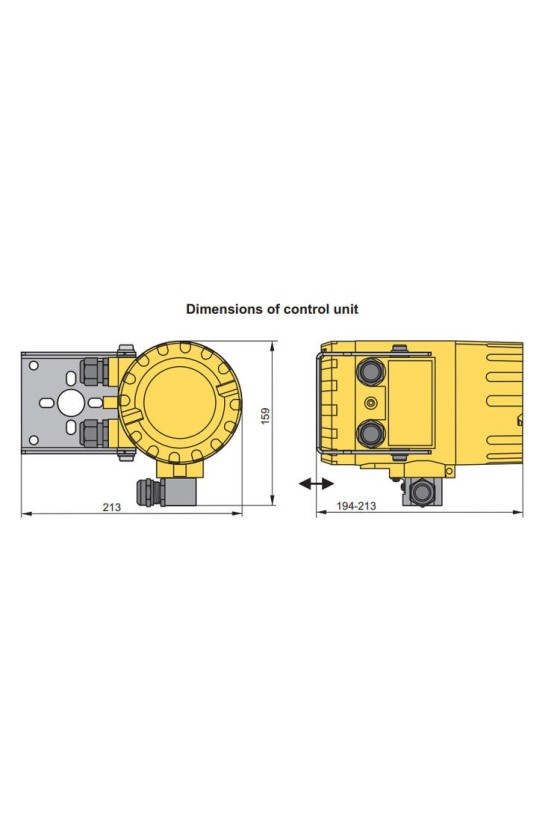

 The PEM-1000 is available in two versions, one with a direct mounted display/sensor and the other with a separate display/sensor.The pipe size starts at 3/8" (DN10) which gives 1m3/h all the way up to 40" (DN1000) which offers 8000m3/h with a total of twenty one different pipe size/m3/h options inbetween. There is a choice of lining from soft or hard rubber to teflon and a choice of elctrode materials which are 316Ti, Platinium Hastelloy, Tantalum and Titanium.

Application examples: Utility, water and wastewater processing

Classification accuracy ± 0.5% of scale value according to EN837-1
Connection DN50 PN16
IP class IP67
Material of body Carbon steel
Material of wetted parts PTFE
Pressure resistance max 16 bar
Signal type 4-20 mA
Supply voltage ac max 260 V AC
Supply voltage ac min 90 V AC
Temperature ambient from -20 °C
Temperature ambient to 60 °C
Temperature of media from -25 °C
Temperature of media to 130 °C
Weight 3.5 kg
