Honsberg - OMNI-F Series Flow Meter

Calorimetric

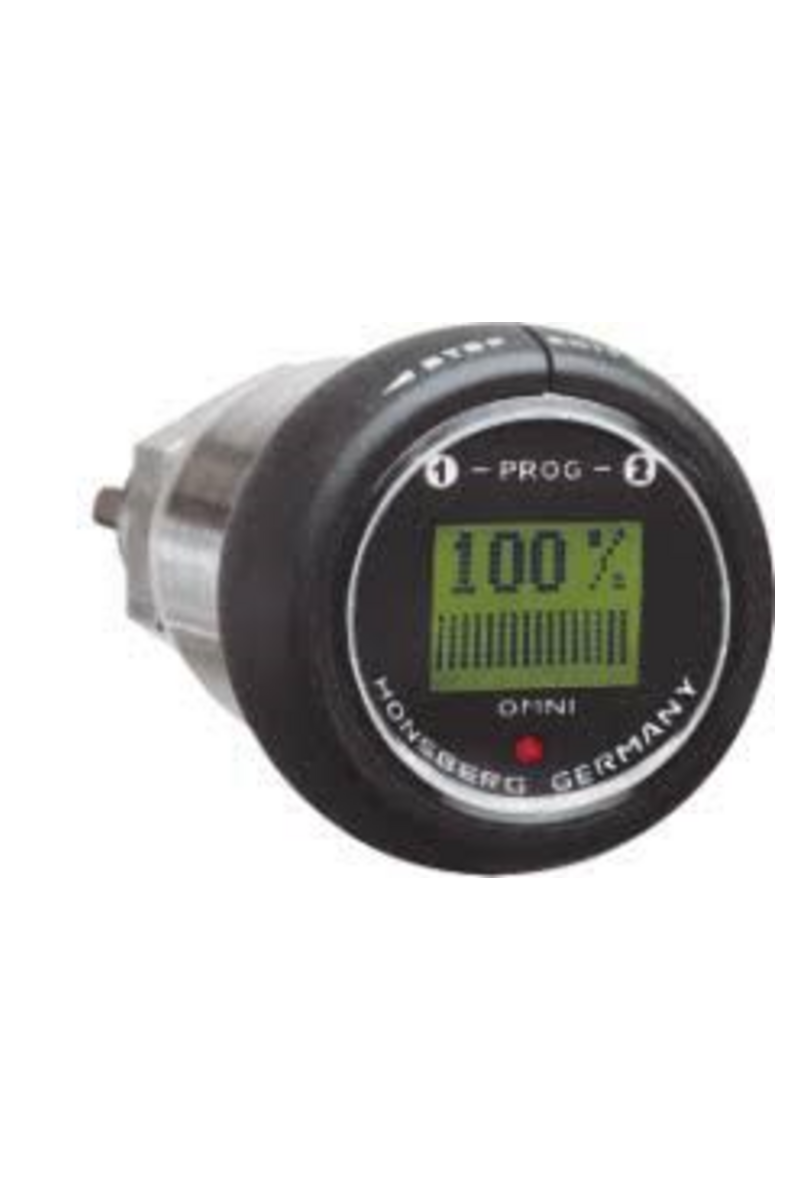

Model Omni-F is a calorimetric flow sensor with analogue output signal (4-20mA) and two switching points (PNP-0.3A). It is equipped with an LCD display for indication of both relevant flow (0-100 %), switching points and hysteresis. It is easy to read the sensor by either removing or turning the rim 180°, this eliminates the risk of changes.

For liquids up to 200 bar

No moving parts

Wetted parts in stainless steel

£0.00
Tax included
Quantity :
Ask a Question

Accuracy ± 10% of full setpoint
Connection type External thread, G ¼ "

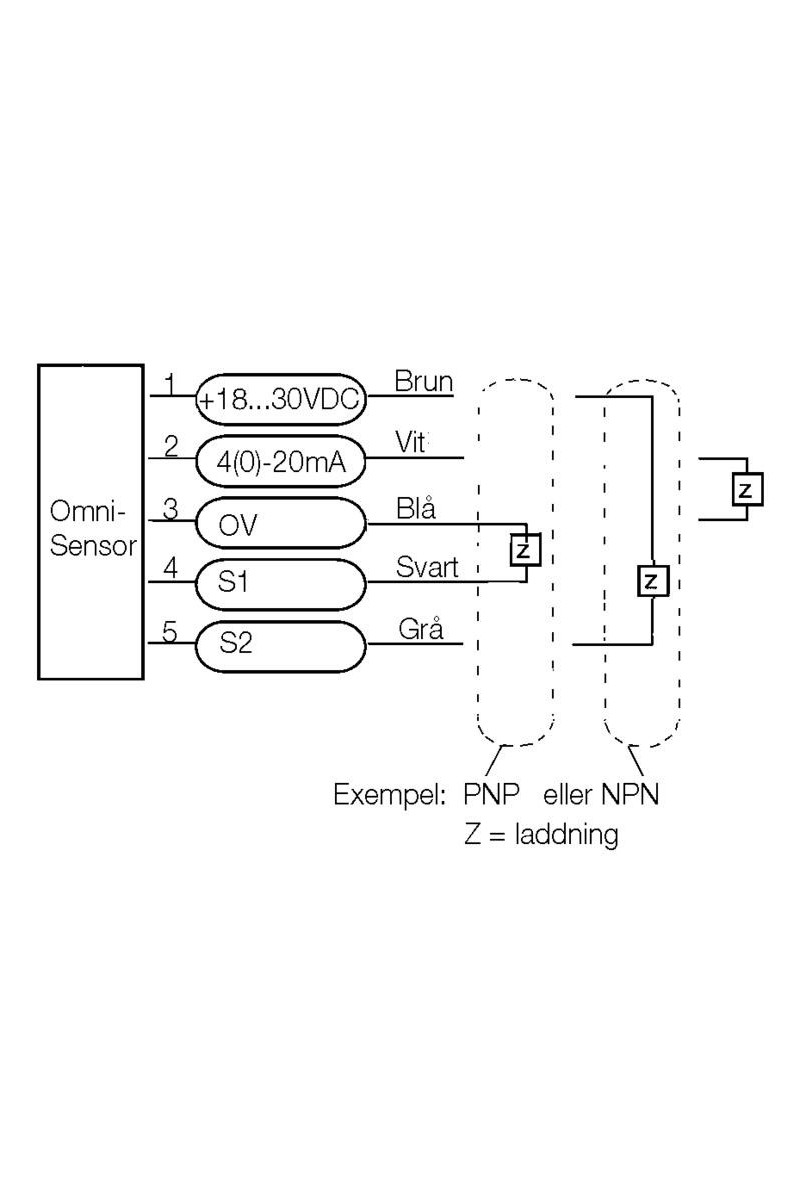

Electrical connection M12x1, 5-pole
Flow range max 150 cm/s
Flow range min 1 cm/s
Function calorimetric
Hysteresis 1-99%, programmable
IP class IP67
Load max 300 mA
Material chain POM
Material display Tempered mineral glass
Material of body Stainless steel 303
Material of wetted parts Stainless steel 316Ti
Power consumption 80 mA
Pressure range max 200 bar
Repeatability 1 %
Signal outputs 4 (0) ... 20 mA or 0 (2) ... 10 V, programmable
Temperature of media from 0 °C
Temperature of media to 70 °C
Type of flow component Flow Measuring
Weight 0.25 kg
Viscosity max 1 cSt
Voltage dc max 24 V
