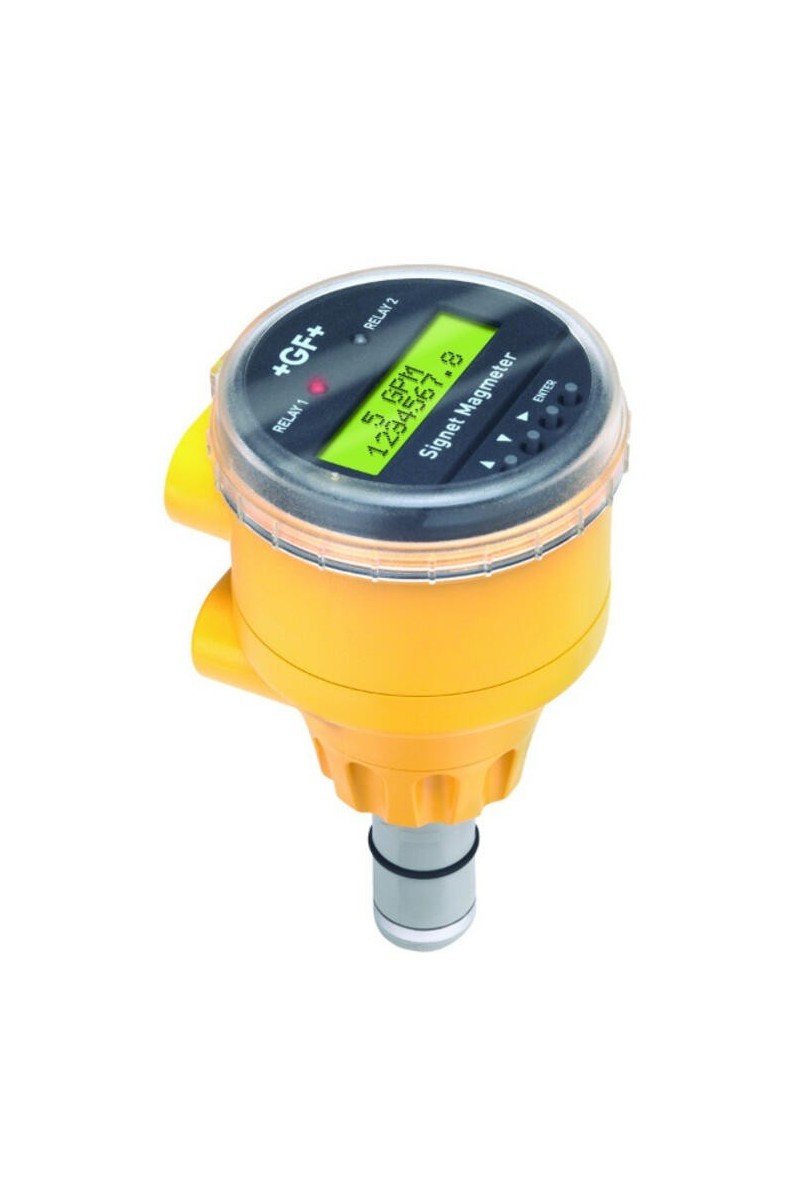

Magmeter with or without display

The 2551 Magmeter measures the flow rate in a full pipe by monitoring the voltage produced when the (conductive) fluid moves through a magnetic field. Output options include a traditional frequency signal, a serial data (Digital (S3 L)) output, and a 4 to 20 mA output. The 2551 Magmeter is available in three sizes that will accommodate pipes from ½ inch through 36 inch diameters. Select from three different material combinations to match the Magmeter to the application requirements.

DN15 - DN900 (½ to 36 in.)

10.3 bar @ 25 °C (150 psi @ 77 °F)

0.05 - 10 m/s (0.15 to 33 ft/s)

Optional relay outputs

4 - 20 mA, or frequency/digital (S³L) outputs
