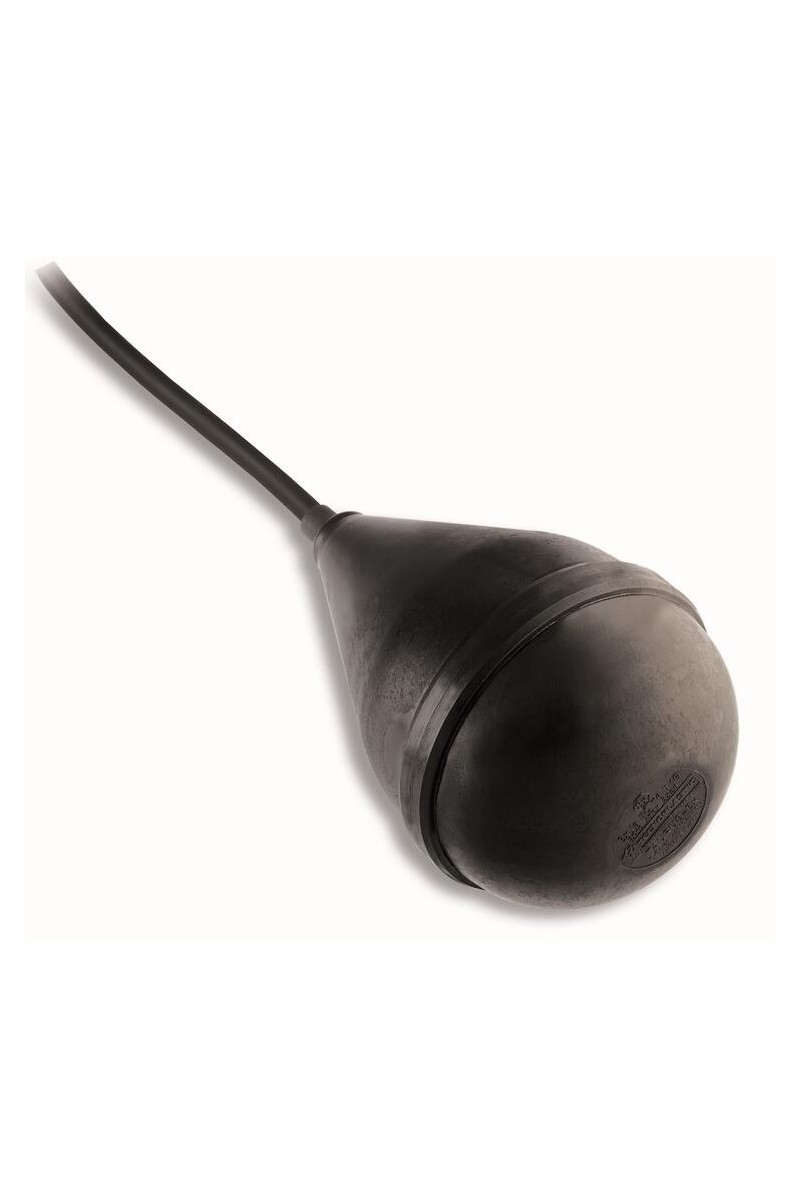

Tecnoplastic Float Switch Taurus-EX
  • Tecnoplastic Float Switch Taurus-EX

Tecnoplastic Float Switch Taurus-EX

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alarm outputs can be maintained and adjusted easily.

Internal counterweight

20 metres maximum depth

Up to 80°C

Three chamber design

Suitable for use in explosive environments

£0.00
Tax included
Quantity :
Ask a Question

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alarm outputs can be maintained and adjusted easily.

Suitable in potentially explosive environments.

 H05RN-F cable types are suitable for level regulation in:

  • Drainage plants
  • Pumping stations
  • Dirty water systems

 Petro 4G1 cable types are suitable in:

  • Slime and mud
  • Oil
  • Esters drilling
  • Solutions of calcium bromide
  • Lubricants based on mineral oil
  • Diluted acids
  • Aqueous alkaline solutions and other chemicals
  • Onshore and offshore drilling
  • Supply ships

Activation angle 20 °
Approvals CE, EX
Cable length 10 m
Cable type H05RN-F 4G0,75
Depth max 20 m
Fixing kit included Yes
Insulation class I
IP class IP68
Material of float Carbon black charged
Operating temperature to 80 °C
Rated current 0.1 A
Specific gravity 0.95 - 1.05 KG/dm³
