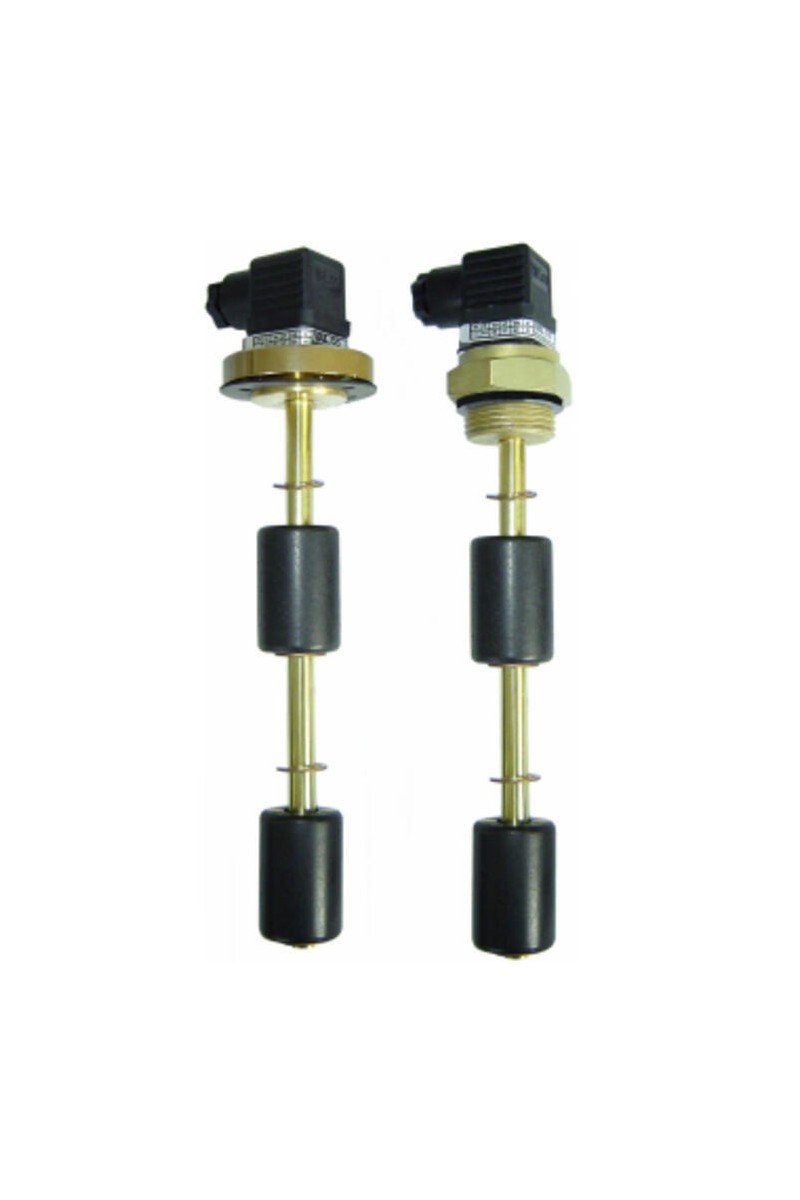

Valco - Level Control Switch - M2 Series

Level controls with 2 electrical contacts, reliable, compact and easy to install. Designed to offer a range of level switches to meet the request for a cheap monitoring of the level in small tanks.



The principle of operation of these instruments is based on the drive of 2 reed contacts, located inside of the measuring rod, by a magnetic float.  The only moving elements are the floats that move, for hydrostatic thrust, along the measuring rod; this guarantees extreme ruggedness and a limited need of maintenance

Float switch, N.1 contact self mounting kit

500 mm. to 1500 mm. tube length

Reed switch SPST or SPDT

Integrated temperature switch (on request)

Brass stem and connection, Spansil float

£0.00
Tax included
Quantity :
Ask a Question

Level controls with 2 electrical contacts, reliable, compact and easy to install. Designed to offer a range of level switches to meet the request for a cheap monitoring of the level in small tanks.



The principle of operation of these instruments is based on the drive of 2 reed contacts, located inside of the measuring rod, by a magnetic float.  The only moving elements are the floats that move, for hydrostatic thrust, along the measuring rod; this guarantees extreme ruggedness and a limited need of maintenance.


Current 0.5A/0.7A
Electrical connection DIN A 43650
Function N/O & N/C
IP class IP65

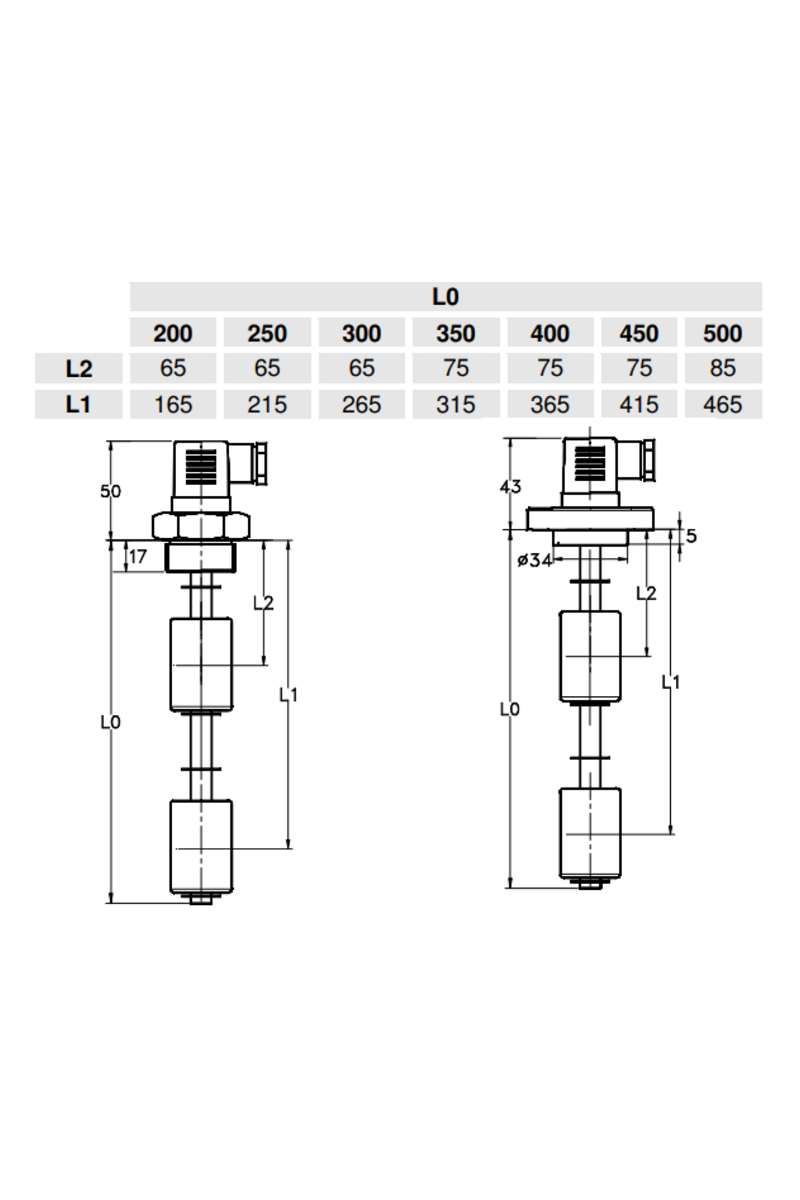

Length 200 mm
Manufacturer part no. M2.B45.3.0200.O.25GO.S1.L.1.C22
Material of connection Brass
Material of float SPANSIL
Material of seals NBR
Mounting Vertical
Pressure max 20 bar
Process connection G1
Specific gravity 0.35
Temperature operational max 105 °C
Voltage 300Vac/350Vdc
