Conductive level-probe - SLP Series

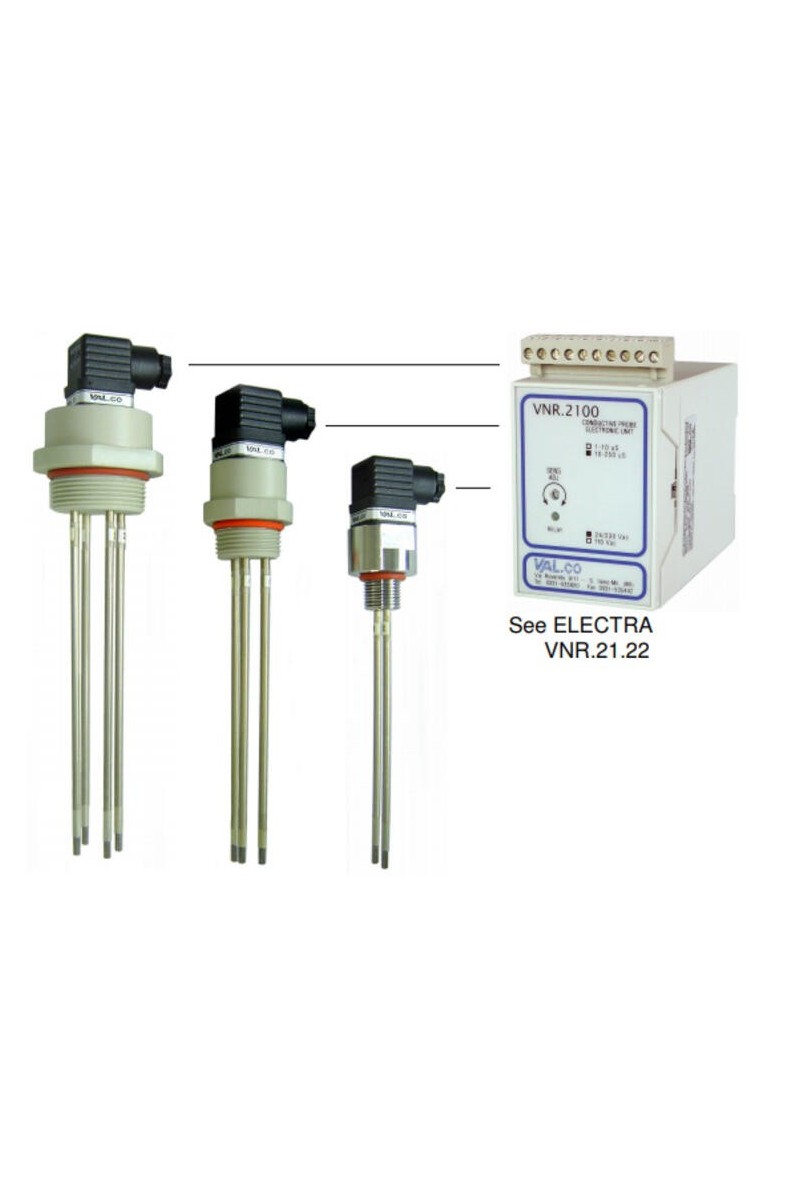

The SL conductive probe series provides a solution for controlling the level of liquid with a minimum value of conductivity of 1µs.

The probes are available in a wide variety of materials and process connections and are of construction appropriate to operation in extreme conditions such as those found on industrial plants.

1 to 4 St. Steel electrodes

Electrodes length from 100 mm. to 1500 mm.

Brass, St. Steel, PPL body materials

Working pressure up to 6 bar

Working temperature up to 100°C

£0.00
Tax included
Quantity :
Ask a Question

The SL conductive probe series provides a solution for controlling the level of liquid with a minimum value of conductivity of 1µs.

The probes are available in a wide variety of materials and process connections and are of construction appropriate to operation in extreme conditions such as those found on industrial plants.

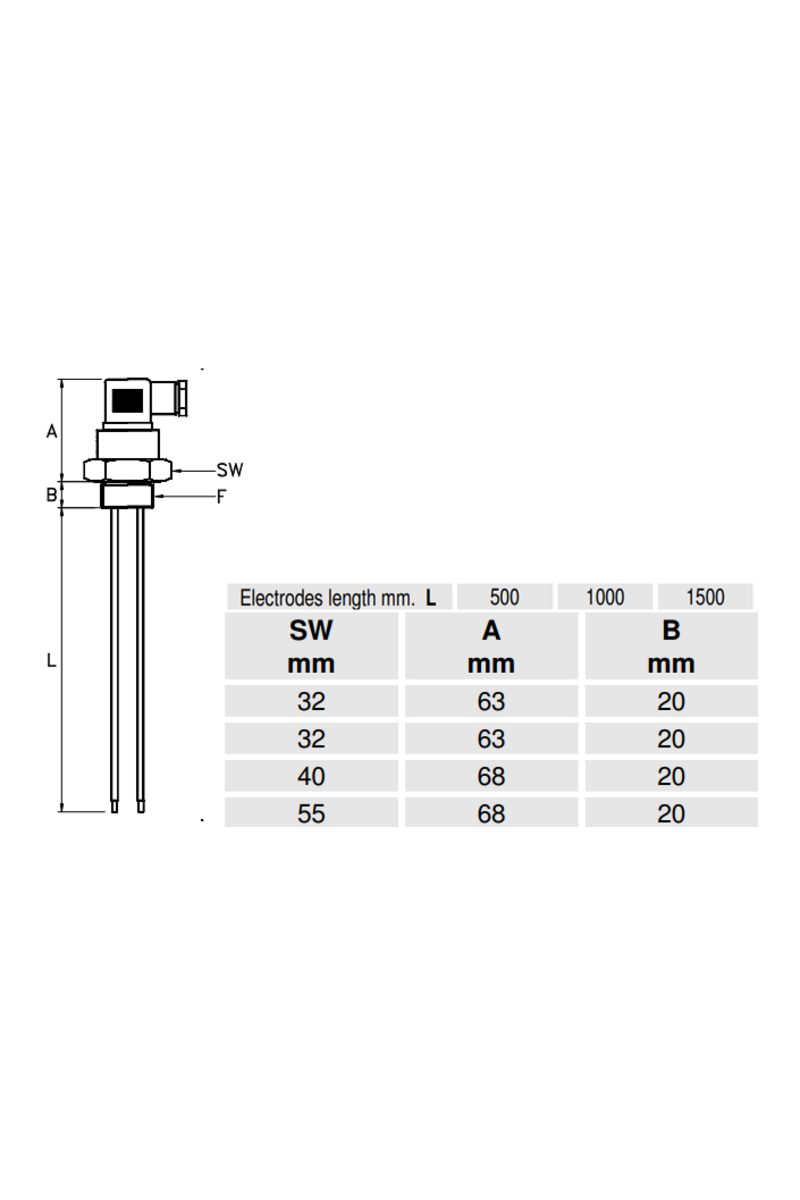

Electrical connection DIN A 43650
Electrode Length 500mm
IP class IP65
Manufacturer part no. SLP.25G.3X500.K.S1
Material of coatings on electrodes PVDF
Material of connection Polypropylene
Mounting Vertical
Number of electrodes 3
Pressure max 6 bar
Process connection G1
Temperature operational max 100 °C
