Tecnoplastic - Float switch - Olympic

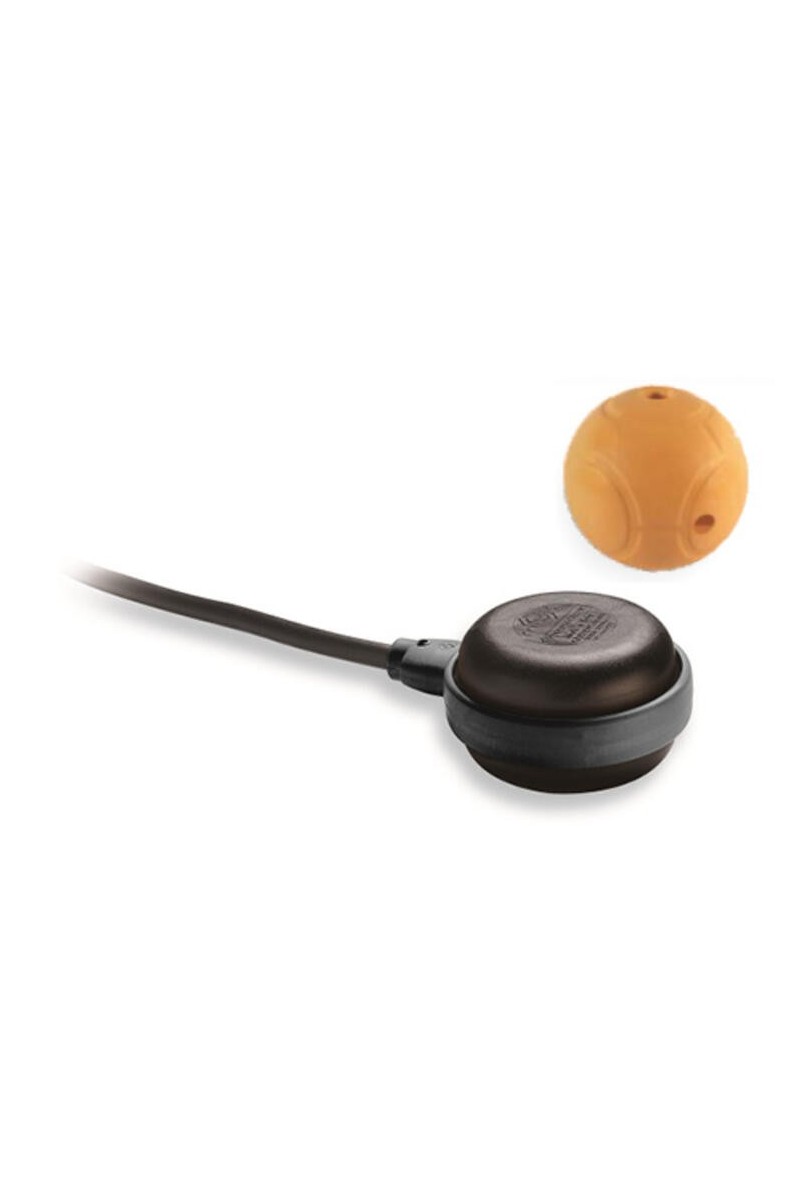

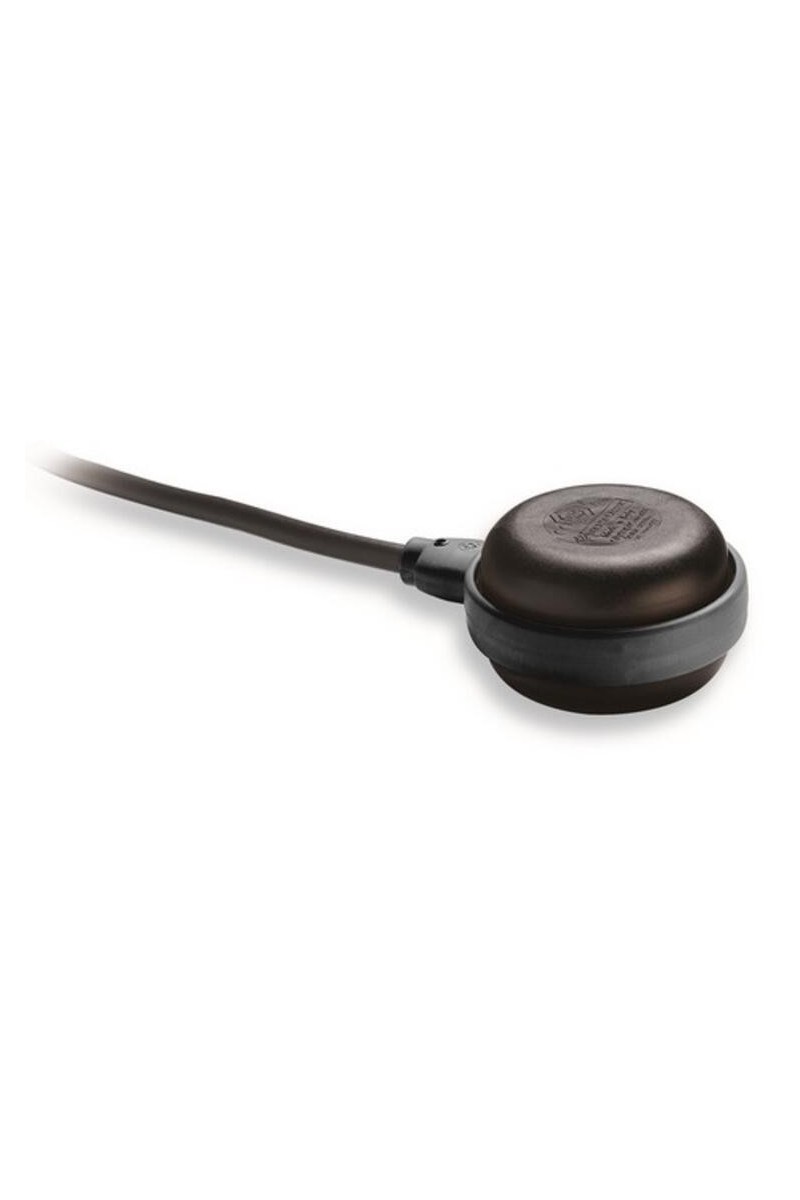

The Olympic level switch from Tecnoplastic is a popular style of level switch when size is a consideration. This level regulator is very cost effective and can be used in many ways for automated control of liquid levels in various applications.

  • Water pumps
  • Plumbed system automation

Maximum depth of 20 metres

Single or double function

Up to 60°C

Compact size

£0.00
Tax included
Quantity :
Ask a Question

The Olympic level switch from Tecnoplastic is a popular style of level switch when size is a consideration. This level regulator is very cost effective and can be used in many ways for automated control of liquid levels in various applications.



  • Water pumps
  • Plumbed system automation

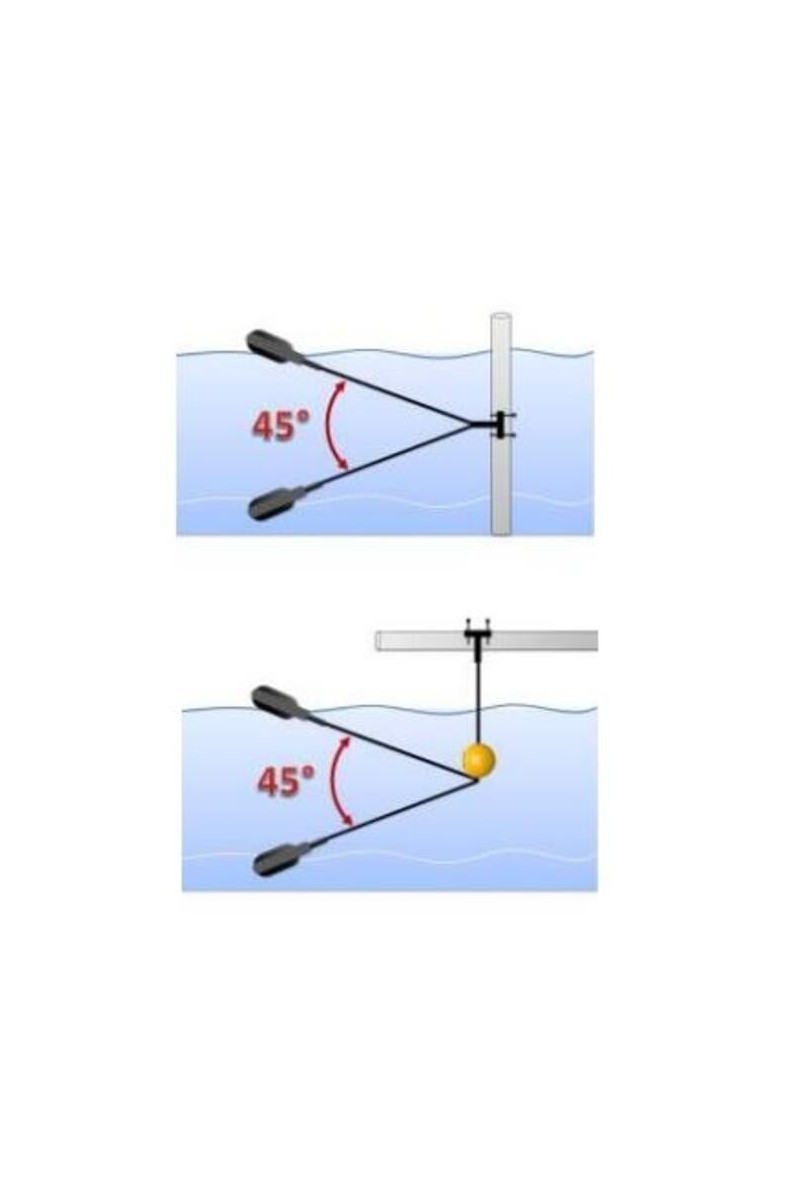

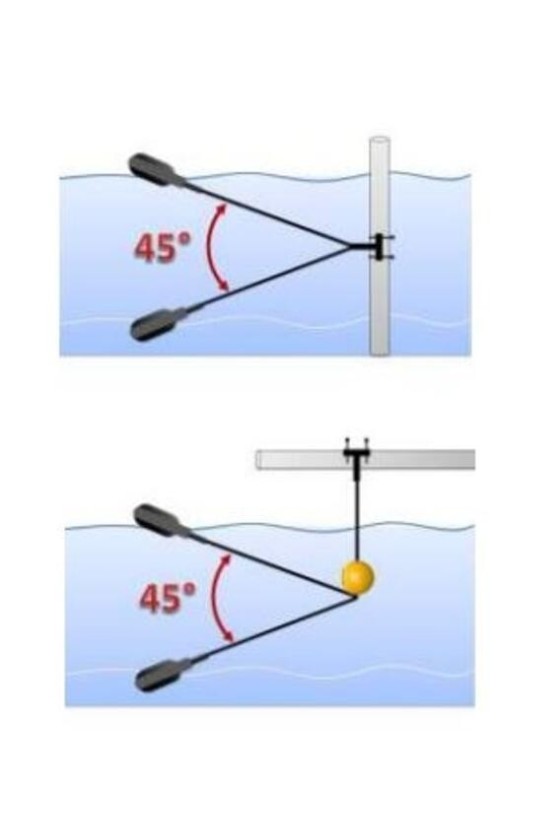

Activation angle 45 °
Approvals CE, TÜV
Cable length 0.52 m
Cable type H07RN-F
Counterweight included No
Depth max 10 m
Function N/O & N/C
Insulation class I-II
IP class IP68
Material of float Polypropylene
Operating temperature to 60 °C
Rated current 8 A
Specific gravity 0.6 kg/dm³
Supply voltage 250 V
