The Shell counterweight for pendant float switches is a unique and time saving design that can be connected and placed onto the cable without the need to disconnect and feed the counterweight down the cable.

Being universal it is suitable for use with the Fox, Olympic, Supertec and Flotec switches and is also compatible with competitors’ brands.

Easy installation

No need to disconnect cable

Recyclable

7mm - 9mm cable diameter

Level measurement with capacitive technology.

The liquid to be monitored must have a minimum conductivity of 50 µS / cm and must not be adherent to the probe.

All programming functions can be managed from the keypad on the front panel of the instrument. Level status is displayed on the LCD. The analog signal is proportional to the measured level, and can be calibrated according to the geometry of the tank. The absence of moving parts offers a system that does not require particular maintenance

Measuring ranges 100 … 3000 mm

Programming via the front panel keypad and LCD display

0-10 V or 4-20mA analog output

Measuring units programmable in linear values or %.

These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperature up to 180 ° C.

PP housing with PG9 electrical connection

Micro-switch SPDT

Max working pressure 40 bar

Max working temperature 180°C

Brass or St. Steel materials

For multipoint and continuous Level we can offer custom built solutions to suit your application and needs.

 Up to 50 bar (depending on type)

 Up to 130°C (depending on type)

 ATEX approved versions available

 Up to 6m long



Multipoint Level Switches

Type M2/Multipoint O/S/V-F

The Mouse B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.

Maximum depth of 200mm

Single or double function

Up to 50°C

Ideal for narrow spaces

The optical sensors, SLO series, are a valid solution for level control of liquids, even for applications in small tanks. The optical sensor is located in a metallic body which includes a polysulfone prism inside of which there is inserted an infrared transceiver. As soon as the sensor is immersed in the liquid, the refraction index of the prism is changed and a large part of the infrared beam is dispersed in the liquid, causing the output to change state. The sensor is particularly suitable to be side mounted for control of translucent liquids even coloured.

No moving parts

Hermetic construction, sealed electronics

Minimum protection degree IP65

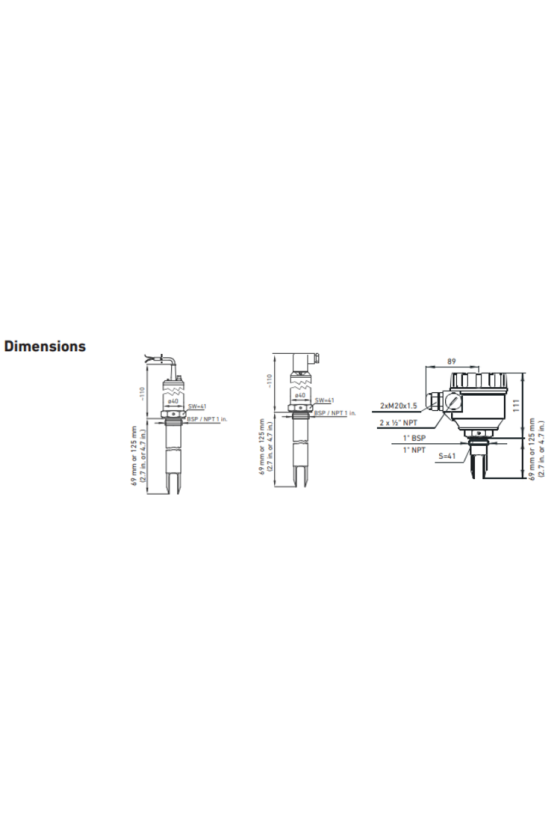

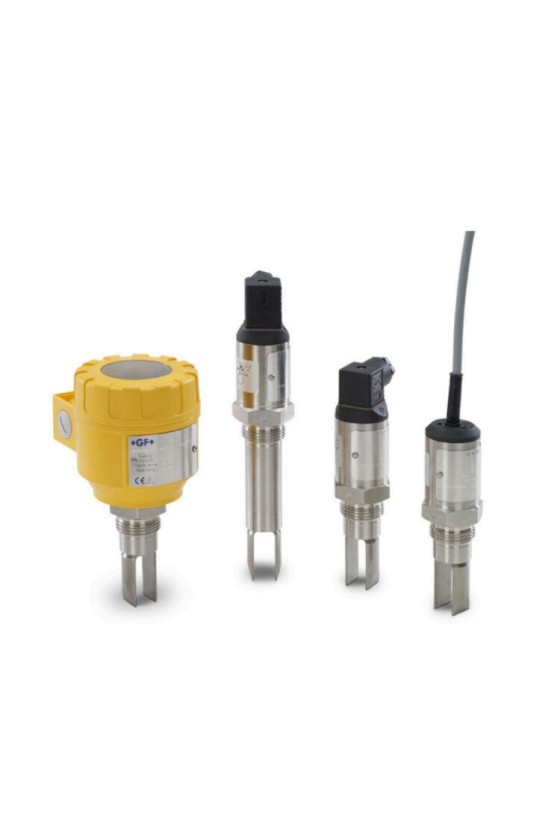

Tuning Forks are suitable for level detection of liquids or granular, powdered solids. Mounted on tanks filling/emptying can be controlled using these devices just as well they can generate fail-safe alarms providing overfill or dry run protection. The operation principle is based on the electronic circuit exciting the fork probe making it vibrate. As the medium reaches and covers the fork its vibration changes. The electronics senses the change of vibration and gives output signal after a selected delay.

Maintenance free vibrating principle

Independent of the liquid conductivity, dielectric constant, viscosity, pressure and temperature

Relay or electronic output

Temperatures up to 130 degrees

ATEX and WHG approvals

This level switch, with its reduced overall dimensions and simplicity of installation, offers a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. The standard version is for installation from inside the tank, on request, execution with possibility of mounting from outside the tank are available.

Standard item side mounting position

N.1 reed switch contact NA/NC/SPDT

Maximum working pressure 30 Bar

Maximum working temperature 110°C

IP65 protection

The Mouse 250 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.

Maximum depth of 250mm

Single or double function

Up to 50°C

Ideal for narrow spaces

This universal signal processor was designed as interface for continuous level sensors with potentiometric output (LC series). Subsequently evolved until the current version that can be interfaced with any sensor or signal transmitter. This electronic unit handles standard industrial signals 0-5V, 0-10V, 0-20mA, 4-20mA, frequency and potentiometers.

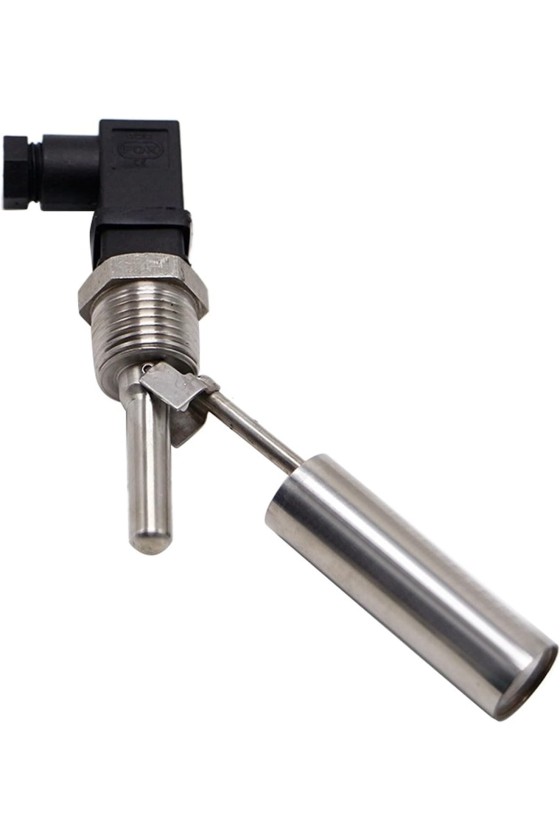

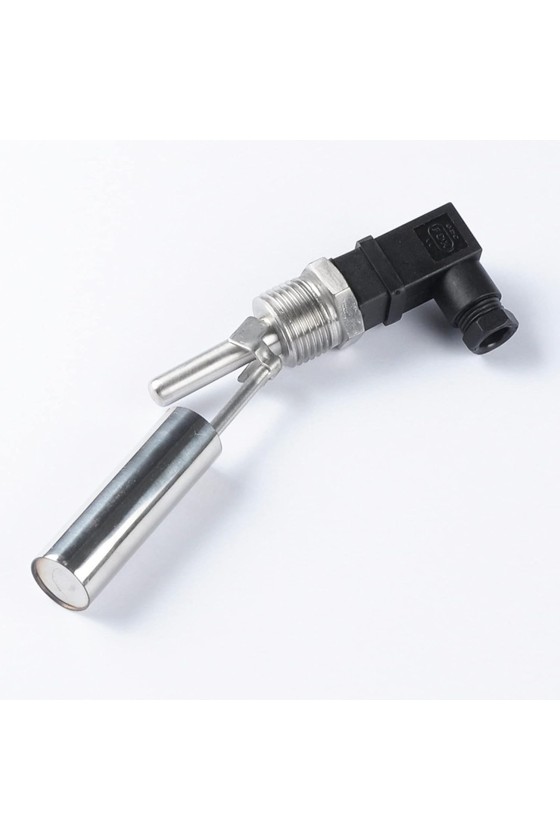

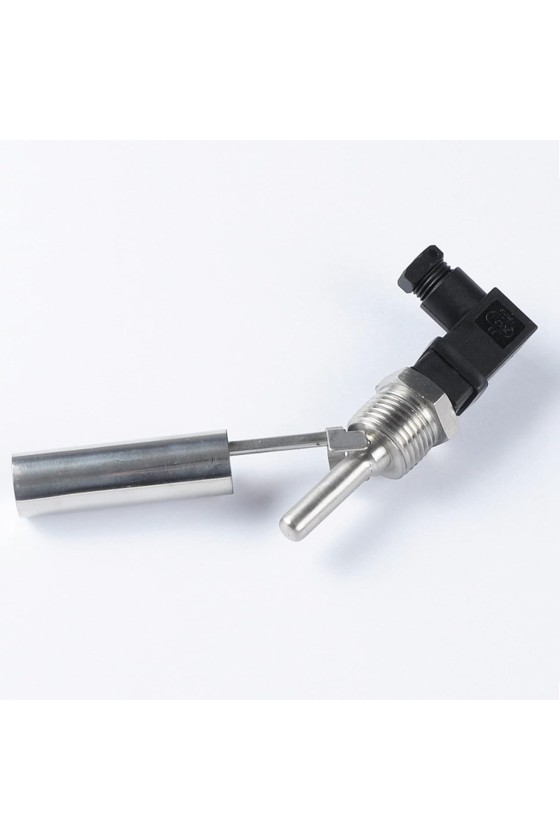

Side Mount Float Switch - Stainless Steel 304

Type of Reed Pipe: 2A1
Maximum power:   50VA
Maximum switching voltage: 220 V AC or DC
Maximum switching current: 1.5A
Maximum breakdown voltage: 300 V AC or DC
Maximum load current: 3A
Maximum contactor resistance: 100 ohm
Ambient temperature range: -30-125 Celsius
Liquid temperature range: -30-125 Celsius
Colour: silver Material: stainless steel Size: 150mm

The Mouse 500 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.

Maximum depth of 500m

Single or double function

Up to 50°C

Ideal for narrow spaces

Magnetostrictive continuous level transmitters base their operation on the physical principle called Wiedemann effect and it allows continuous and precise measurement of liquid levels. The electronic unit sends a pulse within a waveguide contained in the measuring rod; the magnetic float intercepts the pulse generating an echo that is detected by the same electronic unit. The elapsing time between the emission of the pulse and its recognition is directly proportional to the position of the float, and then to the value of the level to be measured.

Brass - Spansil

2 analog outputs, current and voltage

RS485 serial output, Valco protocol

Up to 2, 9 m length

Working pressure up to 20 bar

A wide range of standard units that, for variety of materials and dimensions, offers to the user a simple and economical solution for the control of liquid levels. The units are available with connection cable in lengths of 1.5 m and 3.0 m, other lengths are available on request
Materials, Brass, ST. Steel, PVC, PPL, PVDF
1/8″-3/8″ process connection
Max pressure up to 50 bar (see data sheet)
Max temperature 130°C (see data sheet)
Reed switch SPST or SPDT

The Mouse 10000 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.

Maximum depth of 10m

Single or double function

Up to 50°C

Ideal for narrow spaces
